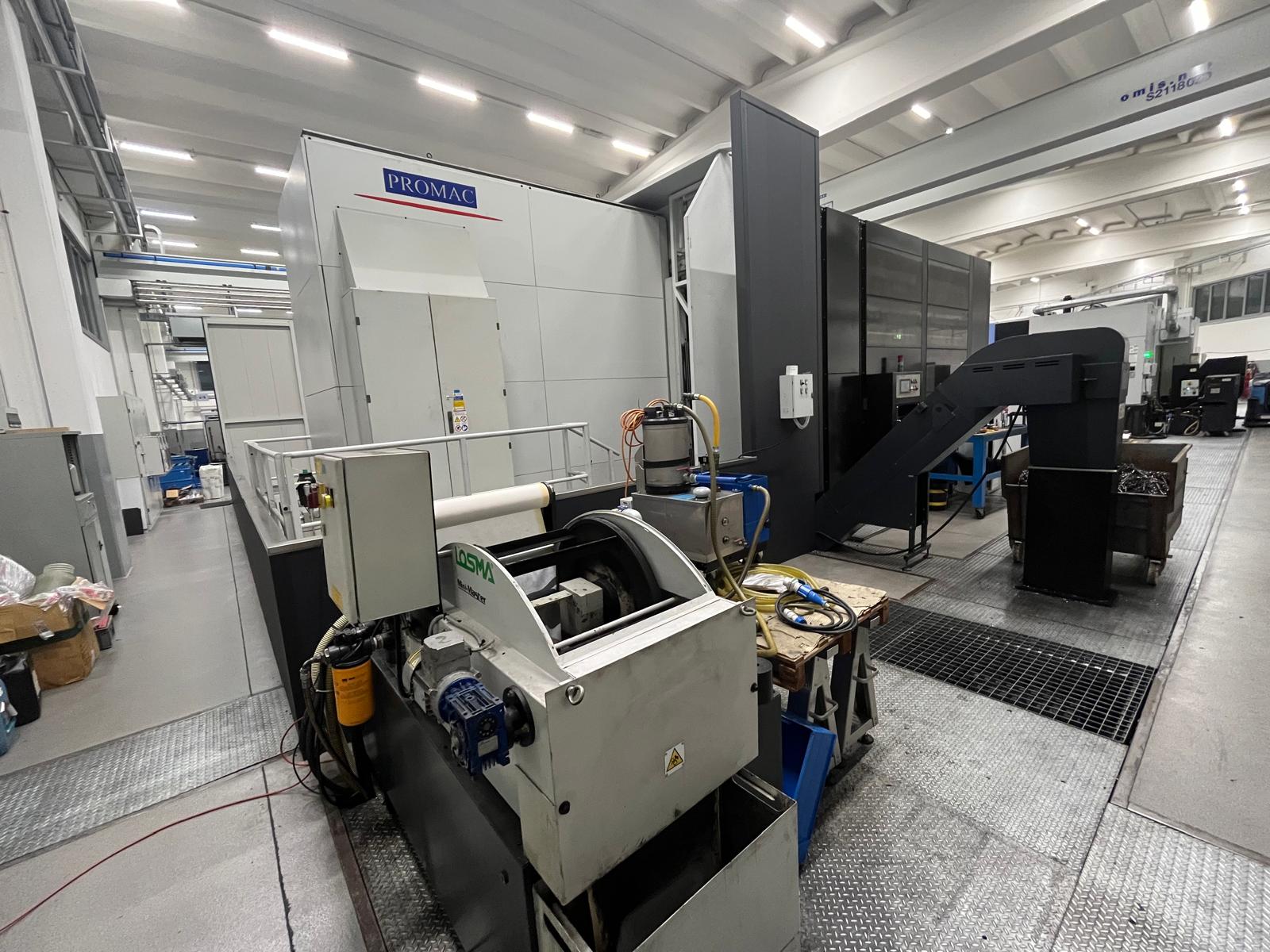

PROMAC ETESIAN HMC 6.0 MACHINING CENTER

Floor type

milling cnc - Used Machines

PROMAC
10083

WITH MOVING COLUMN AND ROTARY TABLE

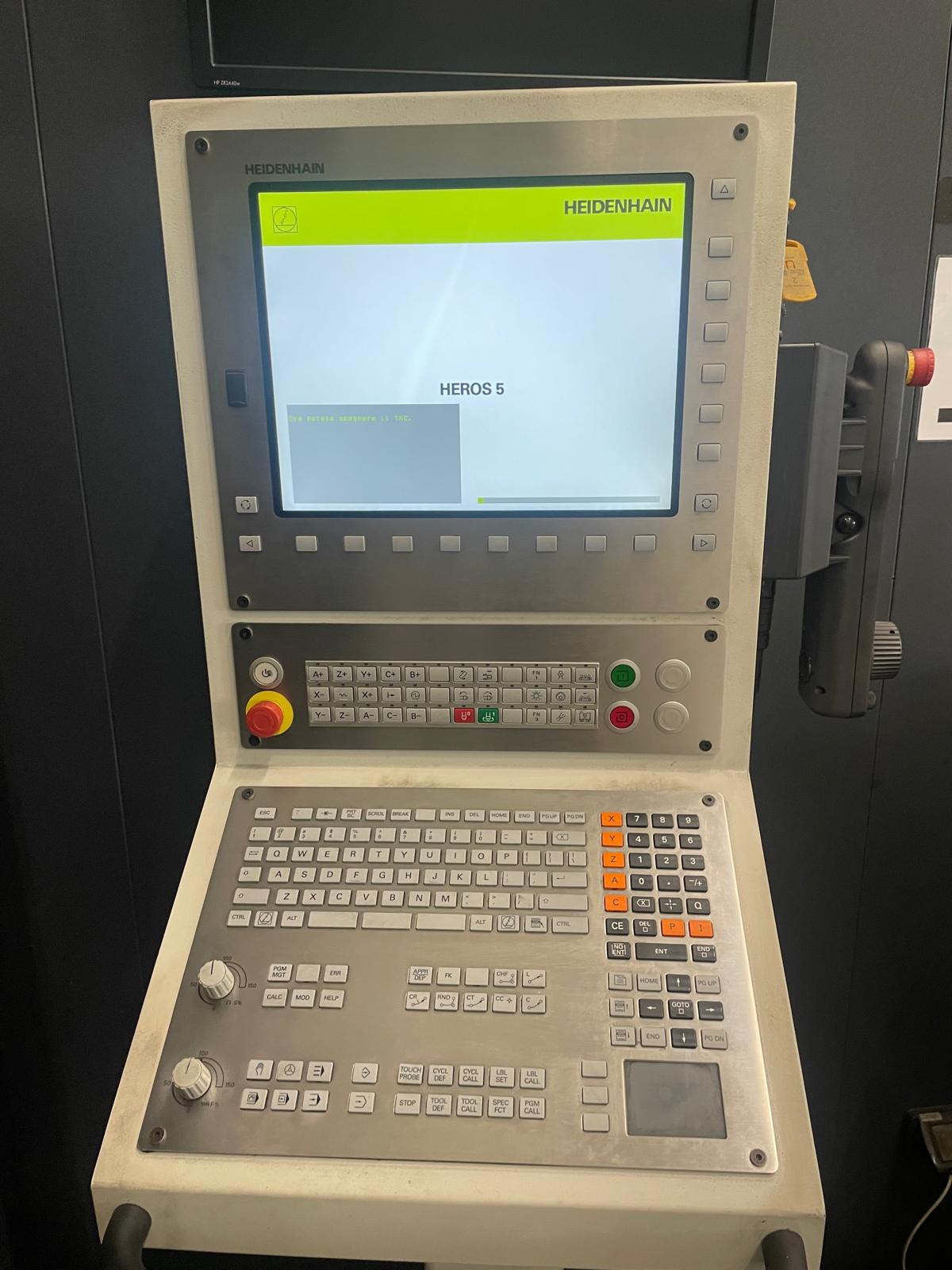

Numerical control Heidenhain iTNC530 - HSCI
X-axis travel 6.000 mm
Y-axis travel 2.000 mm
Z-axis travel 1.200 mm
Rapid feed 30 m/min
Working feed 20 m/min

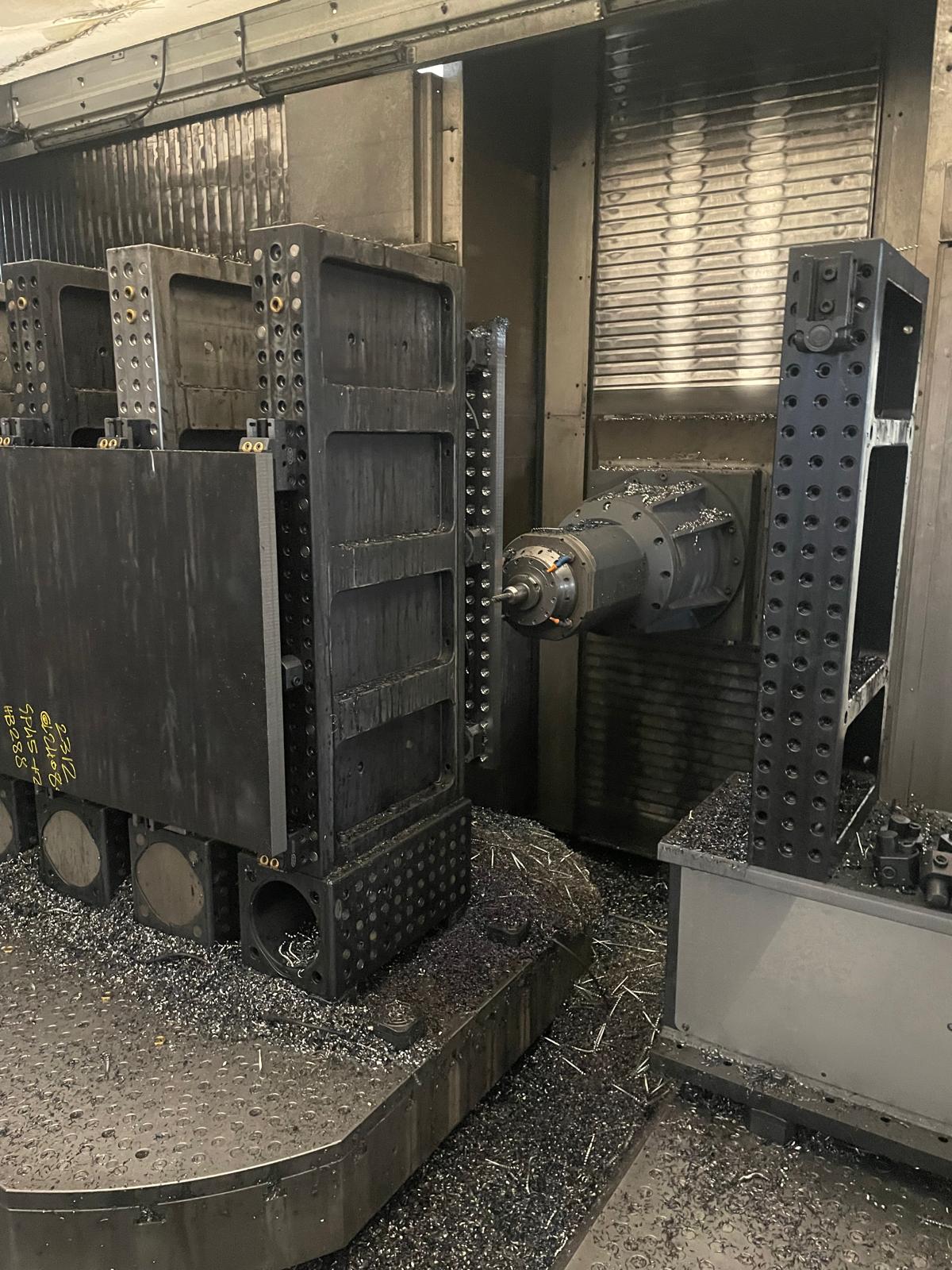

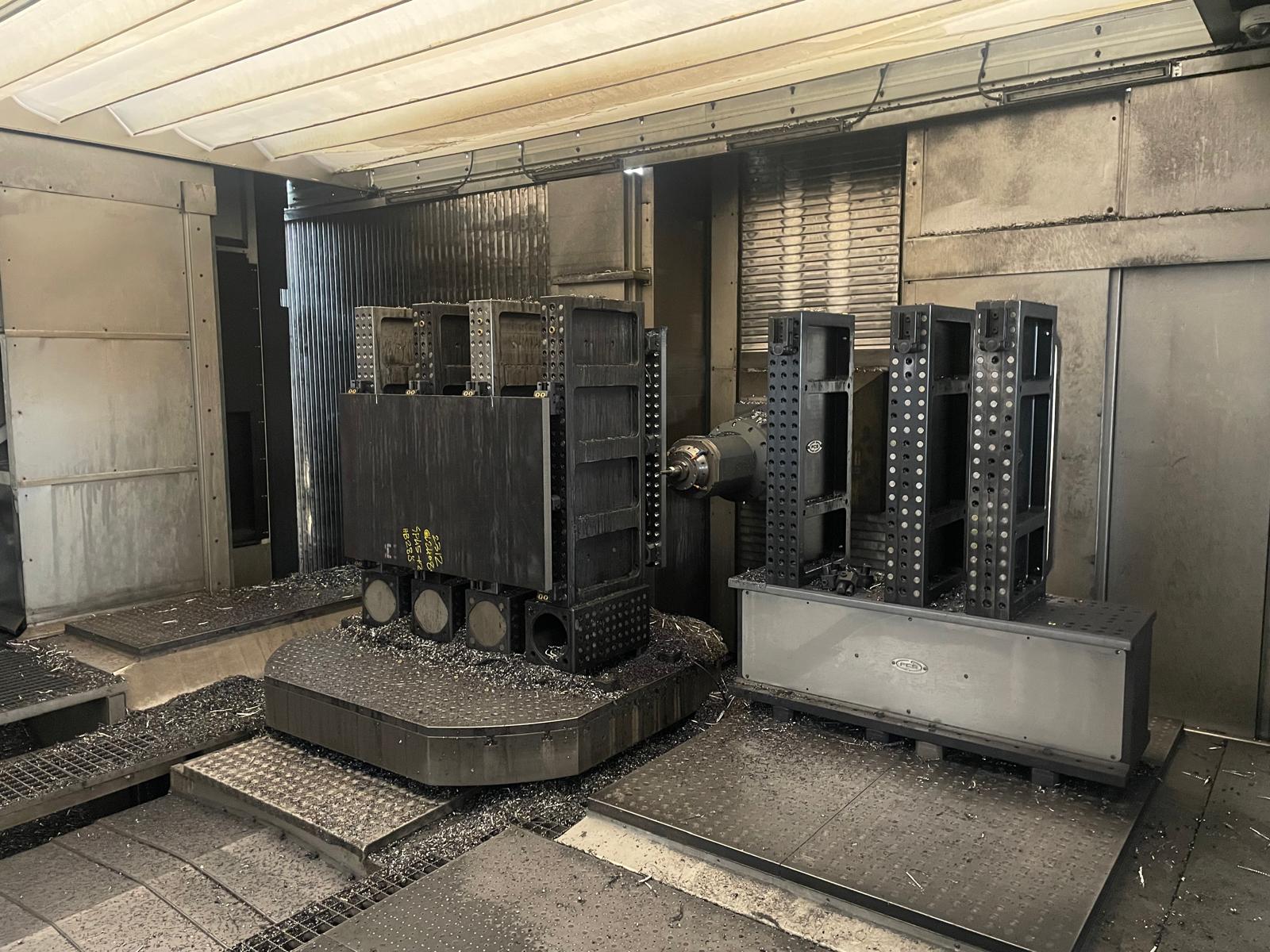

Rotary-tilting table (B-axis)
Table size 2.000 x 2.000 mm
Load capacity 25.000 Kg
Rotation speed 5 rpm

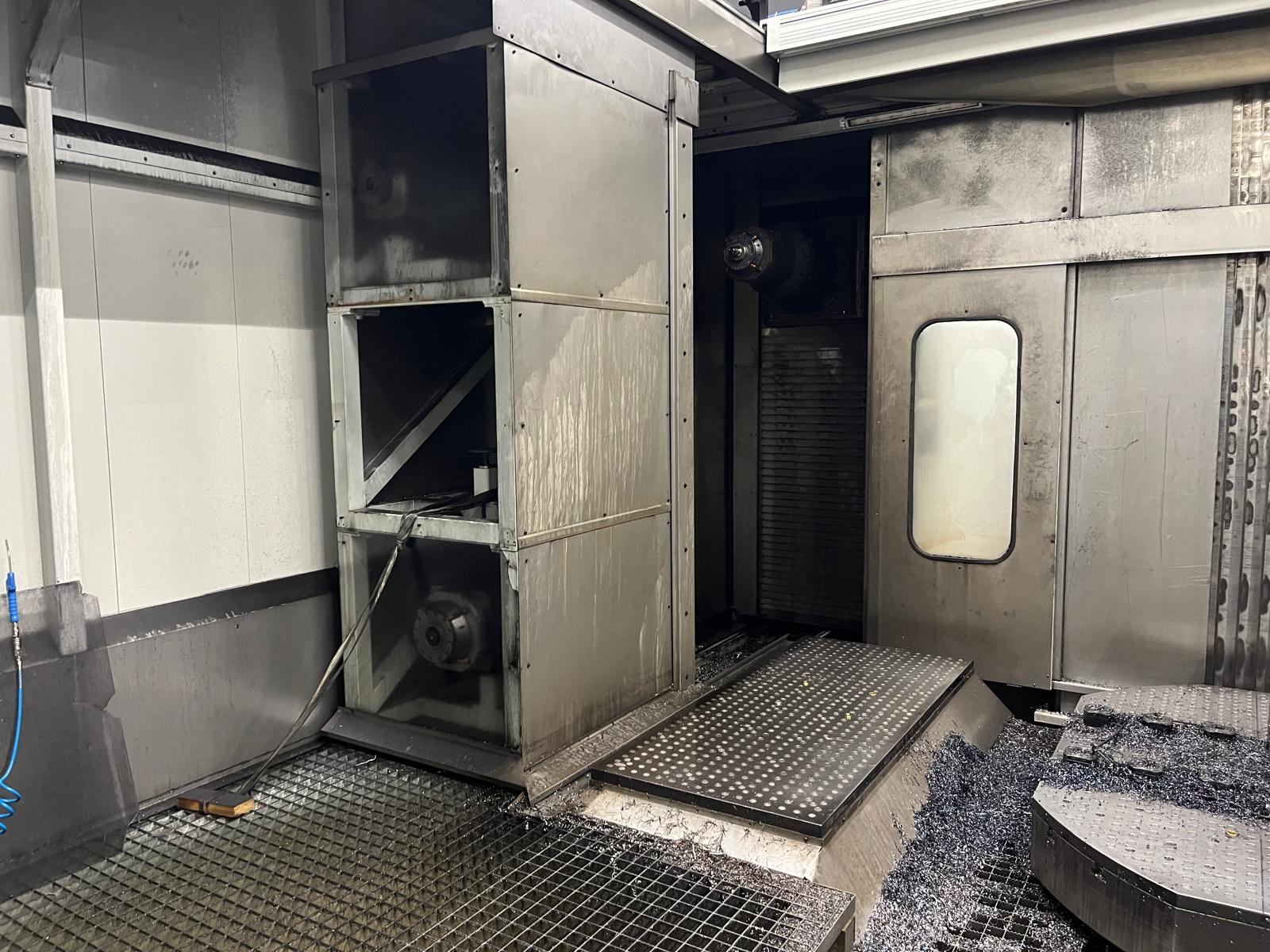

No. 02 fixed tables
Table 1 size 850 x 2.000 mm
Table 2 size 1.500 x 2.000 mm
Load capacity per table 15.000 Kg

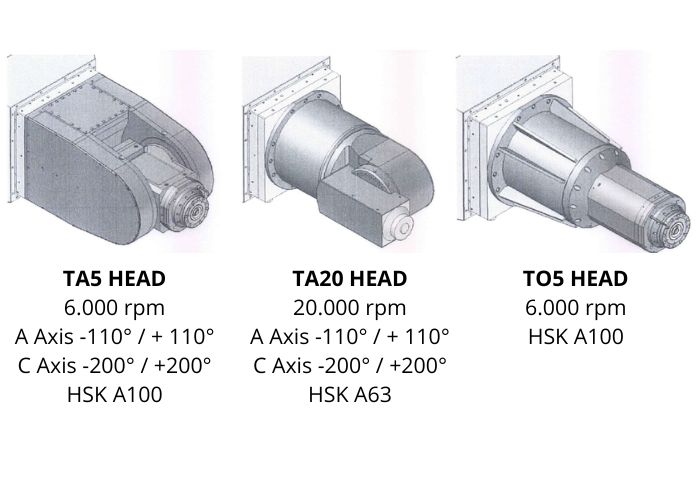

Automatic orthogonal head (TA5 HEAD)
A-axis +110° / -110°
C-axis +200° / -200°
Spindle motor 45 kW
Spindle speed 6.000 rpm
Automatic rotary orthogonal head (TA20 HEAD)
A-axis +110° / -110°
C-axis +200° / -200°
Spindle motor 30 kW
Spindle speed 20.000 rpm
Tool taper HSK A 63
Fixed horizontal head (TO5 HEAD)
Spindle motor 45 kW
Spindle speed 6.000 rpm
Tool taper HSK A 100

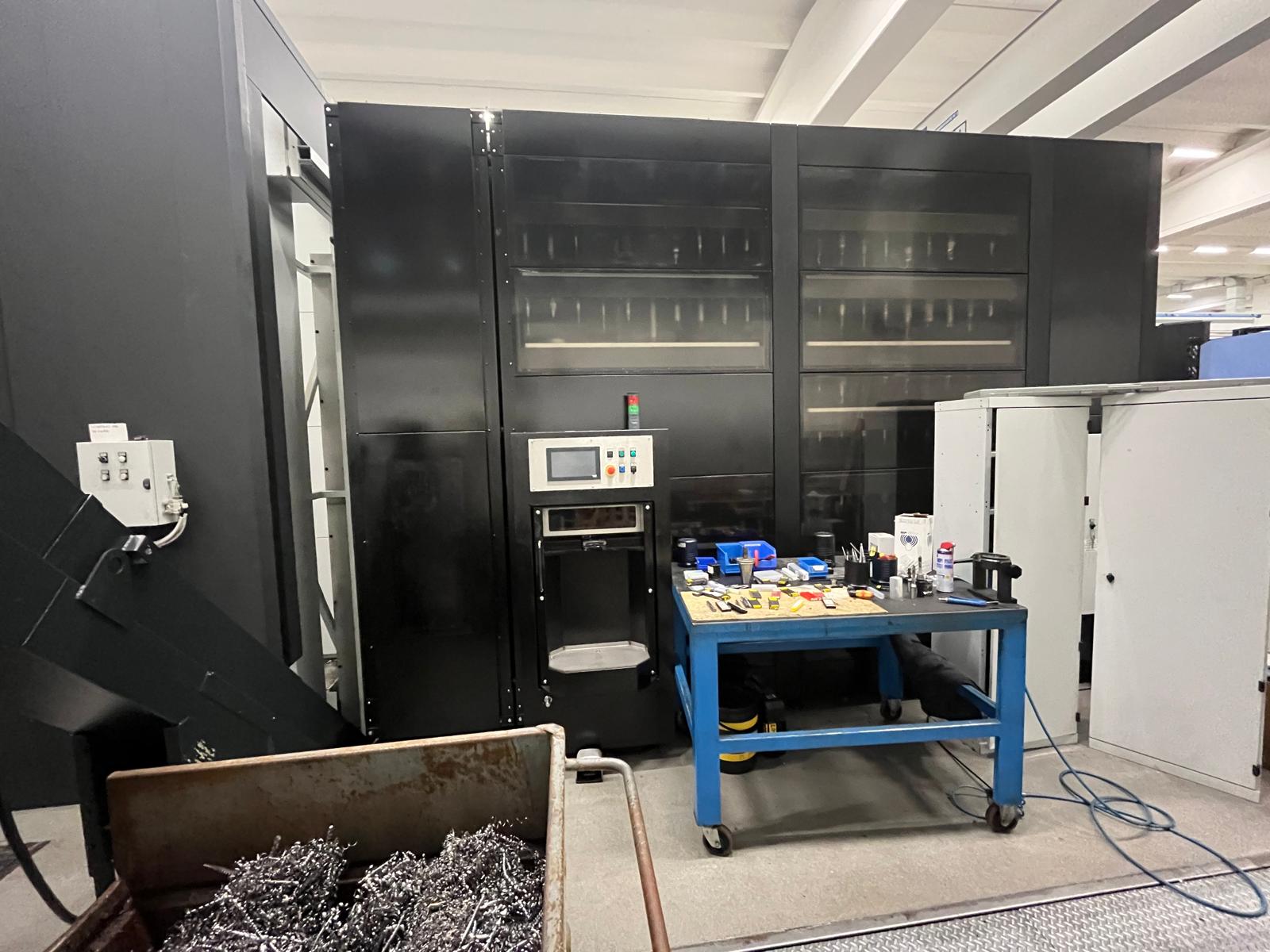

Tool changer with 214 positions HSK A100 / HSK A63

Complete with:
- 3 position head changer magazine
- No. 02 numerical controls
- Automatic head change setup
- Optical scales
- Wireless portable electronic handwheel HR 550 multifunction

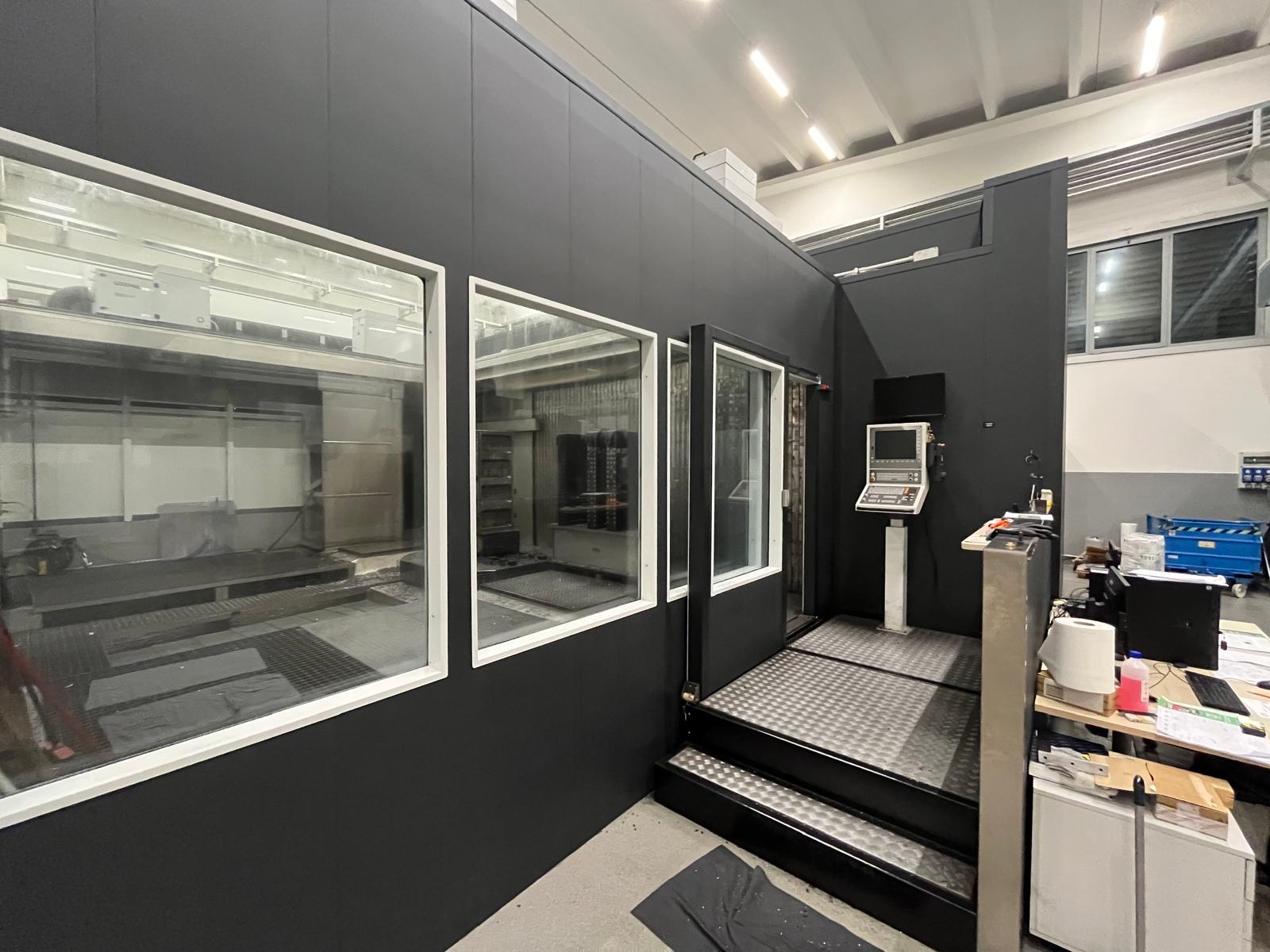

- Full operator protection enclosure on board machine
- High-pressure through-spindle coolant 40 bar
- Swarf conveyor
- Tool cleaning system with 6 bar compressed air
- Laser tool presetting system
- Part alignment probing system

USED MACHINE
