CNC MILLING FPT RONIN
Floor type
milling cnc - Used Machines
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
FPT
10133
10133

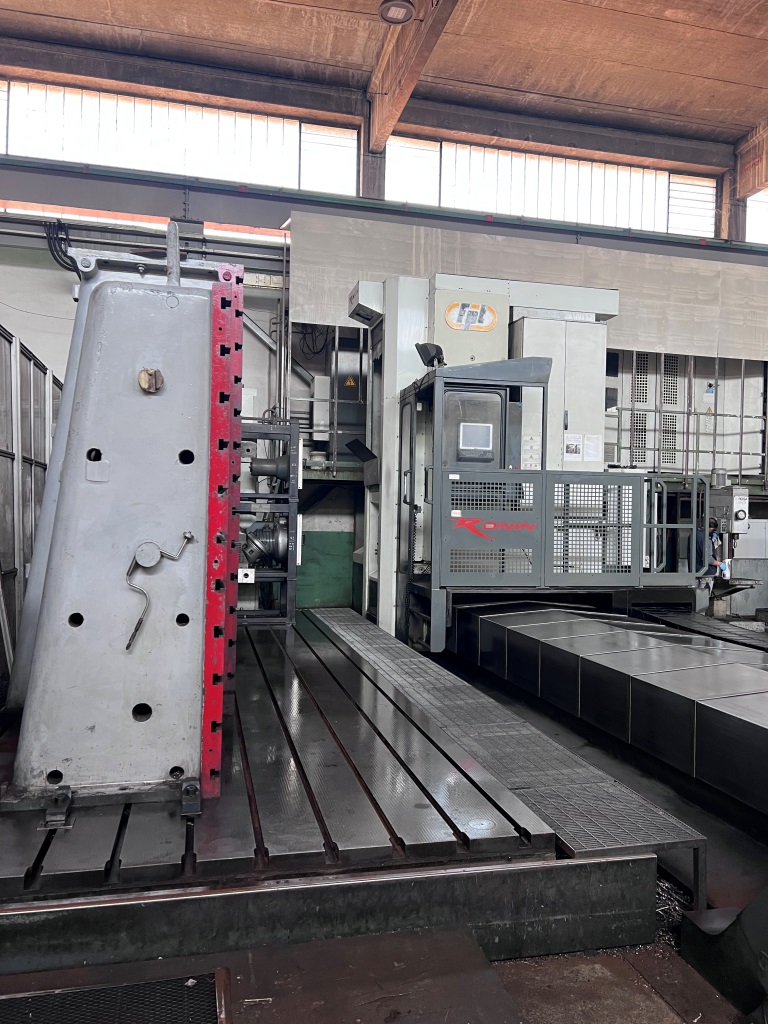

FLOOR TYPE MILLING MACHINE FPT mod. RONIN M60

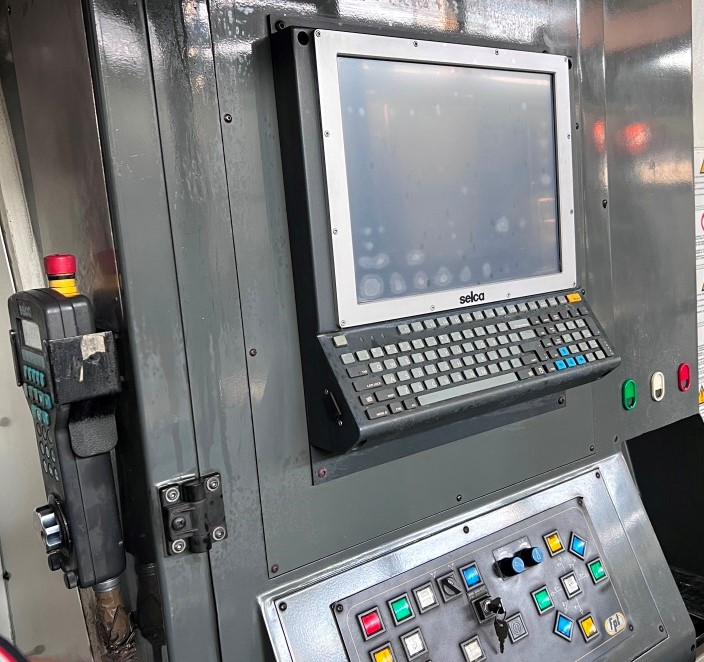

Numerical control SELCA 4045
X-axis mm 6.000
Y-axis mm 1.250
Z-axis mm 2.000
Rapid feed rate mm/min 30.000
Working feed rate mm/min 15.000

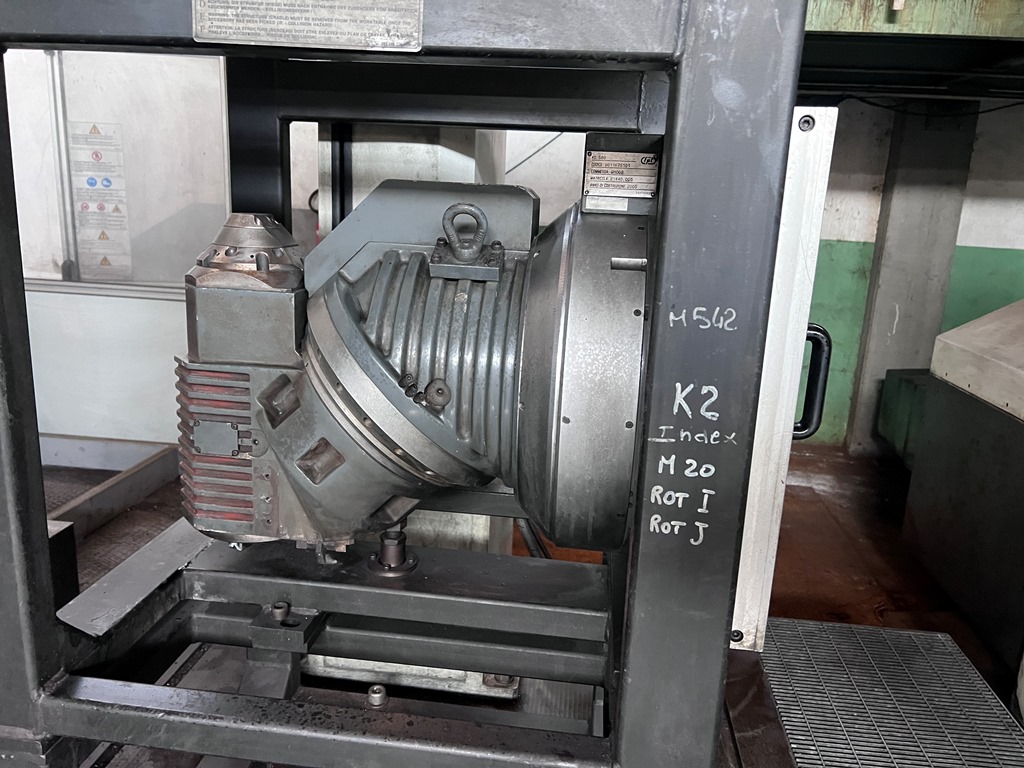

Automatic continuous bi-rotary head
Spindle taper ISO 50
Max speed 5.000 rpm

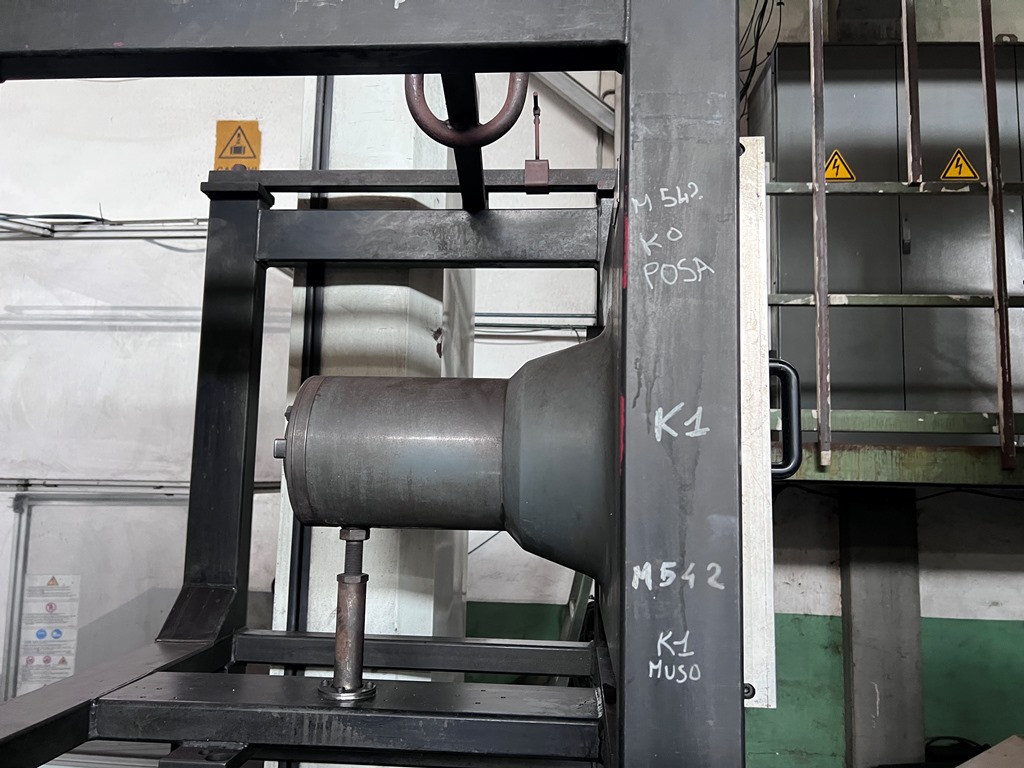

Spindle extension head
Spindle taper ISO 50
Max speed 7.500 rpm
Table mm 7.000 x 2.500

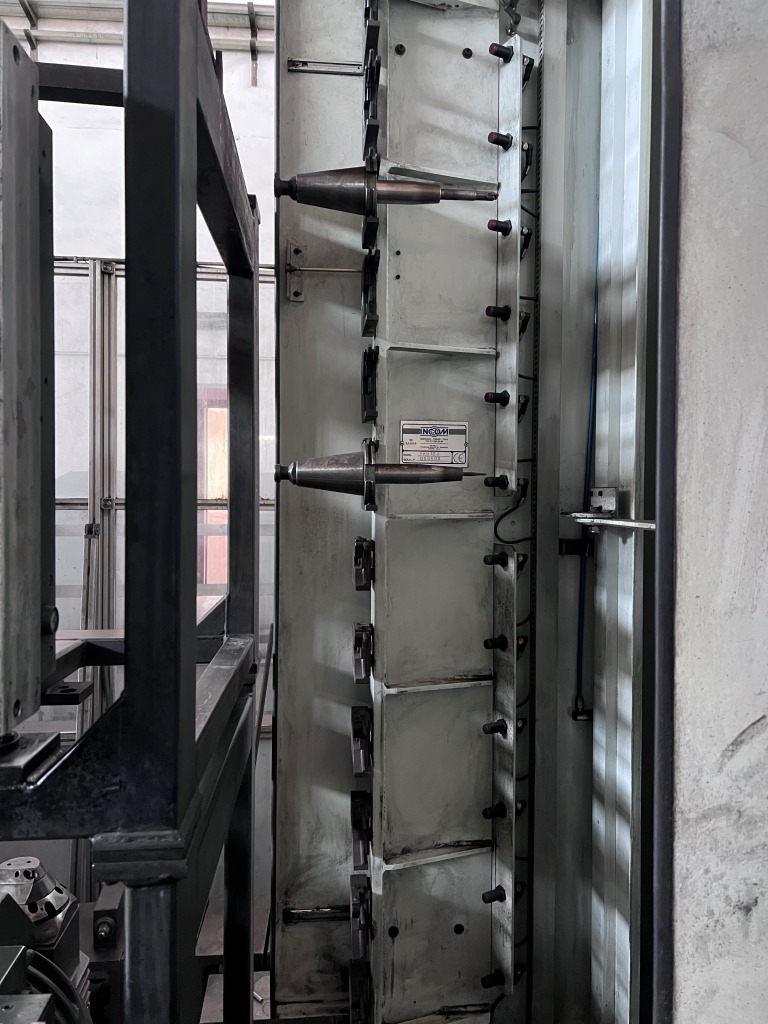

Tool changer 12 positions
Total installed power 74.4 kW
Complete with:
- No. 03 position head magazine

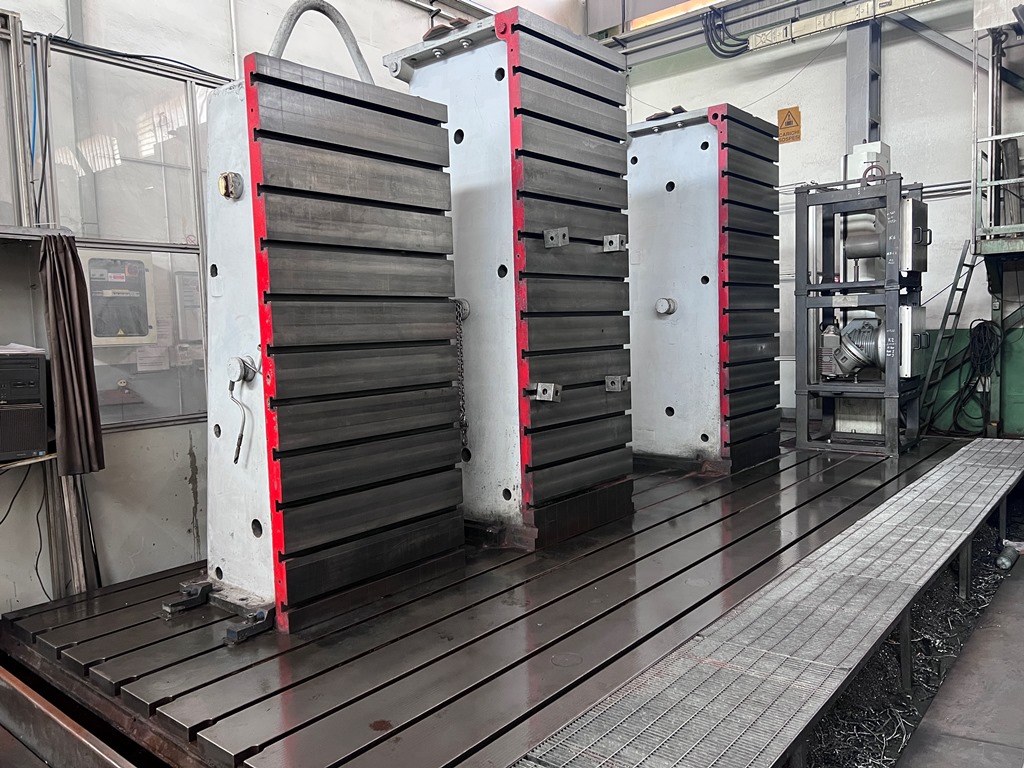

- No. 03 angle plates 2.500 x 1.000 x 1.000
- Cheep conveyor
USED MACHINE
IMAGES:
