MILLING NOVAR 1200 K TO CN
Knee type
milling cnc - Used Machines
NOVAR
06620
06620

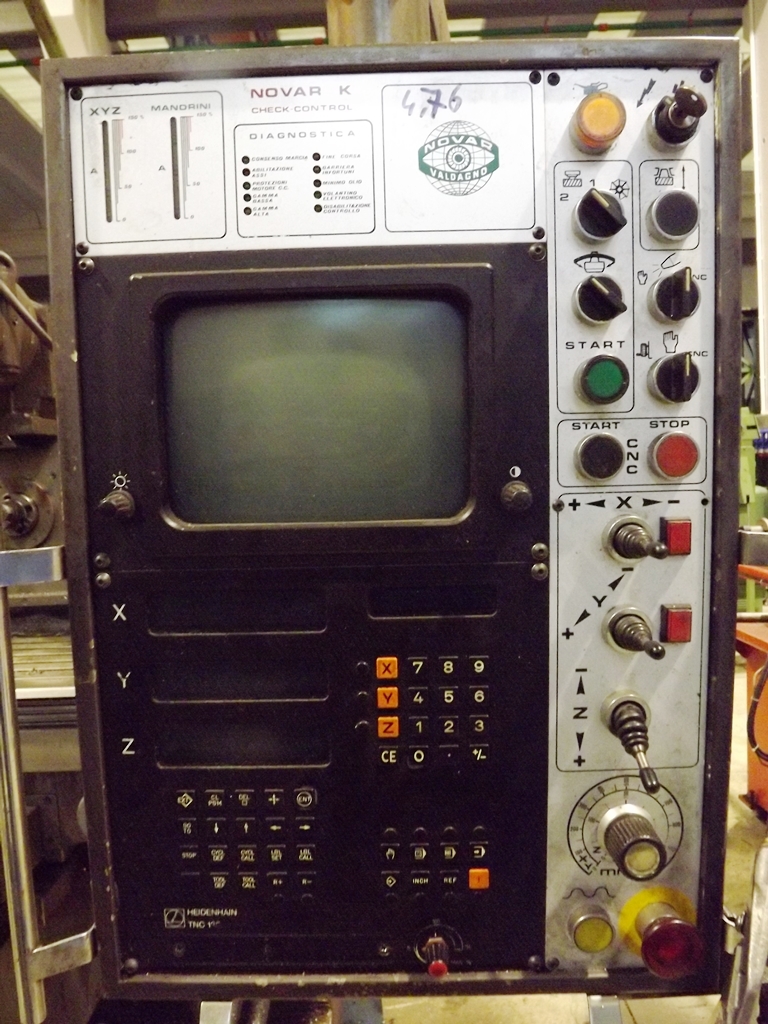

CNC Heidenhain TNC 135
TABLE:
Working surface mm 1200x280
T-slots n.5
T-slots width mm 14
STROKES:
Longitudinal (man./aut.) mm 950/930
Cross (man./aut.) mm 310/290
Vertical (man./aut.) mm 460/440
SPINDLE:
Taper ISO 40
Distance between spindle/table mm 0:450
Distance between spindle nose/slideway mm 132
Speed spindle rpm 38:1600
MOTORS:
Spindle motor HP 5,5
MACHINE DATA:
Weight Kg 2200
Dimensions mm 2000x1800x2060
EQUIPPED WITH:
Bi-rotary head ISO 40
USED MACHINE
IMAGES:
