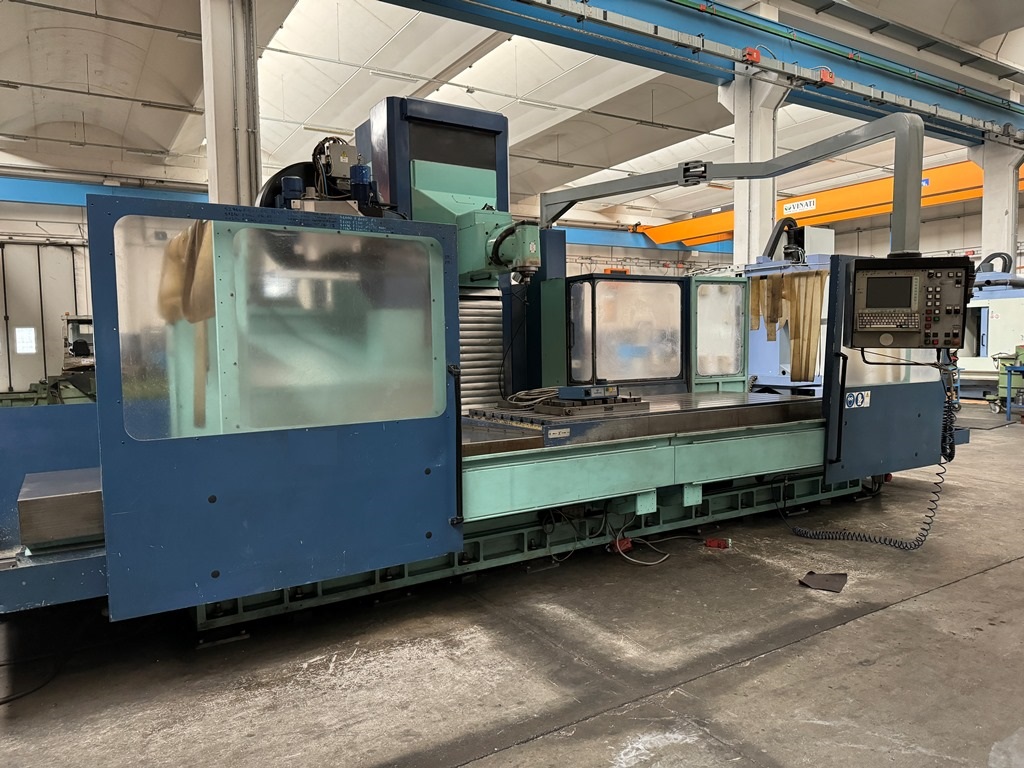

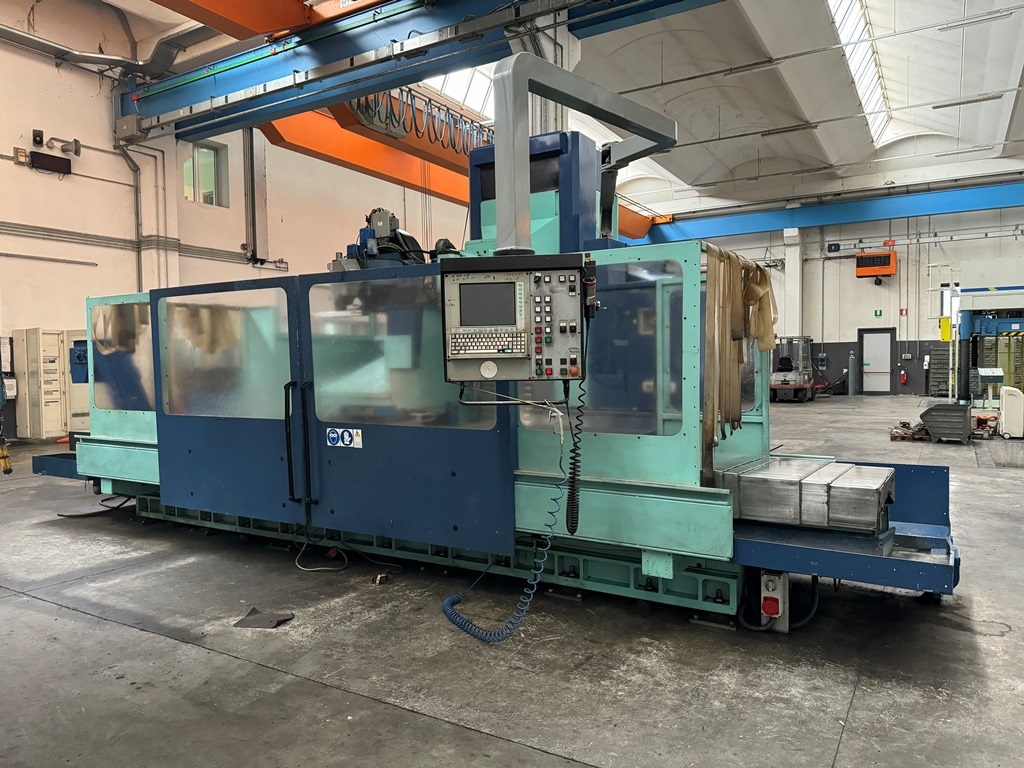

MILLING SACHMAN MOD. T22
Bed type
09664
BED TYPE
CNC SELCA 3045
STROKES:
X axis longitudinal stroke 2500 mm
Y axis transversal stroke 1400 mm
Z axis vertical stroke 1200 mm
TABLE:
Dimensions 2700x1100 mm
T-slots 22 H7 N.8 (1100)
Max loadable weight 10,000 kg

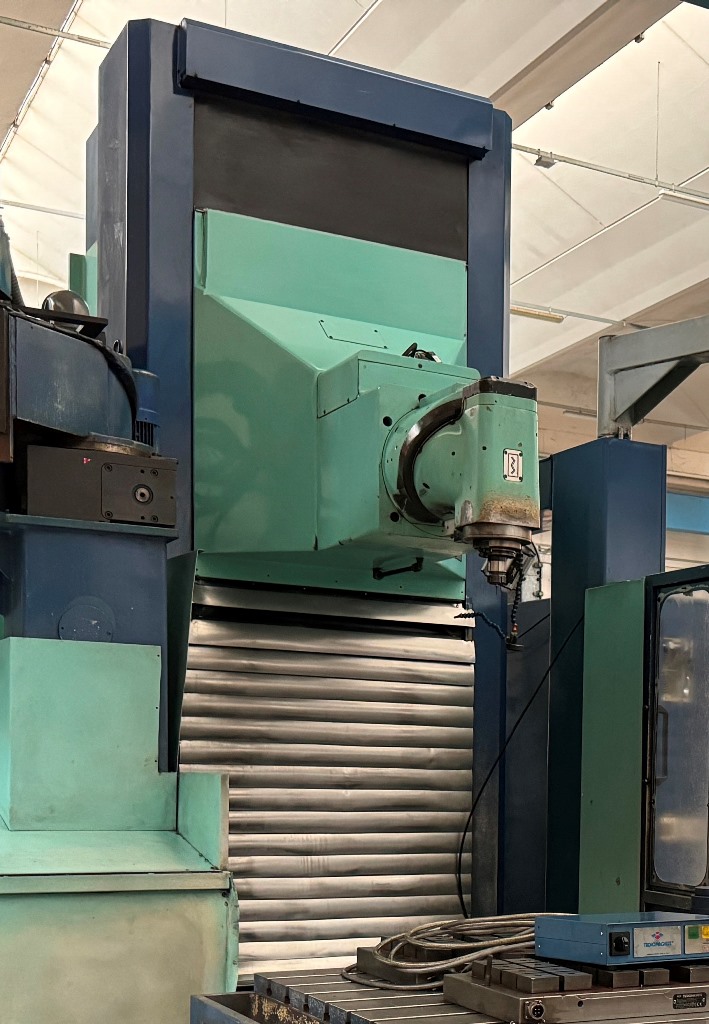

SPINDLE:
Power kW 24

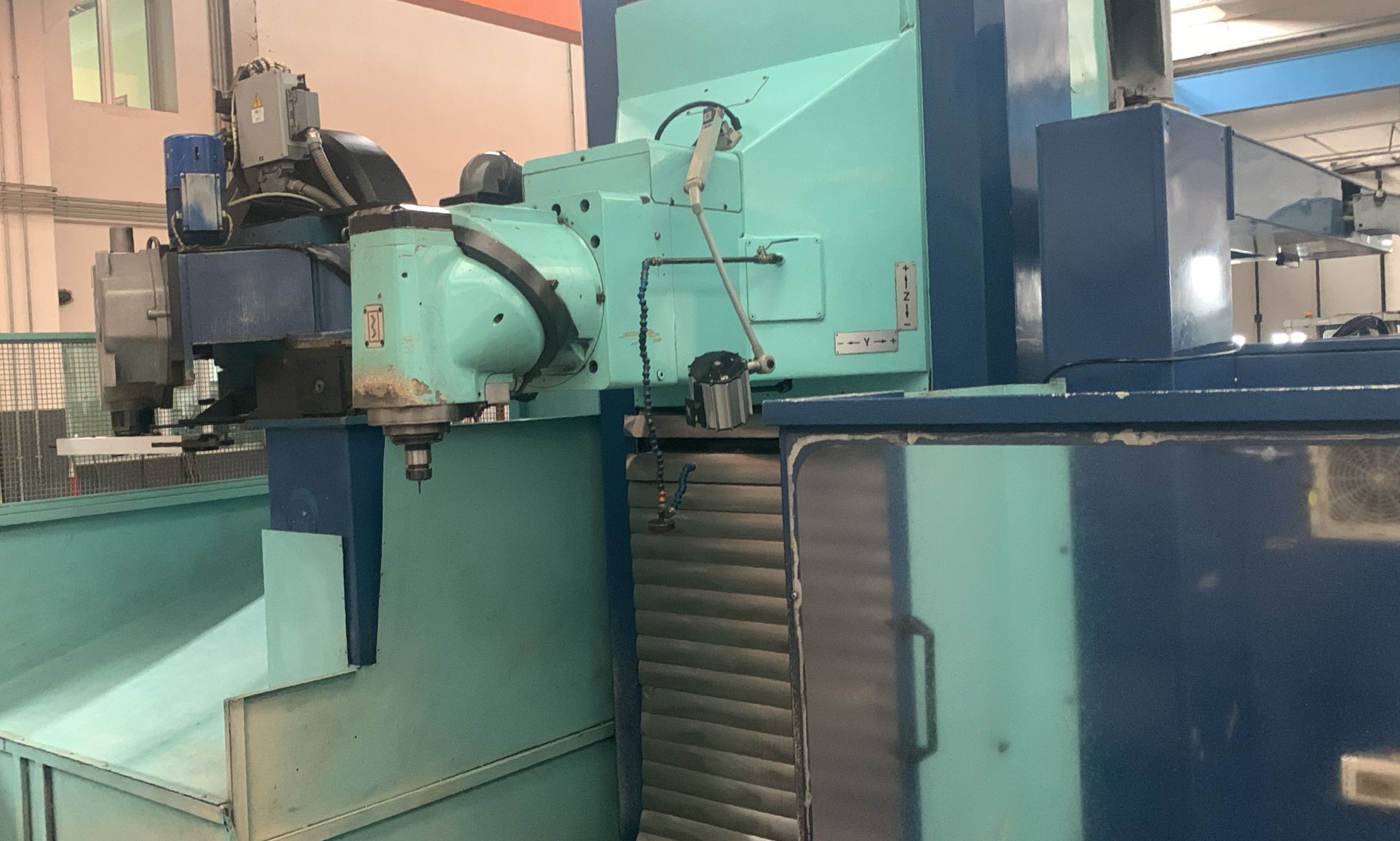

Automatic head Kosmo rpm 4,000
A axis indexing 3°x120
b Axis indexing 2,5°x144
Tool holder DIN 69871 ISO 50
TOOL MAGAZINE:
Automatic tool changer 20 places
Max tool diameter 120 mm
Max tool diameter (with free adjacent places) 200 mm
Max tool length 400 mm
Max tool weight daN 20
GENERAL DATA:
Approx. weight machine daN 18500
Max installed power kW 48
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
