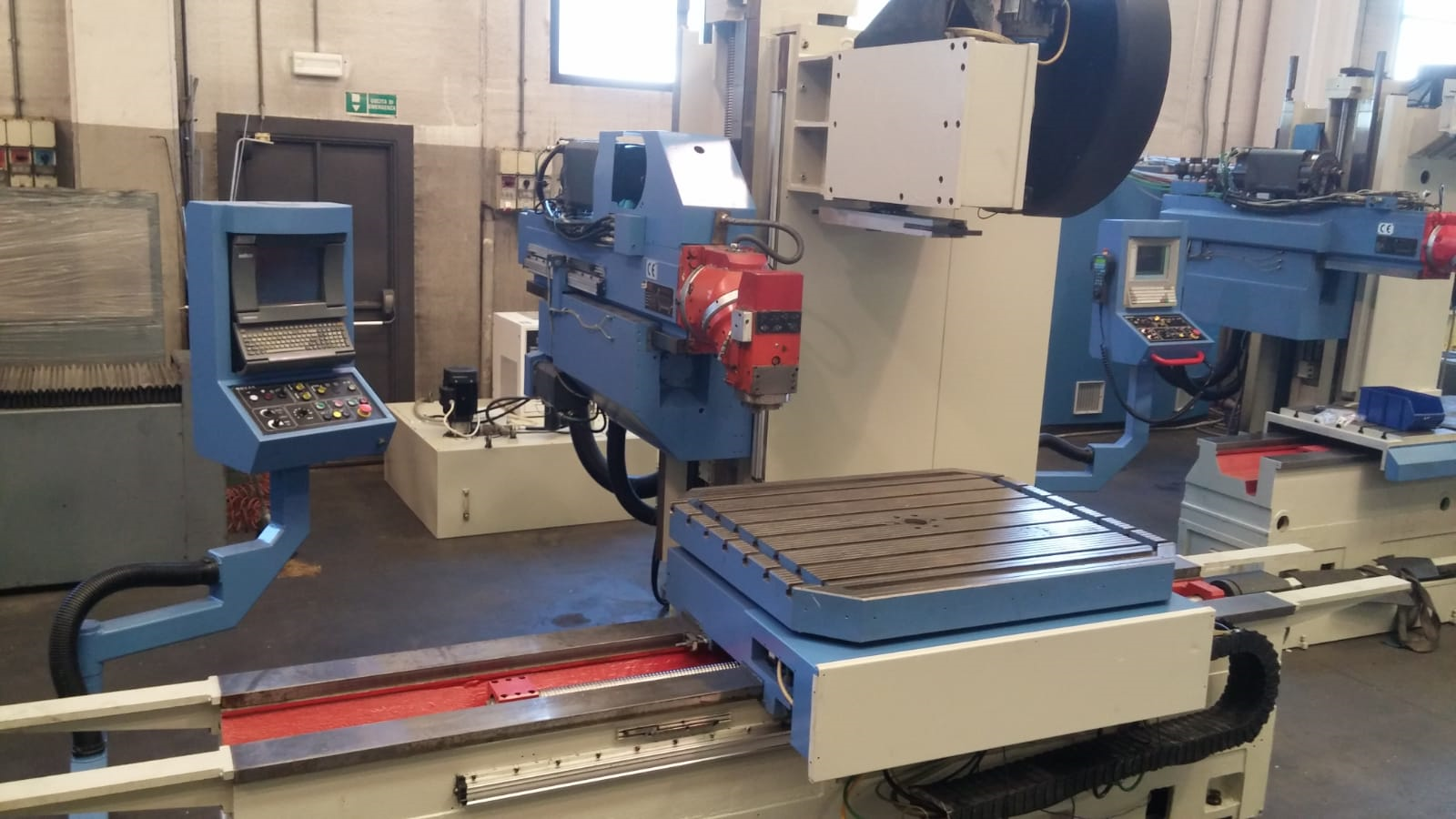

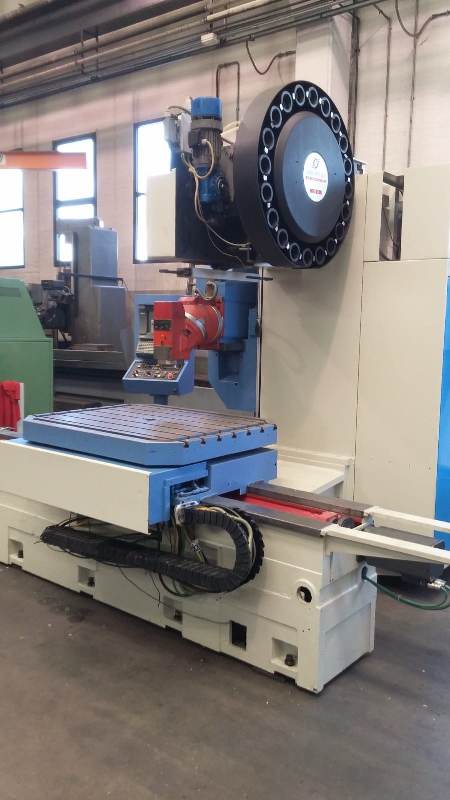

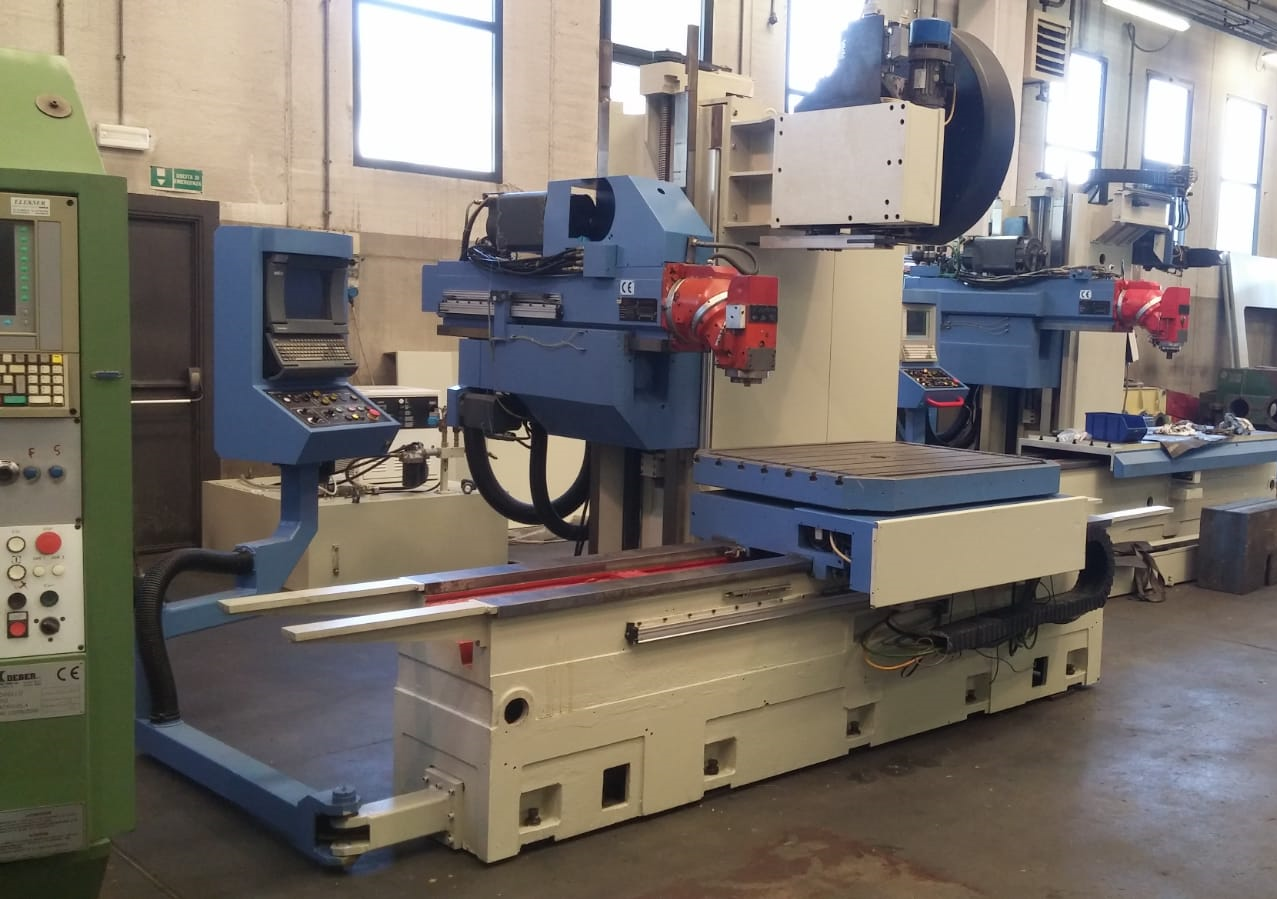

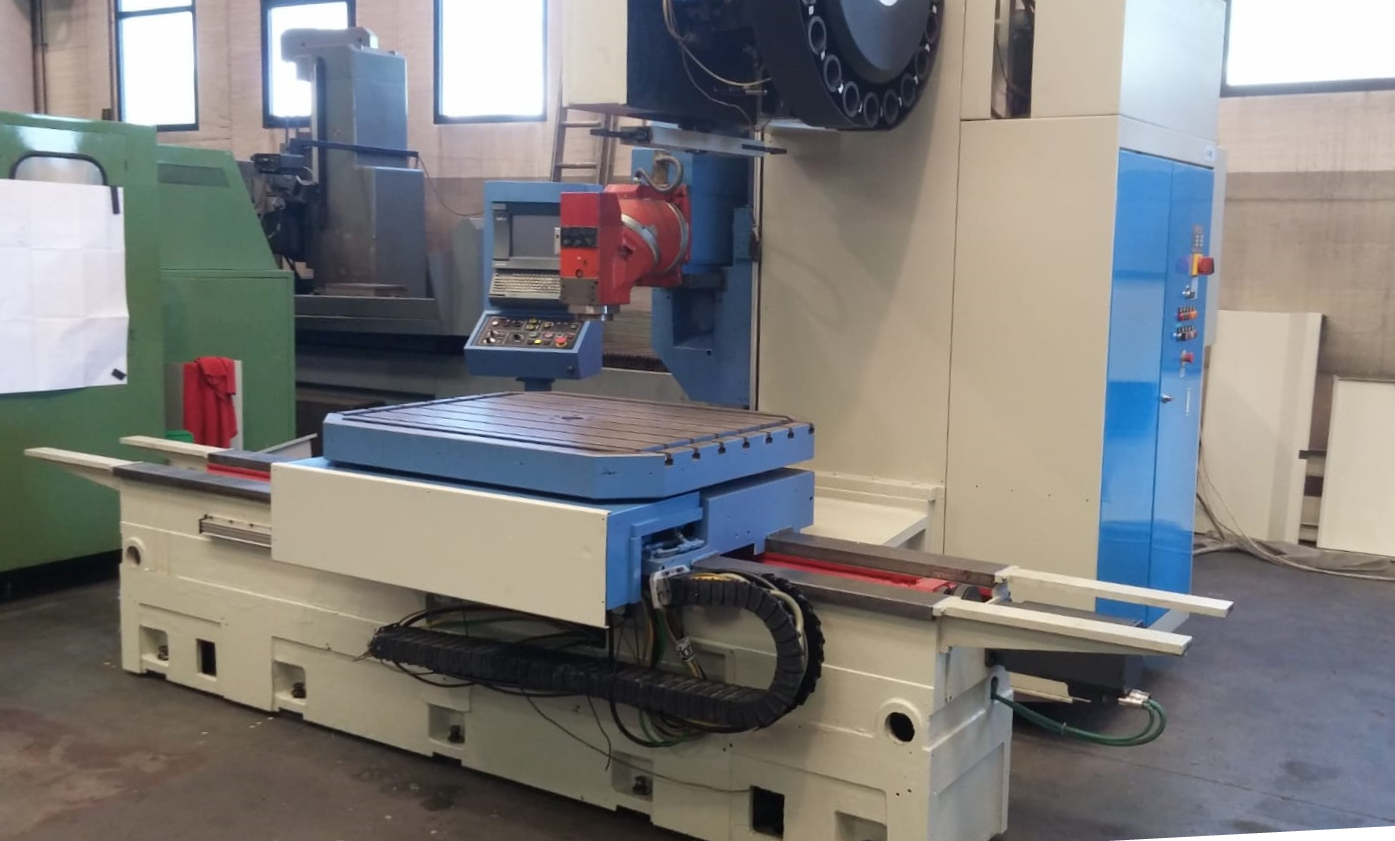

MILLING NOVAR PARTNER 1200
5 axis
milling cnc - Used Machines
NOVAR
08087
08087
ROTARY TABLE
PARTNER RT 1200
CNC Selca S4045PD
Table size mm 1200x1000
Max load Kg 3500
Axis X mm 1500
Axis Y mm 750
Axis Z mm 1100
Spindle speed rpm 3000
Spindle power 12 Kw
Total power input 30 Kw
EQUIPED WITH:
-Rotary table 4th axis
-Automatic head KAR-HIRT (2,5°- 2,5°) ISO 50

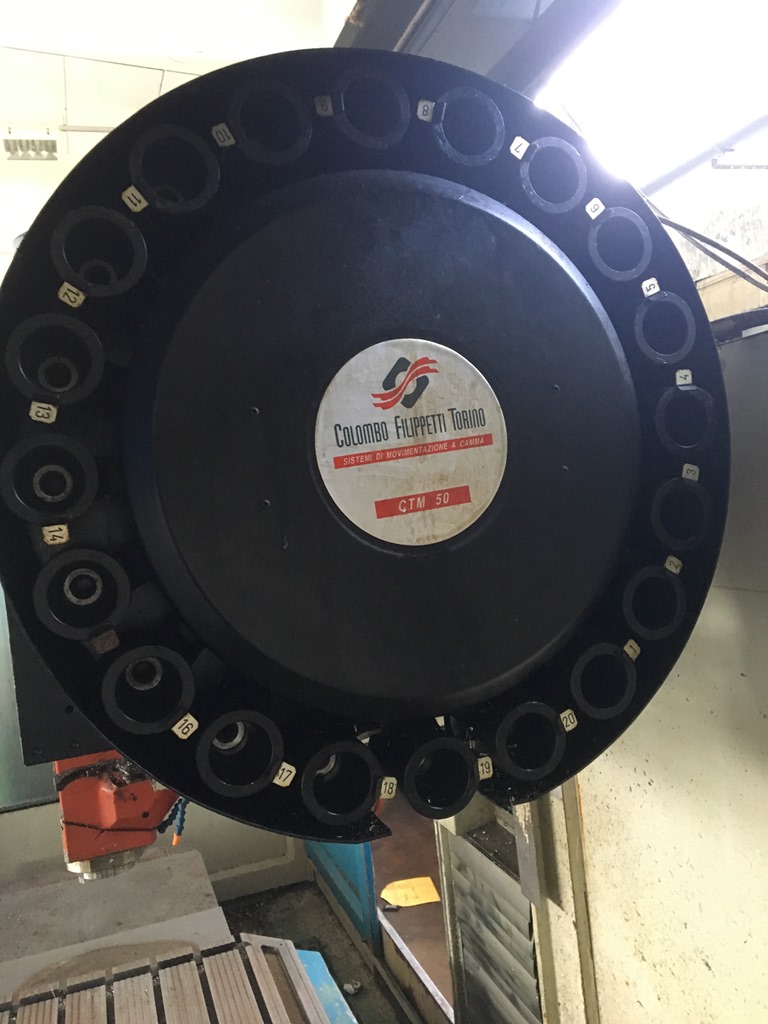

-Chain type tool magazine 20 positions
-Coolant through spindle
-Chip conveyor

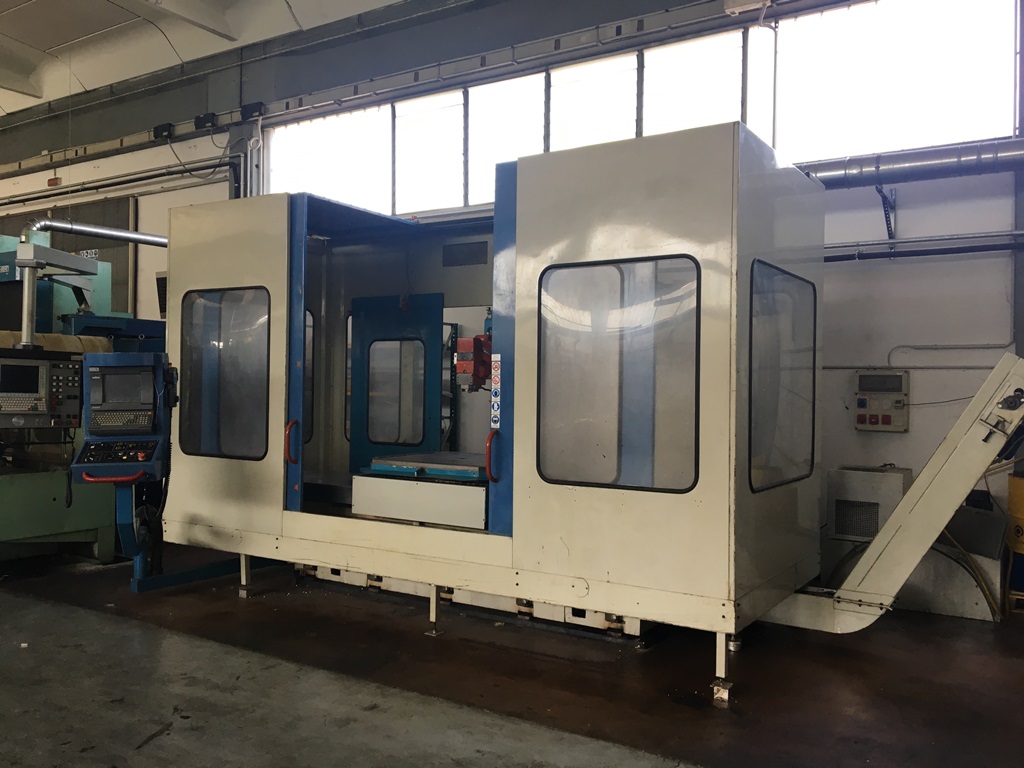

-Full enclosure
-Direct measuring system with Heidenhain linear scales
USED MACHINE RECONDITIONED
IMAGES:
