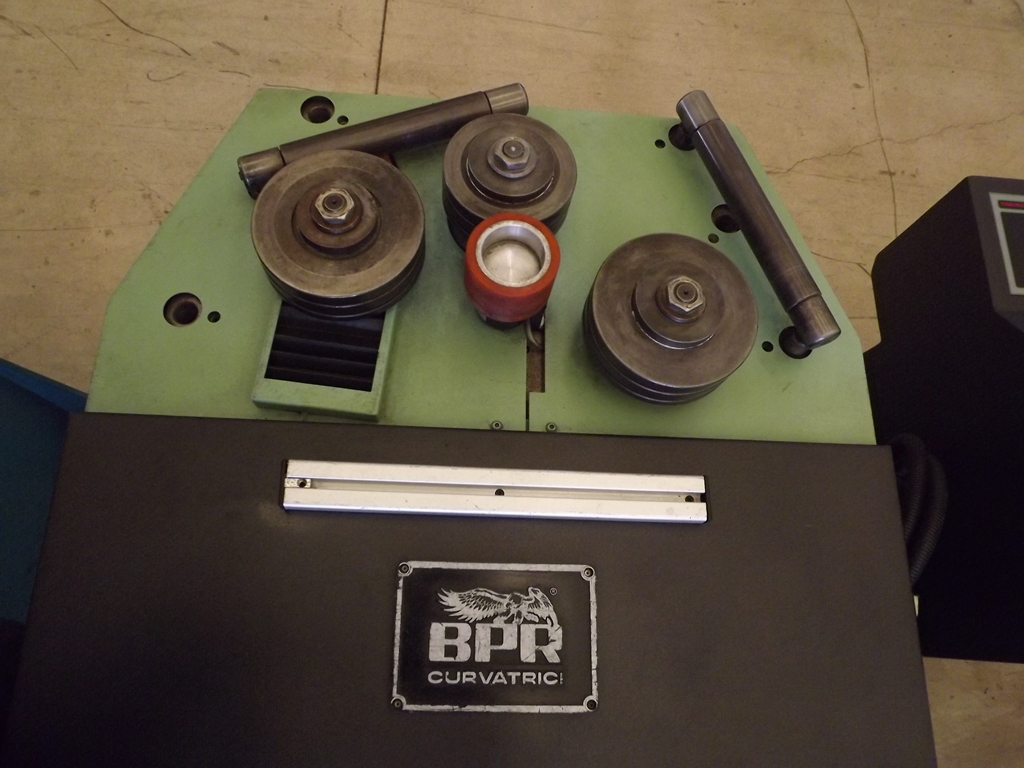

BENDING MACHINE BPR BA35 CNC
Angle bending rolls
sheet metal working - Used Machines
VIDEOS:
BPR
06926
06926
A CNC
Shafts diameter 35 mm
Useful shaft length 60 mm
Driving rollers 3
Max insertion height 95 mm
Working height at the center of the trees 825 mm
Rotation speed rpm 1-30 (at 50 Hz)
Block translation speed mm/sec 0-31
Cylinder bore mm 60
Thrust cylinder Kg 5500
Stem diameter 30 mm
Working pressure bar 190/200
Gear motor kW 1.1 (50 Hz)
Pump motor kW 3 (50 Hz)
Heat exchanger motor kW 0.18 (50 Hz)
Machine weight Kg 425
Control console weight Kg 94
Machine dimensions mm 740x1020x1110 h
Console dimensions mm 570x660x1120 h
USED MACHINE
YEAR 2007
IMAGES:
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
