BENDIG ROLL 3 ROLLS SERTOM
Bending rolls
.jpg)
.jpg)
10075

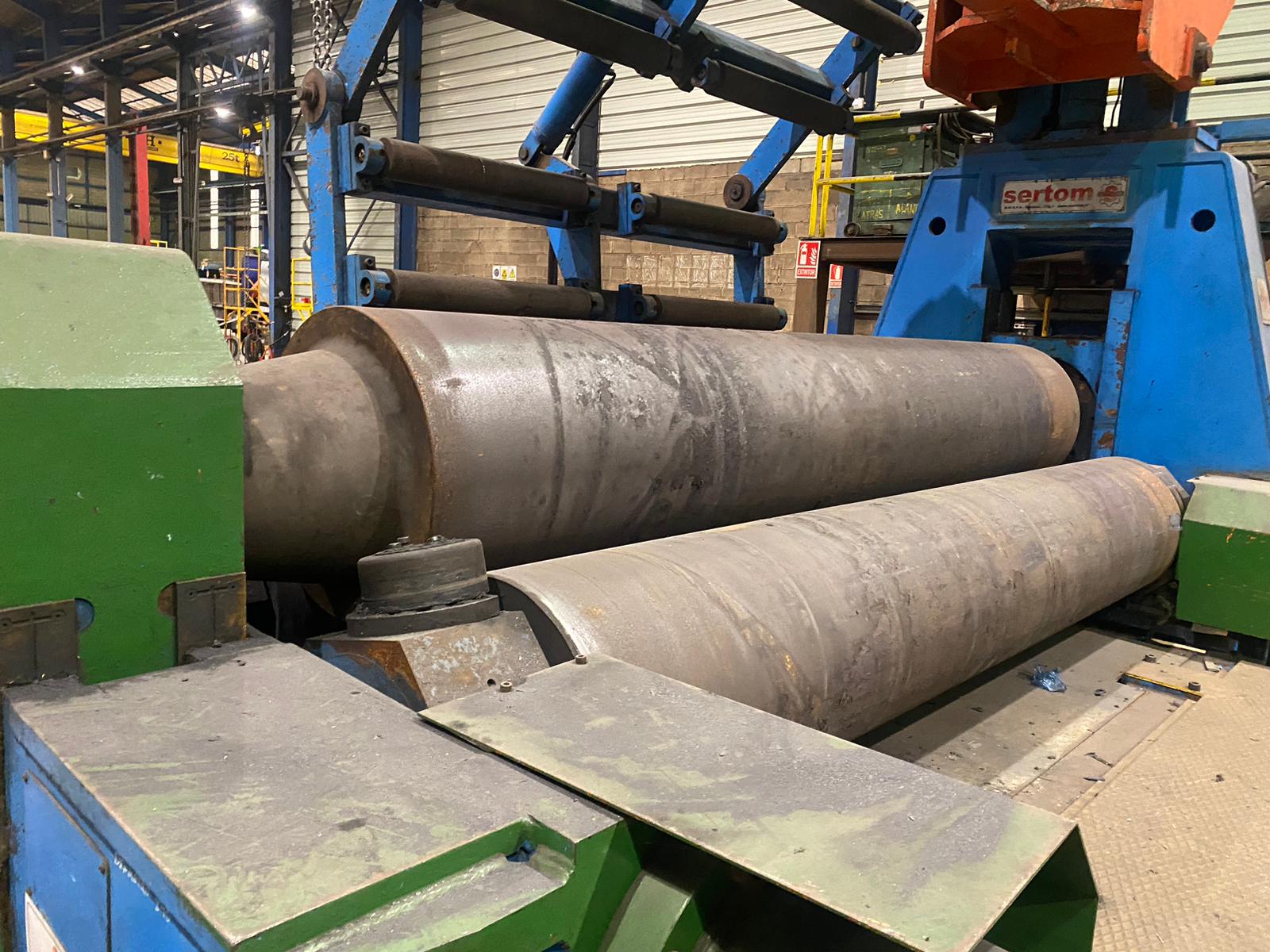

Hydraulic 3 Roll Plate Bending Machine With Variable Geometry – Sertom
Model Emo 33-60 - 3300x60/85 MM
Useful rolls length 3300 mm
Top roll diameter 650 mm
Side rolls diameter 560 mm
Max. opening between top and side rolls 215 mm
Working height from the ground 1700 mm
Max. thrust of top roll 700 ton
Tilting of the top roll max ±10 mm
Tilting of side rolls max 2 °
Installed power 78 kW
Voltage/Frequency/Phases 380±10% / 50 / 3
Approx. weight 65000 kg
Approx. dimensions 720x360x320 cm
Machine Capacity:
Calculated considering material with yield strength 260 N/mm², tensile strength 400 N/mm²
Pre-Bending Capacity:
Max. working plate width 3300 mm
Pre-bending thickness 60 mm
Tube internal diameter 970 mm
Pre-bending thickness 65 mm
Tube internal diameter 3300 mm
Rolling Capacity:
Max. working plate width 3300 mm
Rolling thickness 80 mm
Tube internal diameter 970 mm
Rolling thickness 85 mm
Tube internal diameter 3300 mm
COMPLETE WITH:
Rolls material special carbon steel forged and quenched heat treated
Cone rolling device
Siemens Simatic Multi Panel PLC Control Console
Nr. 01 Hydraulic side support with double articulation
Nr. 01 Hydraulic top plate support
Water-heat exchanger for oil
Lubrication system
Mobile hand-control panel
USED MACHINE
IMAGES:
