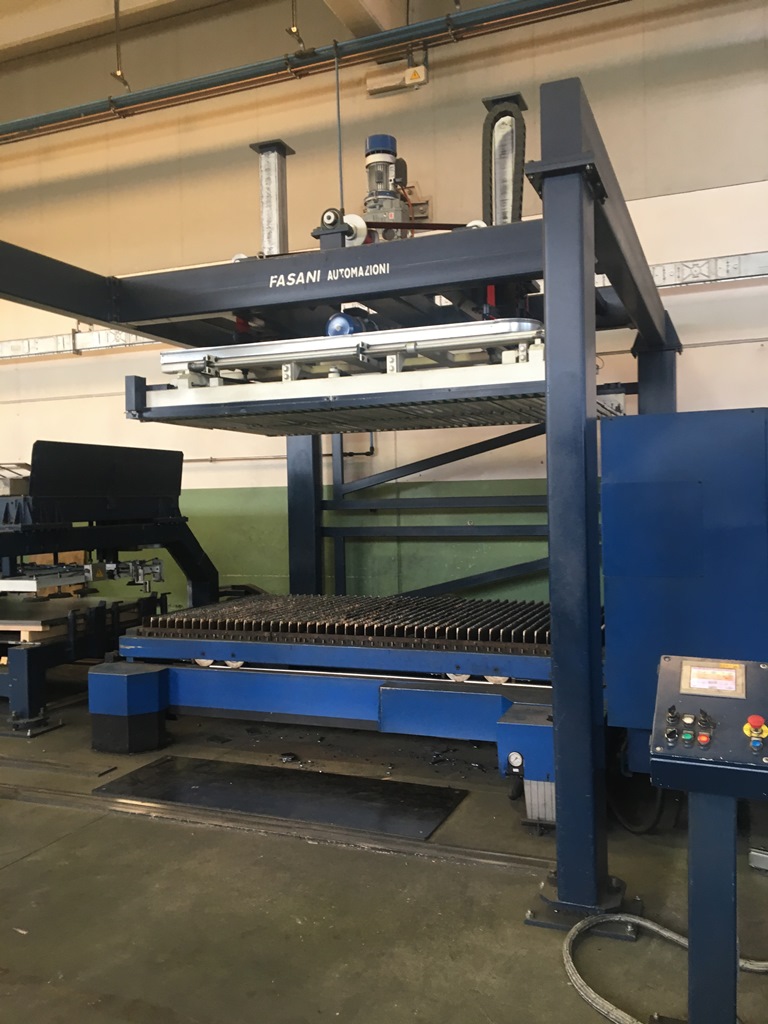

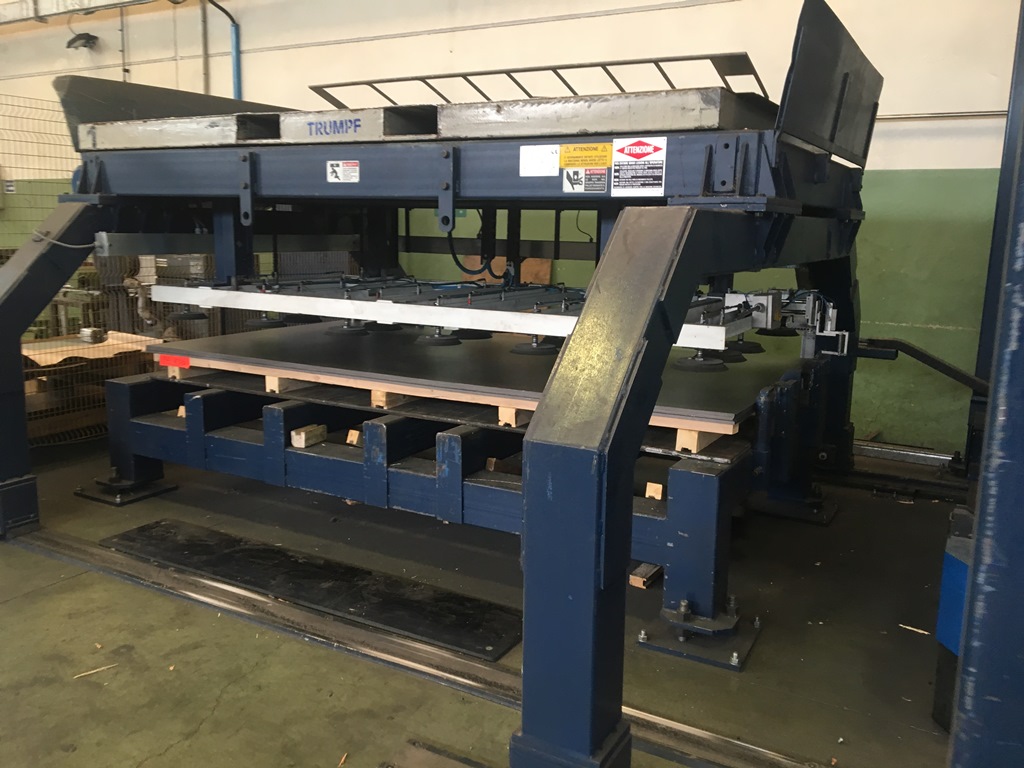

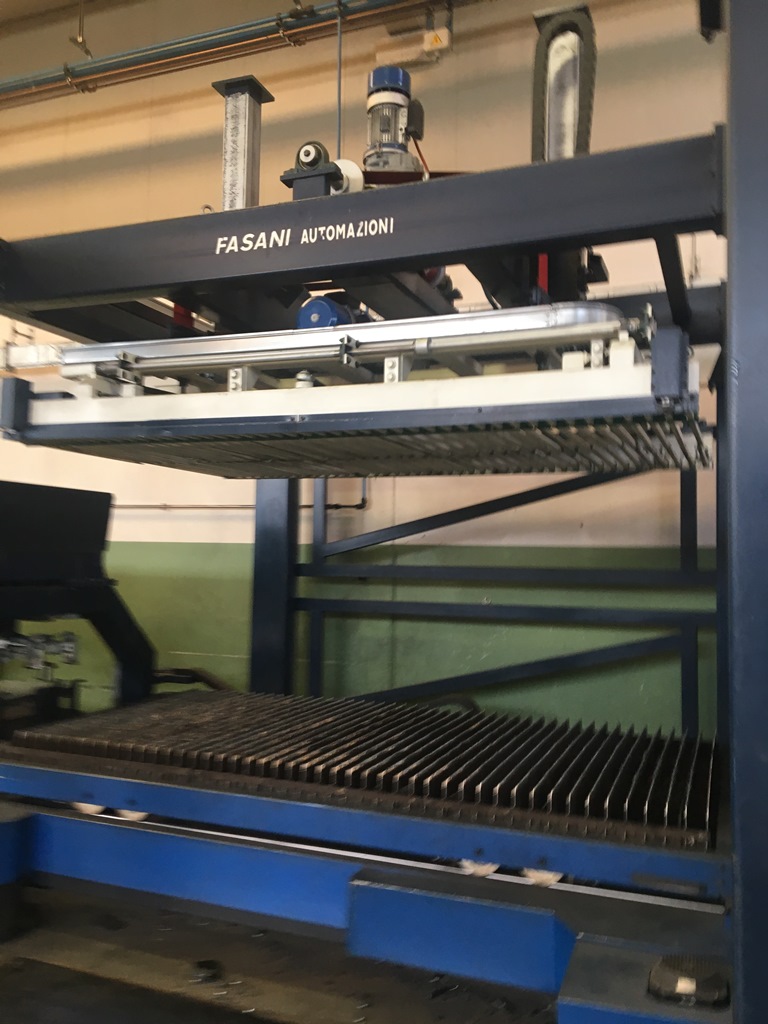

EASY LOADER FASANI IN-LINE FOR LASER LOADING/UNLOADING
Load / unload laser
sheet metal working - Used Machines
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
FASANI
08216
08216
MOD. CSS 3015
Removable strikers on the long and short side 3000-1500
Max load thickness 200 mm
Capacity 3000 Kg
Max sheet size mm 3000x1500
Total electrical power kW 17
Power supply voltage, alternating current Volt 380
Frequency alternating current Hz 50
Necessary amperage A 31.9
Auxiliary circuit voltage, direct current Volt 24
Air consumption 600 liters/1' at 6 bar
Loader weight Kg 13000
Loader dimensions (hxpdepthxwidth) mm 4220x5450x8540
USED MACHINE
YEAR 2014
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
