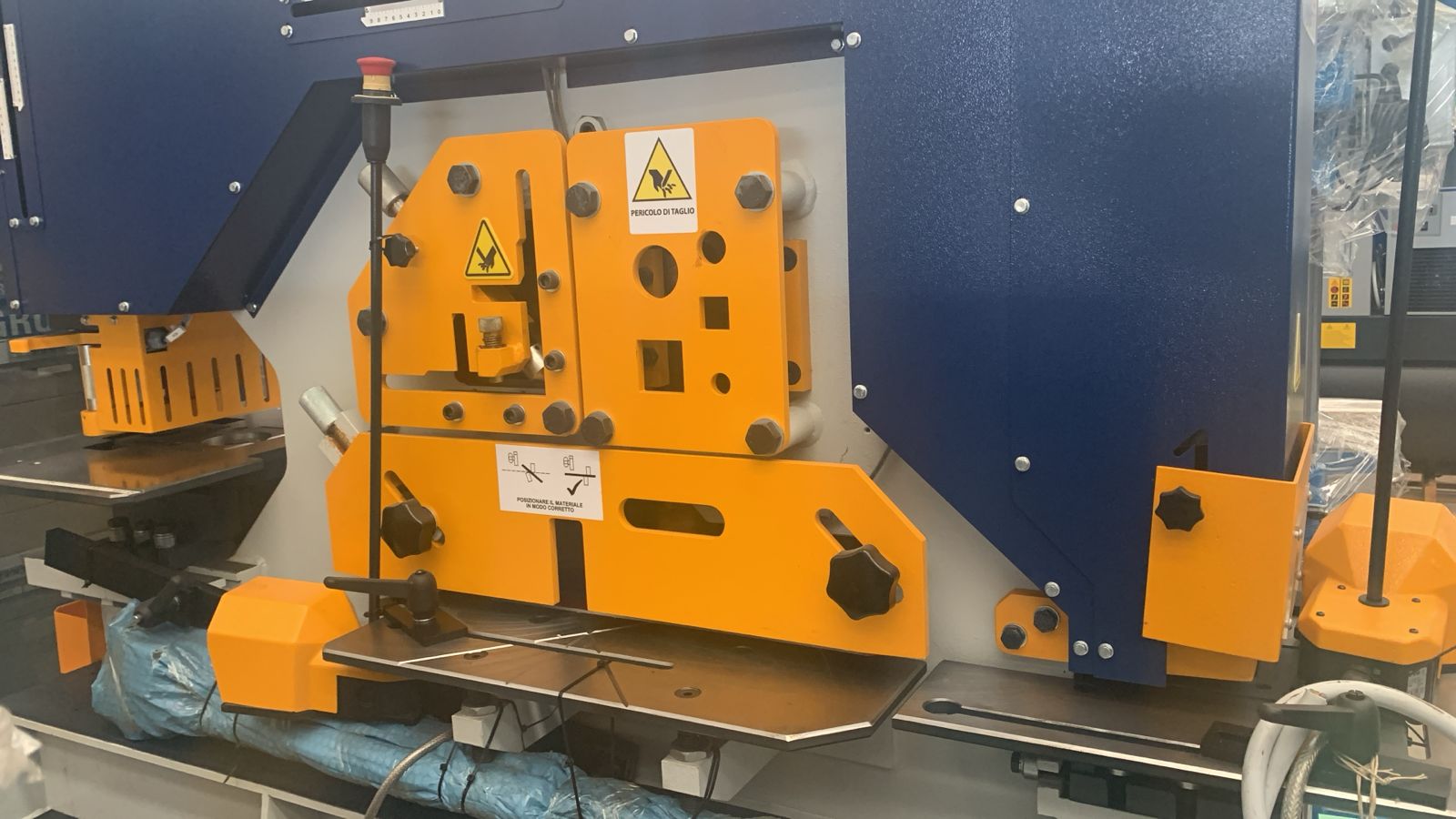

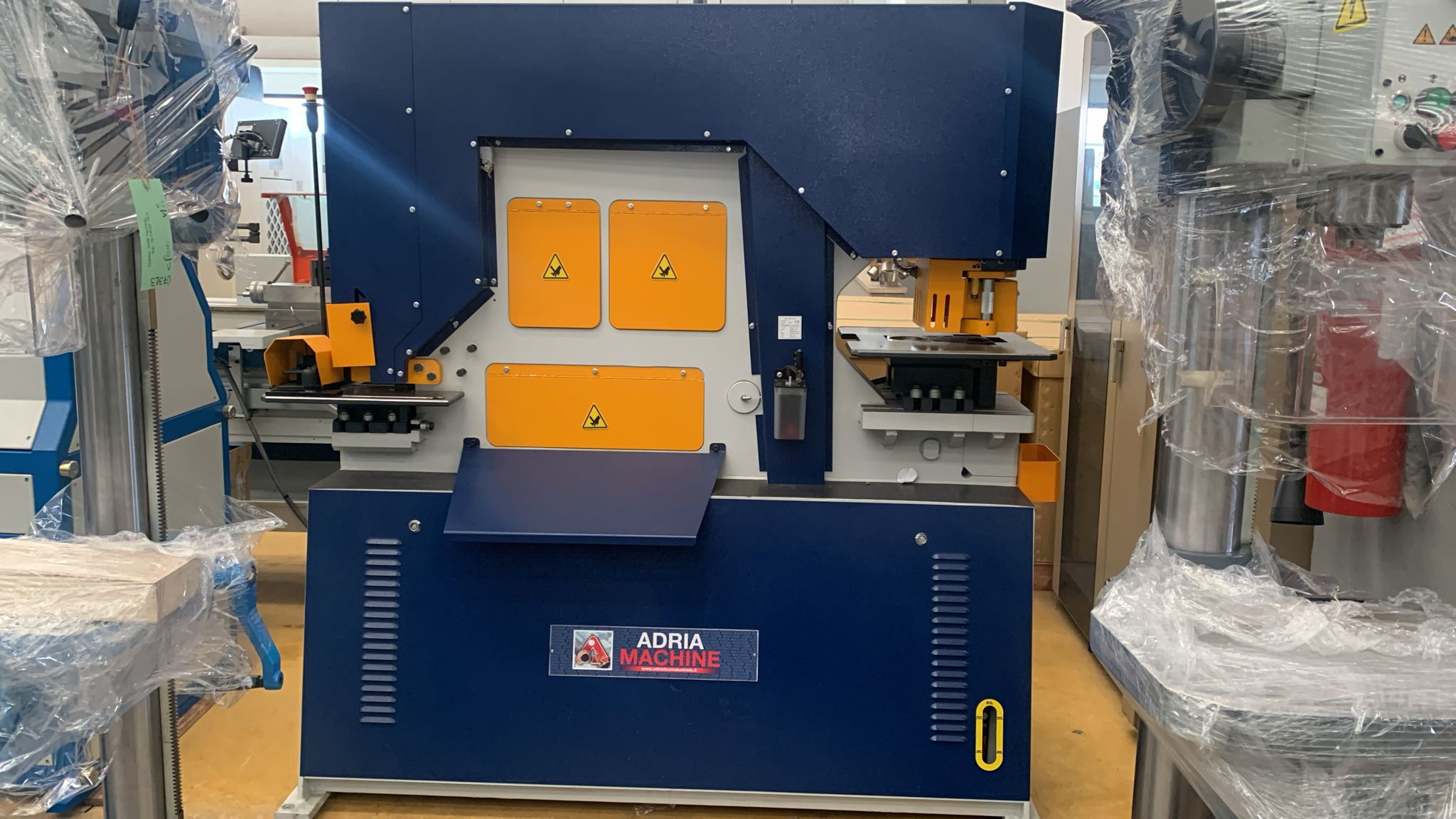

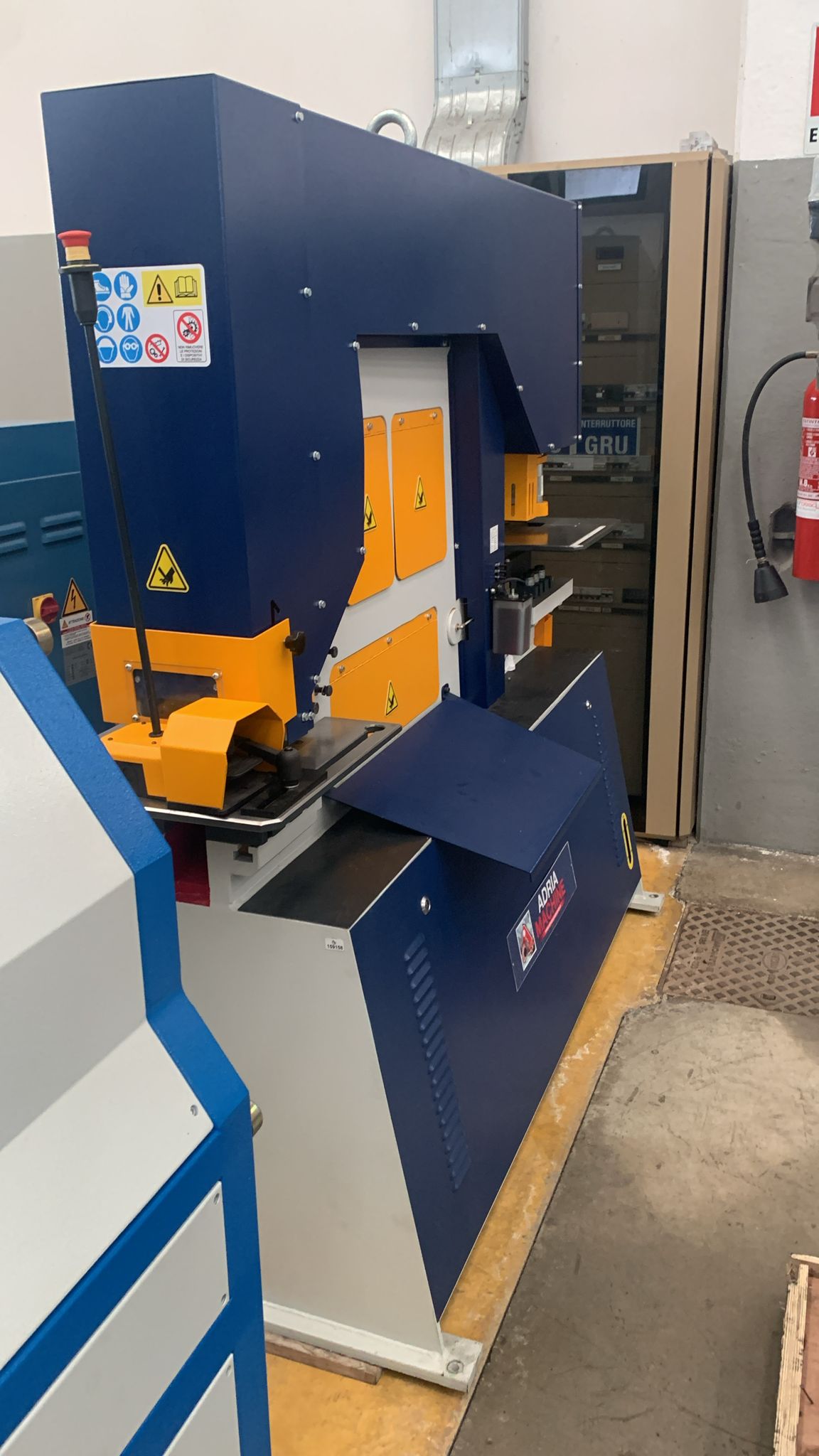

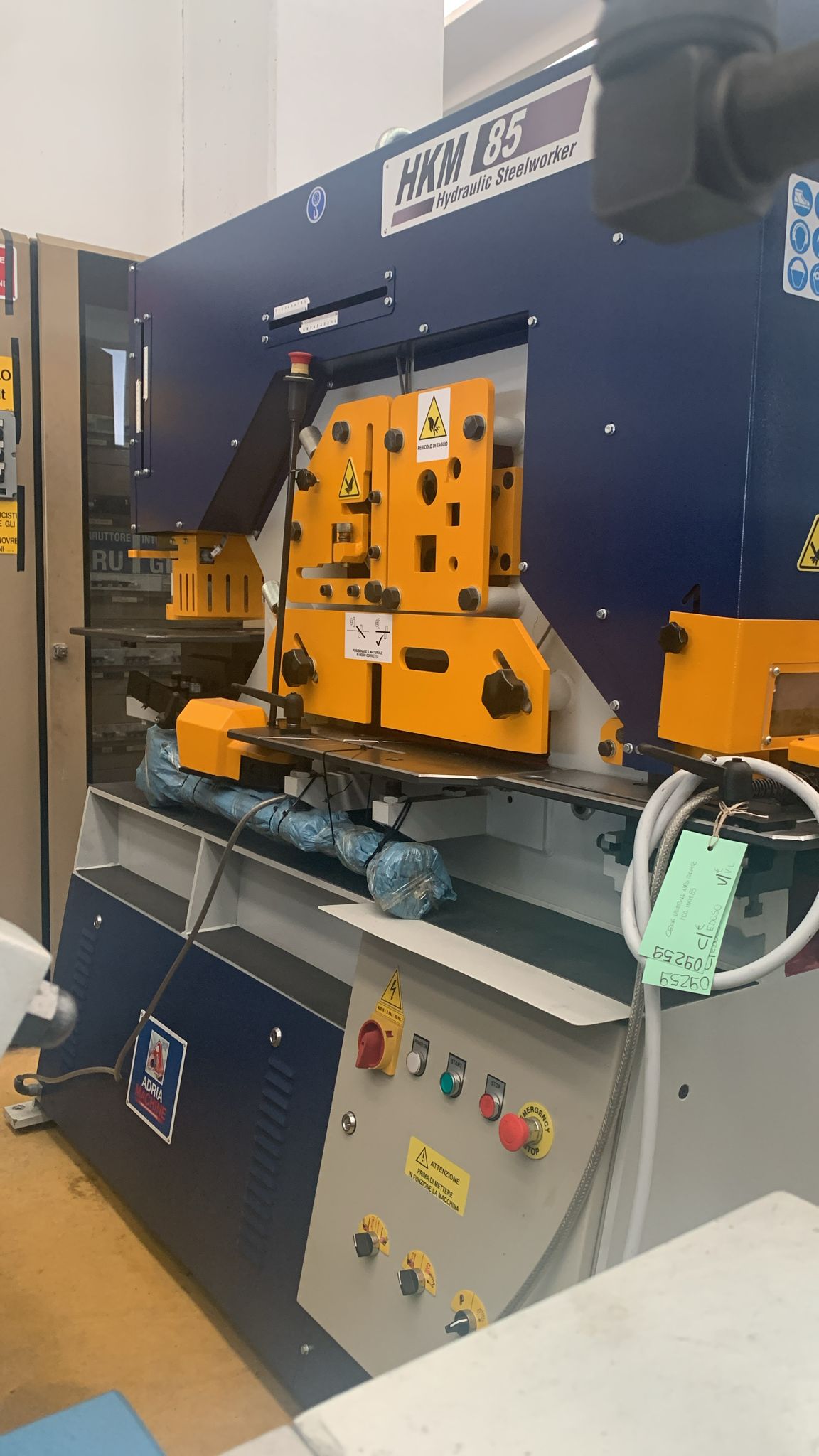

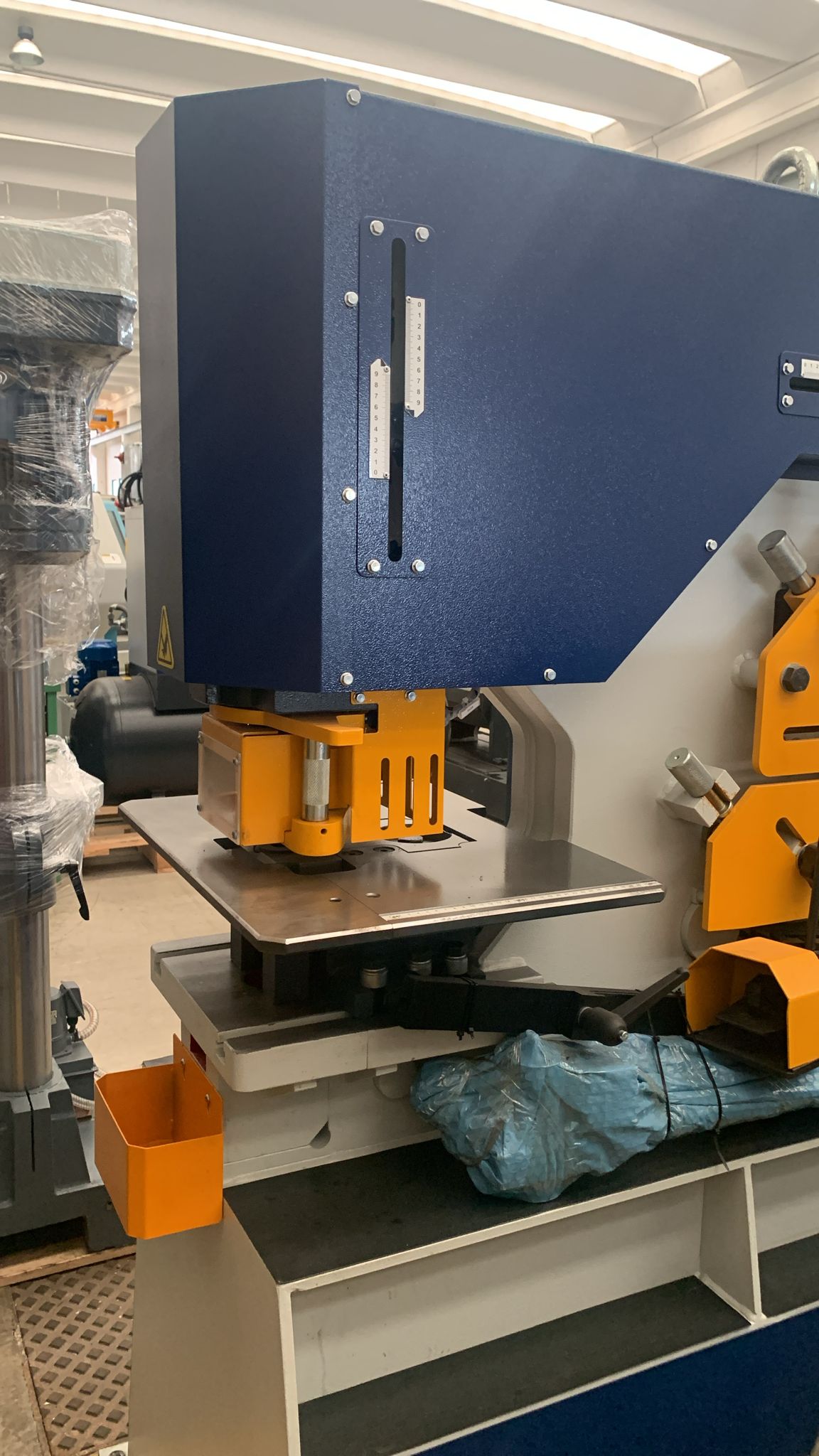

PUNCHING SHEAR ADRIA MACHINE HKM 85
Punching machines
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
09259
WITH TWO PISTONS
PUNCHING:
Diameter x max thickness mm 33x20
Diameter x thickness mm 57x12
Max diameter mm 110x4
Stroke 80 mm
Shot counter in (20 mm) x25
Gap mm 355
Working height mm 1080
STEEL BAR SHEAR:
Round/square mm 50
CORNER SHEAR:
Angular section 90° mm 150x150x15
Angular section 45° mm 80x8
Working height mm 1200
SHEAR:
Sheet metal 380x20 mm
Sheet metal 480x15 mm
Blade length mm 482
Corner cut on one side 120x15 mm
NOTCHING:
Thickness 13mm
Width 52mm
Depth 100mm
Working height mm 940
TECHNICAL DATA:
Motor power kW 7.5
Weight Kg 2315
Machine dimensions (LxWxH) mm 1920x950x2040
Power (pressure) ton 85
COMPLETE OF:
-Control pedal
-Standard accessories
NEW MACHINE READY DELIVERY
IMAGES:
