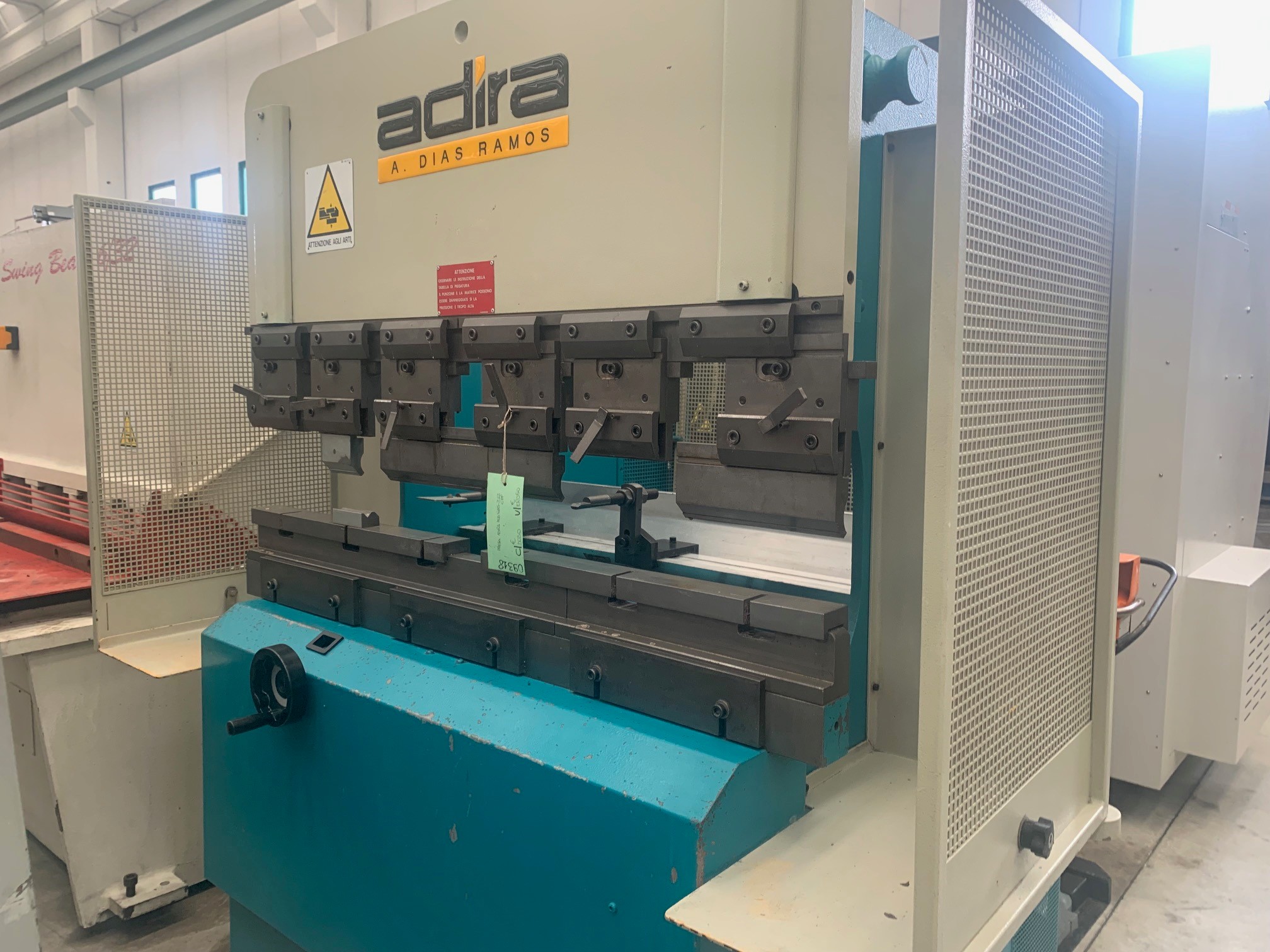

PRESS ADIRA MOD.QHS-02012 CBP
Press brake
sheet metal working - Used Machines
ADIRA
09318
09318
Maximum capacity kN 200
Max working length mm 1250
Max working thickness mm 4
Max tool length mm 1250
Passage between uprights mm 1020
Min/max stroke mm 23/100
Max opening (without tools) mm 370
Max opening (with tools) mm 270
Table width mm 60
Max approach speed mm/s 80
Max working speed mm/s 7
Return speed mm/s 90
Main engine power Kw 2,2
Max hydraulic pressure bar 260
Approximate weight kg 1600
Dimensions mm 1770x1840x1450
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
