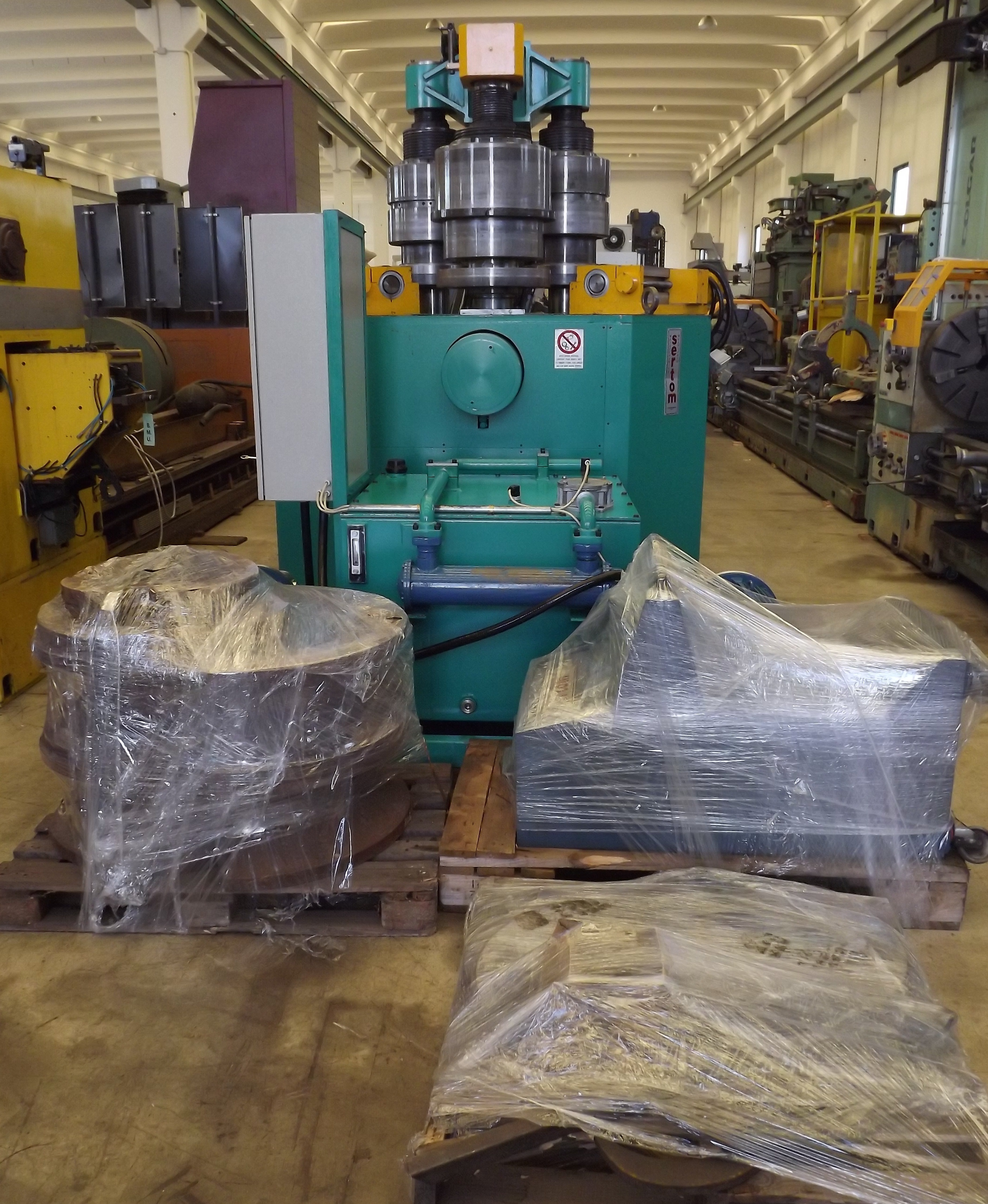

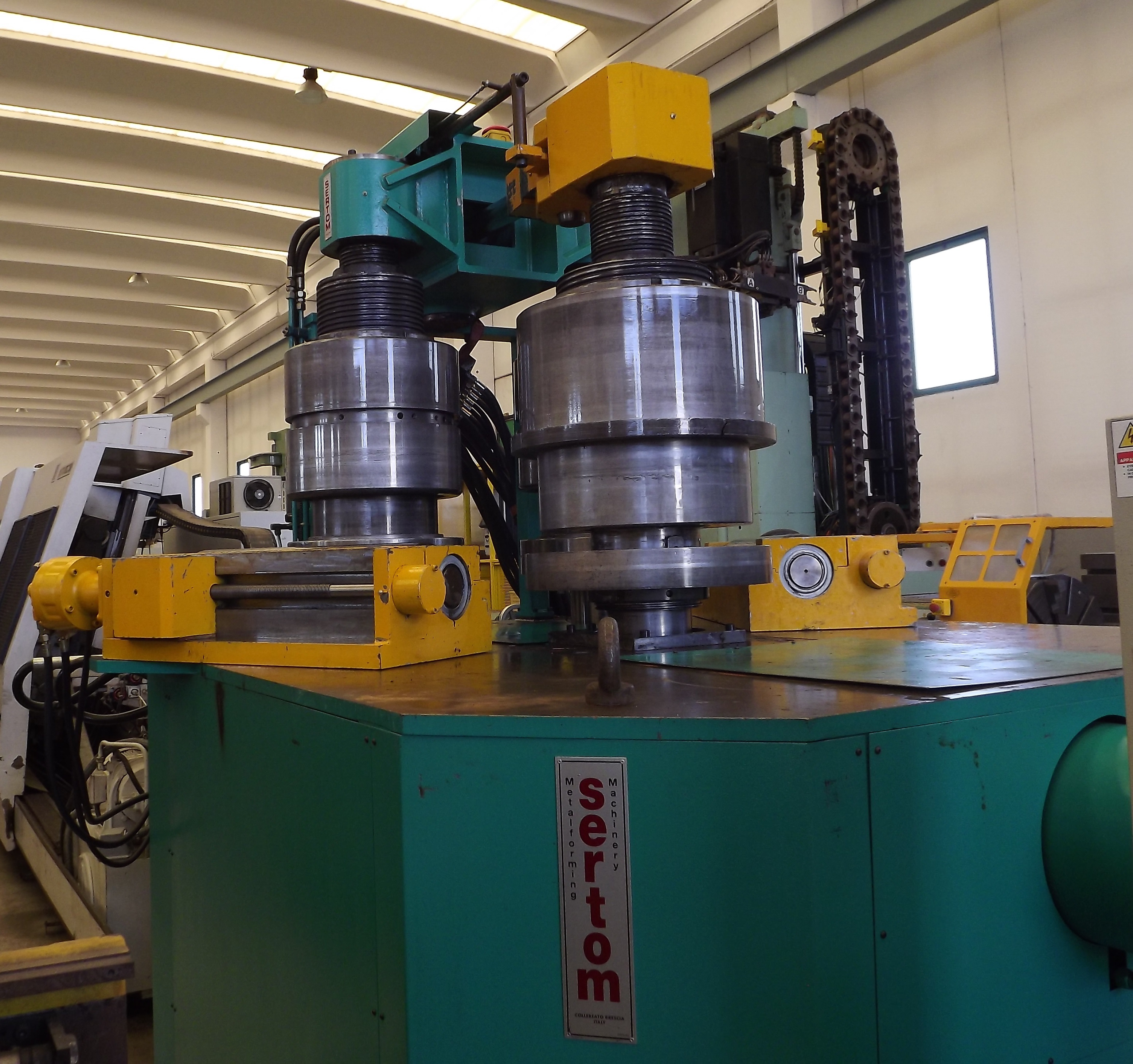

BENDER PROFILES MACHINE SERTOM
Angle bending rolls
sheet metal working - Used Machines
SERTOM
06047
06047
MOD. PP 180/200
LONG SHAFTS
WITH UPPER STIFFNESS GROUP AND
TELESCOPIC GROUPS FOR PROFILES BENDING
Central working roll diameter mm 610
Lateral working rolls diameter mm 520
Rotation speed m/min 12-8-4
Linear axis speed mm/min 600-400
Installed power Hp 50
Max gap between rolls mm 255
Working position horizontal
Roll carrier shafts diameter mm 210
Central roll thrust Ton 150
Apppriximate weight without equipments Kg 15000
Dimensions (lenghtxwidthxheight) mm 2700x2100x3100
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
