ROTARY PALLET

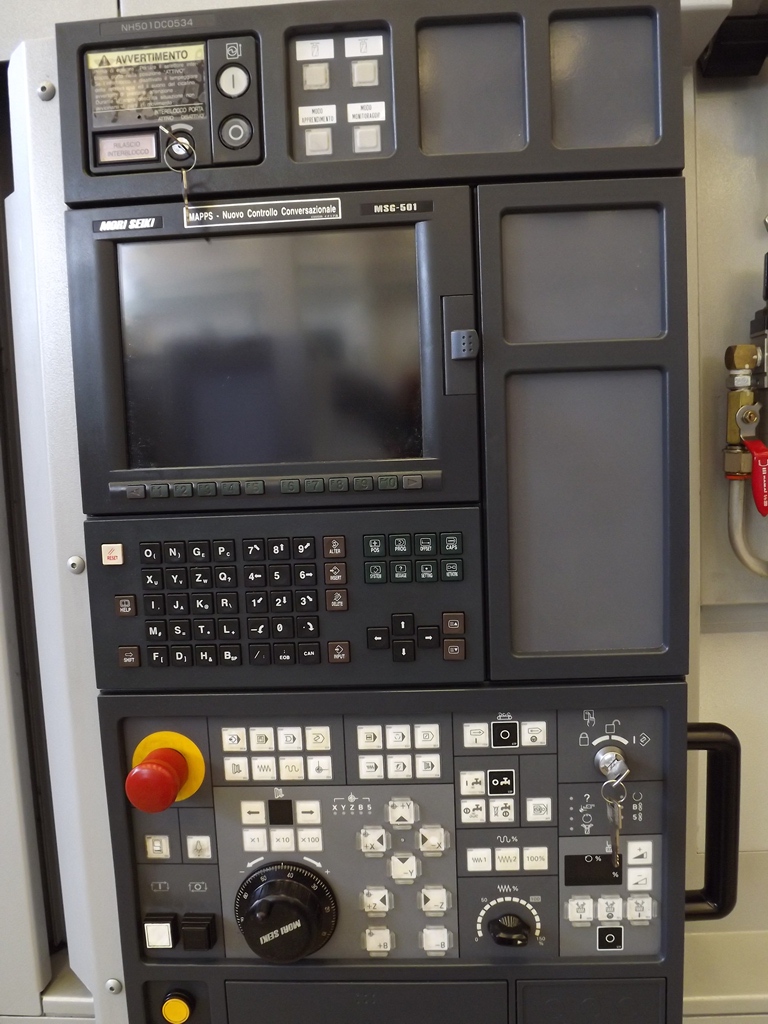

CNC MORI SEIKI MSG-501
AXIS:
-Axis X mm 630
-Axis Y mm 600
-Axis Z mm 670
-Distance table surface and spindle centre mm 50-650

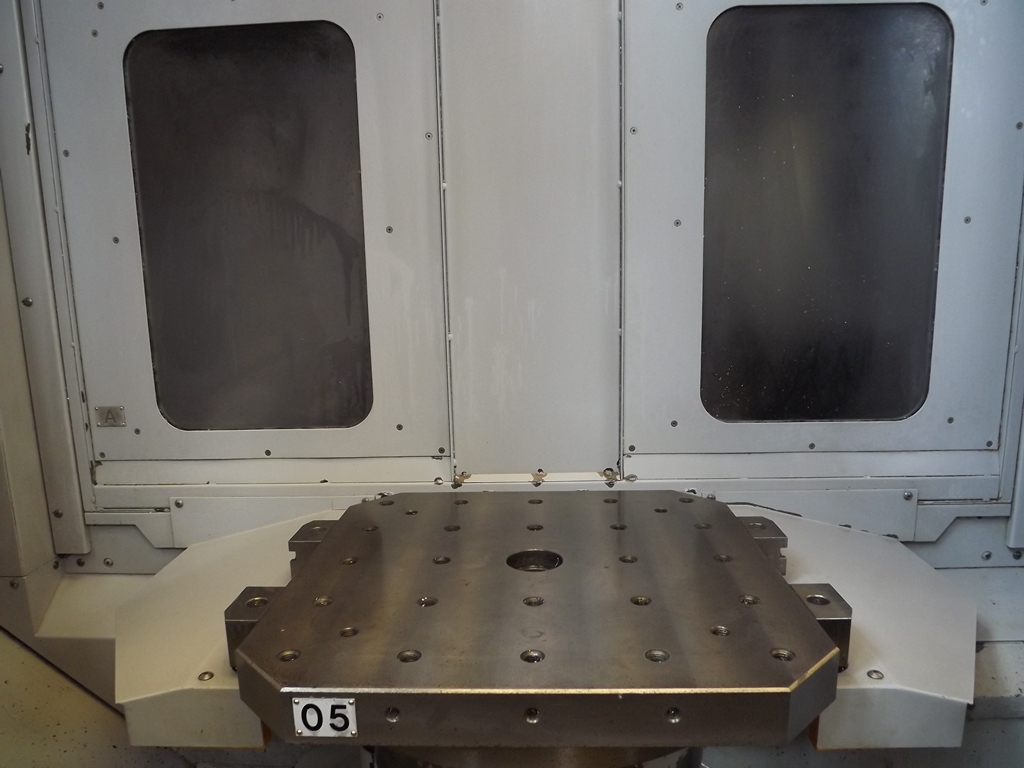

TABLE:
-No. 02 pallet mm 500x500
-Max load on pallet Kg 500
-Max workpiece diameter mm 730
-Max workpiece height mm 900
-Min angle table indexing 1 degree

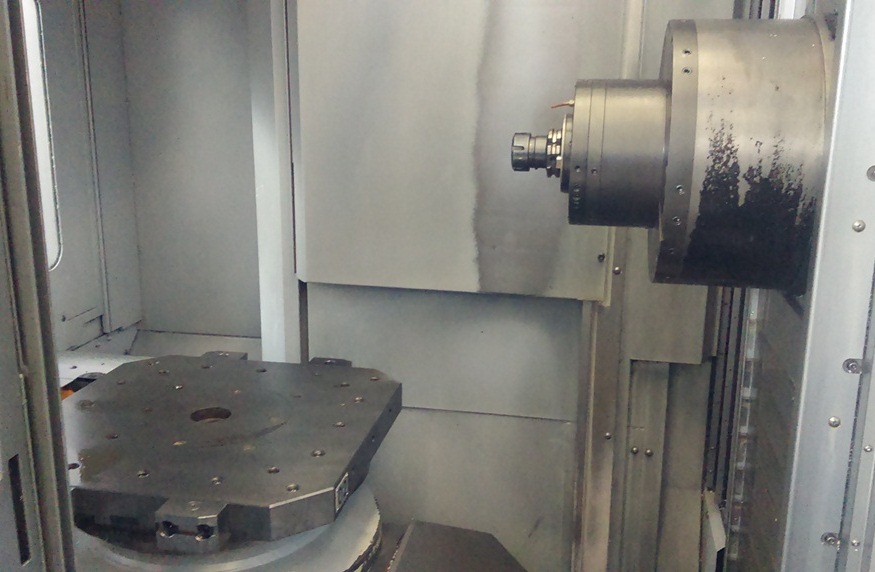

SPINDLE:
-Spindle taper ISO 40 - BT
-Spindle speed rpm 14.000
-Spindle power kW 22/18.5
FEEDRATES:
-Rapid feedrates axis X/Y/Z m/min 50
TOOL MAGAZINE:
-Tool magazine 60 positions
-Max tool diameter (adjacent full pocket mazine) mm 80
-Diametro max utensile (adjacent empty pocket magazine) mm 125
-Max tool lenght mm 400
-Max tool weight Kg 8
OVERALL SIZE AND WEIGHT APPROX.:
-Height mm 2850
-Overall mm 2350x4900
-Weight approx. Kg 10.000
EQUIPPED WITHI:
-High pressure 50 BAR
-tool probe (tool monitoring)
-chip conveyor

USED MACHINE
YEAR 2004
