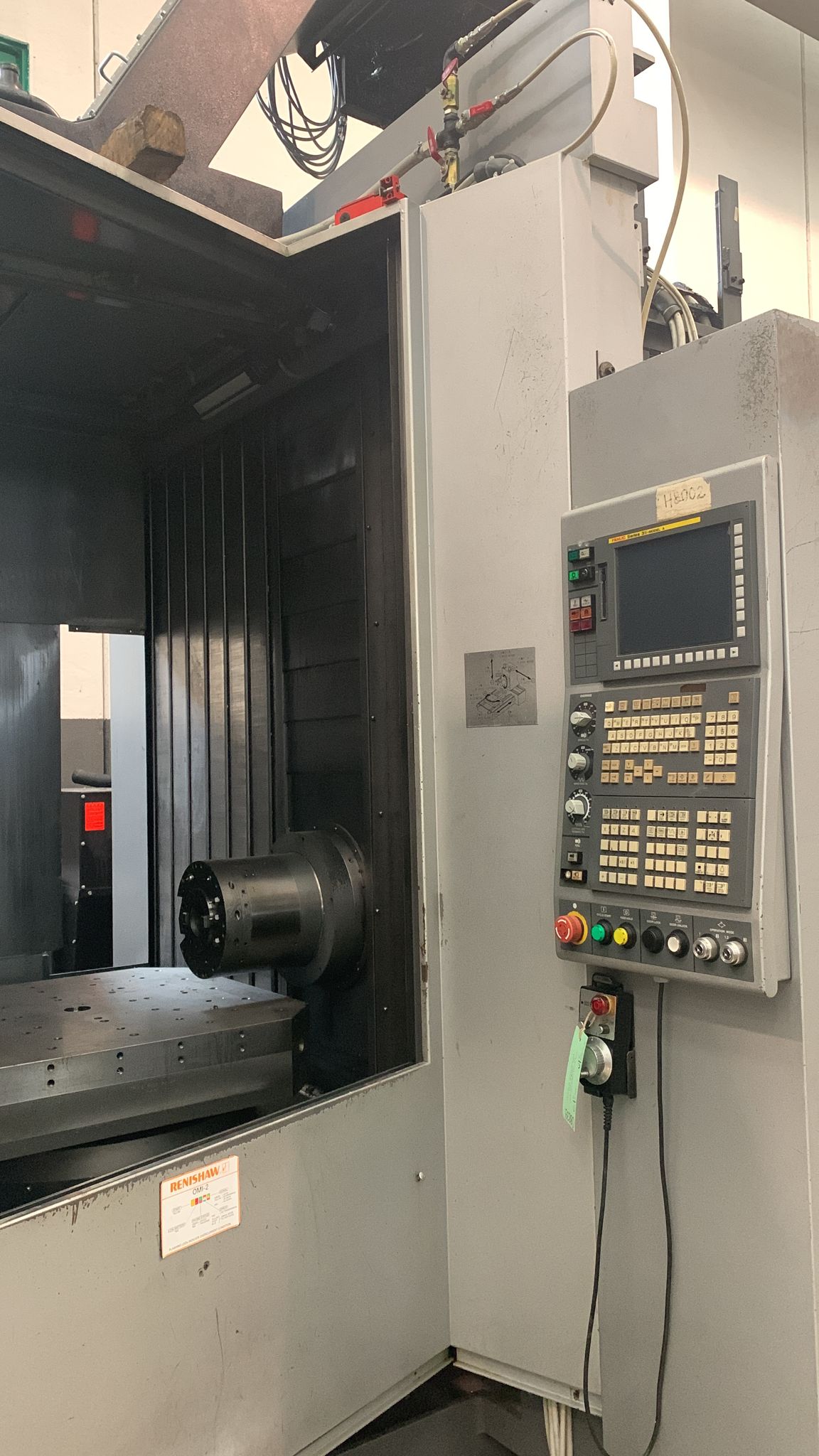

CENTER TOYODA MOD. FH 800 SX
Double pallet
.jpeg)
.jpeg)
.jpeg)
08839

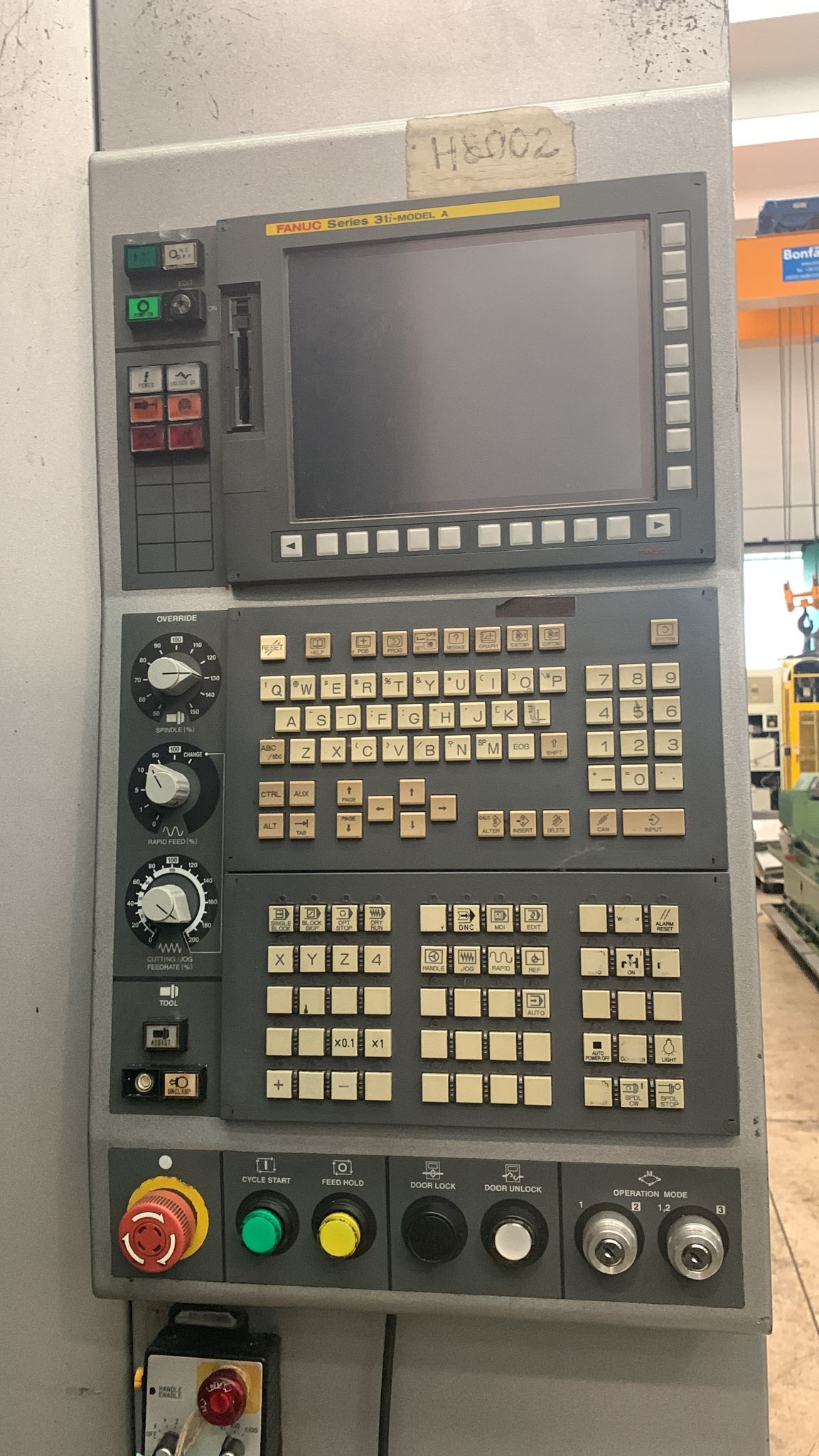

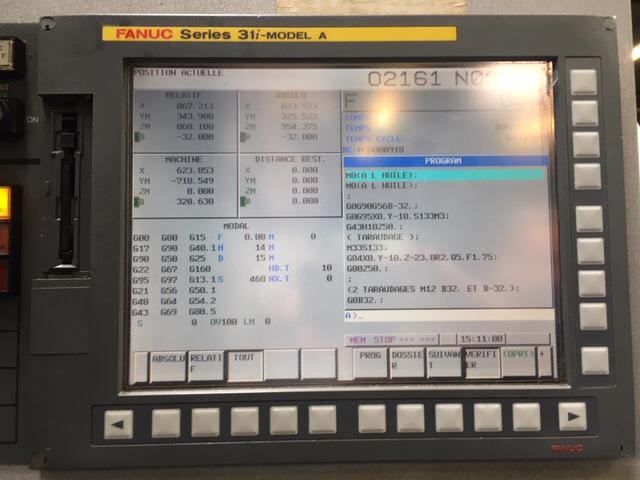

CNC FANUC 31i
WORKING AREA:
Axis X stroke mm 1250
Axis Y stroke mm 1100
Axis Z stroke mm 1050
Distance from spindle nose to table center mm 200/1250
Distance form spindle nose to pallet surface mm 100/1200
Workpiece (swing diameter x height) mm 1200x1250

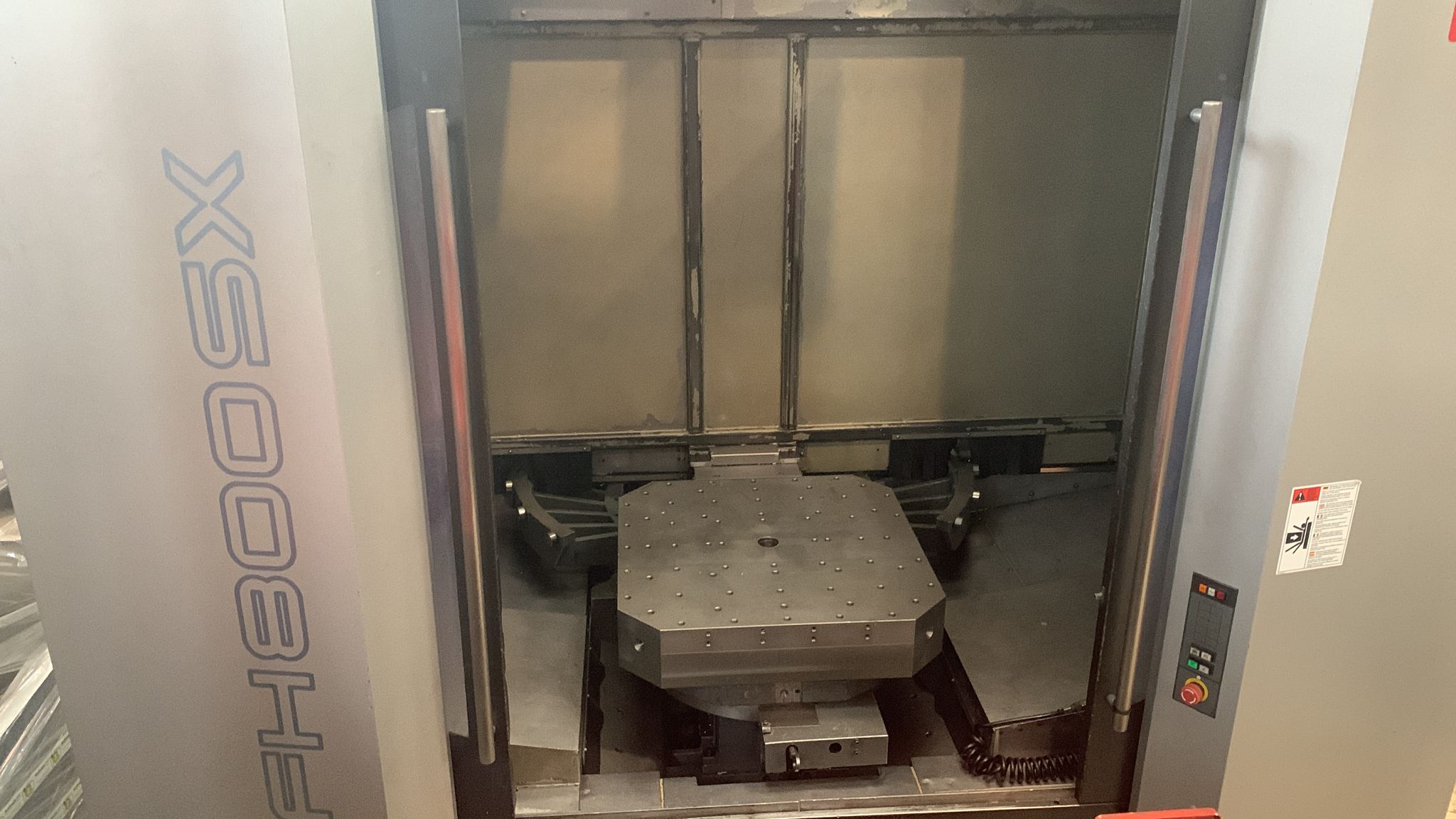

PALLET AND TABLE:
N.2 pallet
Dimensions mm 800x800
Indexing angle (NC-table 0.001 degrees)
Indexing time 0-90 degrees 2.5 s
Pallet height from floor mm 1300
Max load on pallet Kg 1000

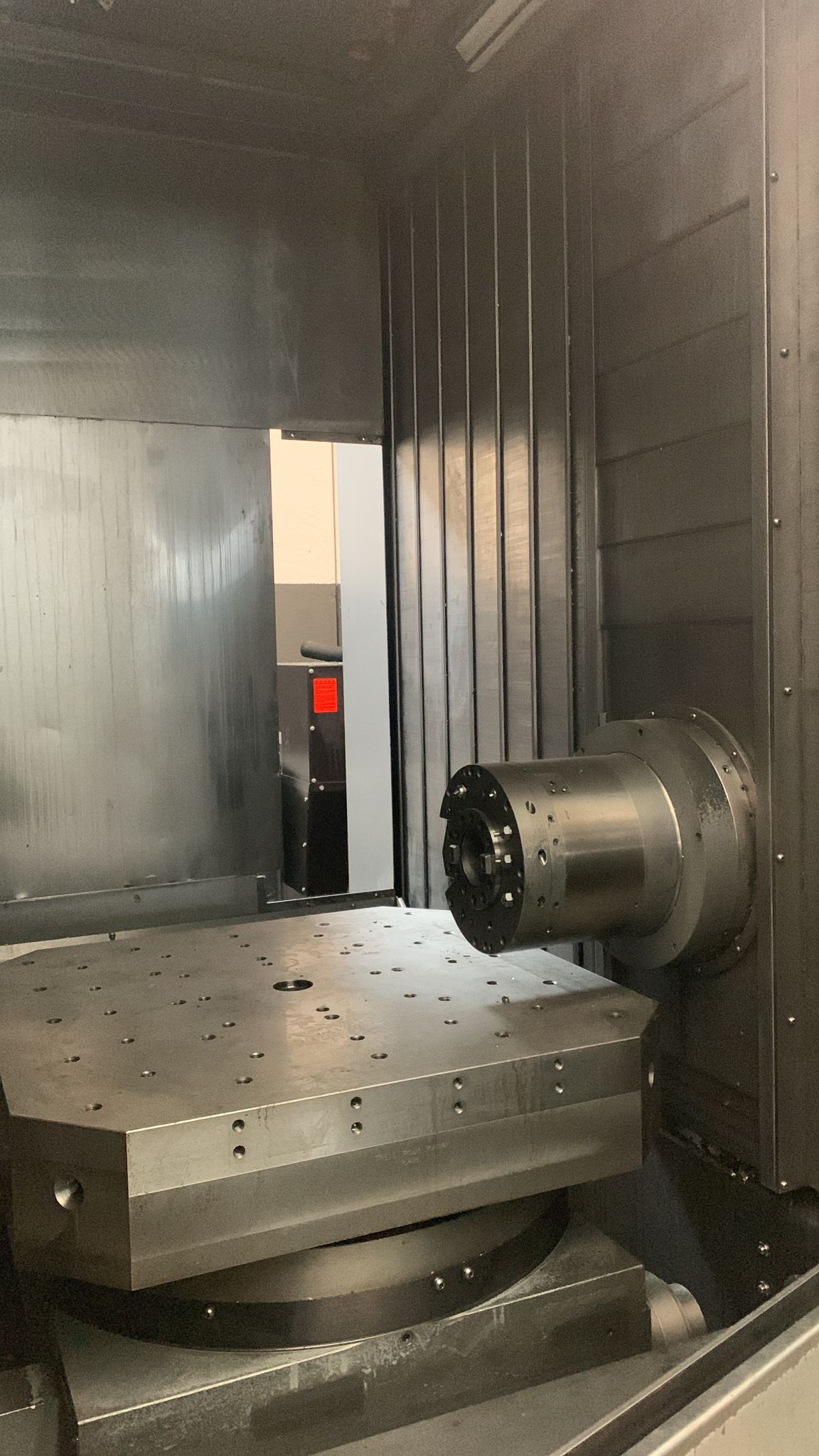

SPINDLE:
Spindle speed rpm 6000
Spindle taper ISO 50 DIN 69871
Motor power (30 min./continuous) kW 30/22
RAPID FEEDRATE:
Rapid feedrate m/min 48

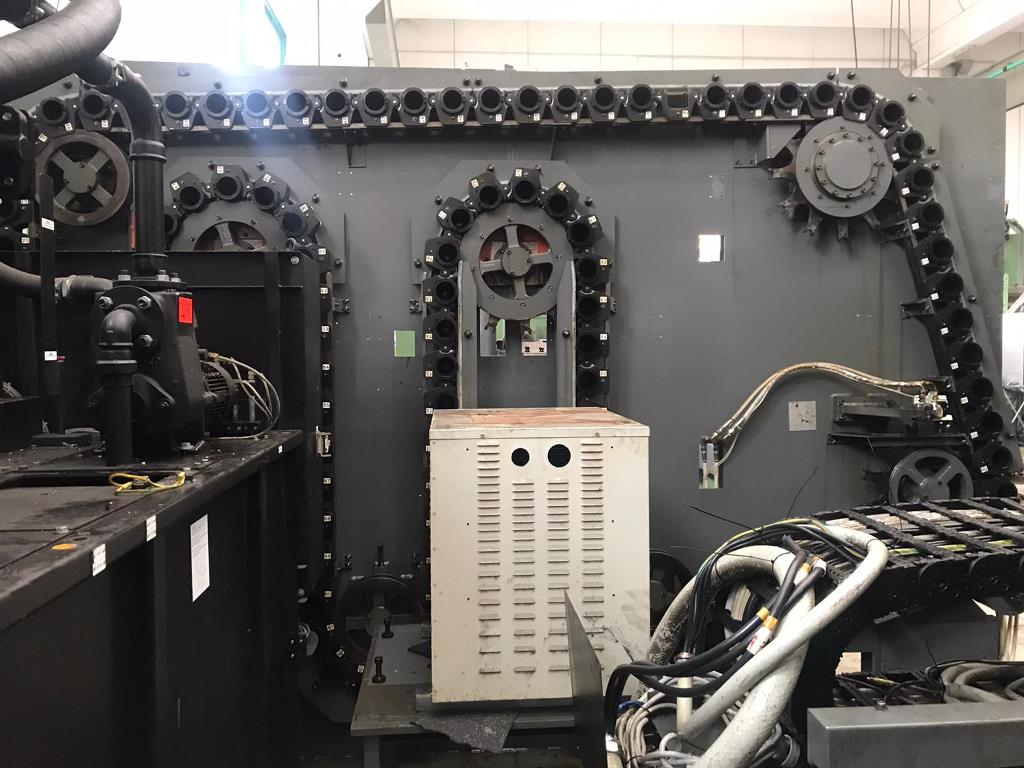

AUTOMATIC TOOL CHANGE:
Tool change 121 positions
Max tool weight Kg 35
Max tool dimensions (diam.xheight) mm 120x670
EQUIPPED WITH:
-Chain chip conveyor
-Knoll high pressure pump through the spindle 70 bar
-Renishaw probe infrared signal OMP 60
-Direct measuring system with absolute liear scales mitutoyo
USED MACHINE
YEAR 2008
FIRST INSTALLATION 2010
IMAGES:
