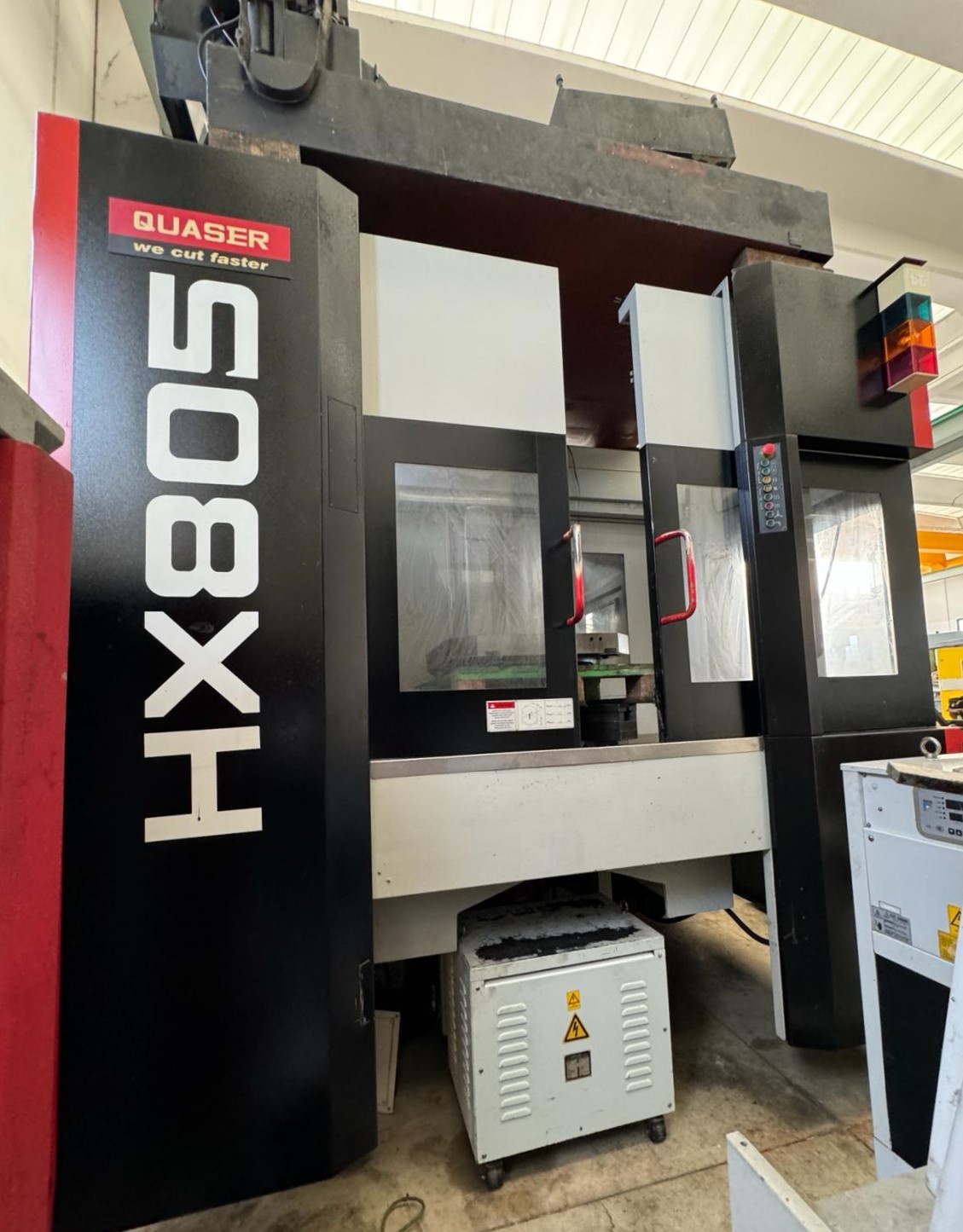

CENTER QUASER MOD. HX850A/HT
Double pallet
.jpeg)
.jpeg)
.jpeg)
09399

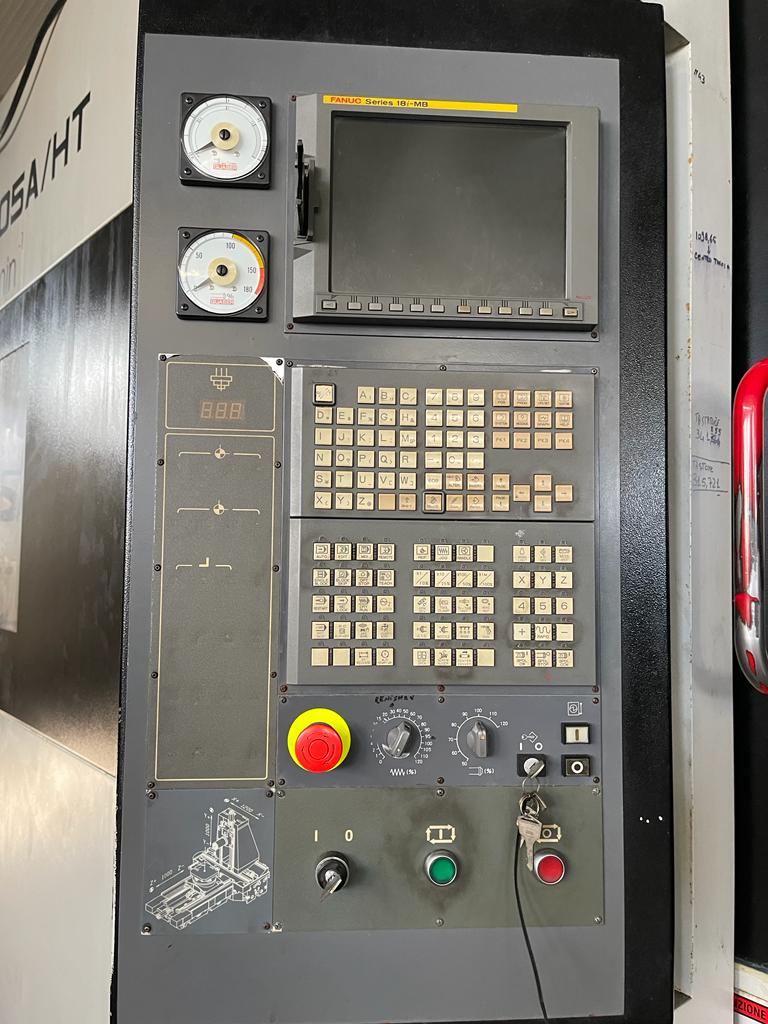

CNC FANUC 18i-MB
CAPACITY:

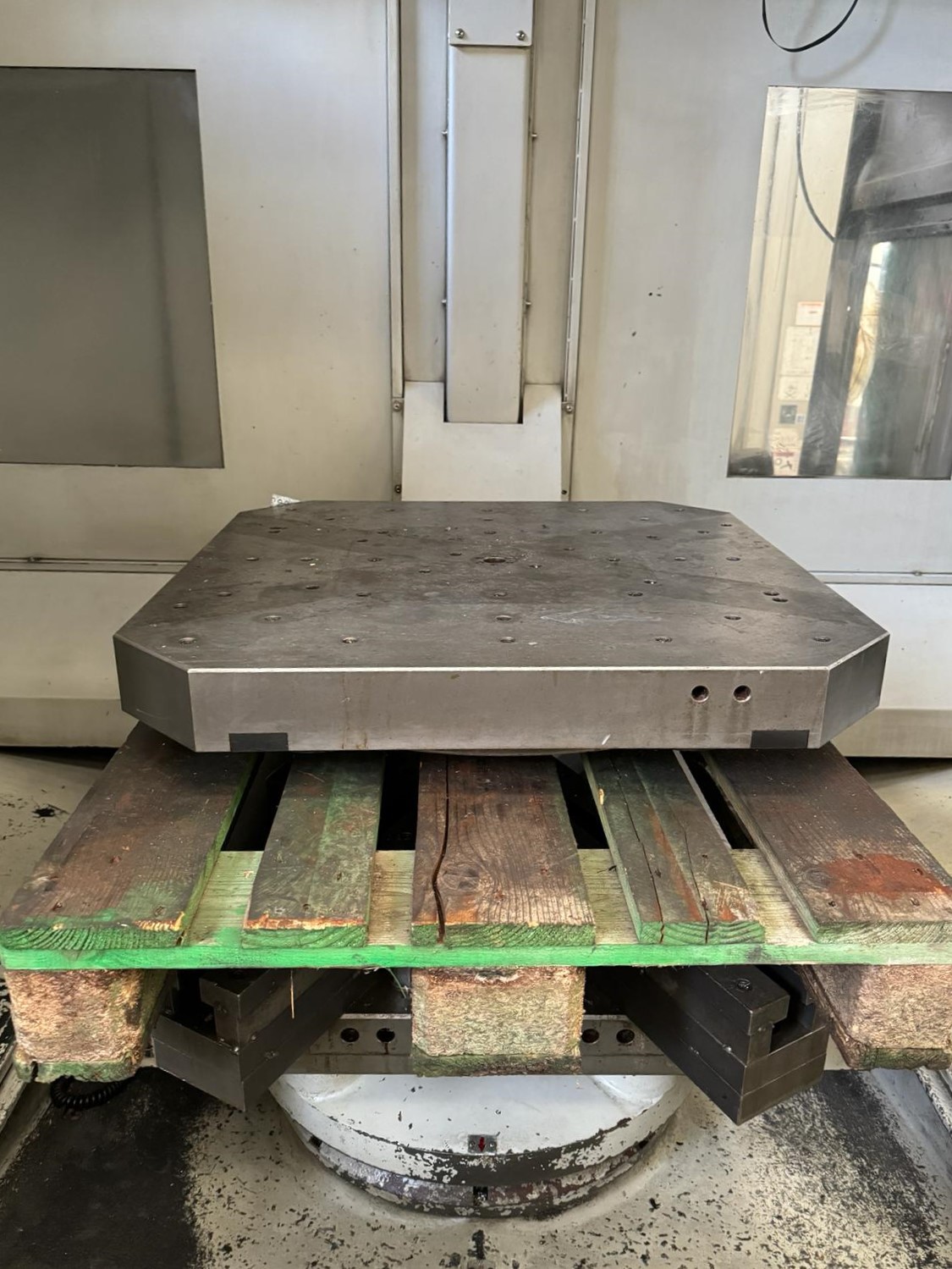

Pallet dimensions mm800x800
Max swing diameter mm 1200
Max work piece height mm 1100
Table load kg 1500
Axis X stroke mm 1200
Axis Y stroke mm 1000
Axis Z stroke mm 1000
Axis B indexing 1 degree
Distance table surface to spindle center mm 30:1030
Distance spindle nose to table center mm 100:1100
SPINDLE:
Spincle taper BBT50
Spindle speed rpm 6000
Spindle motor power kW 26
TOOL CHANGE:
Tool magazine 60 positions
Max tool diameter mm 125/230
Max tool lenght mm 600
Max tool weightkg 20
PALLET CHANGE:
Pallet number 2
MACHINE OVERALL DIMENSIONS AND WEIGHT:
Overall dimensions (lenghtxwidthxH) mm 7900x3780x3610
Weight Kg 25000
EQUIPPED WITH:
-Chip conveyor
-High pressure pump with paper filter
-Presetting laser tool Ranishaw model NC4 TX
-Ranishaw workpiece touch probe
USED MACHINE
YEAR 2010
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
