CENTER SHE HONG MOD. HV-80 SG
Single pallet
machine center - vertical - Used Machines
SHE HONG
06396
06396
CNC MELDAS 520A
STROKE
Longitudinal stroke (axis X) mm 2060
Cross stroke (axis Y) mm 1016
Vertical stroke (axis Z) mm 820
Distance between spindle center - column mm 1050
TABLE
Working surface mm 2100x1050
T-slot (sizexnumberxdistance) mm 20x7x150
Max load Kg 3000
SPINDLE
Motor power (30 min/continuous) HP 25/20
Spindle taper #50
FEED
Cutting feedrate mm/min 1-7000
Rapid (axis X,Y,Z) mm/min 10000
ATC
Pices storage capacity 20
Max dimensions tools (diameterxlenght) mm 125x300
Max tools weight Kg 15
Tool selection RANDOM
Taper tool BT-50
VARIOUS
Power input kVA 46
EQUIPED WITH:
N.02 chip conveyors
USED MACHINE

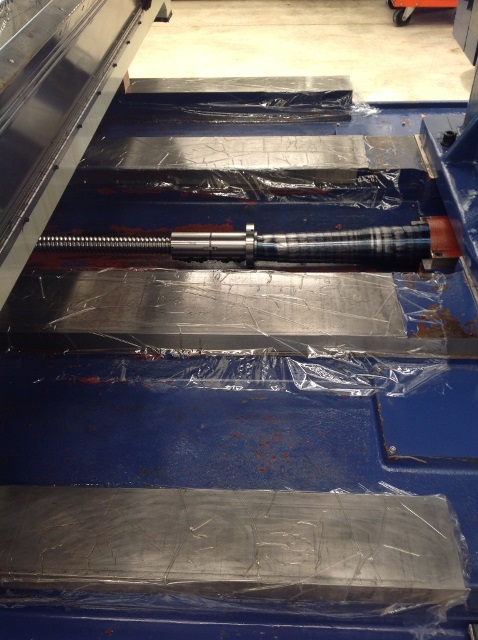

IMAGES:
