CENTER FAMUP MP 80 E
Single pallet
09661

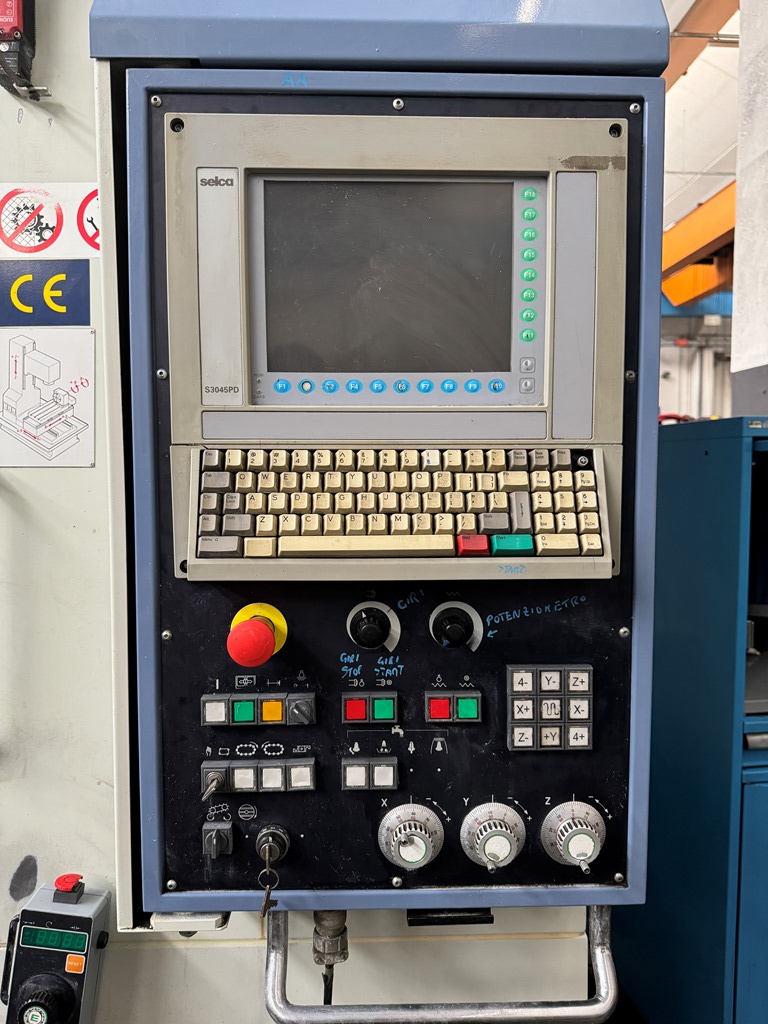

CNC SELCA S3045PD

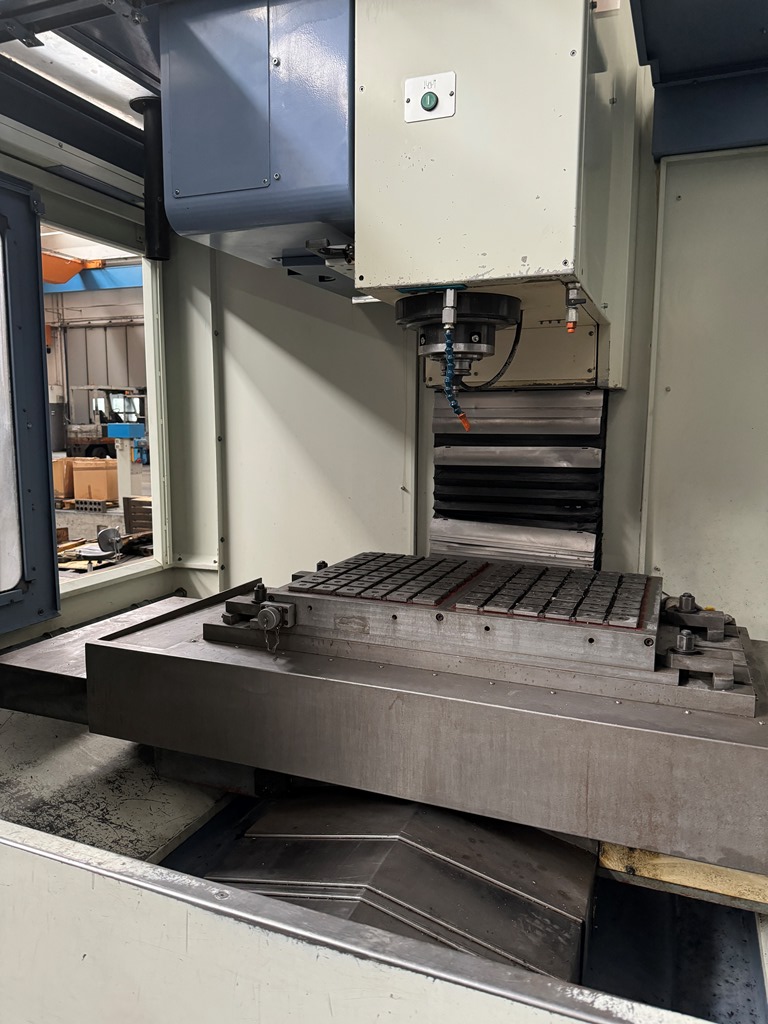

TABLE:
Table size mm 1000x520
T-slots n.5
T-slots width mm 18
Distance T-slots mm 100
Max load Kg 600
STROKES:
Longitudinal X axis mm 800
Cross Y axis mm 500
Vertical Z axis mm 500
SPINDLE:
Spindle speed rpm 50:10.000
Motor power 30 min/S1 kW 18.5/15
Spindle cone DIN 69871 ISO 40
AUTOMATIC TOOL CHANGE:
Tool magazine 24 positions
Max tool diameter mm 75
Max tool length mm 280
Max tool weight Kg 6
OCCUPIED SURFACE AND WEIGHT:
Max overall height mm 3150
Weight Kg 5.500
EQUIPPED WITH:
-Remote handwheel
-Chip tank back side
-Washing system with pump
-Tool coolant system
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
