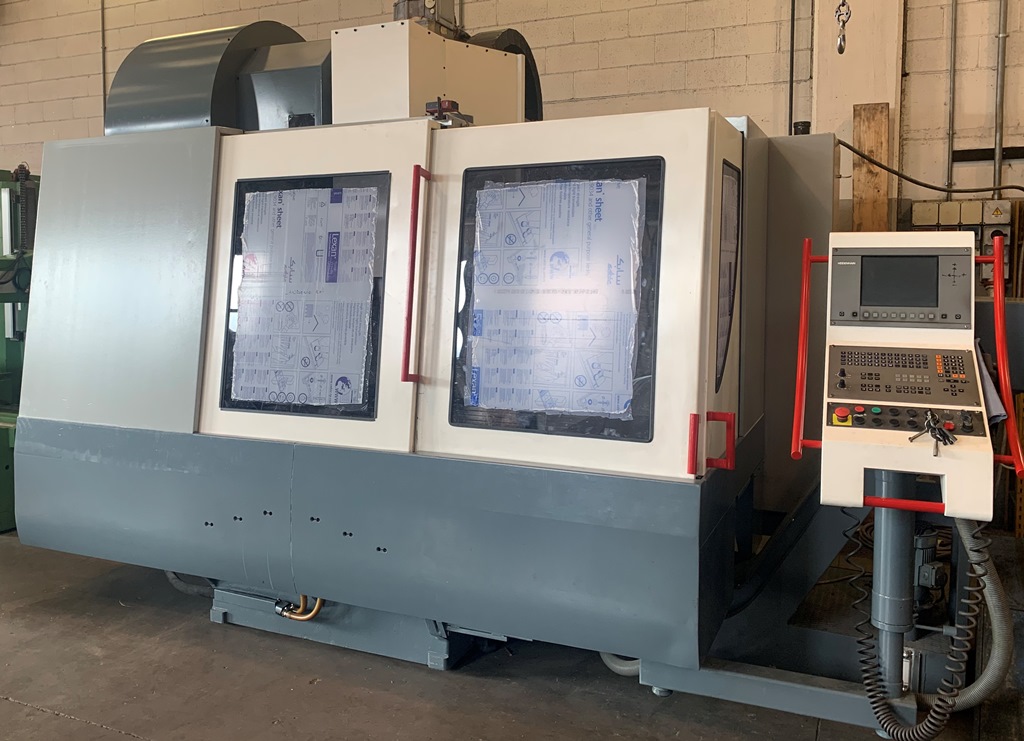

CENTER MAS MOD. MCV 1270 POWER
Single pallet
08877
CNC HEIDENHAIN iTNC 530
TABLE:
Table surface mm 1500x670
T-slots (numberxwidthxspacing) mm 5x18x125
Max table weight Kg 1200
Table height above the floor mm 920
WORKING AREA:
Axis X stroke mm 1270
Axis Y stroke mm 610
Axis Z stroke mm 720
FEED:
Working feed rate (X,Y,Z) mm/min-1 1-15000
Rapid traverse (X,Y,Z) m/min-1 40
SPINDLE:
Spindle motor power kW 28
Spindle speed rpm 8000
Distance spindle nose to clamping surface mm 120-840
Distance axis distance to column mm 625
TOOL MAGAZINE:
Tool magazine 24 positions
Max tool lenght mm 400
Max tool diameter (adjacent pocket/empty) mm 125/175
Max tool weight Kg 15
MACHINE WEIGHT AND DIMENSIONS:
Weight with electrical cabinet Kg 11000
Min. area required (LxWxH) with chip conveyor mm 5000x3600x3330
Total max input power of machine kVA 75
EQUIPPED WITH:
-High pressure through the spindle
-Chip conveyor
USED MACHINE
IMAGES:
