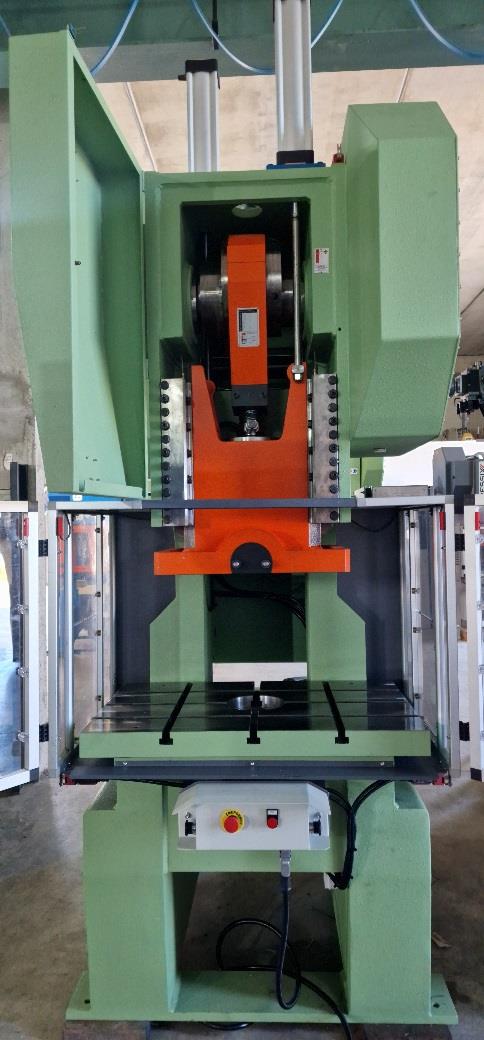

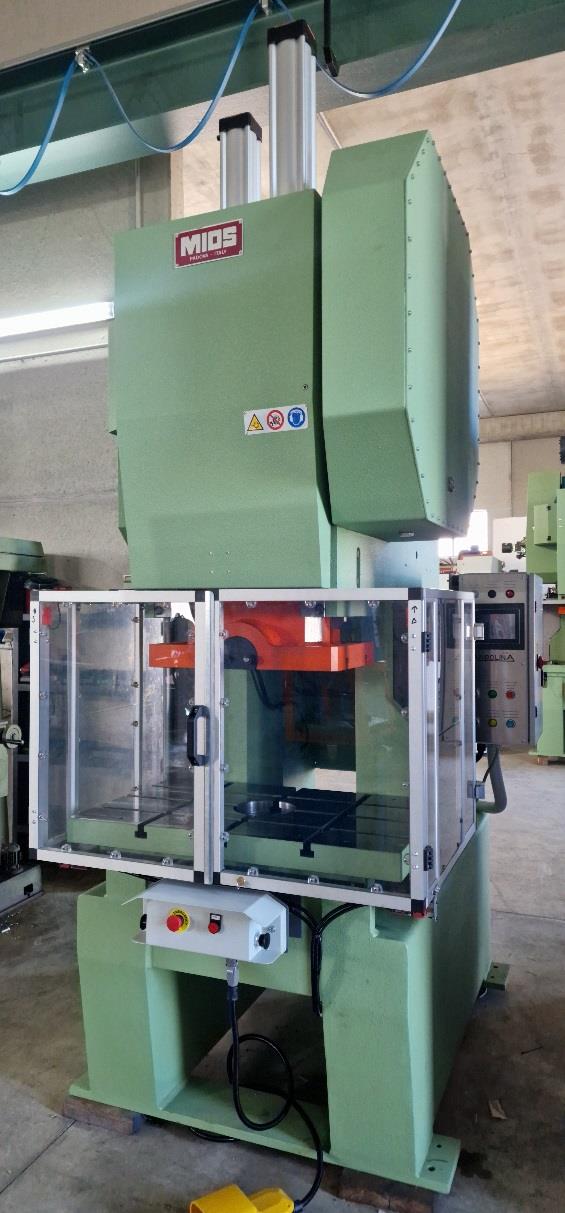

C-FRAME PRESS MIO T105-TR
Eccentric c- type
press - Used Machines
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
MIOS
10147
10147
C-FRAME PRESS
Nominal force kN 1.050
Mass Kg 6.400
Nominal stroke rate 60 strokes/min
Operating air pressure BAR 4.3 ÷ 5.5
Installed power KW 7.5
Min./Max. stroke mm 15 / 140
Throat depth mm 310
Min./Max. distance table/ram mm 340 / 480
Ram hole mm 50
Ram adjustment mm 100
Air consumption Lt 1.1
Stop position T.D.C. (Top Dead Center)
Voltage V 380
Frequency 50 Hz
Auxiliary voltage V 24
Hydraulic overload
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
