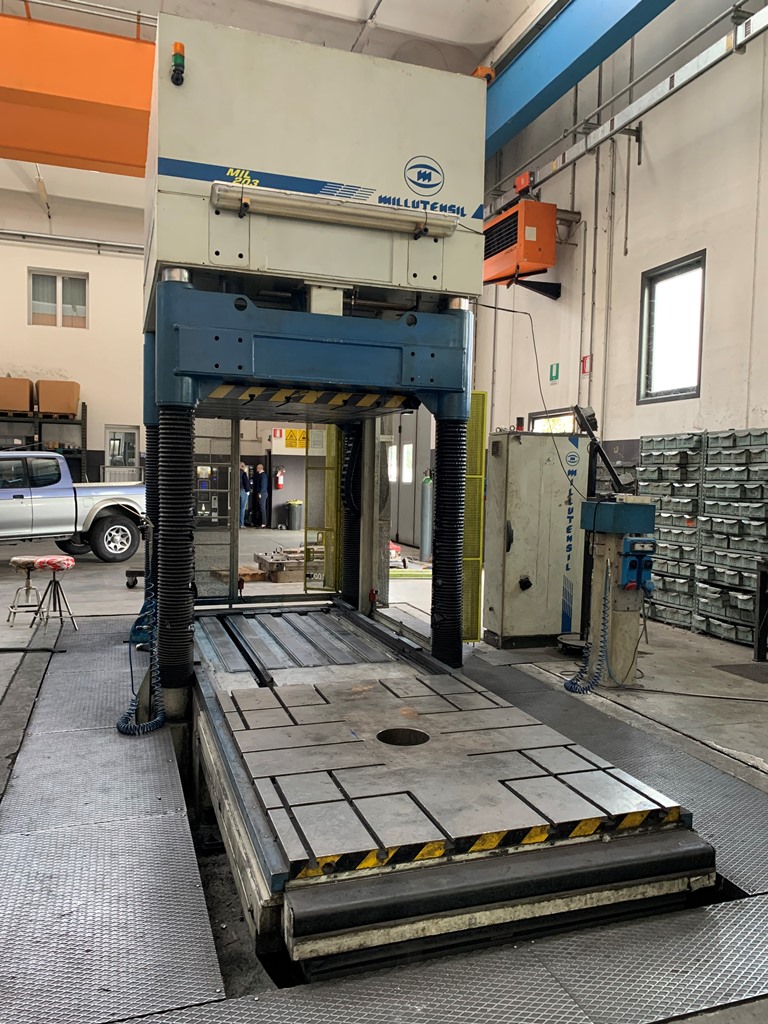

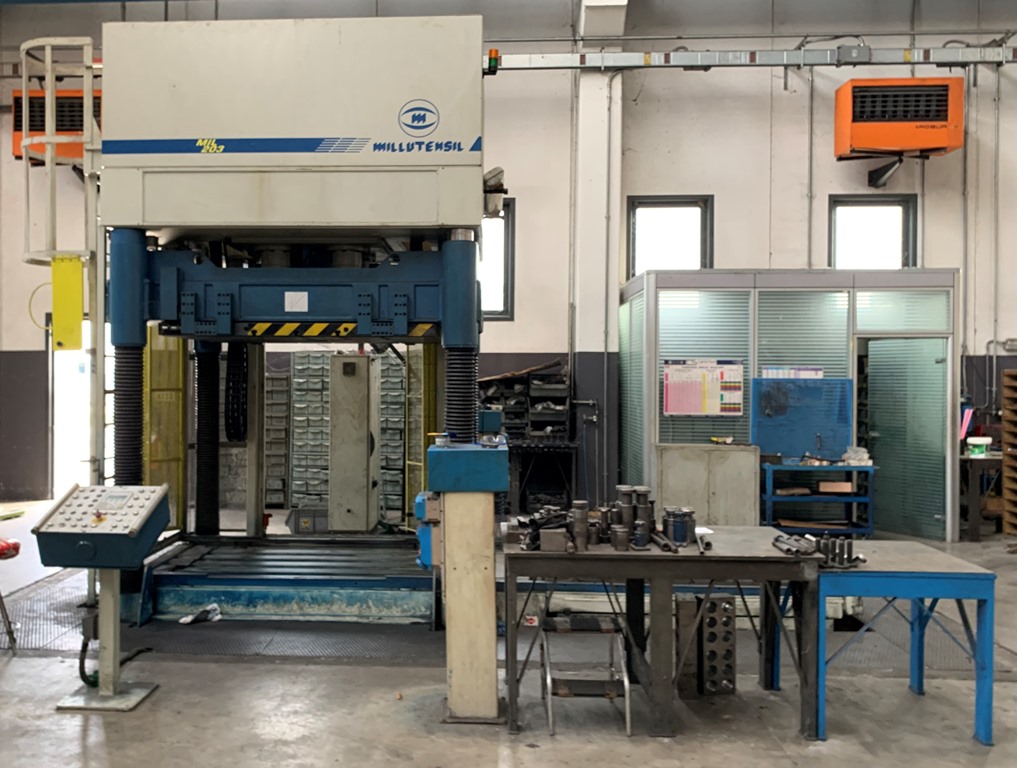

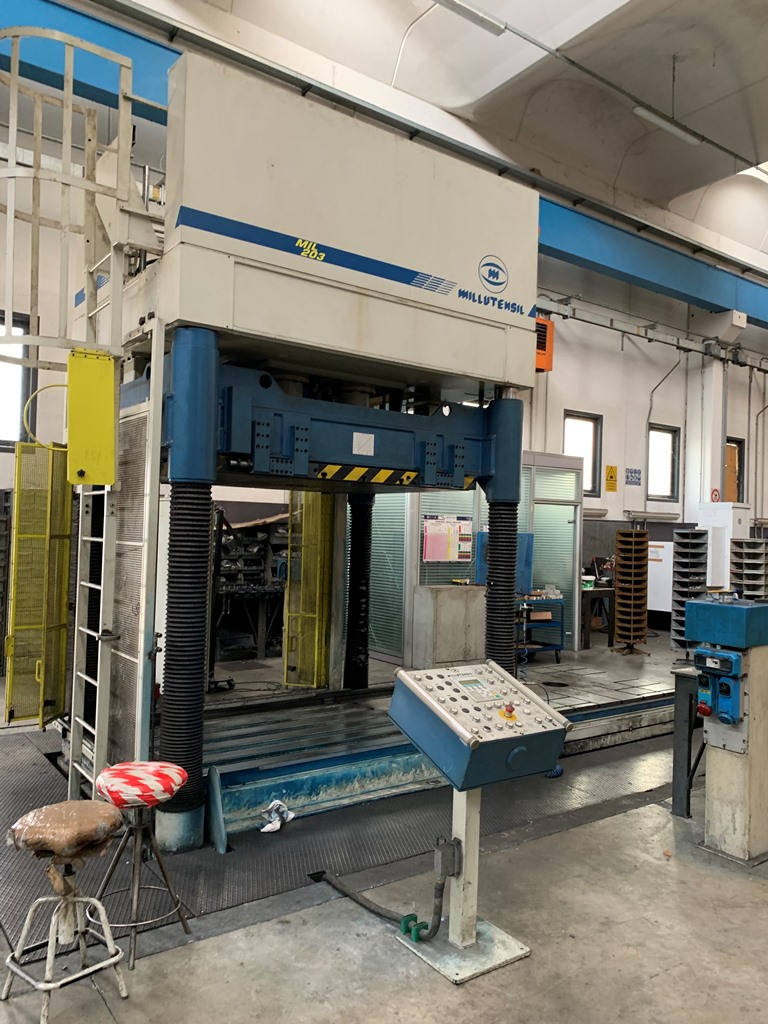

MILLUTENSIL PRESS MIL 203
Test moulding
VIDEOS:
09666
Useful platen length 2000 mm
Useful platen width 1500 mm
Max passage between columns on length 2130 mm
Max passage between columns on width 1630 mm
Stroke 1200
T-slots in platens 22 (DIN650)mm
Height of lower platen from ground 770 mm
Hydraulic pressure adjustable between 0-250 bar
Maximum force in opening 350 kN
Maximum force in closing 1500 kN
Upper platen rotation 100 degrees
Lower platen rotation 70 degrees
Rapid approach speed 65-80 mm/sec.
Working speed 8 mm/sec.
Return speed 35-50 mm/sec.
Upper main motor power 11 kW
Upper auxiliary motor power 1.1 kW
Total press power 12.1 kW
Maximum weight on upper platen 15000 Kg
Maximum weight on lower platen 30000 Kg
Height approx. 4,700 mm
Width approx. 6,150 mm
Depth approx. 2,130 mm
Total press weight 28000 Kg
USED MACHINE
