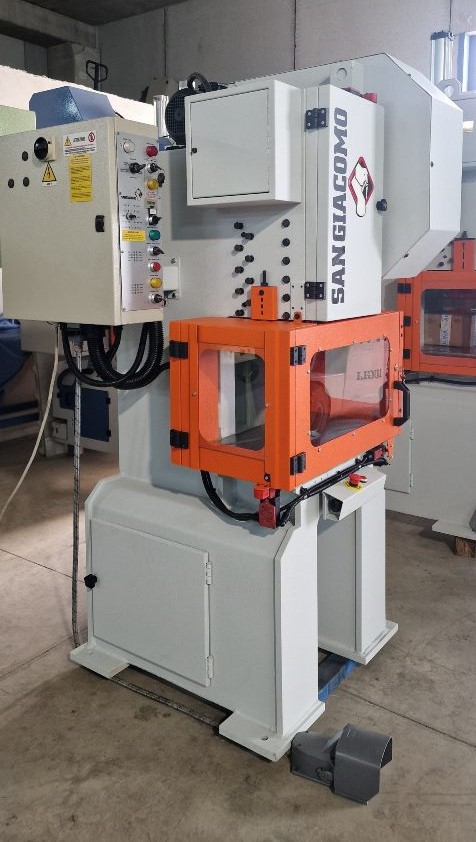

PRESS SANGIACOMO T30 CE
Eccentric c- type
press - Used Machines
VIDEOS:
SANGIACOMO
09974
09974
C-FRAME PRESSES
Nominal force: 300 kN
Nominal stroke: 2.6 mm
Adjustable stroke: 9÷76 mm
Stop position: TDC
Ram adjustment: 60 mm
Stop time: 109 ms
Safety distance (1.6 m/s): 174 mm
Strokes per minute: 145
Maximum mould surface: 300x500 mm
Maximum closed mould height: 307.5 mm
Min. closed mould height: 274 mm
Upper mould mass: 40 kg
Flywheel revolutions per 1°: 145
Max. insertions at 1°: 60
Installed power: KW 2.25
Voltage: V400
Auxiliary voltage: V24
Operating air pressure: BAR 5.5÷6
Weight: Kg. 1,800
USED MACHINE
N. 2 AVAILABLE
