PUNCHING SHEAR MACHINE GEKA
Punching machines
.jpeg)
.jpeg)
.jpeg)
.jpeg)
09690

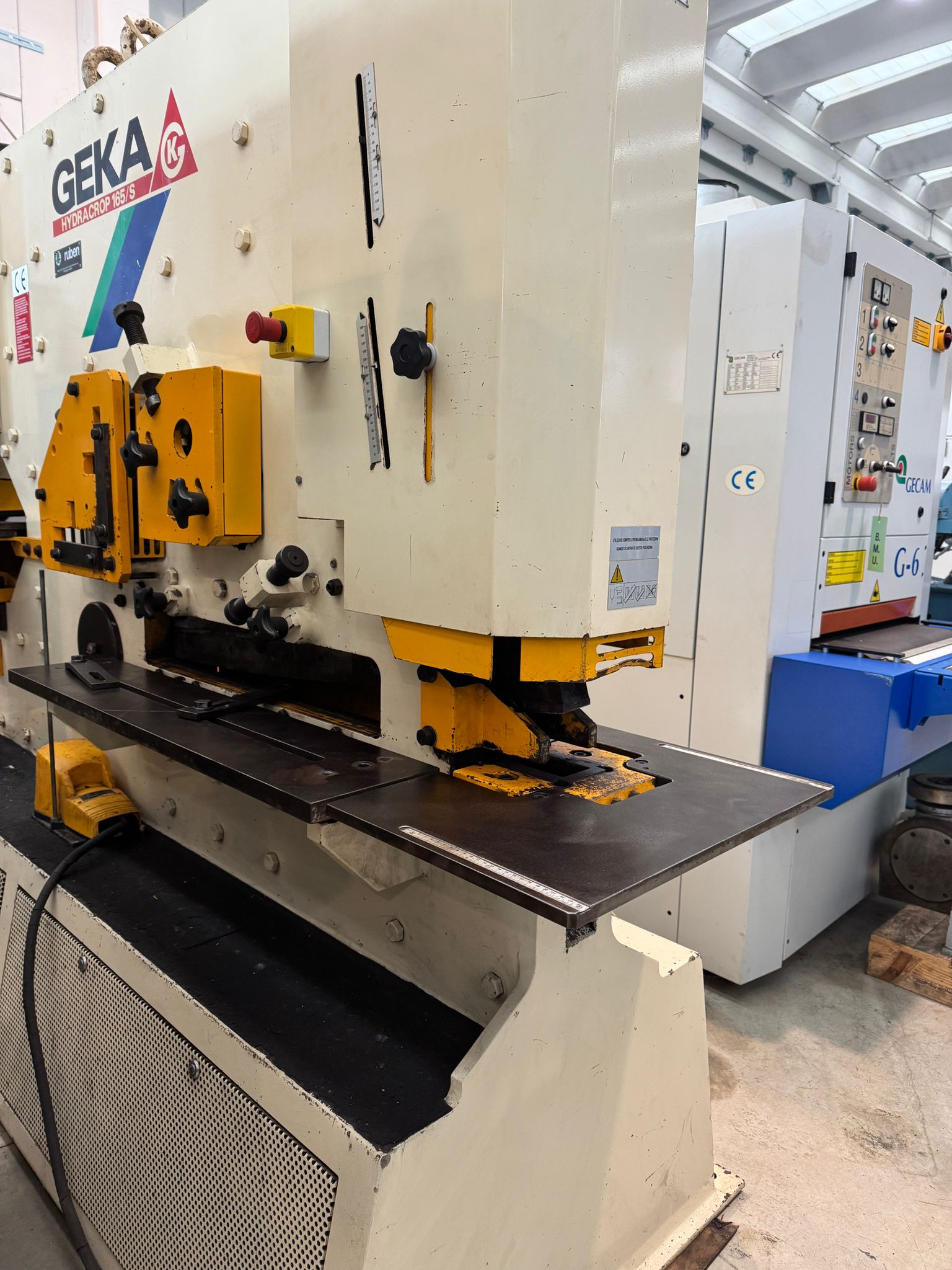

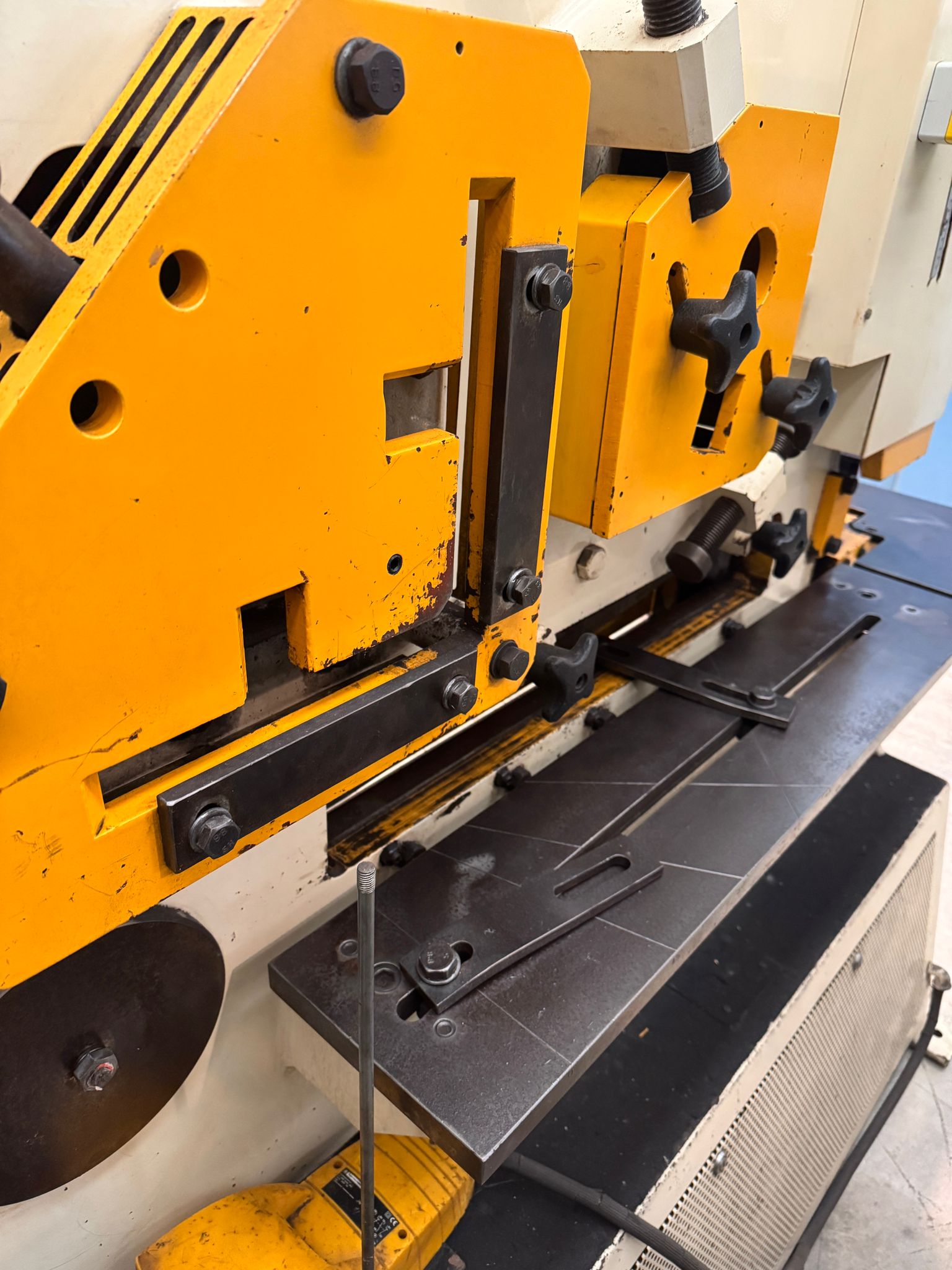

MOD. HYDRACOP 165S
HYDRAULIC
INCREASED SPEED
-GEKA CNC positioning table mod. SEMYPAX 1000x400
-New CNC for driving the positioning table

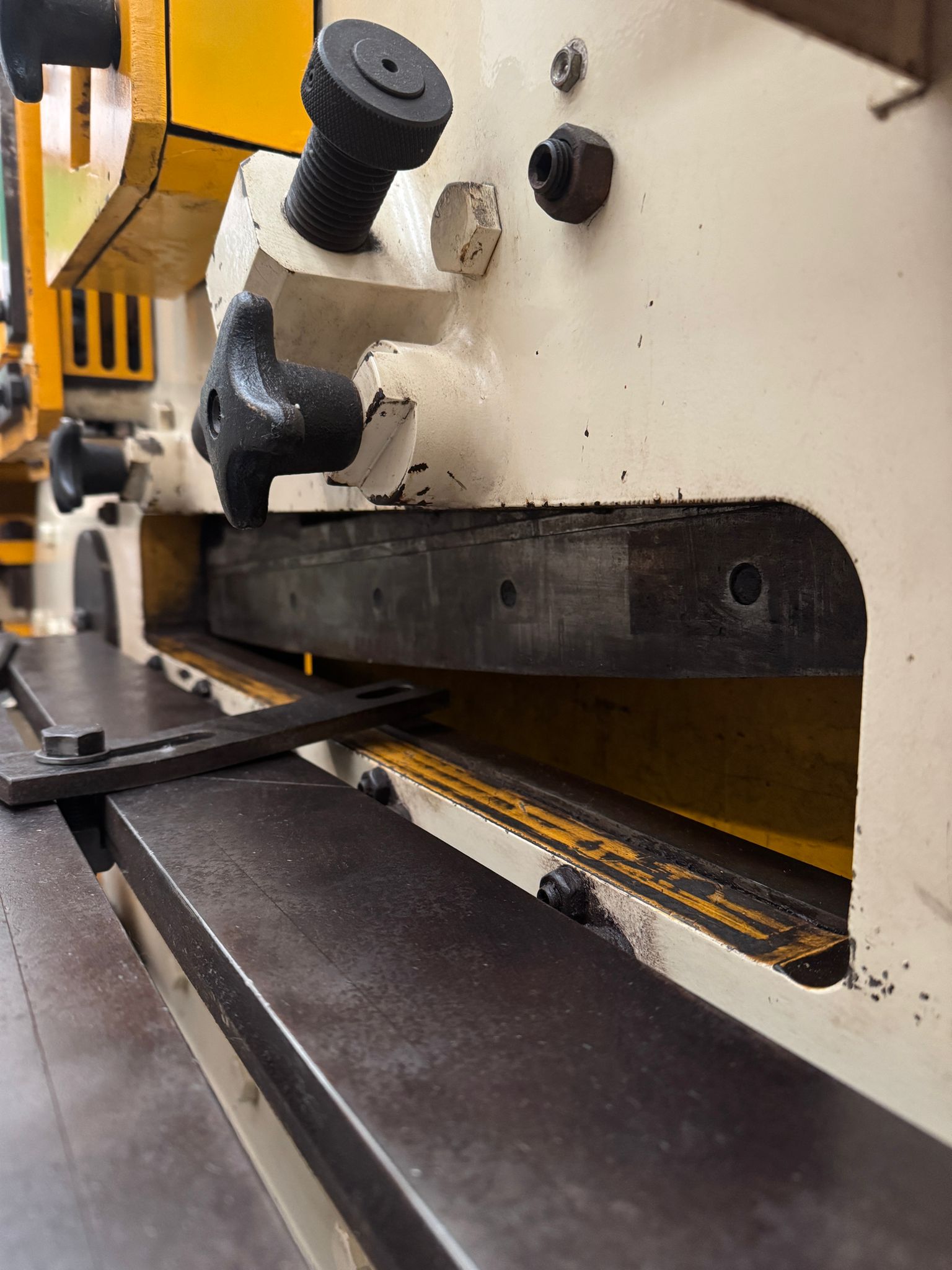

Flat bars (with slight deformation) 750x20 mm
Blade length 765 mm
Working height 870 mm
Cutting an L-shaped profile at 45º mm 120
SHEARS FOR IRON PROFILES:
Shear kN 3000
L at 90 degrees without deformation 205x205x18 mm
L at 45 degrees (2 wings) 70x70x7 mm
WITH SPECIAL BLADE
L at 90 degrees (with slight deformation) 205x205x25 mm
BAR SHEARS:
Round bar 60 mm
Square bar 60 mm
WITH SPECIAL BLADES
UPN 200 mm
IPN 200 mm
NOTCHING MACHINES:
Sheet metal thickness 16 mm
Angle of 120 mm
Depth 110 mm
Width 58 mm
PUNCHING:
Punching power kN 1650
Maximum capacity mm diam. 40x30
Gap 510 mm
Stroke 100 mm
Working height 1110 mm
GENERAL SPECIFICATIONS:
Number of strokes per minute (stroke = 20mm) 31
Engine kW 15
Net weight 5200 kg
Packaging dimensions mm 2830x1600x2200
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
