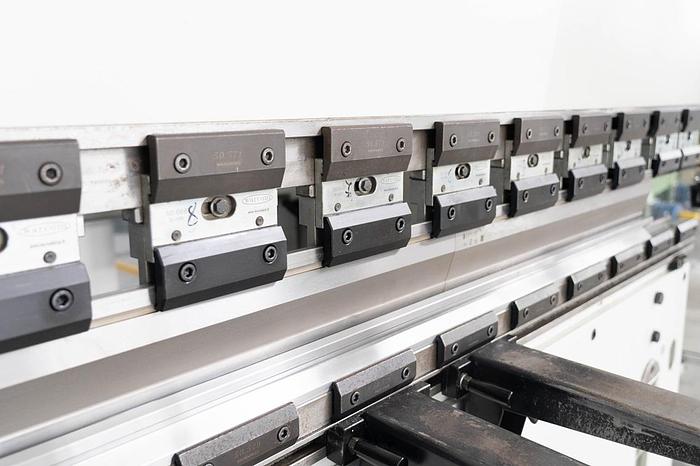

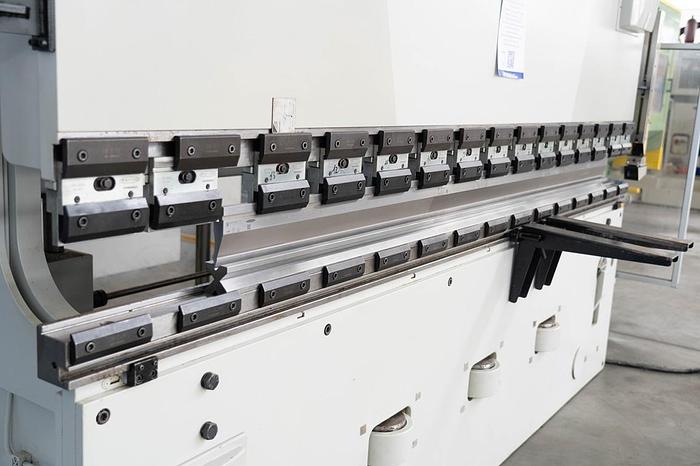

PRESS BRAKE WARCOM DINAMICA 30-100
Press brake
sheet metal working - Used Machines
WARCOM
10023
10023
Force: 100 T
Useful Length: 3200 mm

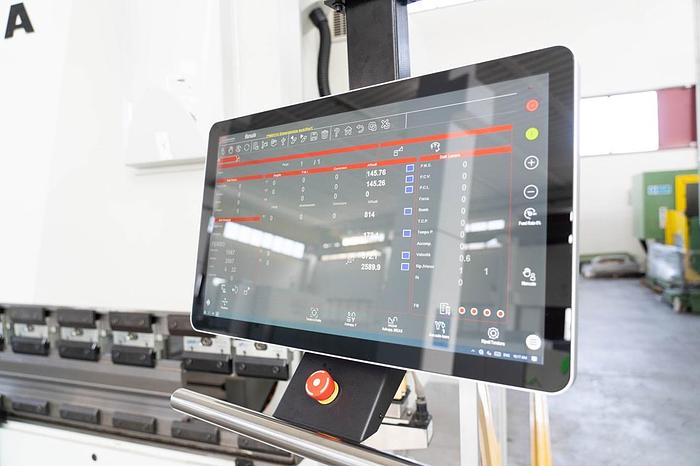

Control: ESA 875 2D, new 2024
Number of controlled axes: 6
Distance between uprights: 2550 mm
Vee depth: 500 mm
Max distance between table and punch: 600 mm
Stroke: 400 mm
Table width: 60 mm
Approach speed: 0–200 mm/s
Working speed: 0–10 mm/s
Return speed: 0–180 mm/s
Main motor power: 11 kW
Weight: 10,500 kg
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
