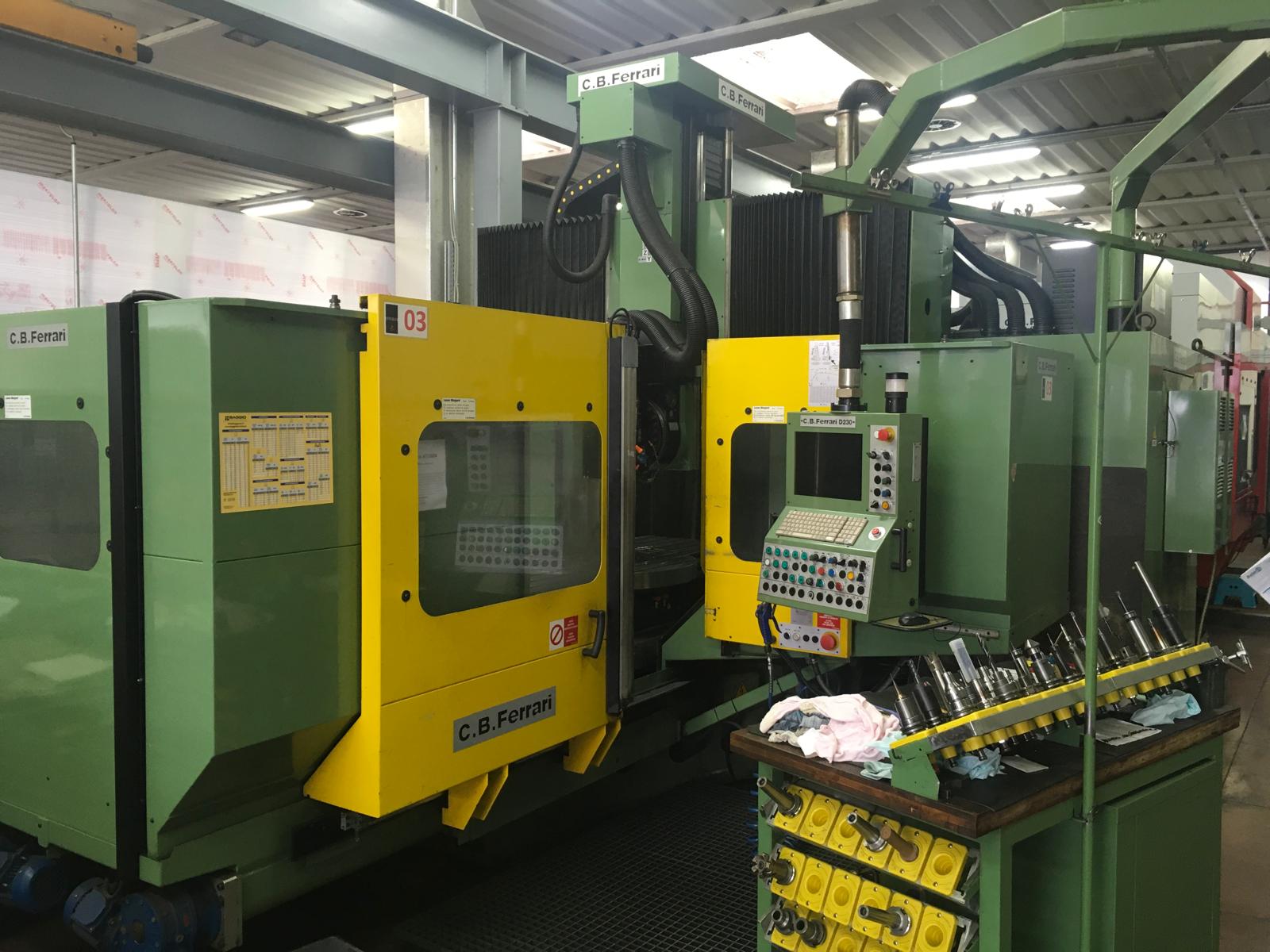

CB FERRARI D230 MACHINING CENTER
5 axis machine center - Used Machines
.jpg)
.jpg)
CB-FERRARI
10059
10059

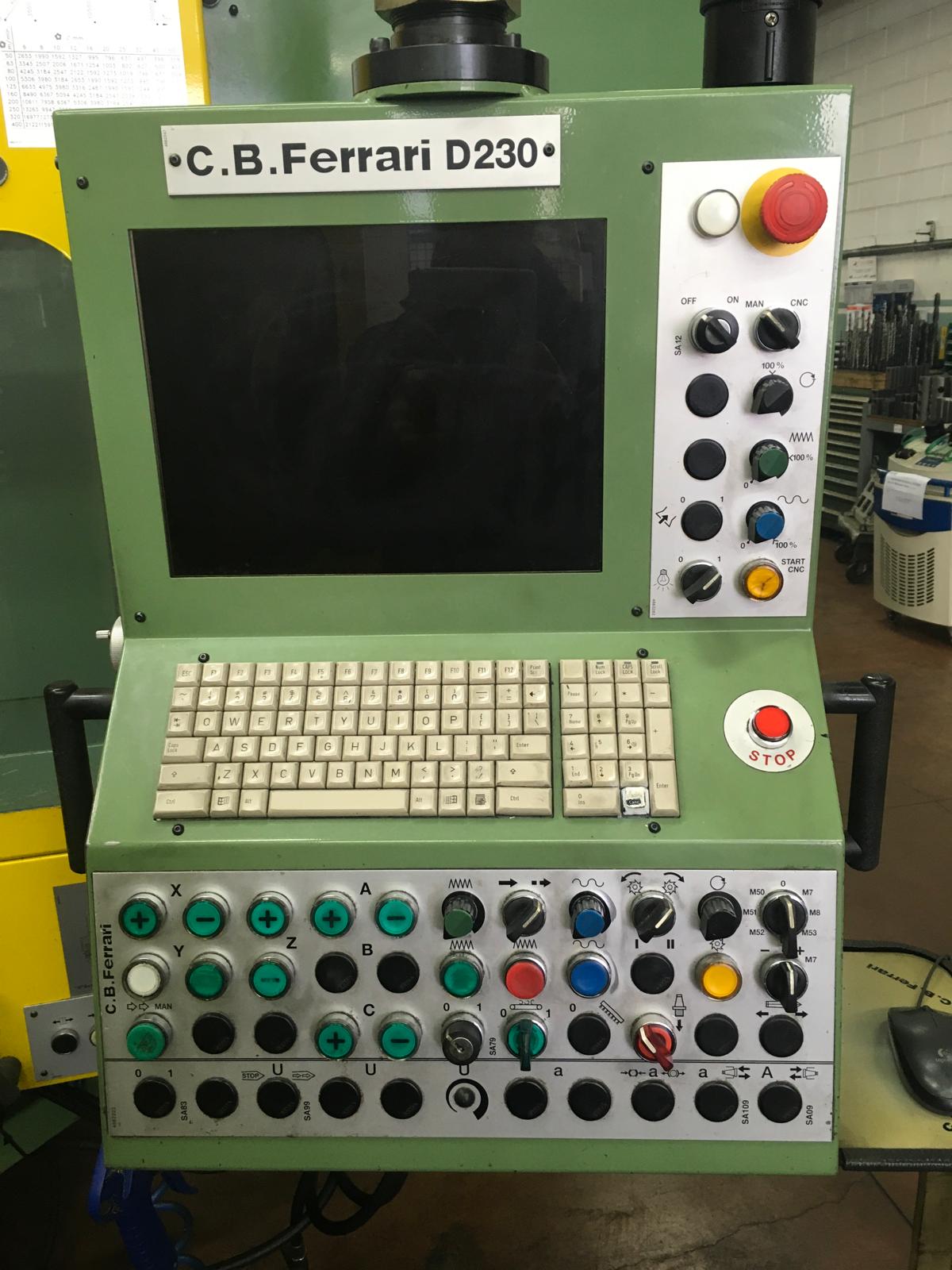

CNC Control: ELEXA E580H
X-Axis Travel: 1,600 mm
Y-Axis Travel: 1,600 mm
Z-Axis Travel: 820 mm
Rapid Traverse (X, Y, Z): 40 m/min
Tool Magazine: 30 positions, rotary type
Spindle Taper: ISO 40
Spindle Speed: 20,000 rpm

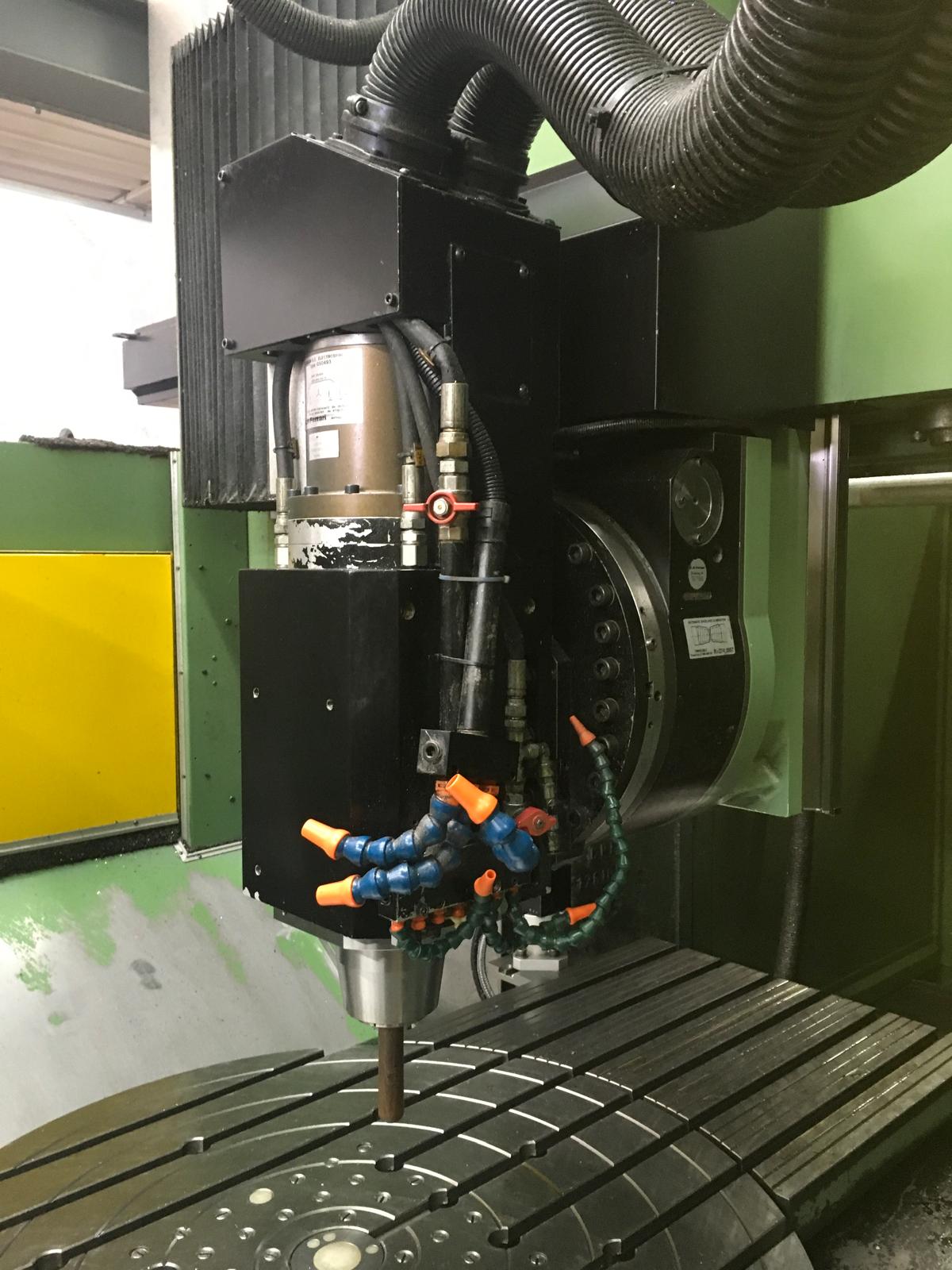

Continuous Head with Electro-Spindle
Spindle Power: 24/35 kW
Dimensions: 6,200 x 6,200 x 4,450 mm
Weight: 15,000 kg
EQUIPPED WITH:

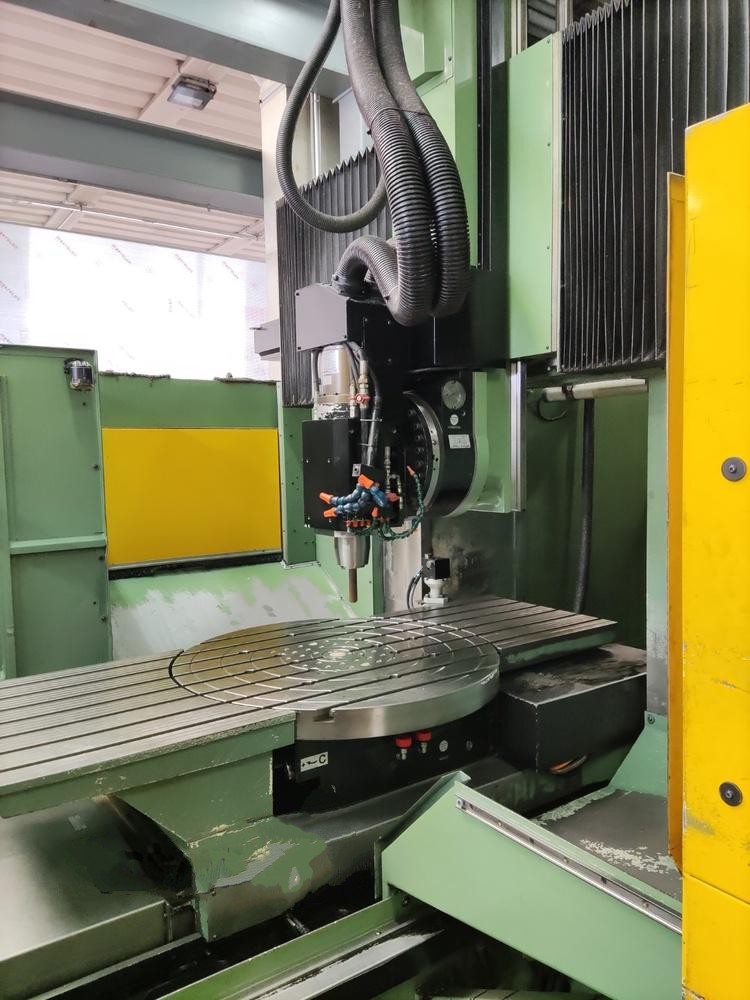

Rotary Table
Platform Diameter: 1,000 x 80 mm
Right & Left Semi-Tables (L= 2,000 mm)
External Tool Blowing System
Chip Conveyor
Through-Spindle Cooling System with Paper Filter
High-Speed Coolant System
Vertical Door
Reversed Vertical Motor
Tank with Paper Filter
USED MACHINE
