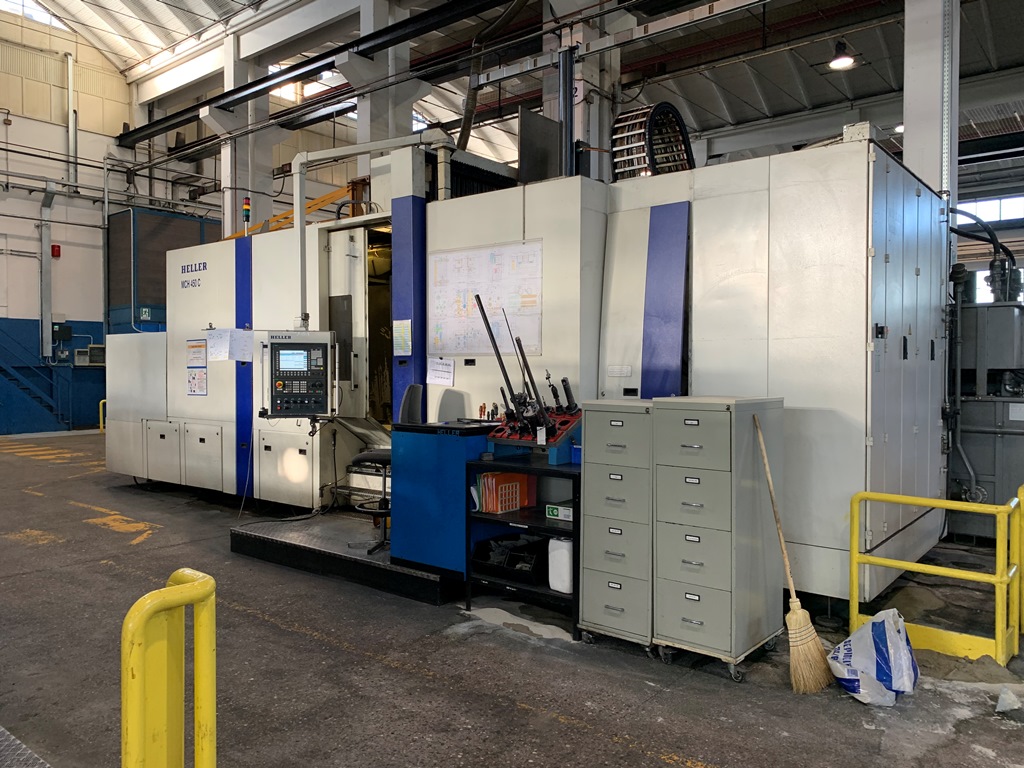

CENTER HELLER MOD. MCH 450 C
09192
DOUBLE PALLET, 5 AXIS

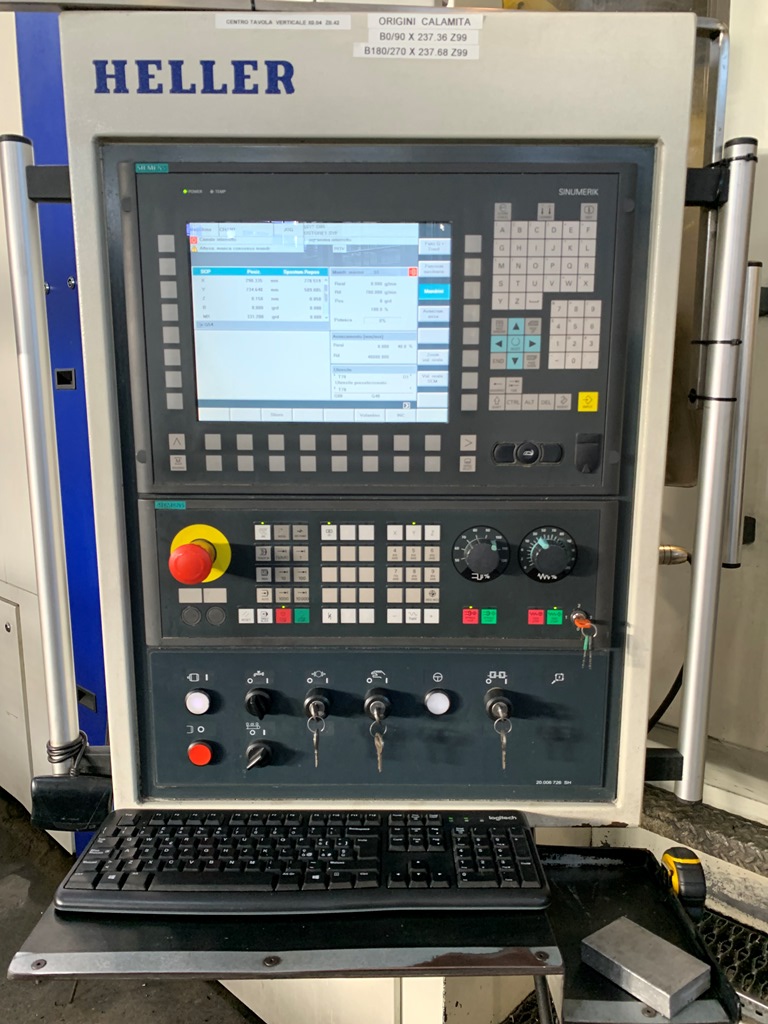

CNC SIEMENS 840D
WORK AREA:
Longitudinal stroke X axis mm 1600
Vertcal stroke Y axis mm 1200
Transverse stroke axis Z mm 1700
GUIDEWAYS:
Size 55
TRANSMISSION SYSTEM:
Diameterxpitch mm 50x25
FEED THRUSTS:
X axis (at duty cycle S3-40%) N 15.000
Y axis (at duty cycle S3-40%) N 15.000
Z axis (at duty cycle S3-40%) N 17.500
SPEEDS:
Feed speed (axis X,Y,Z) mm/min 1-40.000
Rapid traverse rete (axis X,Y,Z) mm/min 40.000
Acceleration (axis X,Y,Z) m/s2 4,0
SPINDLE:
Spindle diameter in front bearing mm 100
Spindle taper ISO 50 DIN 69871
Spindle motor power (at duty cycle S1-100% / S6-40%) kW 28/43
Max torque ( (ay duty cycle S1-100% / S6-40%) Nm 536/822
Speed range rpm 45-6000
Indexing degrees 360x0,001
Indexing accuracy Tp acc. to VDI/DGQ 3441 Angular s 10

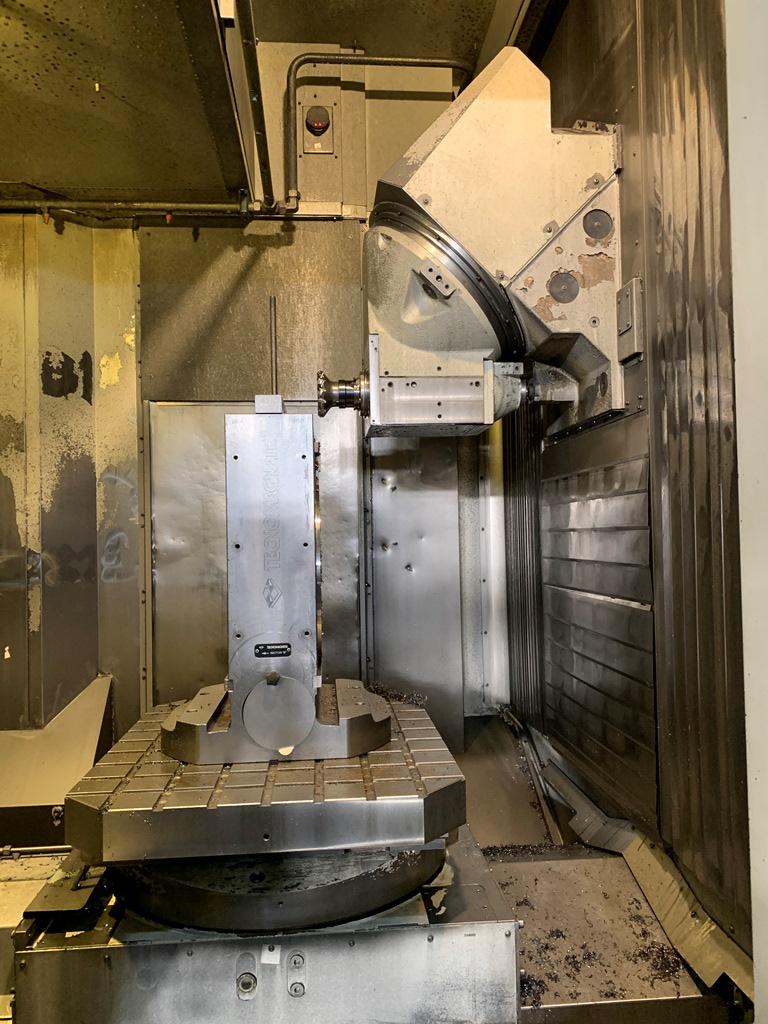

ROTARY INDEXING TABLE:
Indexing degrees 360x0,001
Indexing accuracy Tp acc to VDI/DGQ 3441 Angular s 6
Max clamping weight on pallet daN 2500
Max tangential moment Nm 40000
Max tipping moment Nm 34000
Swivelling time for 45 gradi s 2,9
Swivelling time for 90 gradi s 3,5
Swivelling time for 180 gradi s 4,6
PALLET CHANGER:
Mounting surface acc. to DIN 55201 A1
Pallet size mm 800x1000
Workpiece dimensions:
-Indexing diameter in work area x height mm 1890x1450
Pallet changing accuracy (in asse X,Y,Z) mm 0,02
Pallet changing time pallet s 27
POSITIONING ACCURACY OF LINEAR AXIS X/Y/Z:
Method of measuring: direct with linear scales
Positioning tolerance Tp acc. to VDI/DGQ 3441 mm 0,010
COOLANT UNIT WITH VACUUM ROTATION FILTER - HIGH PRESSURE 70 BAR:
Coolant tank contents l 2500
Coolant pump 4 bar flow rate l/min 230
Coolant pump 4 bar flow rate l/min 70
High pressure 50 bar flow rate l/min 28
CHAIN-TYPE TOOL MAGAZINE WZM 100:
Magazine places n.100
Max tool lenght (from spindle nose) mm 600
Max tool diameter (all spaces occupied) mm 112
Max tool diameter mm 228
Max cranked boring bar mm 228x400
EQUIPPED WITH:
-Chip conveyor (with modification for handling very long chips)
-Tool brake control
- Handwheel (for axis control and movement in the work area)
-Tool replacement in masked time (while the machine is automatically executing a program it is not necessary to stop it to unload/load the tools from the magazine)
USED MACHINE
YEAR 2007
