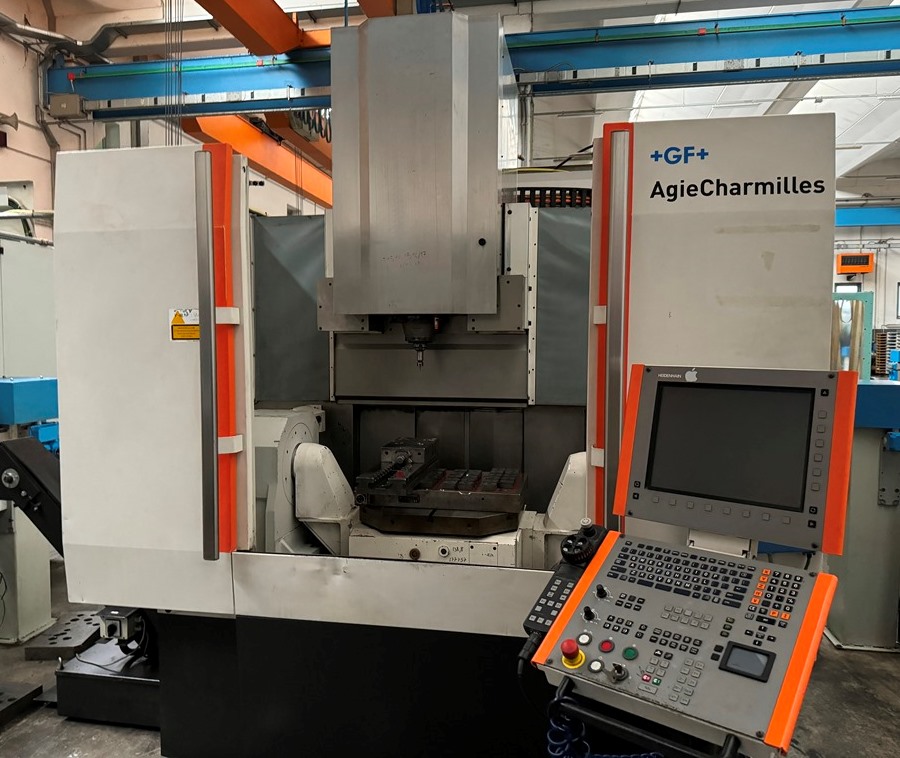

CENTER MIKRON UCP 800 DURO
With rototilting table
5 axis machine center - Used Machines
VIDEOS:
MIKRON
09643
09643

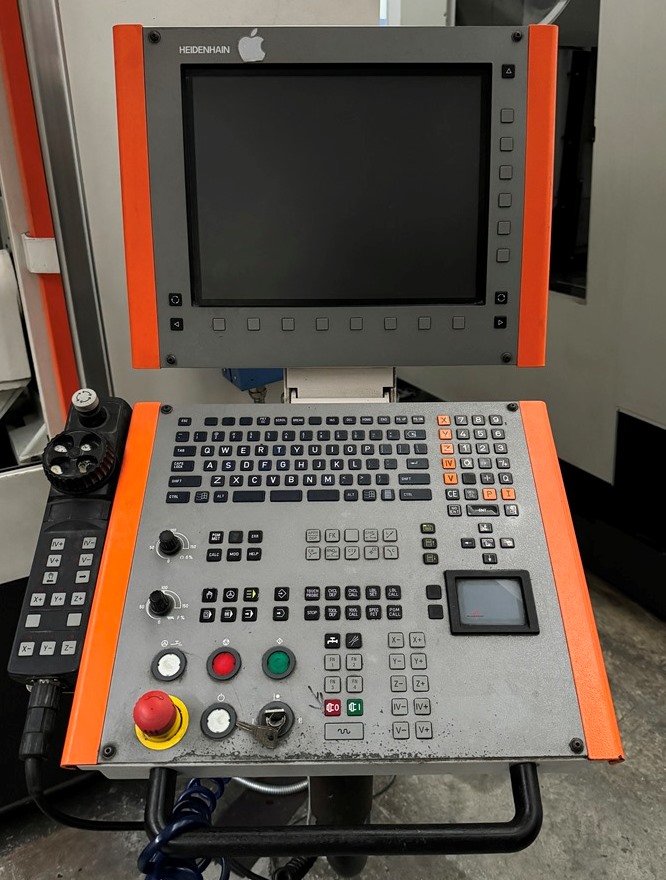

CNC Heidenhain iTNC 530
STROKES
X axis 800 mm
Y axis 650 mm
Z axis 500 mm

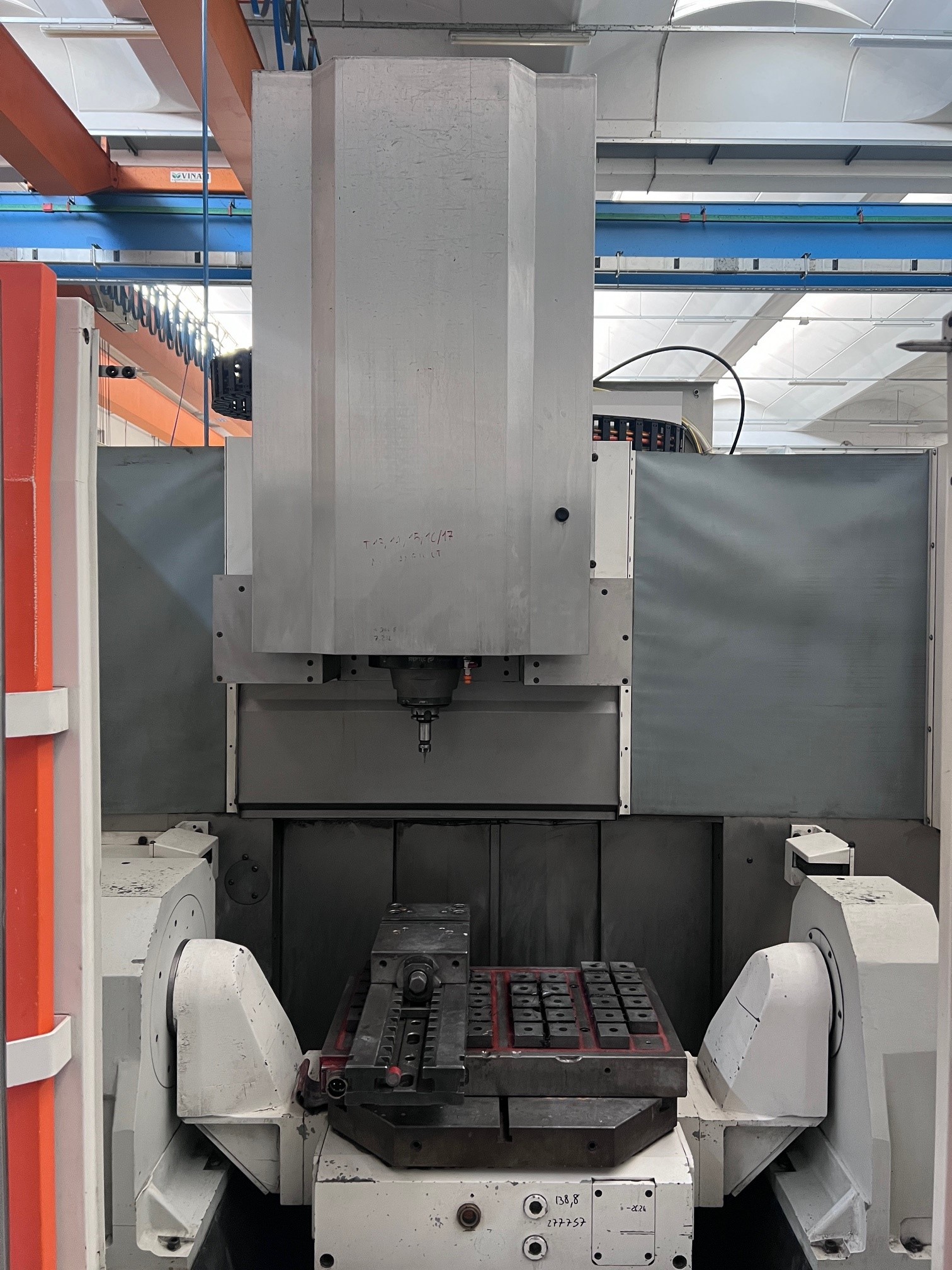

TILTING ROTARY TABLE:
Dimensions mm 600x600
Max piece weight 500 kg
Axis C rotation:
-Rotation tilting rotary table +/-360 degrees
Axis A:
-Rotation +120/-100 degrees
SPINDLE:
Spindle speed 100-20000 rpm
Spindle taper HSK-A63
Motor power with 40% RI kW 30
Motor power with 100% RI kW 23
AUTOMATIC TOOL CHANGE:
Tool magazine 30 positions
Max tool diameter mm 90/140
Max tool length mm 300
Max tool weight 8 kg
APPROX. OVERALL DIMENSIONS AND WEIGHT:
Overall dimensions 2400x3600x2900H mm
Weight Kg 9900
EQUIPPED WITH:
-Remote handwheel
-Chip conveyor
USED MACHINE
YEAR 2008
