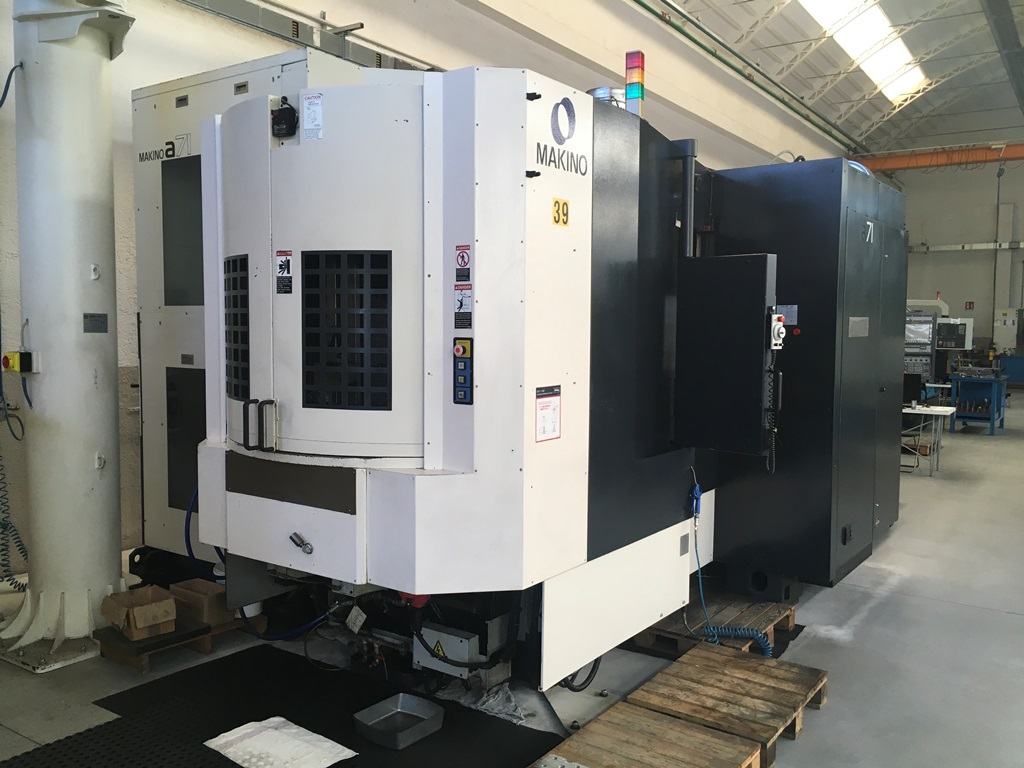

HORIZONTAL MACHINE CENTER MAKINO A71
Double pallet
machine center - horizontal - Used Machines
MAKINO
09955
09955
HORIZONTAL MACHINE CENTER

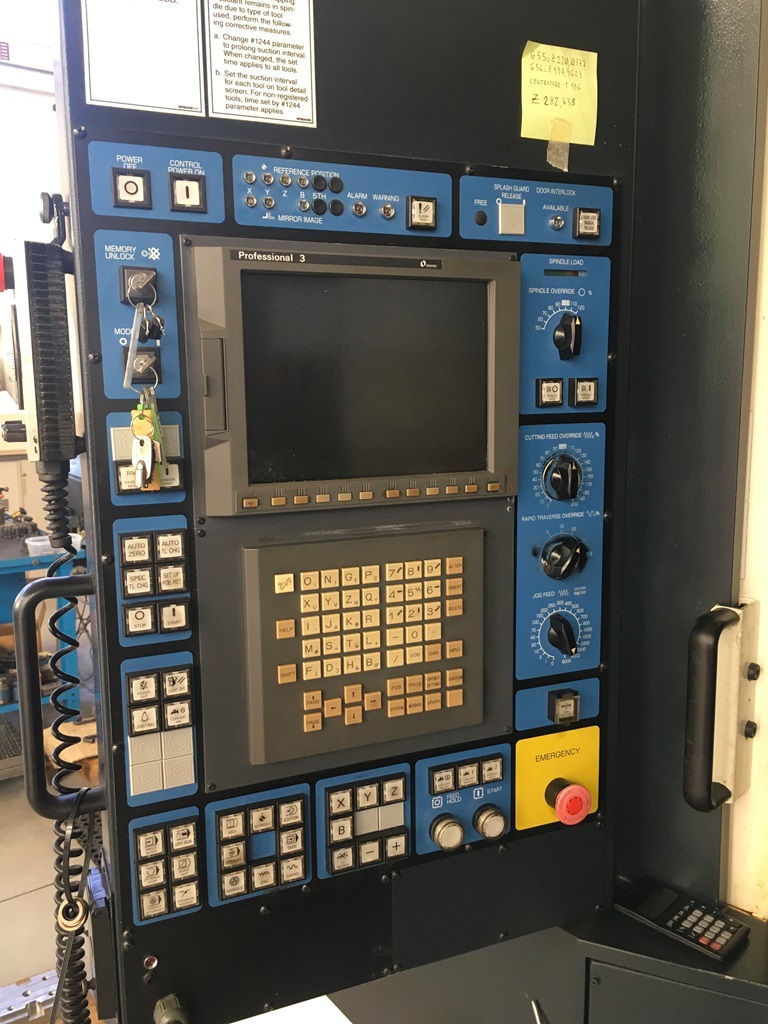

FANUC PRO 3 numerical control
WORKING AREA:
X-axis travel mm 730
Y-axis travel mm 730
Z-axis travel mm 800

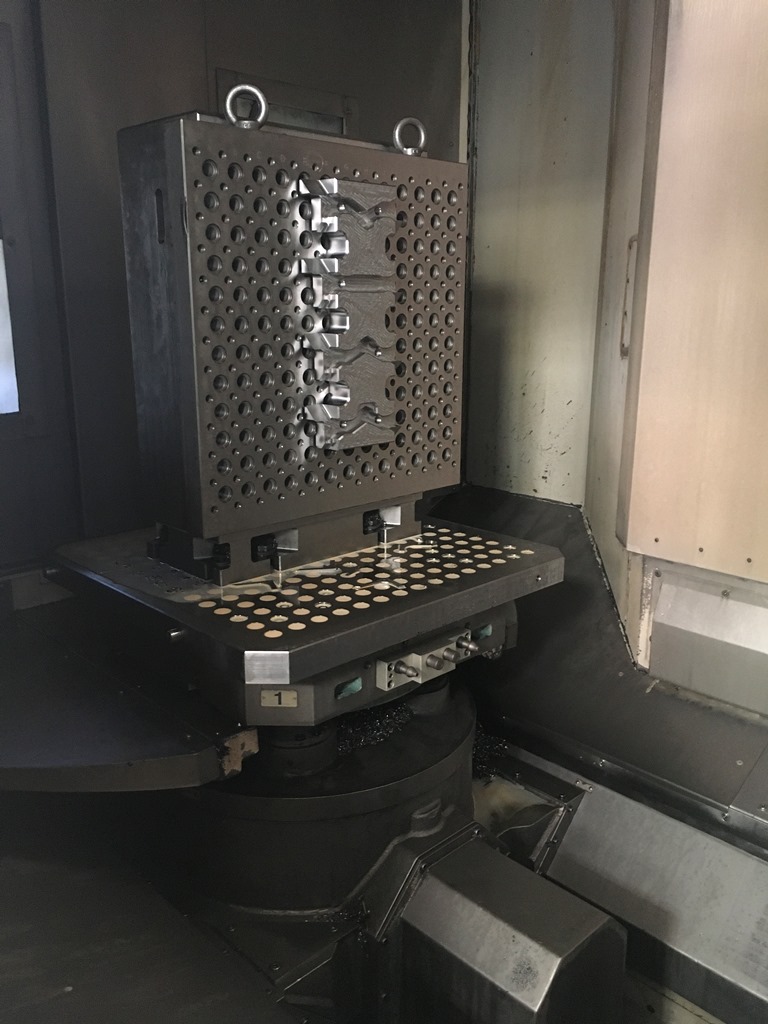

PALLETS AND TABLE:
No.2 pallets
Dimensions mm 500x500

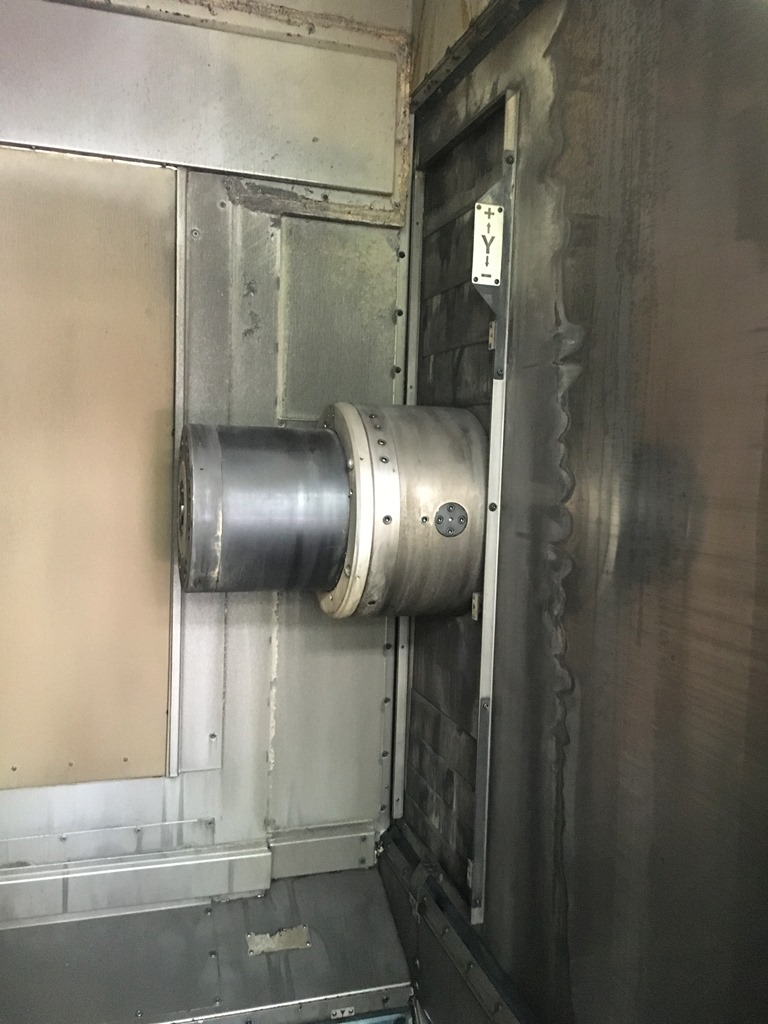

SPINDLE:
Spindle speed rpm 12,000
Spindle taper HSK-A100

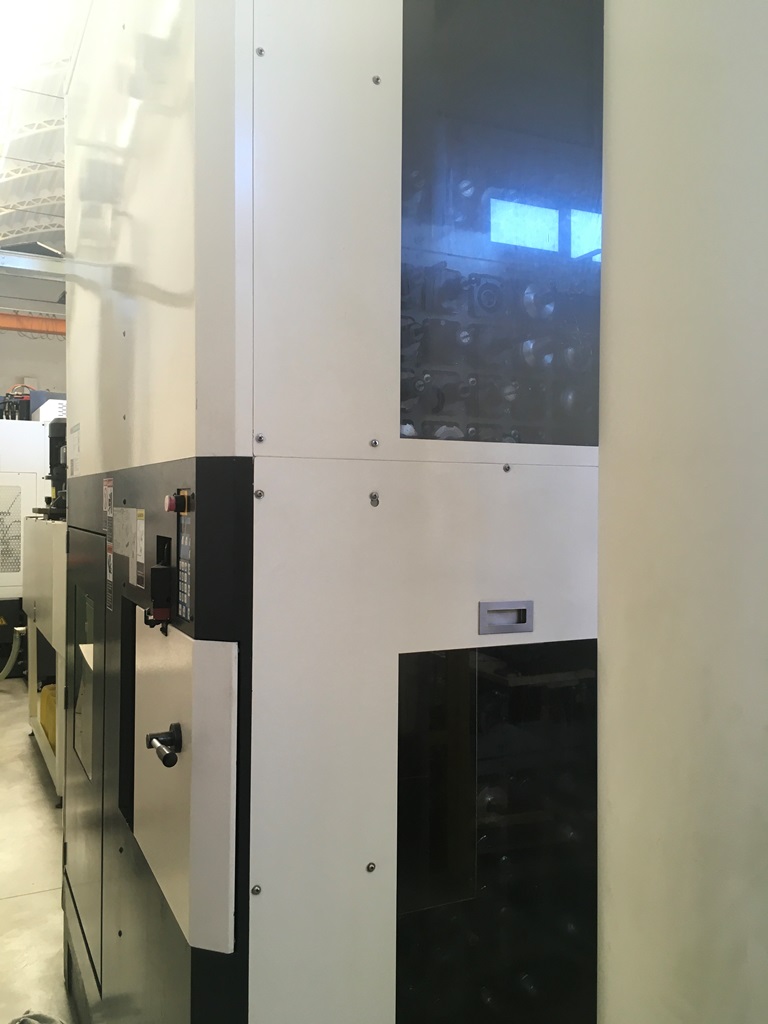

AUTOMATIC TOOL CHANGE:
Tool change 150 positions
MACHINE FOOTPRINT AND WEIGHTS:
Machine height mm 3646
Space occupied mm 3704x7584
Machine weight Kg 21000
COMPLETE WITH:
-Ranishaw touch probe
-Chain chip ejector
-Knoll high pressure pump through the spindle 70 bar
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
