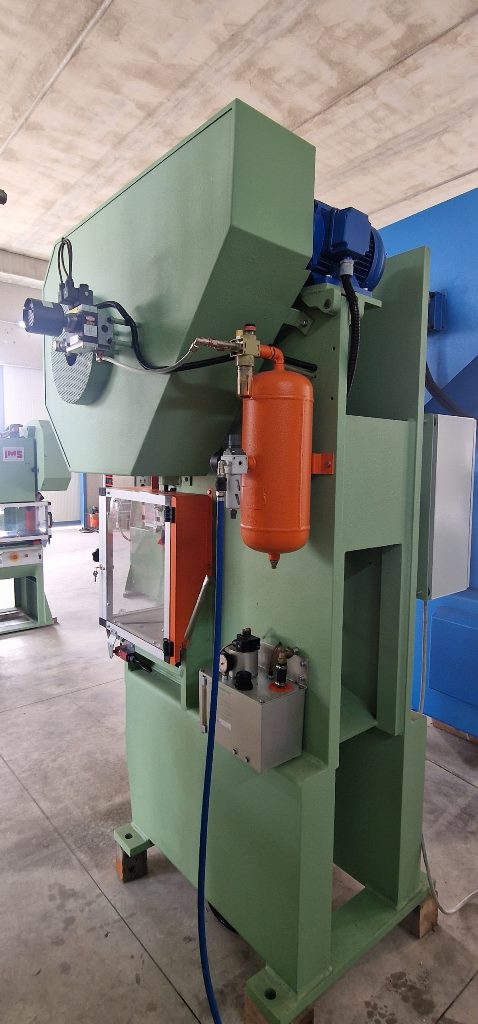

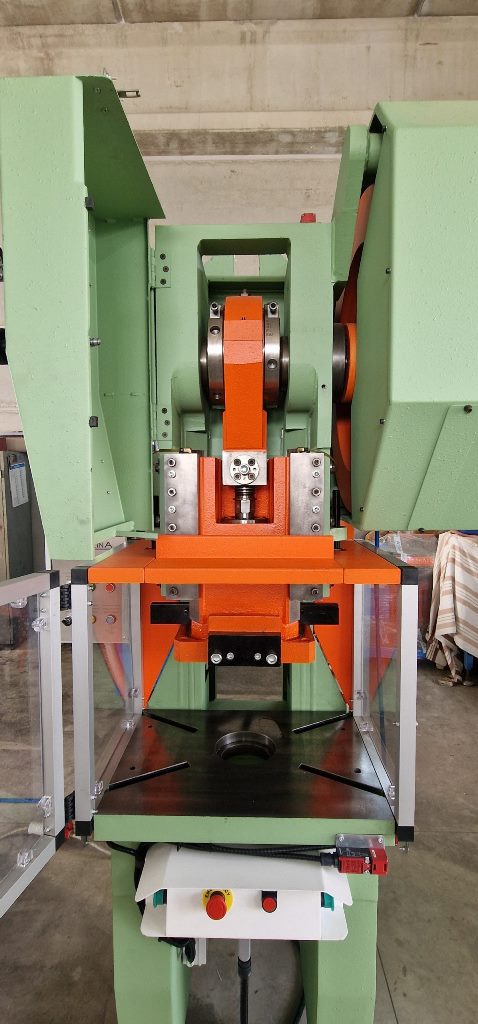

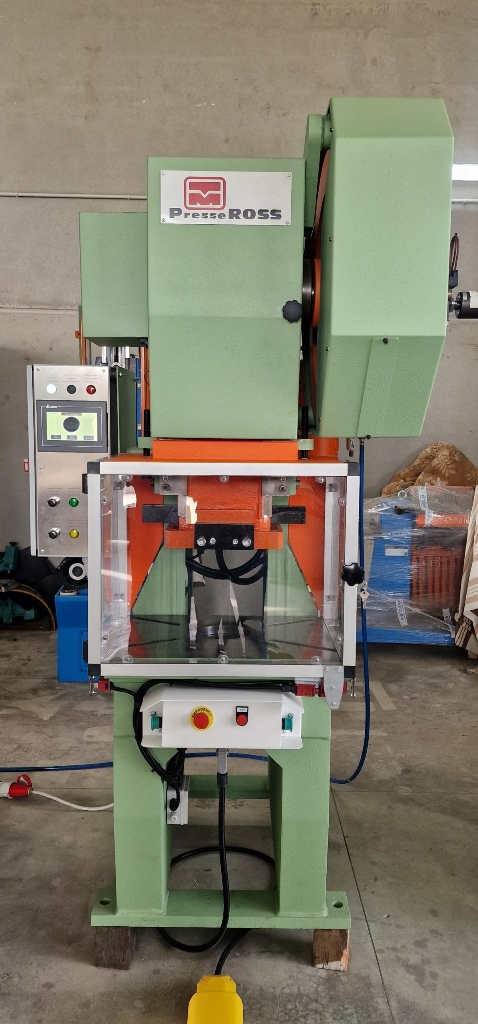

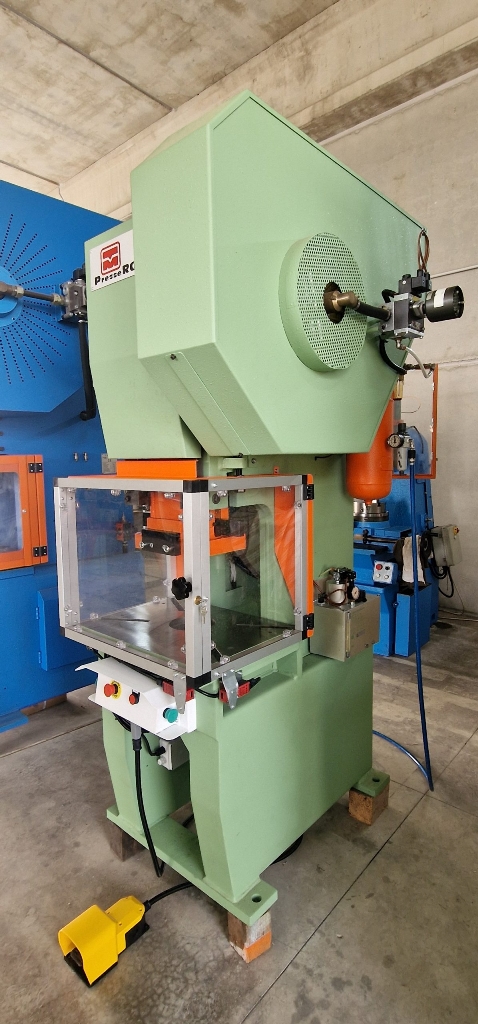

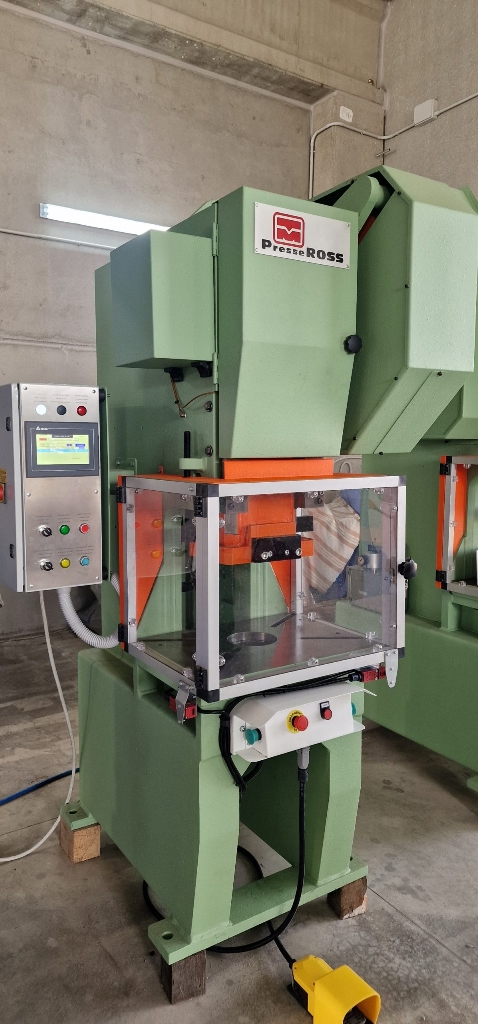

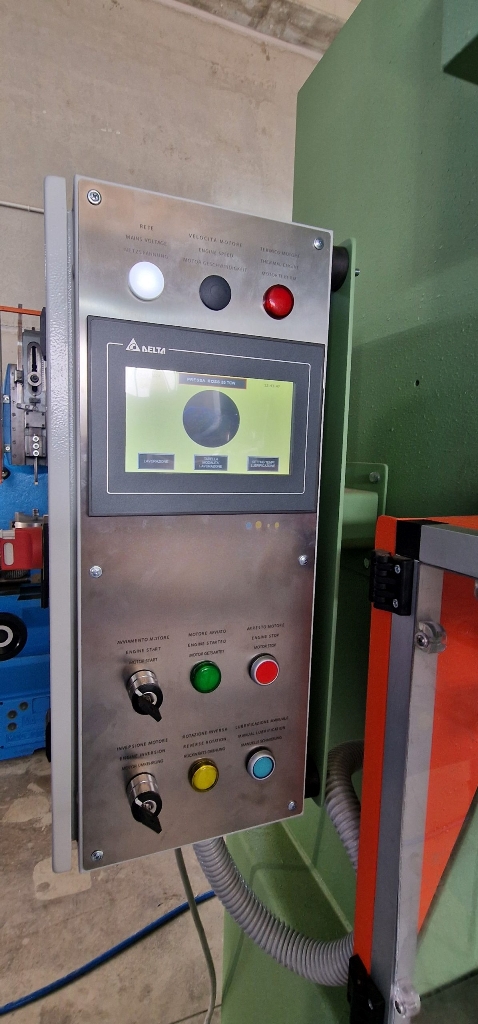

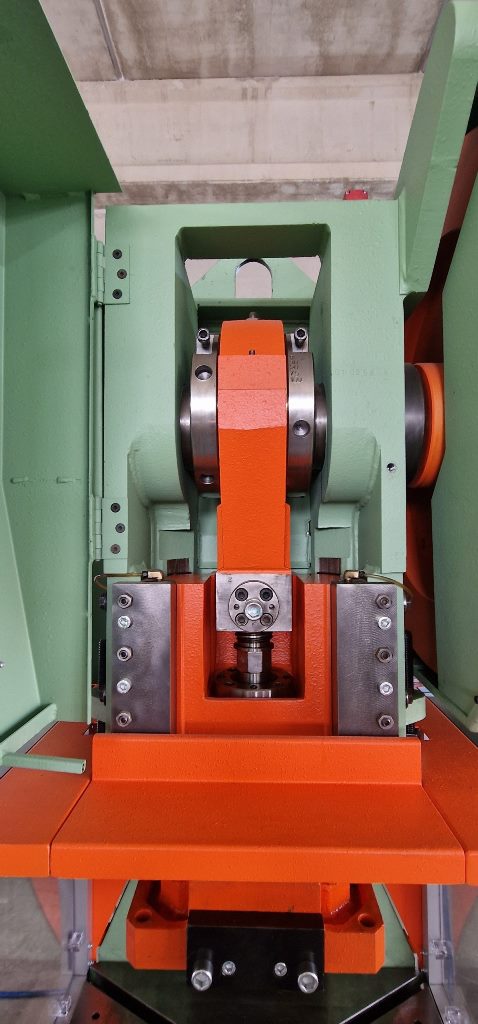

PRESS ROSS T35
Eccentric c- type
press - Used Machines
ROSS
09940
09940
C-FRAME PRESSES
Nominal force: kN 350
Slide travel min./max.: mm 8÷100
Max. slide adjustment closed height: 60/215
Speed: c/min. 141
Clutch pressure: Bar 5.5
Motor frequency (Hz) / speed (rpm): 50/940
Max. mold dimensions: L=450 x D=310;
Worktop dimensions: L=750 x D=550;
Shank hole: Ø50
Protrusion at the center of the hammer: 200 mm
Front passage: 260 mm
Machine stop: TDC (top dead center)
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
