PRESS MOSSINI 250 TON
Oleodinamic doble column
press - Used Machines
.jpeg)
.jpeg)
.jpeg)
MOSSINI
10141
10141

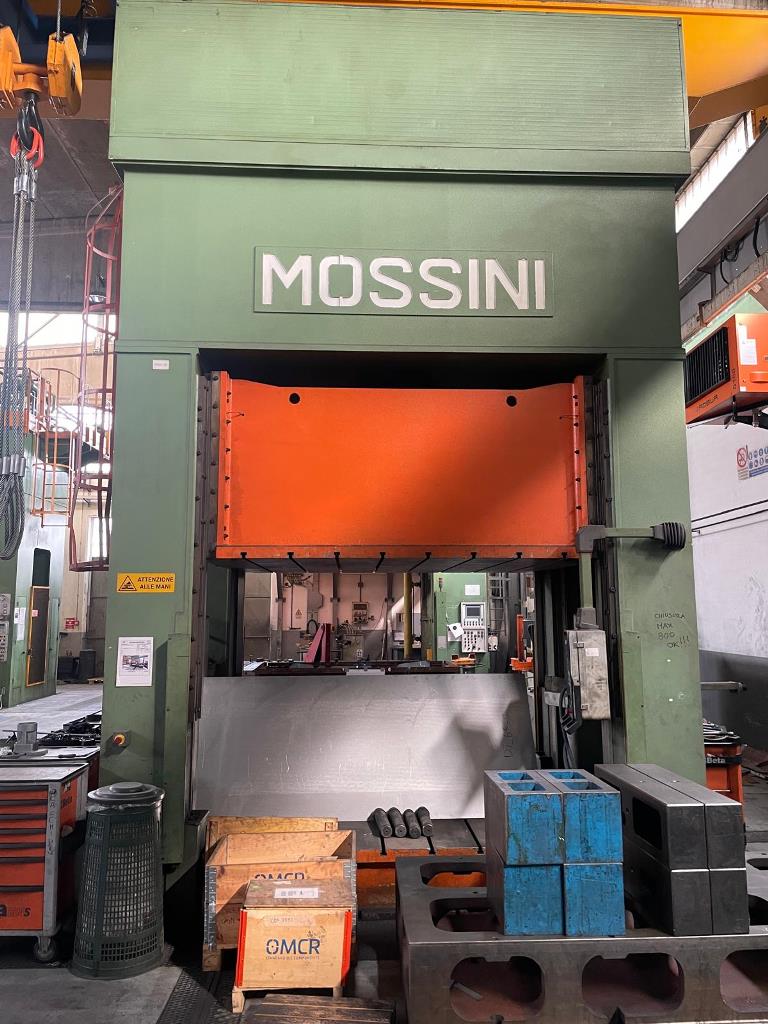

OLEODINAMIC PRESS MOSSINI mod. PO/2M/P 250
Nominal force Ton 250
Slide stroke mm 1.000
Work table dimensions mm 2.500 x 2.000
Max workpiece dimensions mm 2.400 x 1.900
Max workpiece weight kg 5.000
Distance between columns mm 2.500
Daylight between work tables mm 1.800
Moving table stroke mm 1.800
Approach speed mm/sec 160
Working speed mm/sec 10 : 28
Mass without dies and auxiliary devices Ton 45
Response time ms 250
Safety distance mm 400
Approximate weight Ton 45
Overall dimensions above ground mm 4.800 x 2.400 x h 5.905
USED MACHINE
