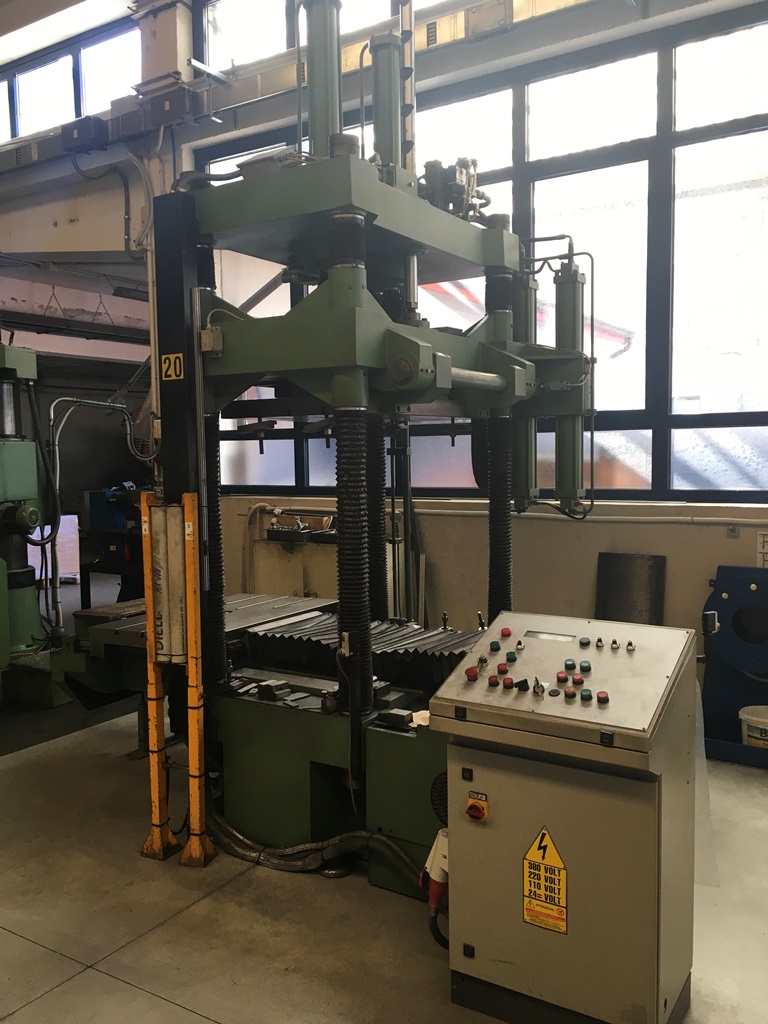

MOULD AND DIE PRESS TEST PFC PR2
Test moulding
press - Used Machines
PFC
09950
09950
MOULD AND DIE PRESS TEST
Removable and tilting table
Max closing force Ton 20
MAx opening force Ton 10
Upper table dimensions mm 750x1100
Lower table dimensions mm 750x1100
Opening min max 85- 985
Tables stroke mm 900
Upper table rotation 180 degrees
Distance between pistons mm 1220 // 660
Lower table max mold weight kg 5000
Upper table max mold weight kg 2000
Overall dimensions (lenghtxwidthxH) mm 2900x1900x3600
Installes power kW 12
USED MACHINE
IMAGES:
