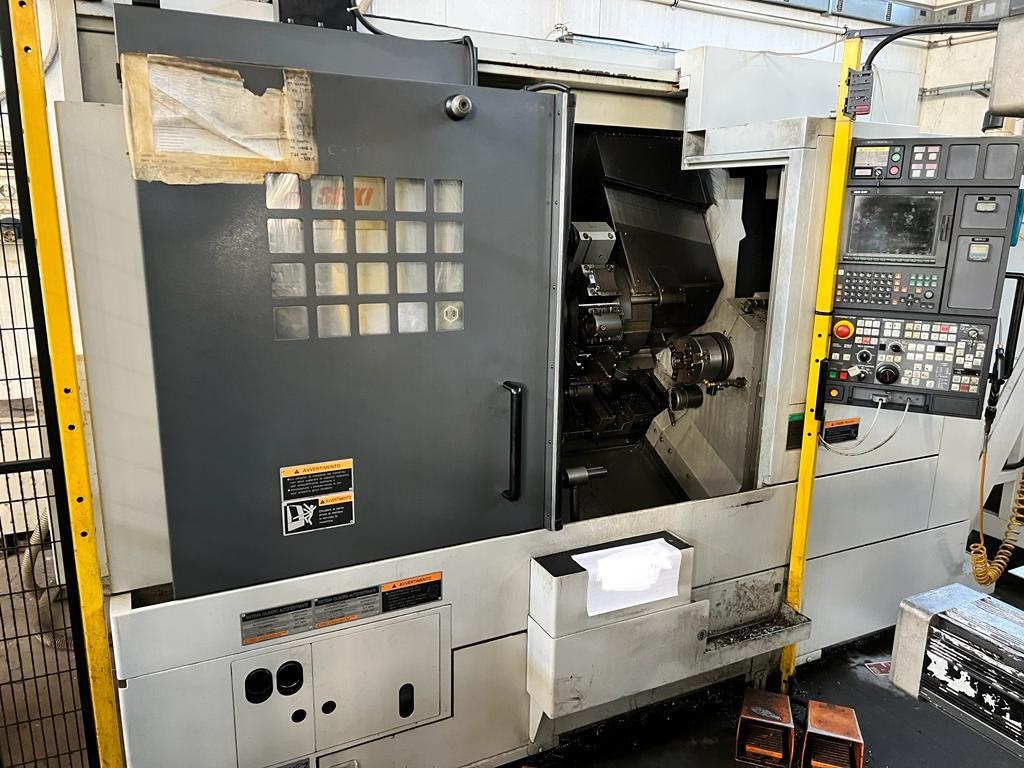

LATHE MORI SEIKI NL2500SY/700
With live tools
.JPG)
.jpeg)
.JPG)
.jpeg)
.jpeg)
.jpeg)
09398
AXIS Y
COUNTER-SPINDLE
LIVE TOOLS
C-AXIS 0.001°

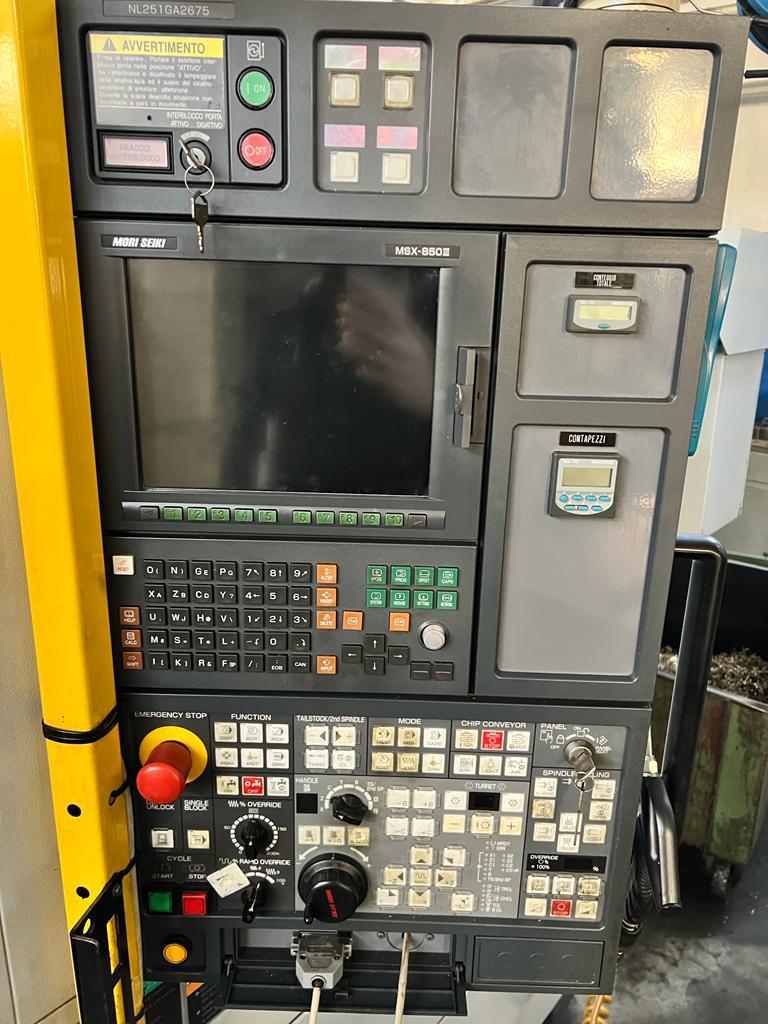

CNC MORI SEIKI MSX-850 III
CAPACITY:
Swing diameter over bed mm 923,8
Swing diameter over cross slide mm 755
Max turning diameter mm 356
Max turning length mm 705
Bar passage mm 80
STROKES:
X-axis mm 260
Y axis mm ± 50
Z-axis mm 795
Counter-spindle stroke (B axis) mm 734
C-axis 0.001°
MAIN SPINDLE:
Max spindle speed rpm 4000
Spindle nose ASA 8
Spindle bore diameter mm 91
Spindle power kW 18.5/15
COUNTER-SPINDLE:
Counter-spindle max speed 6000 rpm
Counter-spindle nose ASA 5
Counter-spindle bore diameter mm 43
Counter-spindle power kW 11/7.5

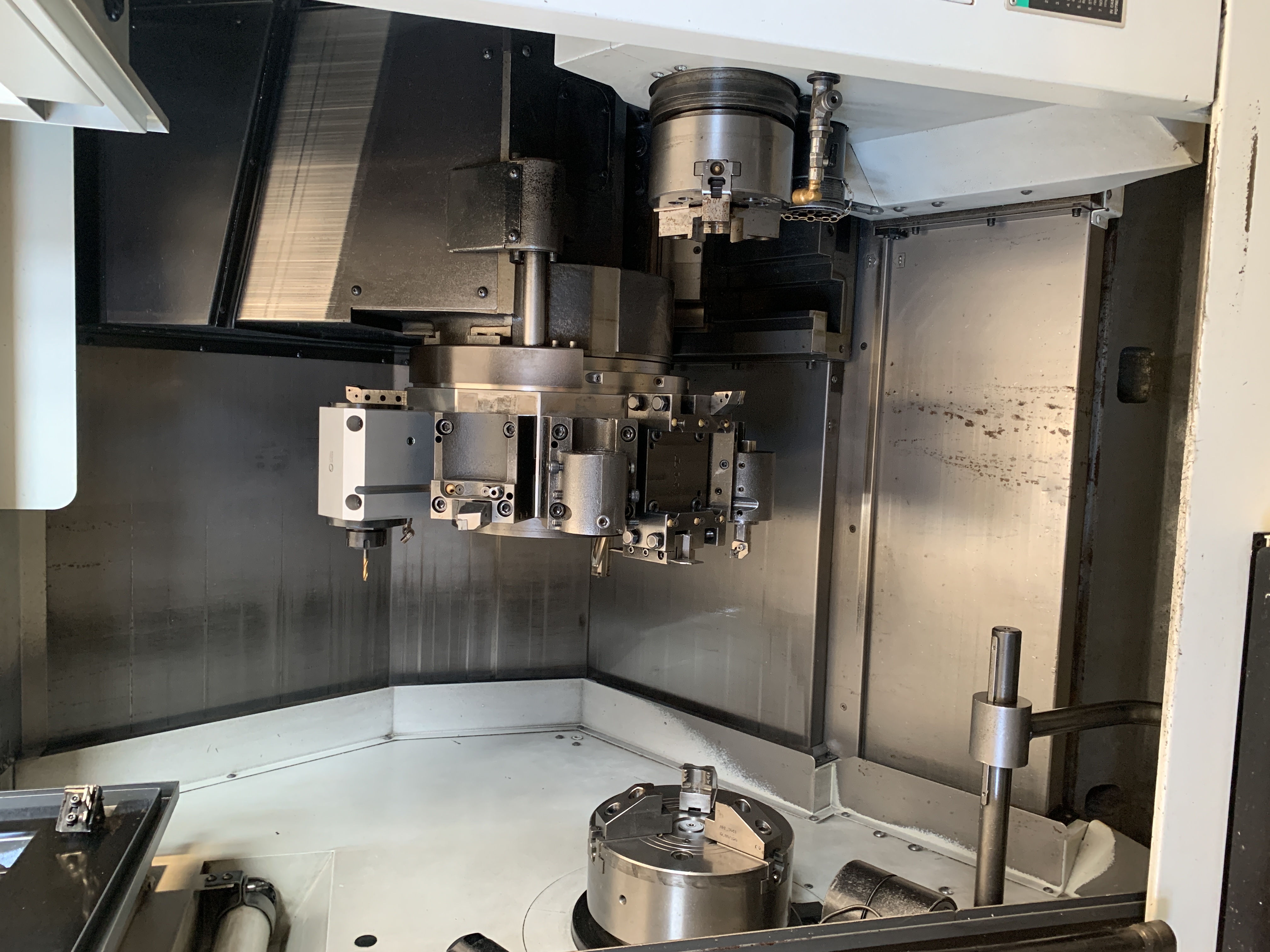

TURRET:
Number of live tool stations 12
REQUIRED POWER:
kVA 39,2
APPROX. MACHINE WEIGHT:
Machine weight Kg 6200
EQUIPPE WITH:

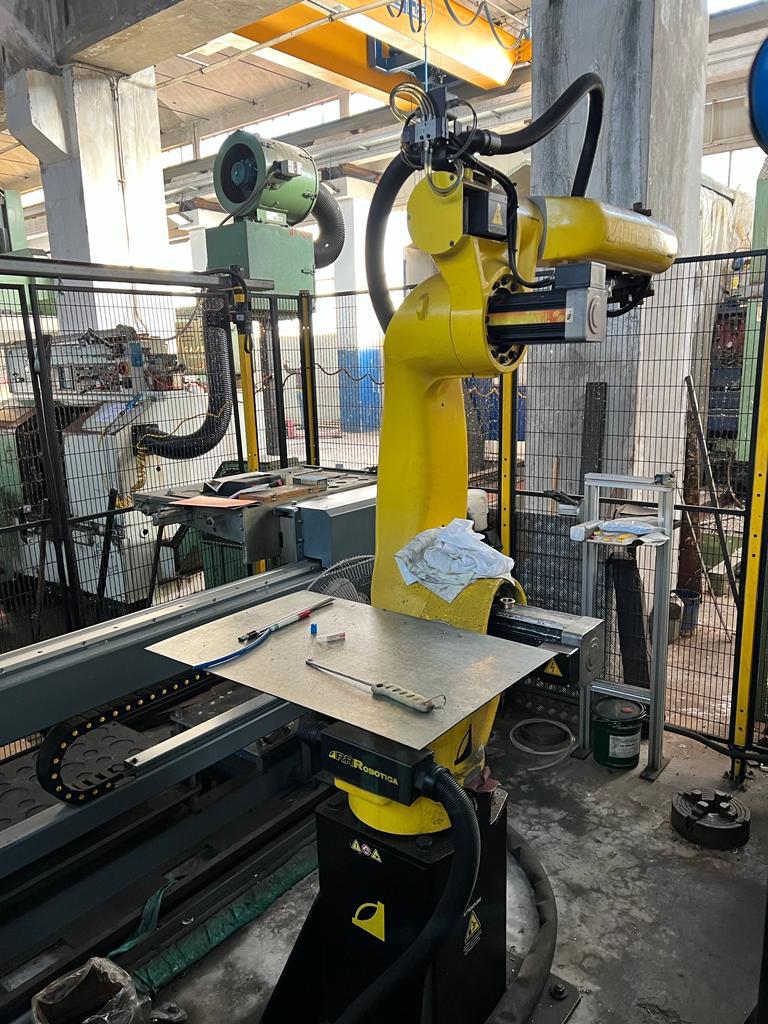

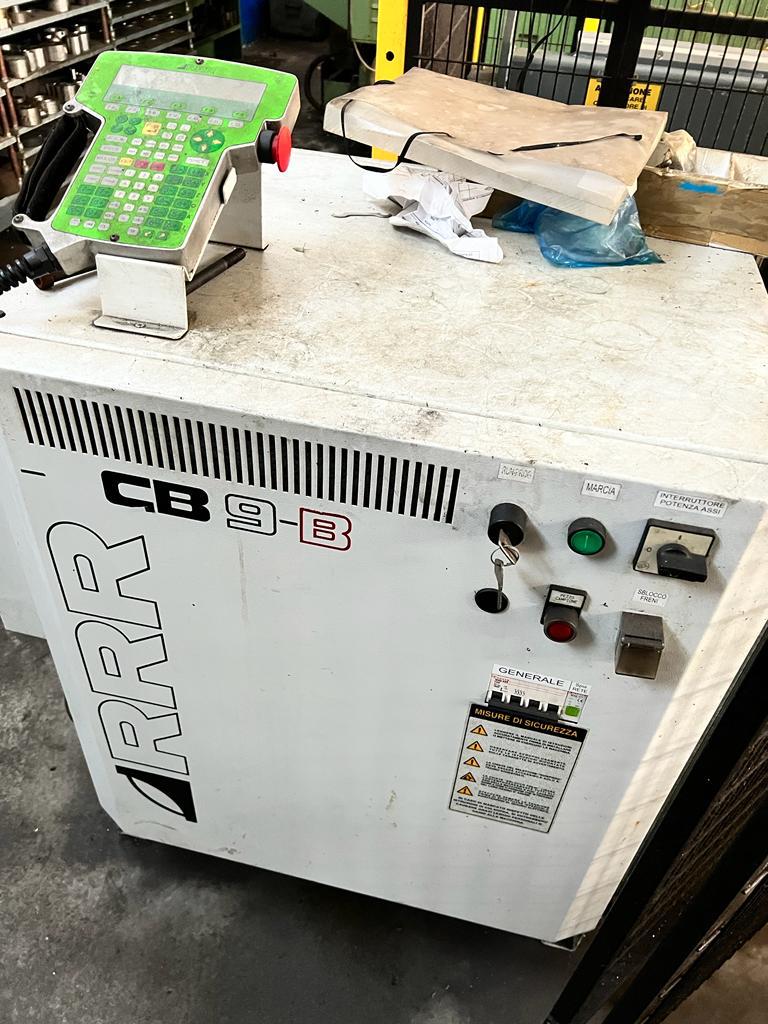

-ARR ROBOTICS load Robot
-Chip conveyor
USED MACHINE
