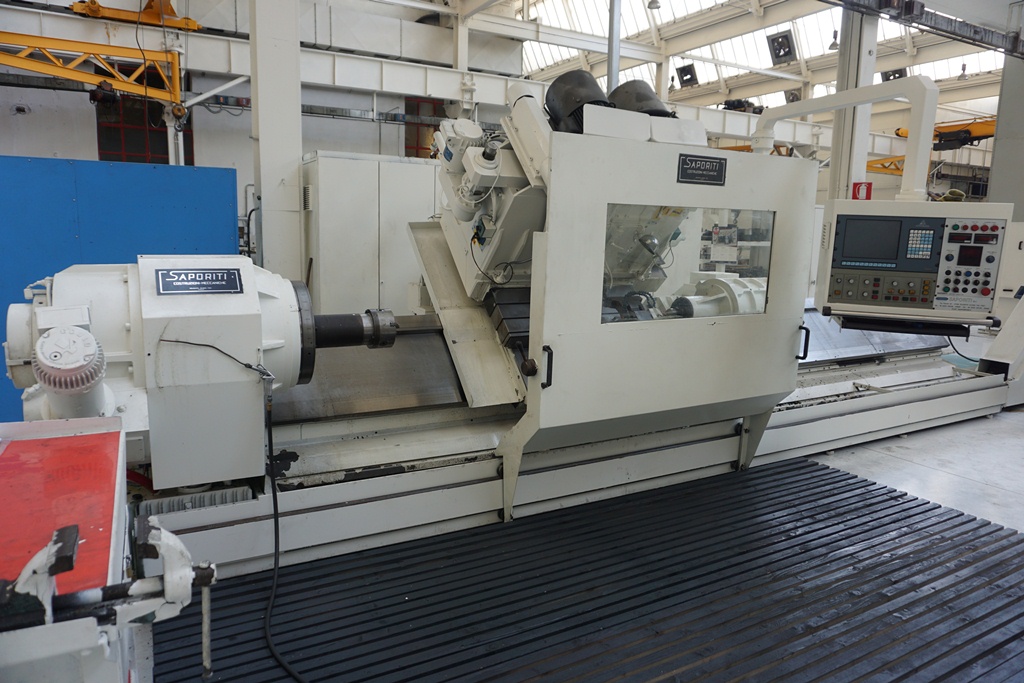

SCREW MILLING MACHINE SAPORITI
With live tools
.jpeg)
07393
MOD. L 560 E S DOPPIA A CNC

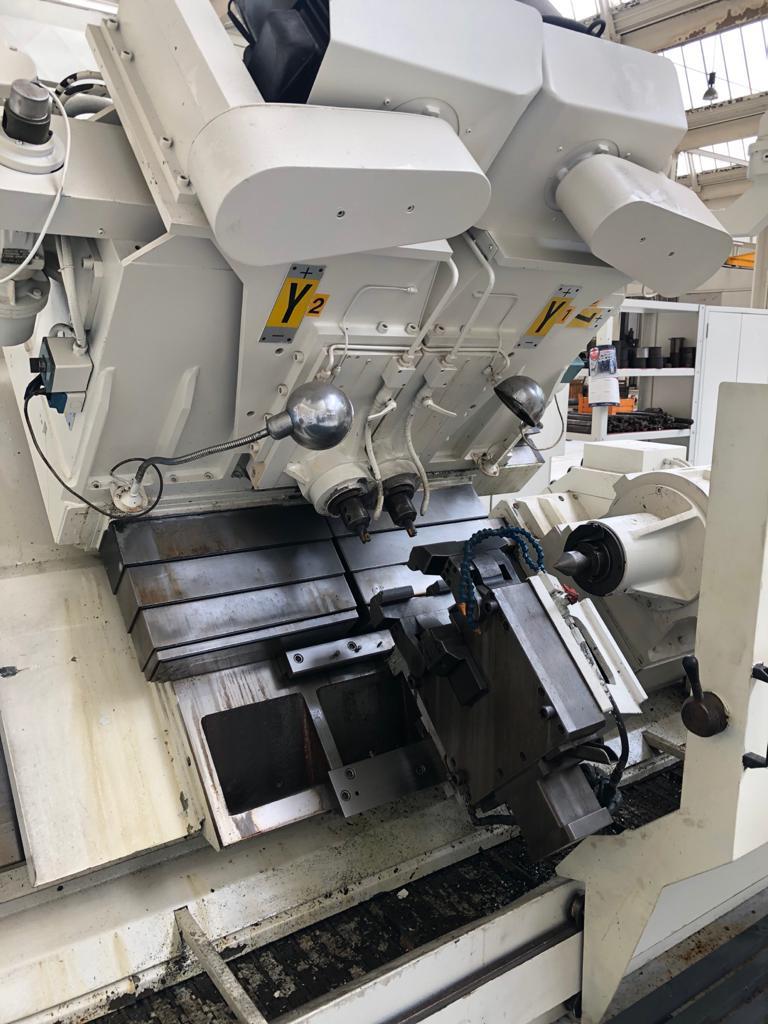

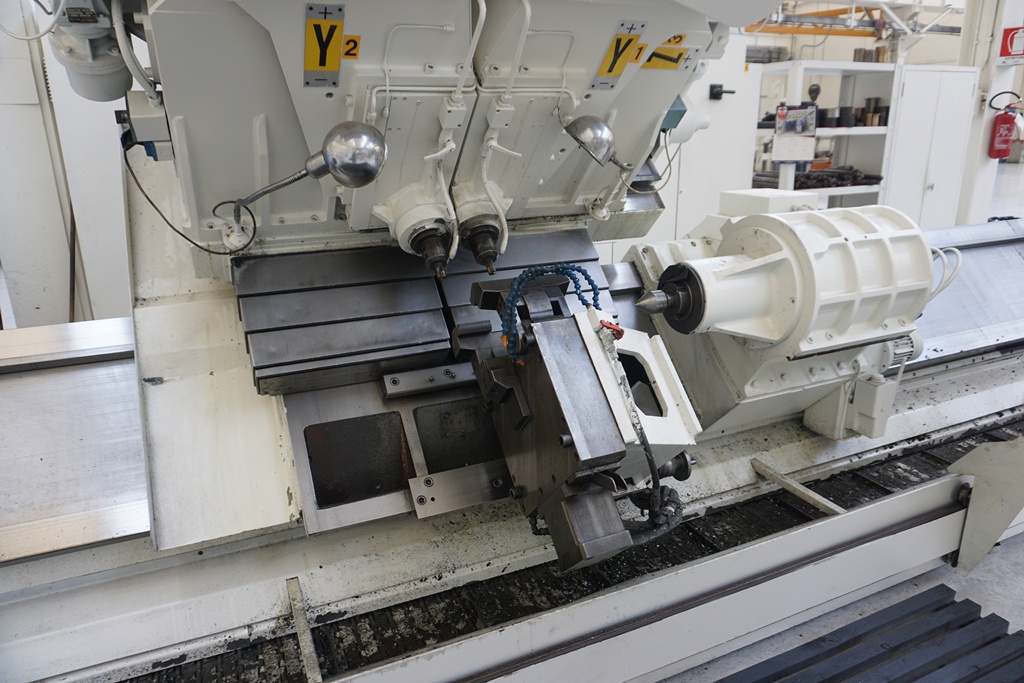

WITH DOUBLE HEAD (FOR HIGH PRODUCTION OF SCREW)
7 AXIS

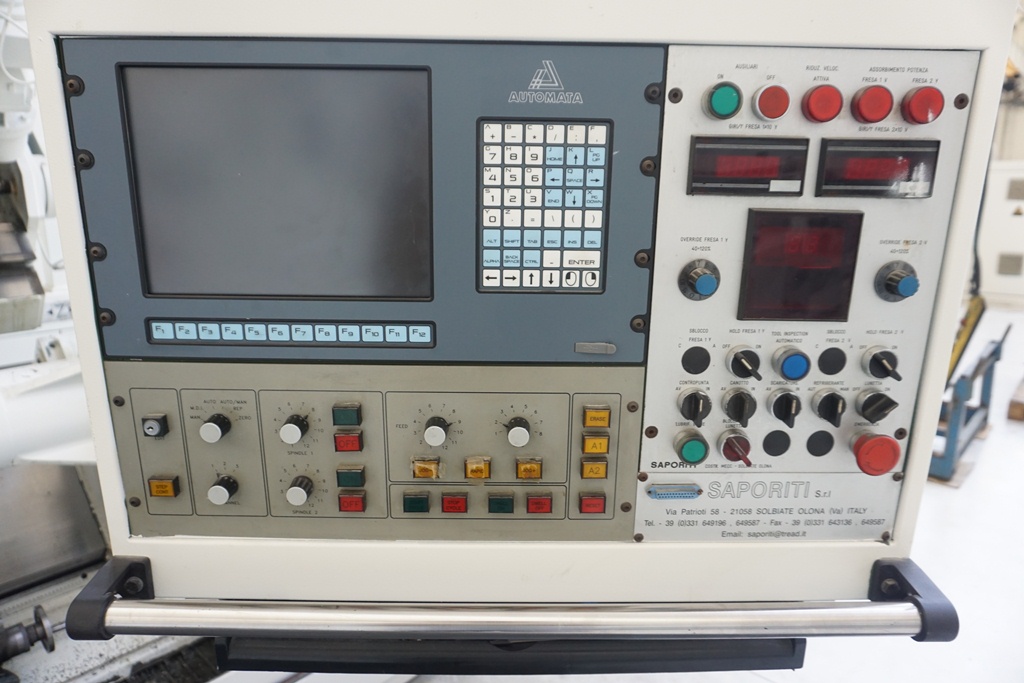

CNC AUTOMATA
Center height mm 510
Center distance mm 5200
Max useful milling length mm 4200

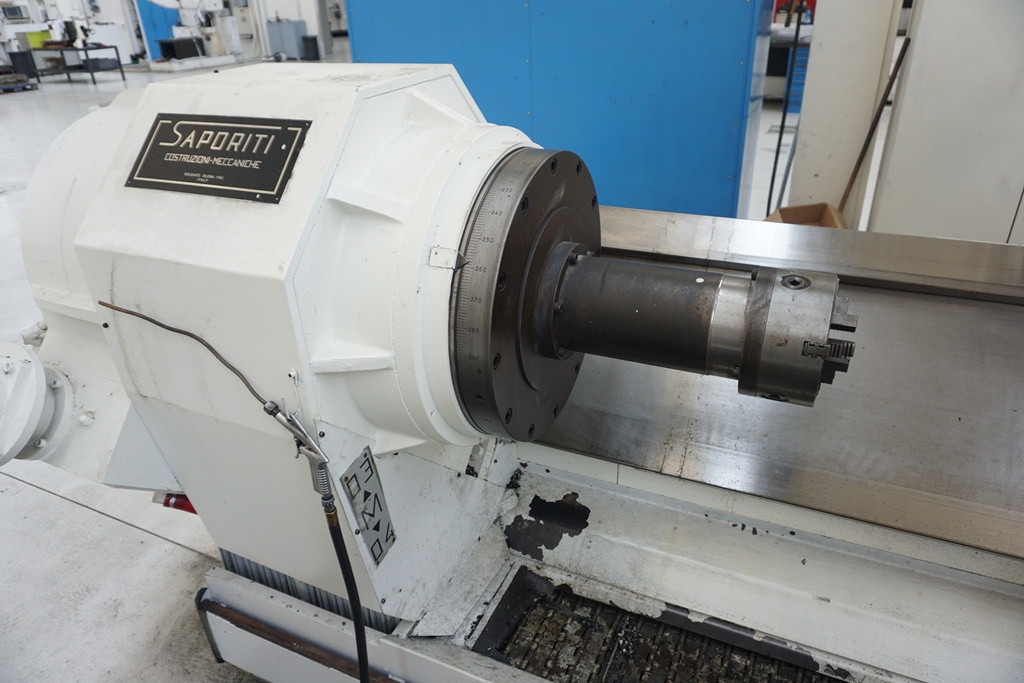

Spindle bore mm 305
Tailstock quill diameter mm 125
Milling spindle attachment ISO 50
Min. distance between the 2 milling heads mm 132
Max stroke 5 axis (W) of the second head mm 150
M,Z,X,U axis motor power (torque Nm 26) kW 4
W-axis motor power (torque Nm 11.8) kW 2
Motor power of each milling head HP 15/20
Vertical stroke of the 2 heads +/- 100 from the axis
Machine weight approx. 19.000 kg
Machine overall dimensions (with chip conveyor) mm 9000x2400x2400
EQUIPPED WITH:
-Self-centering chuck PINTO d.g. diam. mm 200
-Bezel
-Chip conveyor
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
