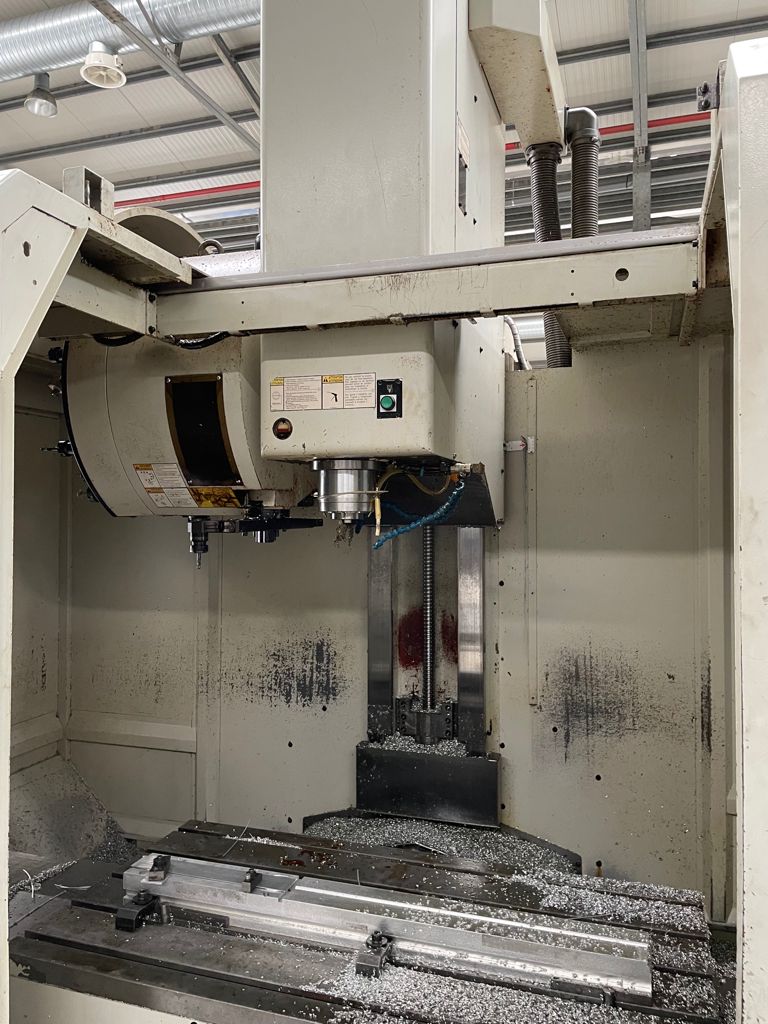

CENTER HARTFORD PRO-1000A
Single pallet
machine center - vertical - Used Machines
HARTFORD
08964
08964

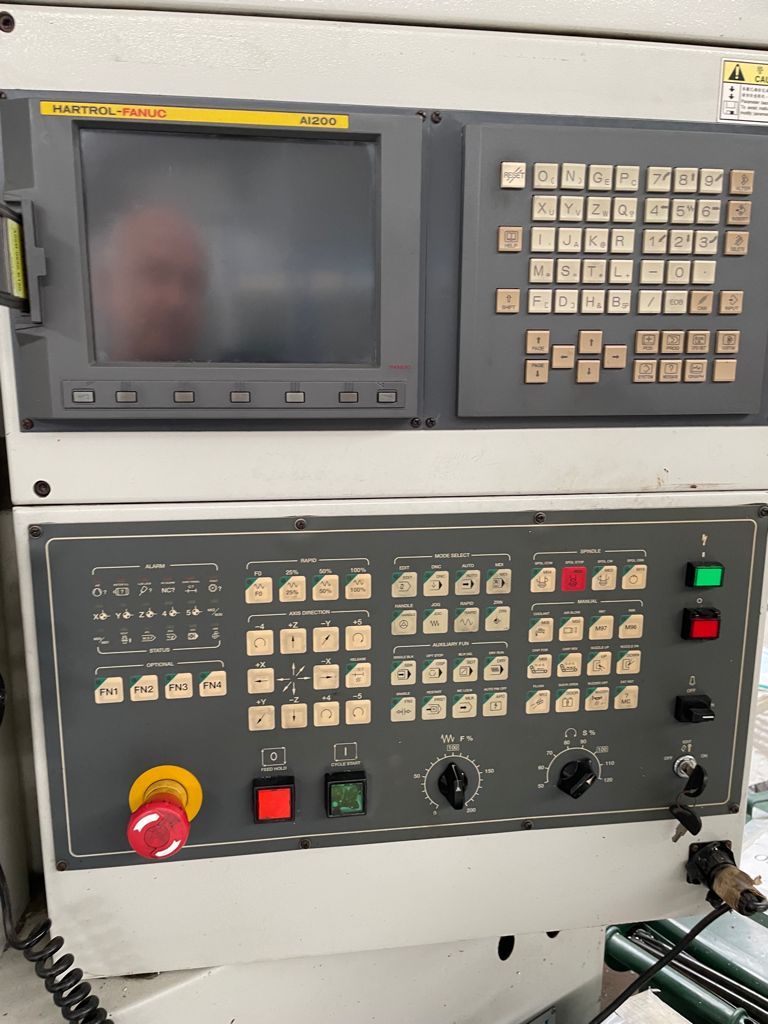

CNC FANUC 21i-MB
TABLE:
Working surface mm 1150x600
T-slot (DimensionsxNumberxpitch) mm 18x5x120
Max table load Kg 700
STROKES:
Longitudinal stroke axis X mm 1000
Cross stroke axis Y mm 600
Verticale stroke Z mm 630
Distance from spindle end to table mm 100-730
Distance from spindle center to columnt mm 650
SPINDLE:
Spindle nose taper #40
Spindle speed rpm 40-8000
Spindle motor power (30 min) kW/HP 7.5/10
AUTOMATIC TOOL CHANGE:
Tool change magazine 24 positions
Max tool weight Kg 6
Max tool dimensions (DiameterxLenght) mm 80x250
DIMENSIONS AND WEIGHT:
Machine weight Kg 6000
Floor space mm 2880x2290
EQUIPPED WITH:
-Chip conveyor

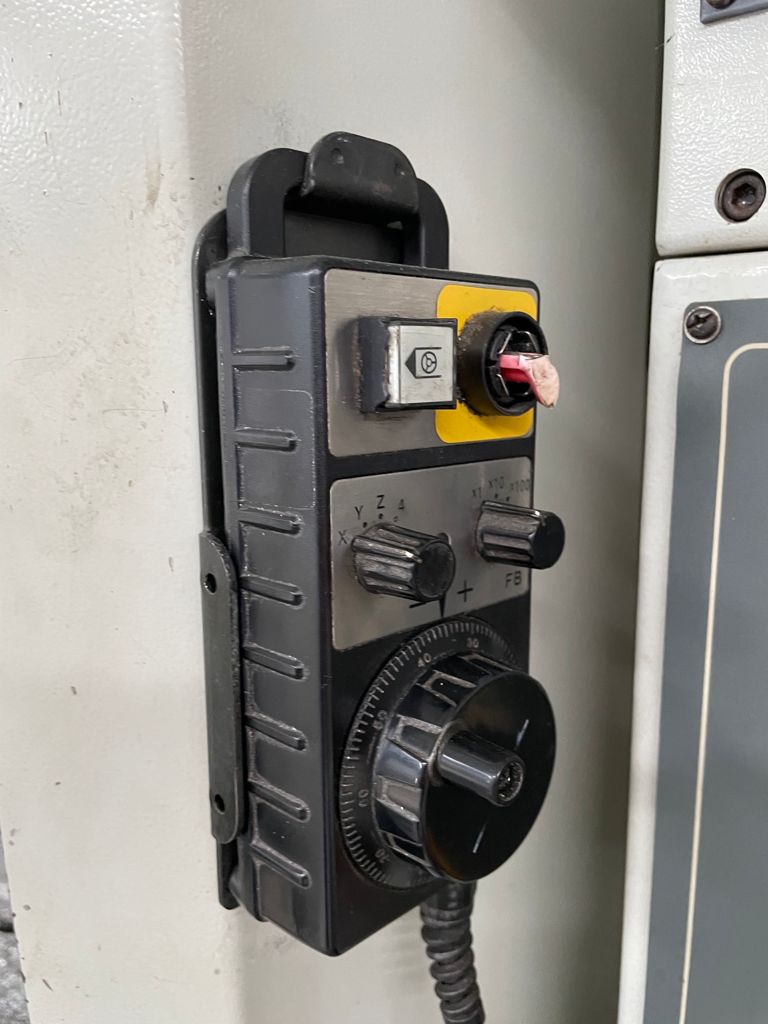

-Remote handwheel
USED MACHINE
