CENTER SAMSUNG MOD. LCV 50 A
Single pallet

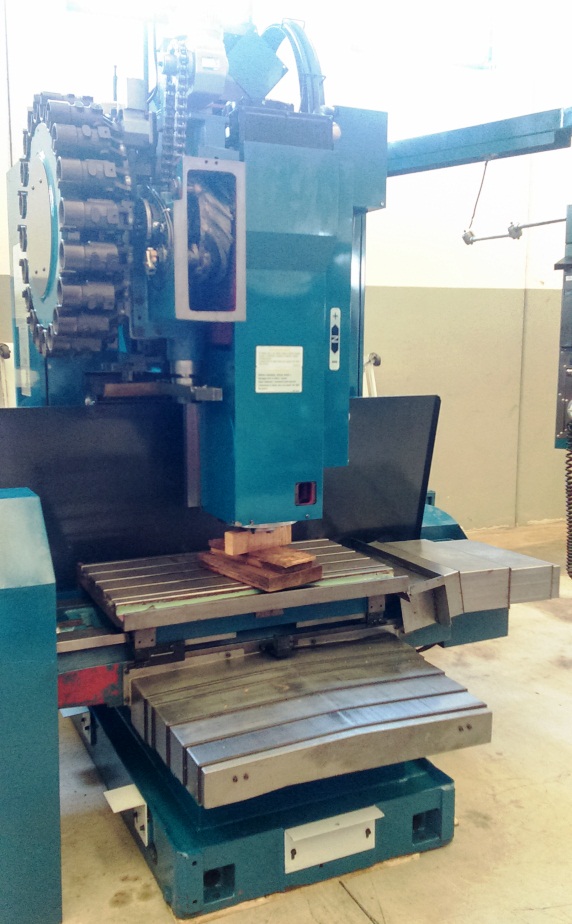

machine center - vertical - Used Machines
SAMSUNG
06979
06979

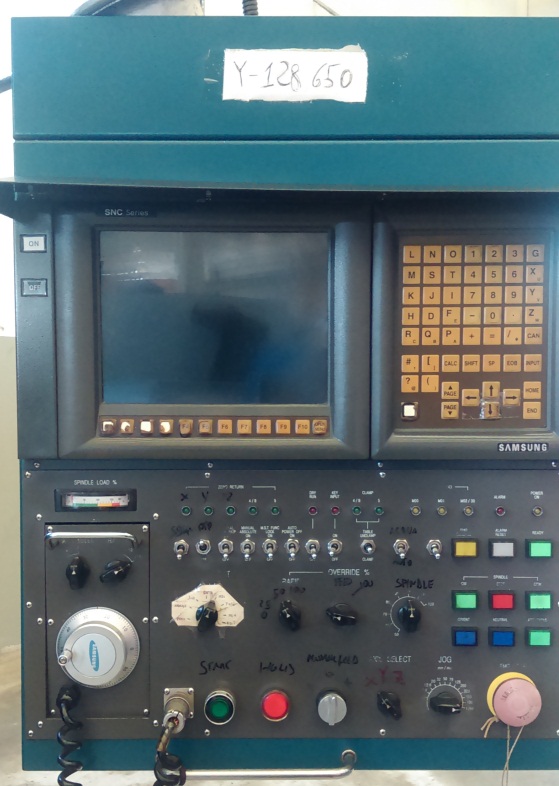

CNC MITSUBISHI
-Table working surface mm 1000x520
-Table T-slot (widthxIntrevalxn.) 18H8x110x5
-Axis X mm 800
-Axis Y mm 520
-Axis Z mm 500
-Distance between table upper and spindle face mm 150-670
-Distance between column face and spindle center mm 720
-Spindle taper ISO 50
-Spindle speed rpm 100-6000
-Spindle motor power(cont./30 min) kW 7.5/11
-Tool magazine 20 positions
-Approx. machine weight Kg 5700
-Installing area (widthxlenght) mm 2600x2650
Equipped with:
-Chip conveyor
USED MACHINE
