CENTER EUMACH LBM 2000-
Single pallet
VIDEOS:
08768
BSE 2200

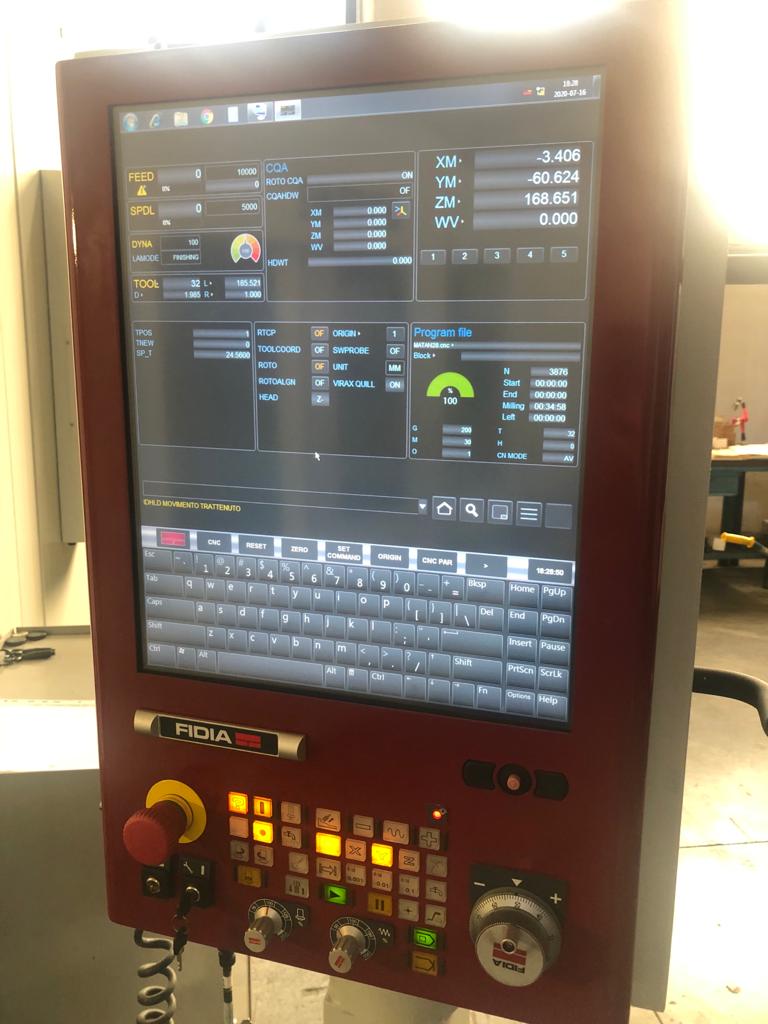

CNC FIDIA nC19
STROKES:
Axis X stroke mm 2200
Axis Y stroke mm 1750
Axis Z stroke mm 750
Distance between columns mm 1750
TABLE:
Table dimensions mm 2100x1600
Longitudinal T-slots mm 9x18, passo mm 180
Distance min-max table/spindle nose mm 233-883
FEED RATE:
Axis X/Y/Z m/min 30
SPINDLE:
Max spindle speed rpm 18.000
Tool-holder HSK63A
Max power (S6-40%/S1) kW 32/26
TOOLS MAGAZINE:
Tool magazine 40 positions
Max tool diameter mm 80
Max tool lenght max mm 250
Max tool weight Kg 7
MACHINE OVERALL DIMENSIONS AND WEIGHT:
Overall dimensions mm 8250x6577
Height mm 3835
Net weight Kg 20.000
EQUIPPED WITH:
-Chip conveyor
-Presetting tool Renishaw NC4 laser system
-Renishaw piece measurement probe radio transmission
-"Tool life" software
-Heidenhain linear scales
-Air conditioned electrical cabinet
-Air blast system
-Full splash guard
USED MACHINE
YEAR 2017
FIRST INSTALLATION 2018
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
