CENTER FEELER FV 600
Single pallet
09684

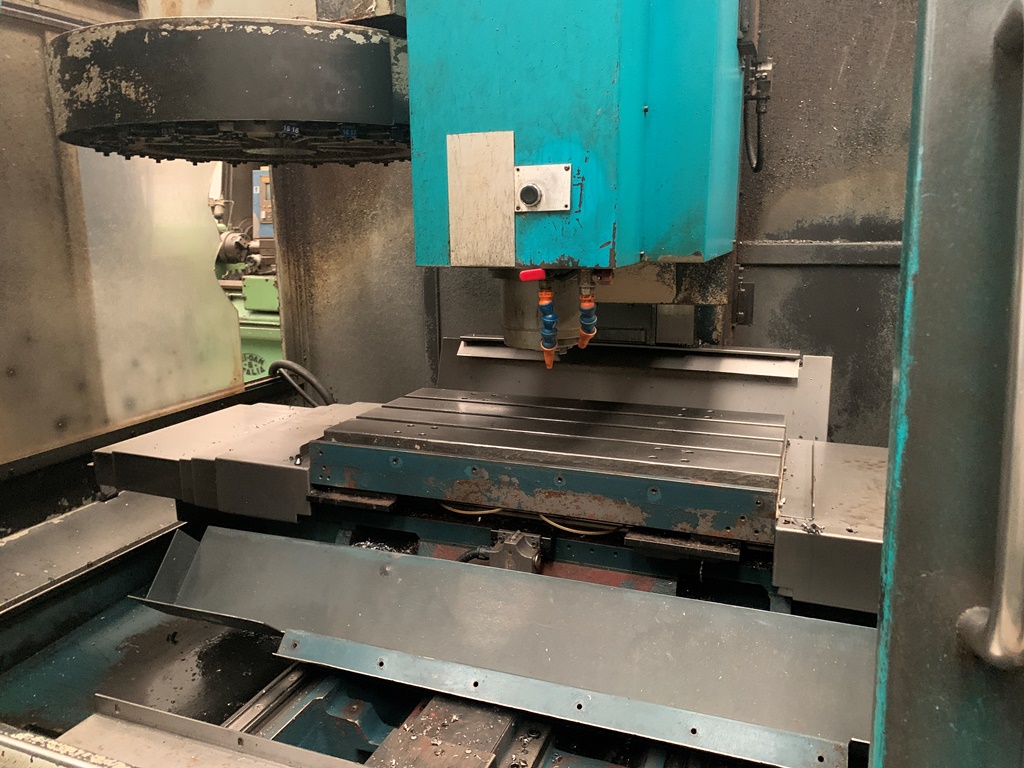

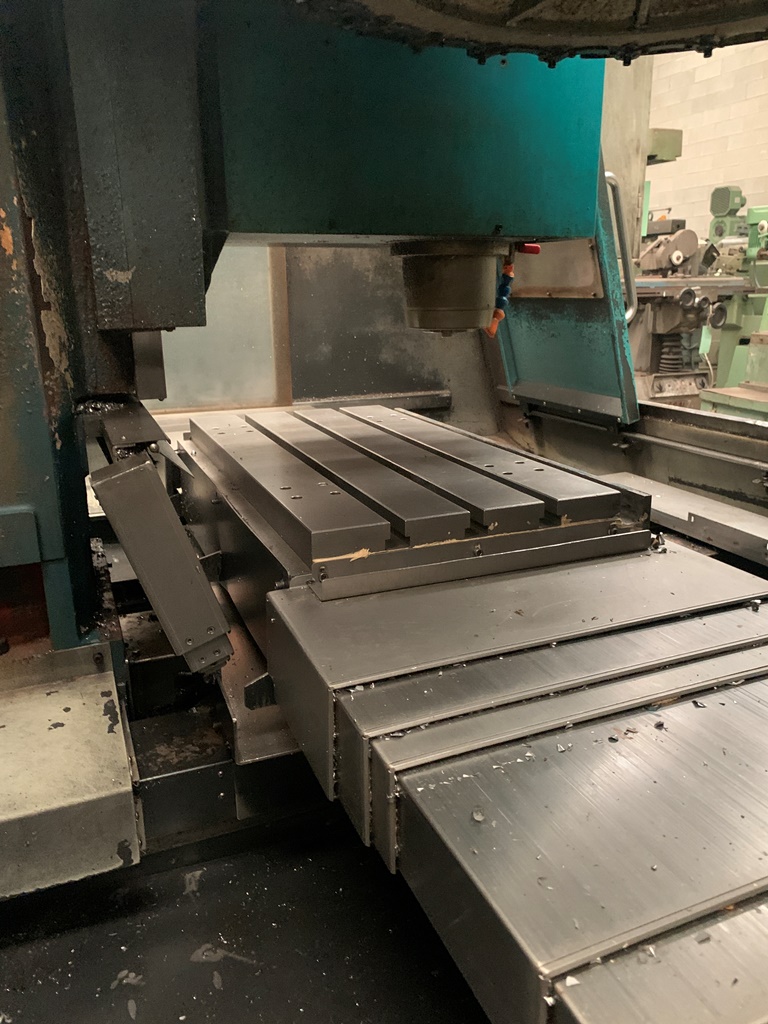

TABLE:
Table size mm 400x800
T-slots mm 18x3x100
Table load capacity Kg 300
AXIS:
X axis mm 610
Y axis mm 500
Z axis mm 505
Distance spindle nose/table mm 135-640
Distance spindle centre/column mm 480
Distance table /floor mm 865
Distance table centre/column mm 255-755
SPINDLE:
Spindle speed Rpm 50-8000
Spindle taper 7/24 NO.40
Motor power (cont./30 min) kw 7.5/9
AUTOMATIC TOOL CHANGE:
Tool position 22
Max tool weight Kg 7
Max tool lenght mm 250
Max tool diameter (with adjacent pocket) mm 80
Max tool diameter (with empty pocket) mm 150
APPROSS. WEIGHT AND MACHINE SIZE:
Overall size on floor mm 2435x2178
Max machine height mm 2735
Machine weight Kg 3800
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
