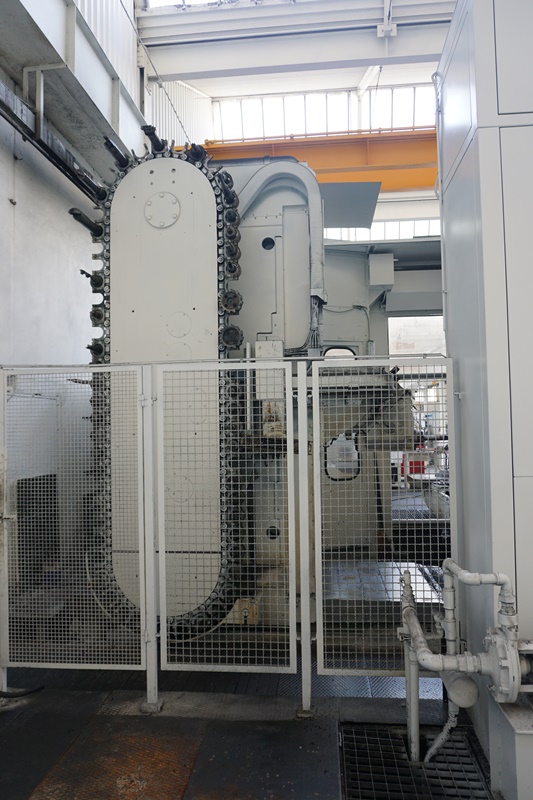

MILLING MANDELLI MOD. REGENT 1500 H/U 2x1500
With rotary table
milling cnc - Used Machines
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
MANDELLI
07422
07422

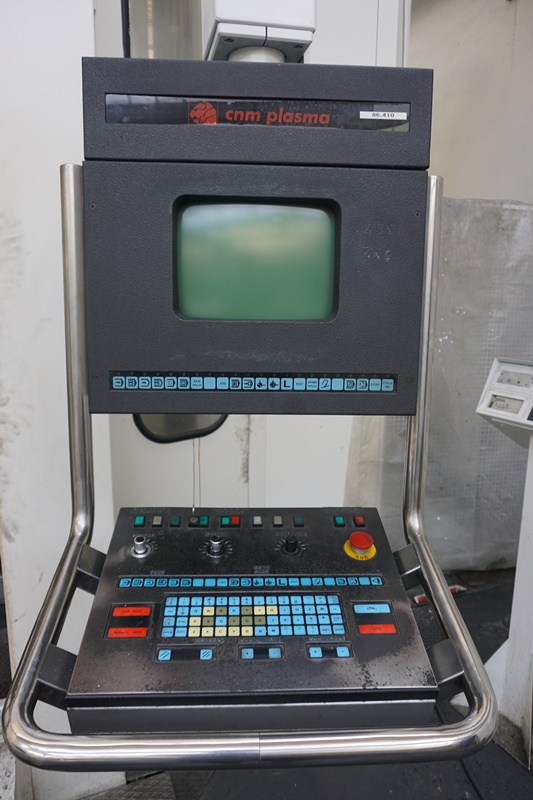

CNC CNM PLASMA
STROKES:
Axis X mm -750 +2600
Axis U mm +750 +2600
Axis Y mm 2000
Axis Z mm 1500

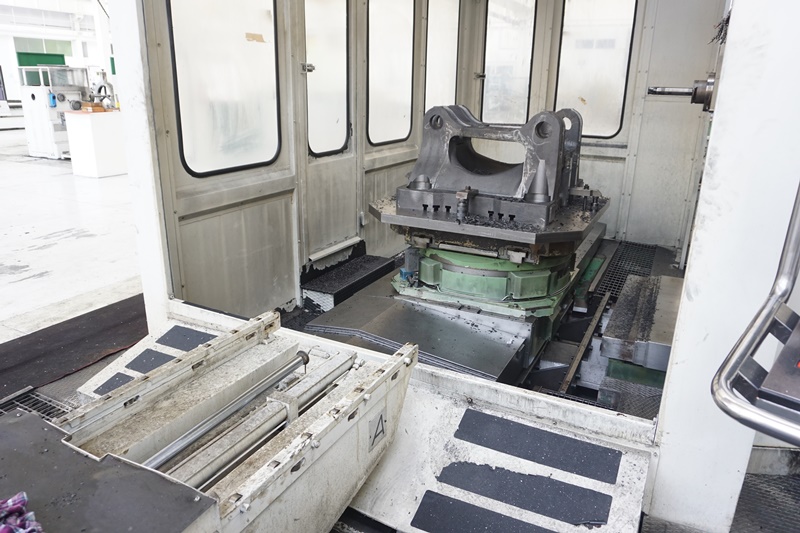

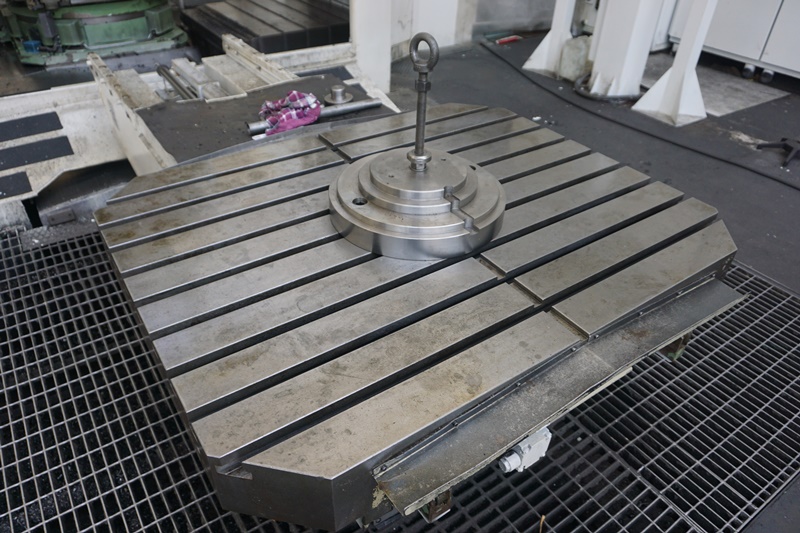

ROTARY TABLE:
Dimensions mm 1100x1250
Degrees 1/1000°
Positioning accuraracy sec. +/- 6
Maxload Kg 4000
T-slots n.xmm 8x18
T-slot distance mm 125
PALLET SHUTTLE:
Workpiece table dimensions mm 1120x1270x150
Gross load Kg 4000

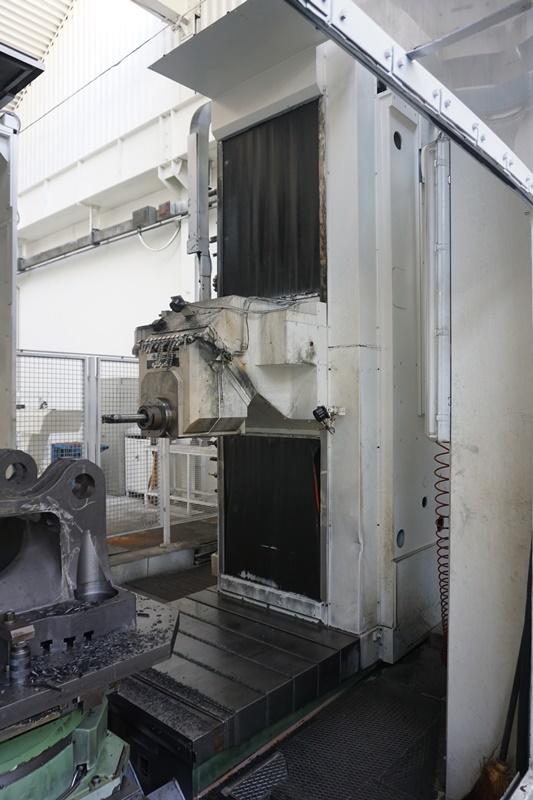

SPINDLE:
Cone ISO 50
Power kW 29
Rotation speed rpm 20:3000
Max torque Kgm 150
TOOL MAGAZINE:
Positions number 60
INSTALLED TOTAL POWER:
kW 60:70
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
