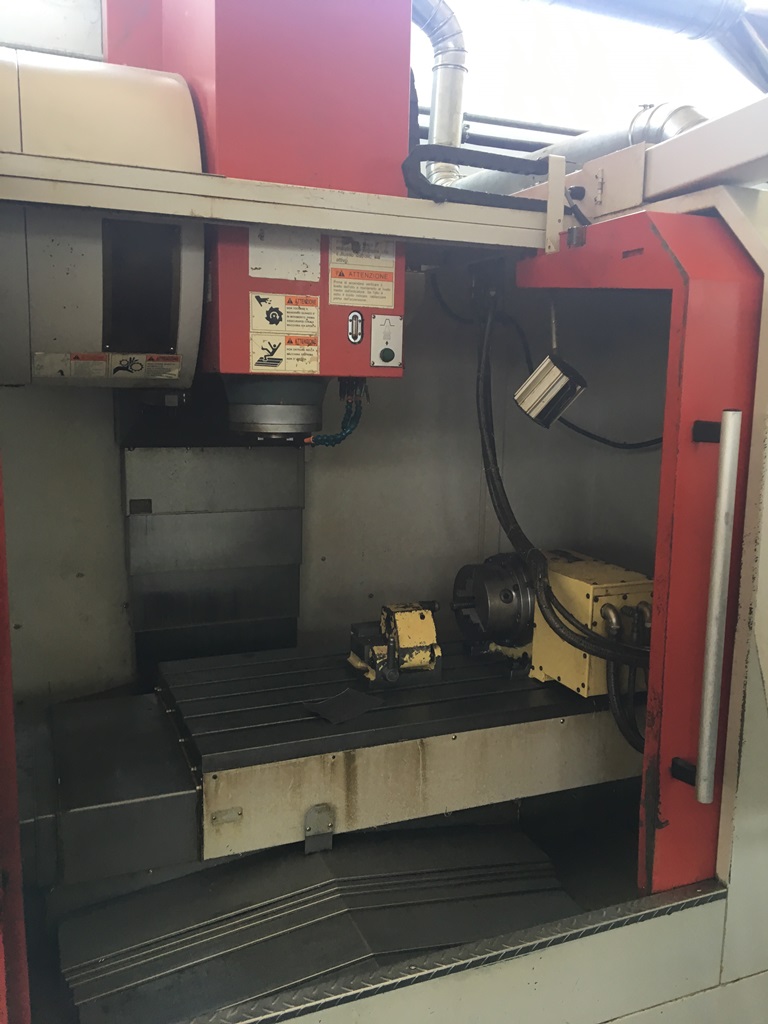

VERTICAL MACHINE CENTER AWEA
Single pallet
08036
BM 1020

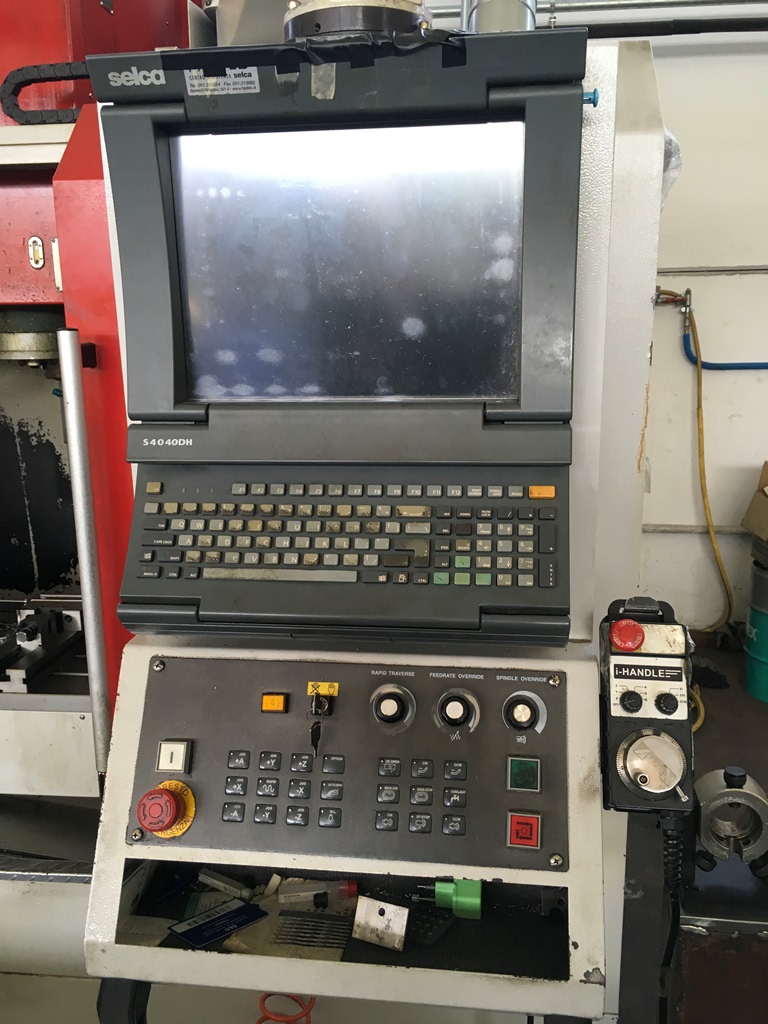

CNC Selca S4040DH

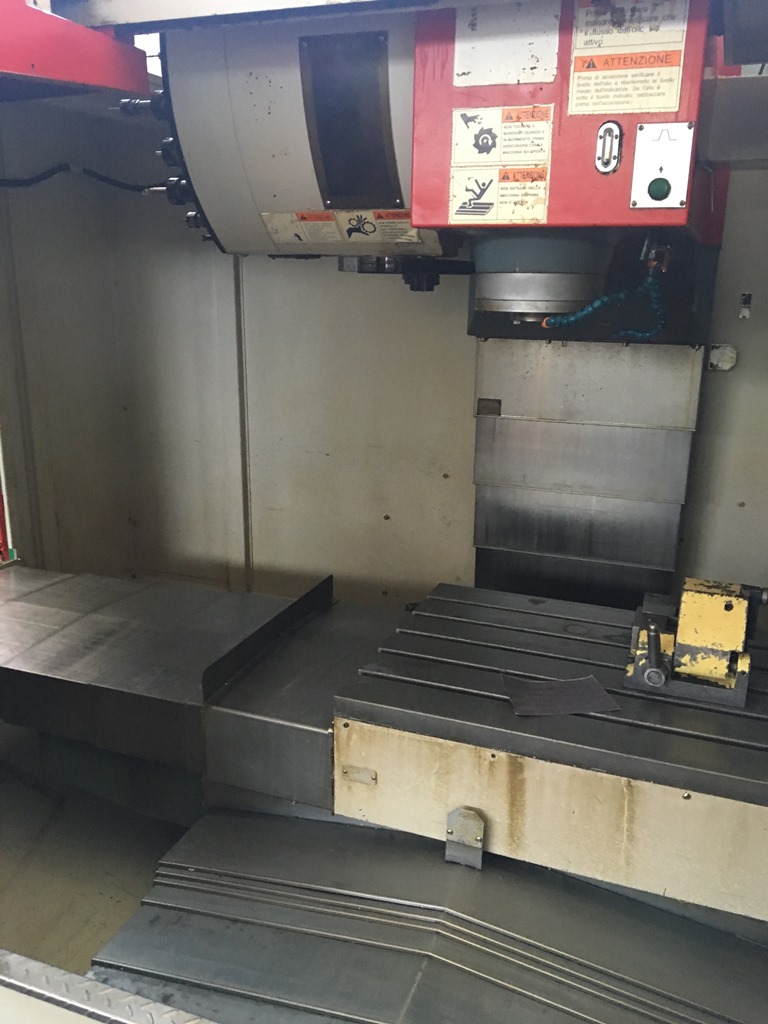

TABLE
Working surface mm 1120x600
Max load Kg 1.000
TRAVELS
Axis X mm 1020
Axis Y mm 600
Axis Z mm 600
Distance spindle nose/table mm 125/725
Distance spindle centre/ column mm 640
FEEDRATES
Rapid axis X,Y,Z mm/min 24.000
SPINDLE
Taper ISO 40 DIN 69871
Spindle speed 40-8.000 Rpm
Spindle power Kw 8.5/10,5
Max torque 216/267 Nm

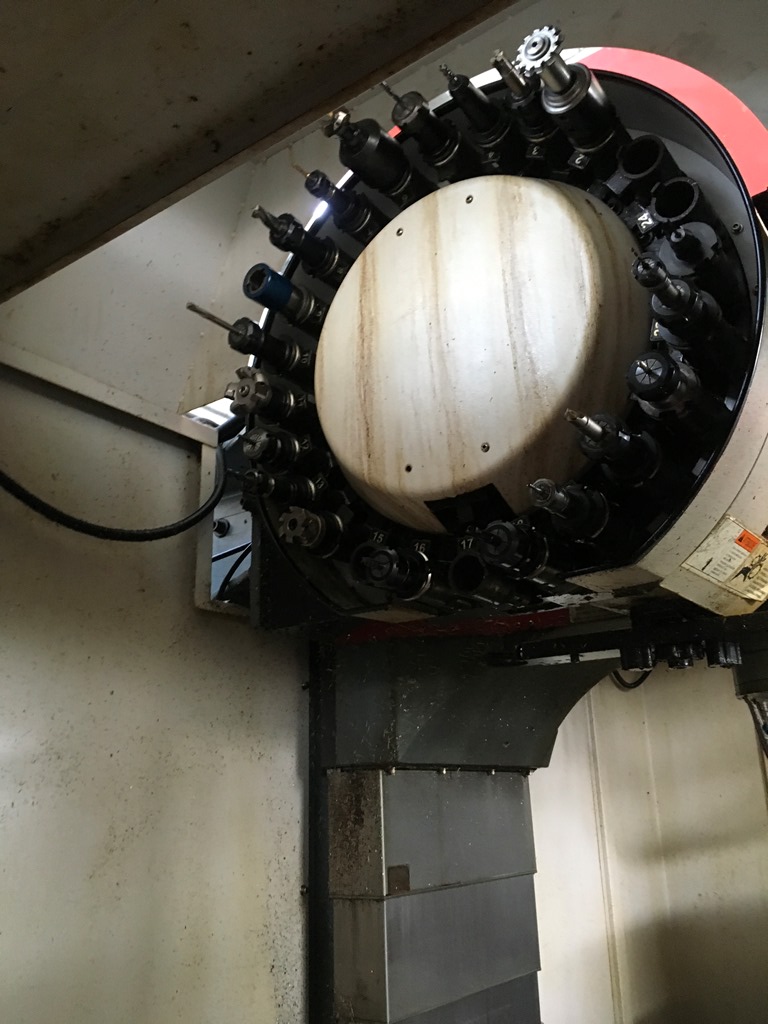

TOOL MAGAZINE
RANDOM type with double arm changer
No. position 24
Max tool diameter mm 150
Max tool lenght mm 250
Max tool weight Kg 8
EQUIPED WITH:

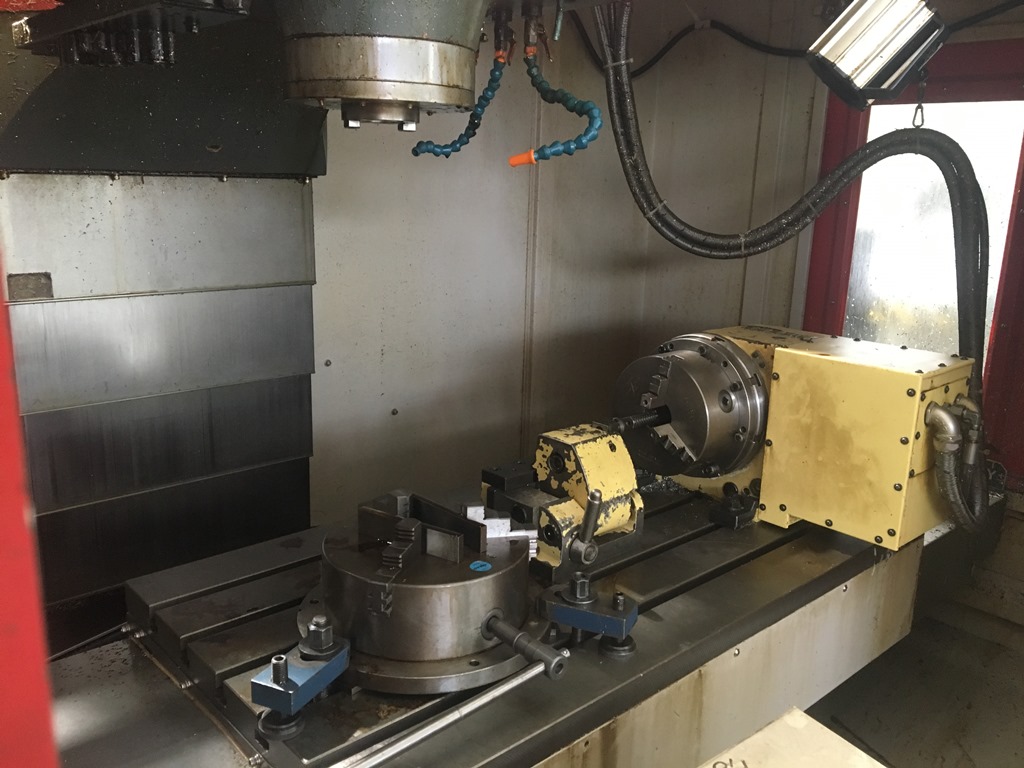

Rotary table 4th axis
Screw type chip conveyor + chip tray
High pressure through spindle 15 bar with separate tank and filtering unit
Wash gun
Halogen lighting of working area
Alarm light 3 colors
Transformer
USED MACHINE
Year 2006
