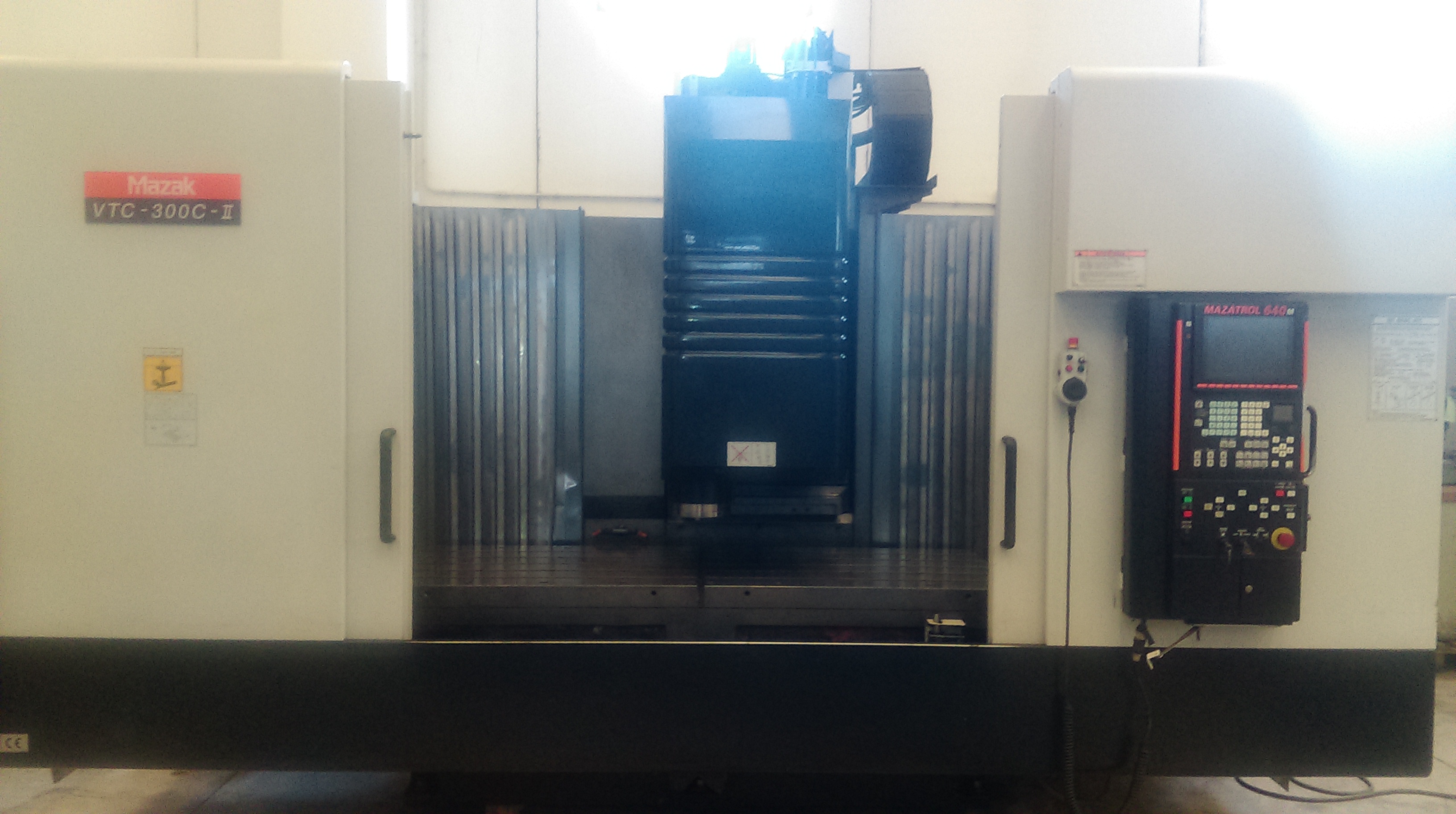

CENTER MAZAK MOD. VTC300C-II
Single pallet
machine center - vertical - Used Machines
MAZAK
06738
06738

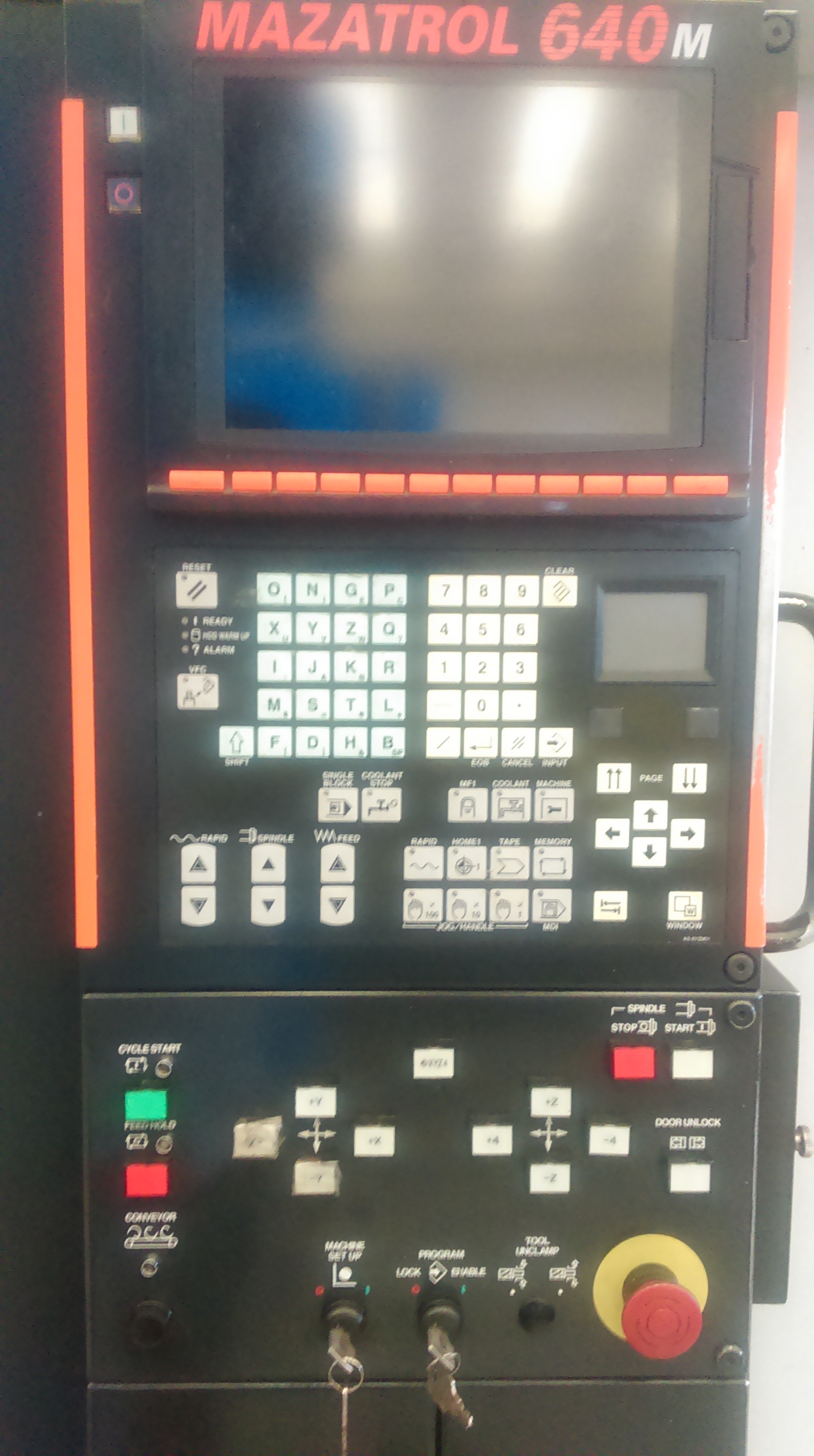

CNC MAZATROL 640 M
Capacity:

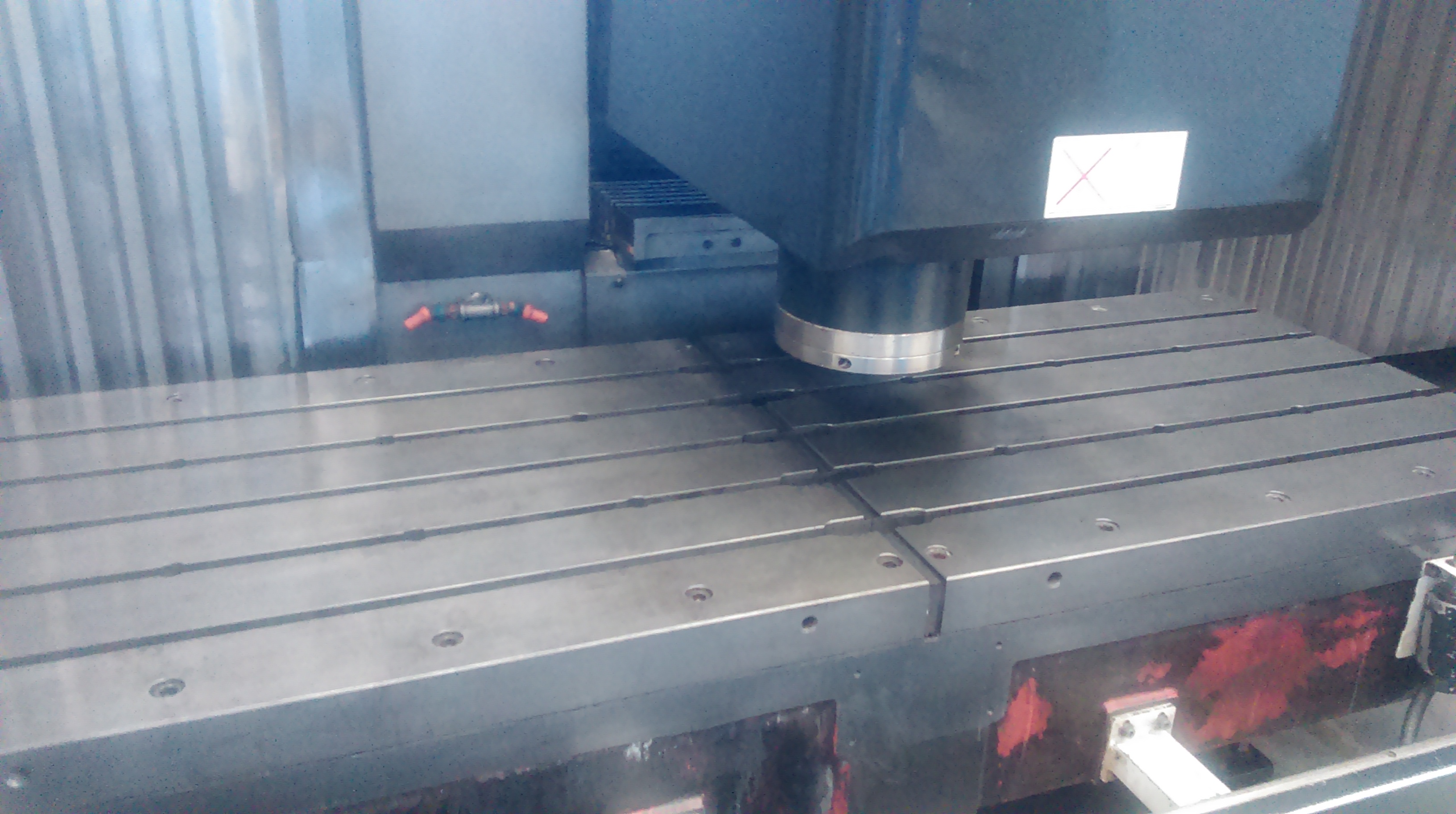

-Table surface mm 2000x760
-Axis X mm 1740
-Axis Y mm 760
-Axis Z mm 660
-Distanza between spindle nose to table min/max mm 180/840
-Max table load Kg 1400
SPINDLE:
-Spindle nose ISO 40
-Spindle speed rpm 40-10000
-Main motor power:
10 min. kW 15
30 min. kW 11
continuo kW 7,5
FEEDS:
-Rapid mm/min 30000
ATC:
-Magazine capacity n.30
-Tool taper CAT 40
-Max toll diameter:
with adjacent tools mm 80
without tools adjacent mm 110
-Max tool weight Kg 8
-Max tool lenght mm 350
MACHINE DIMENSIONS:
-Height mm 3442
-Width mm 4424
-Depth mm 3485
-Weight Kg 10500
EQUIPPED WITH:
-Chip conveyor
USED MACHINE
YEAR 2007
FILL OUT OUR FORM FOR MORE INFORMATION
