CENTER ZPS MCFV 100
Single pallet
machine center - vertical - Used Machines
ZPS
09292
09292

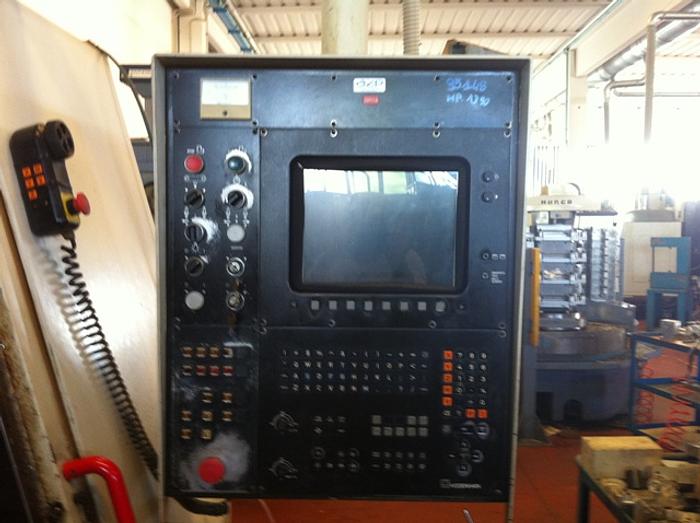

CNC HEIDENHAIN 415
Table surface 1270x605 mm
Table load Kg 900
X axis travel 1020 mm
Y axis travel 610 mm
Z axis travel 635 mm
Spindle speed rpm 50-8000
Spindle cone ISO 40
Spindle motor power (cont/30 min) kW 11/15
Tool magazine 24 positions
Dimensions on the floor mm 2700x2200
Machine height 2900 mm
Machine weight Kg 7700
EQUIPPED WITH:
-Chip evacuator
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
