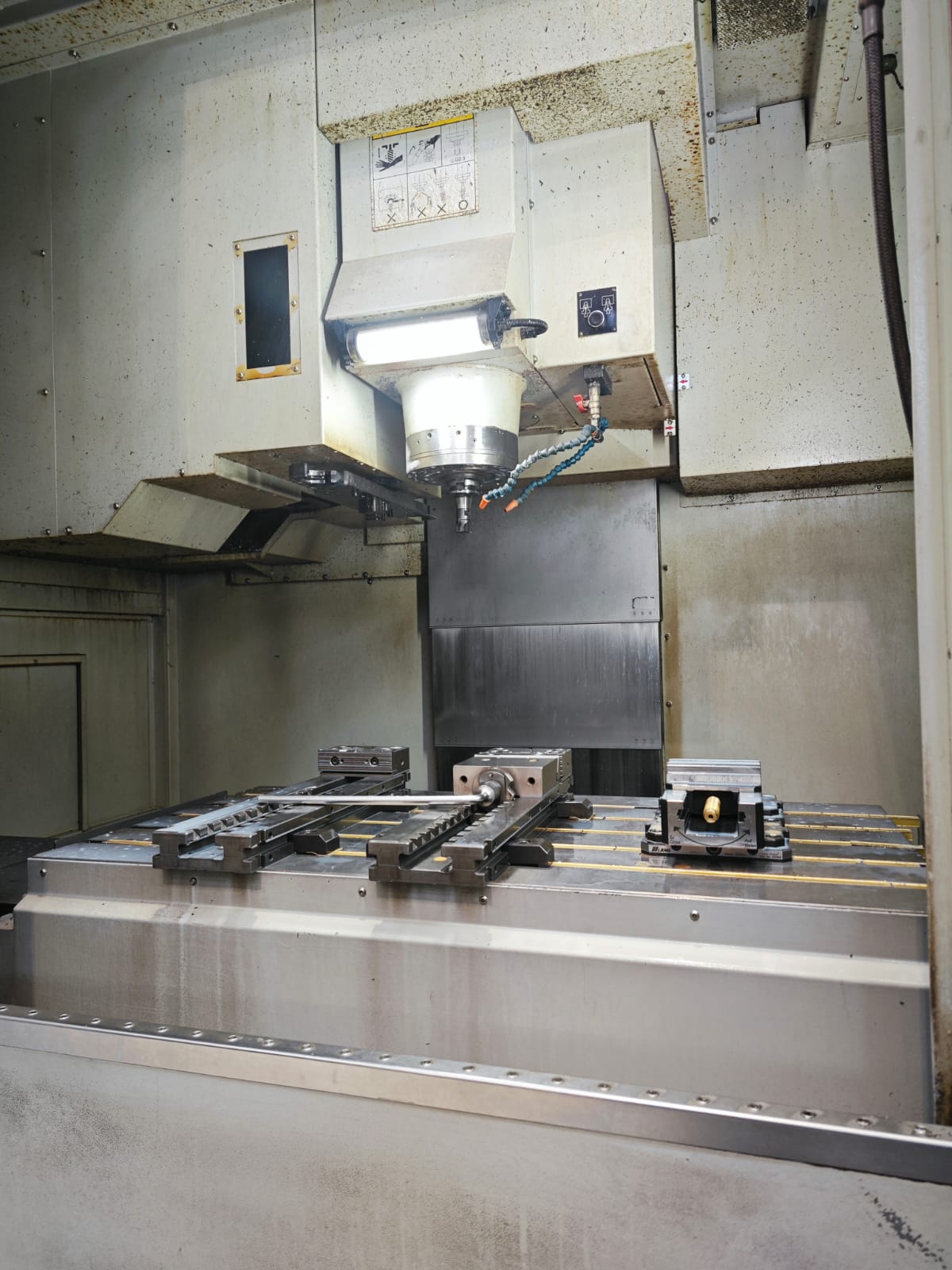

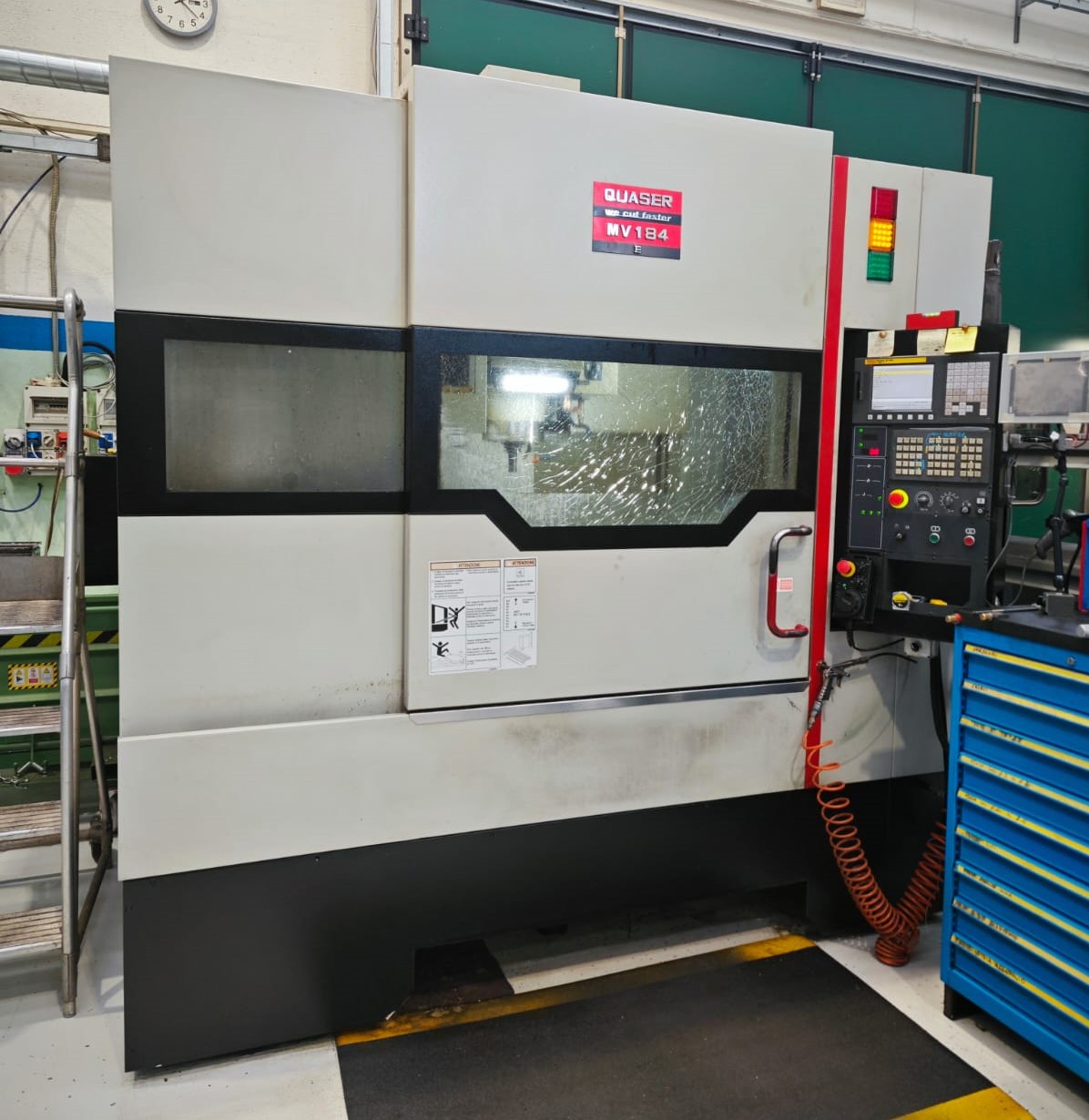

VERTICAL MACHINING CENTER QUASER
Single pallet
VIDEOS:
10011
MOD. MV-184E/12B

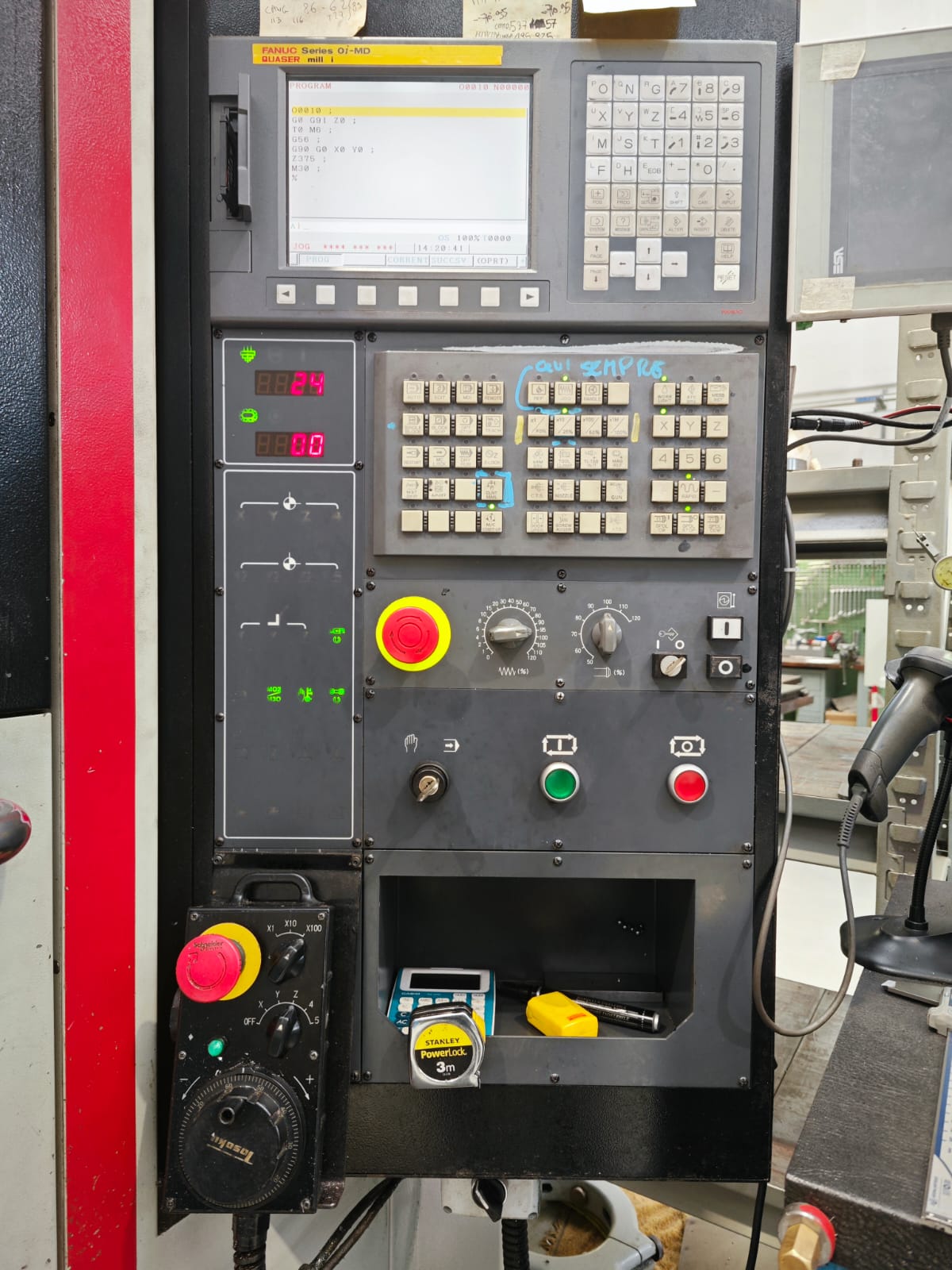

CNC Control Fanuc 0i-MD
X axis 1,020 mm
Y axis 610 mm
Z axis 610 mm
Table dimensions 1,200 x 600 mm
Maximum load capacity 500 kg
Five T-slots 18 mm H8
Spindle taper BBT40
Spindle diameter 70 mm
Max spindle speed 12,000 rpm
Spindle motor power 22 kW
Coolant through spindle pressure 20 bar
Rapid feed rates
X axis 40 m/min
Y axis 40 m/min
Z axis 36 m/min
Working feed rate 20,000 mm/min
ATC 30 tools
Positioning accuracy 0.008 mm
Repeatability accuracy 0.004 mm
MACHINE DIMENSIONS
Height 3,030 mm
Floor space 2,920 x 2,820 mm
Weight 6,970 kg
EQUIPPED WITH:
-Chip conveyor
-Rigid tapping with dual speed return.
-Manual guide with solid graphical tool simulation
USED MACHINE YEAR 2015
INSTALLED IN 2016
VIDEOS:
