LASER TRUMPF TRUMATIC TC L3050

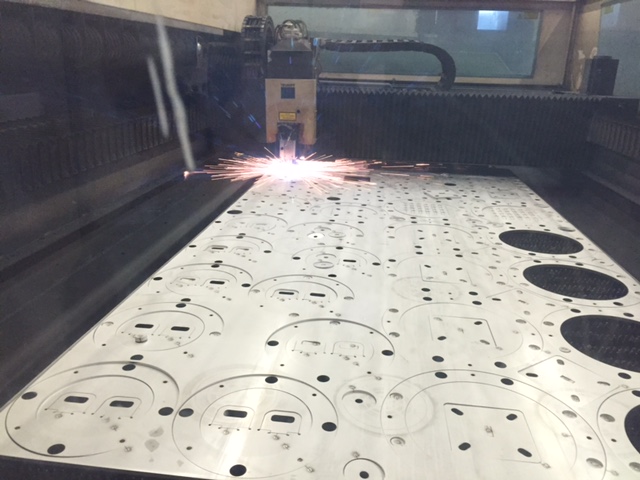

Laser cutting
07138

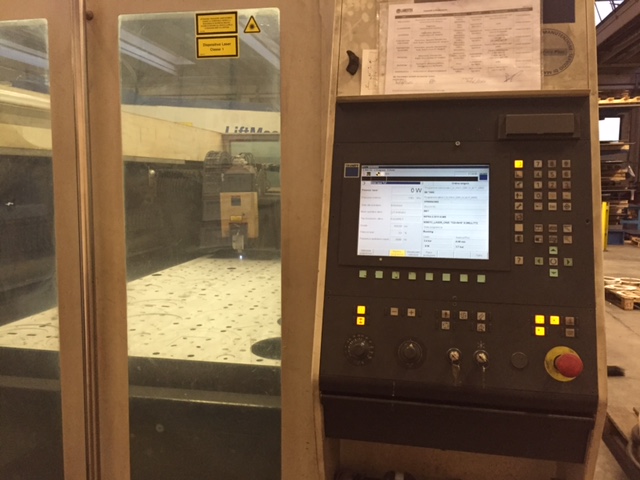

CNC TRUMPF Base SIEMENS SINUMERIK 840D
Working range:
-(X, Y) 3000x1500 mm
-Axis Z (DIAS) 100 mm
Range over path:
-In direction X -16 mm/+114 mm
-In direction Y -19 mm/+61 mm
-In direction Z -7 mm/+16 mm
Range of max movement:
-In direction X 3130 mm
-In direction Y 1580 mm
-In direction Z 123 mm
Max sheet metal thickness :
-Steel da costruzione 25 mm
-Aloy steel 20 mm
-Aluminium mm 12
Max workpiece weight 900 Kg
Max axis speed:
-Paraxial 200 m/min
-Simultaneous ca. 300 m/min
Max axis acceleration 20 m/s2
LASER:

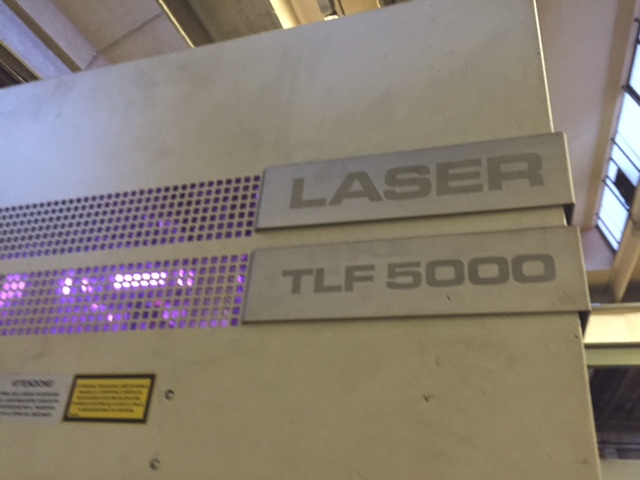

-laser type TRUMPF TLF 5000
-Max guaranted laser power 5000 W
SIZE AND WIGHT APPROX.:
-Lenght 11100 mm
-Width 4600 mm
-Height m 2400
-Weight 12000 Kg
EQUIPPED WITH:
-Liftmaster Z 3050
Total weight (max load) ca. 4850 Kg
Base working surface 1190x1190 mm
USED MACHINE
