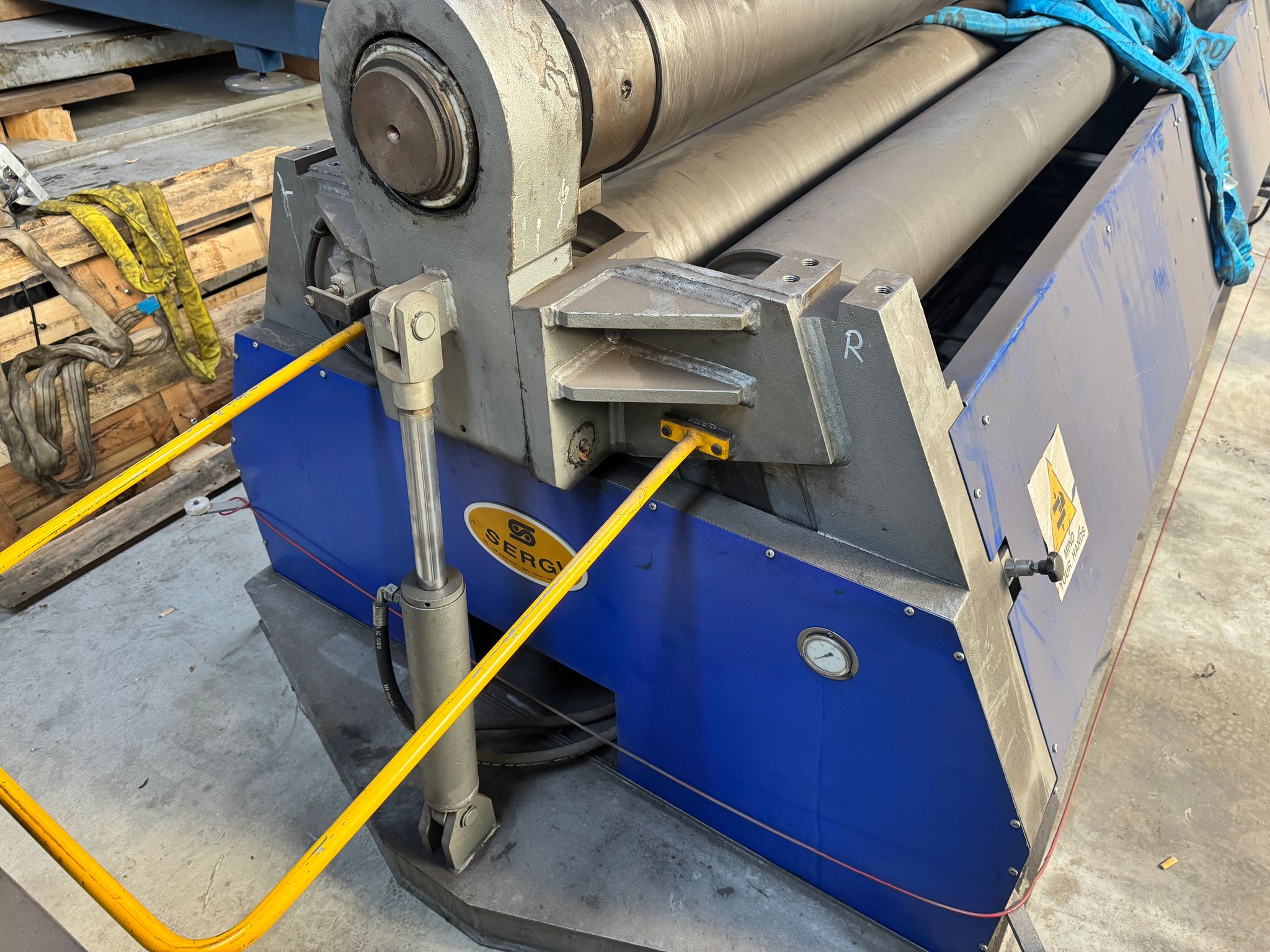

4-ROLL PLATE BENDING MACHINE SERGI
Bending rolls
10112
MOD. ROLLPOWER 4R 3050x10/12 MM
Table length 3.050 mm
Top roll diameter 270 mm
Bottom roll diameter 270 mm
Side rolls diameter 250 mm
Rotation speed (2 speeds) 2.5 - 5 m/min
Translation speed 400 mm/min
Machine weight 9.600 kg
Approximate machine dimensions 525 x 185 x 160 cm
Machine capacity
(Referred to material S235JR with yield strength 245 N/mm² (245 MPa), tensile strength 400 N/mm²)
Pre-bending phase:
Usable sheet length 3.000 mm
Pre-bending thickness 8 mm
Internal tube diameter 410 mm
Pre-bending thickness 12 mm
Internal tube diameter 1.350 mm
Rolling phase:
Usable sheet length 3.000 mm
Rolling thickness 12 mm
Internal tube diameter 810 mm
Rolling thickness 14 mm
Internal tube diameter 1.350 mm
Complete with:

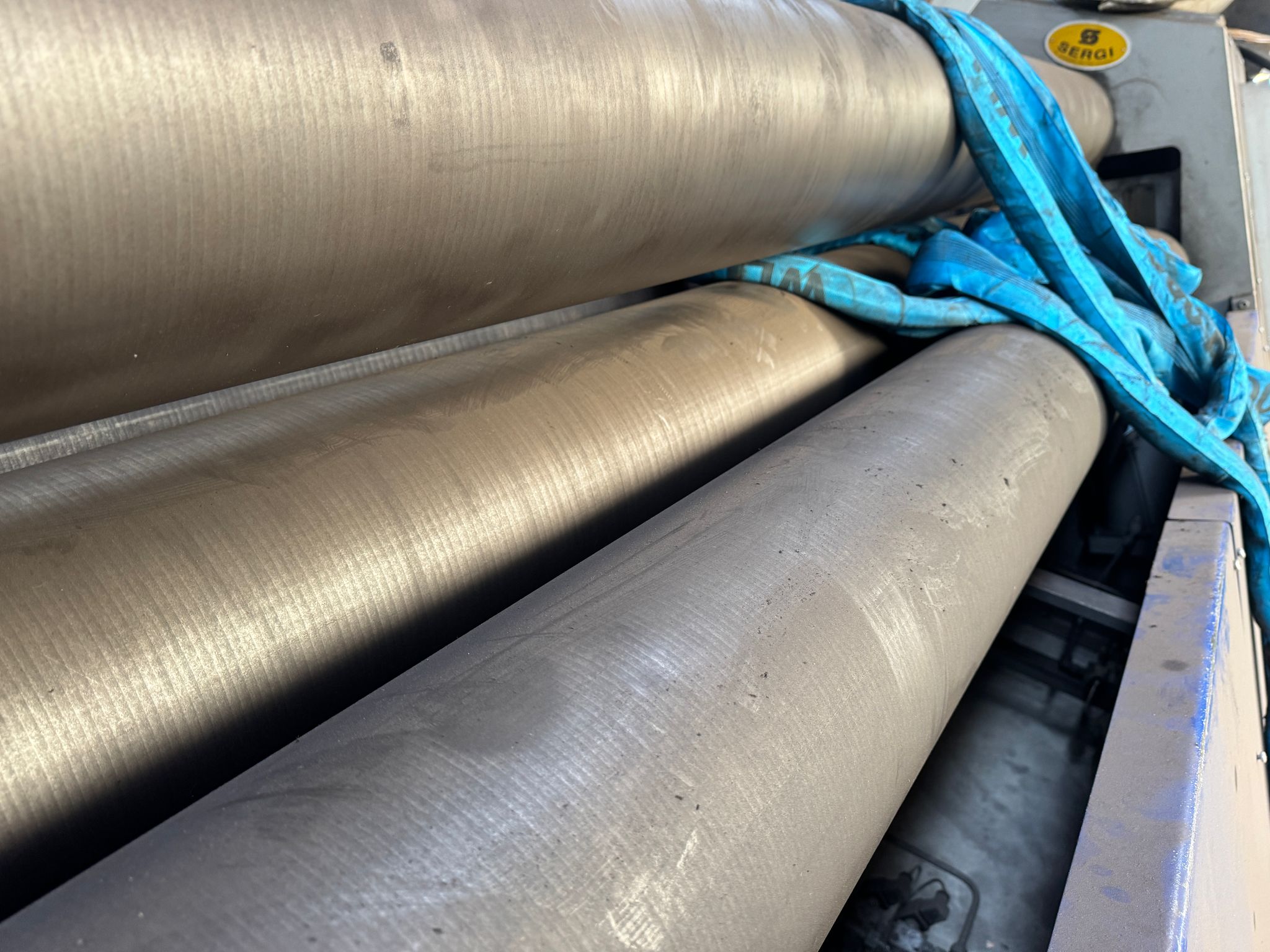

- Induction hardened rolls
- Conical bending device
- CN EsaGV 4 axes

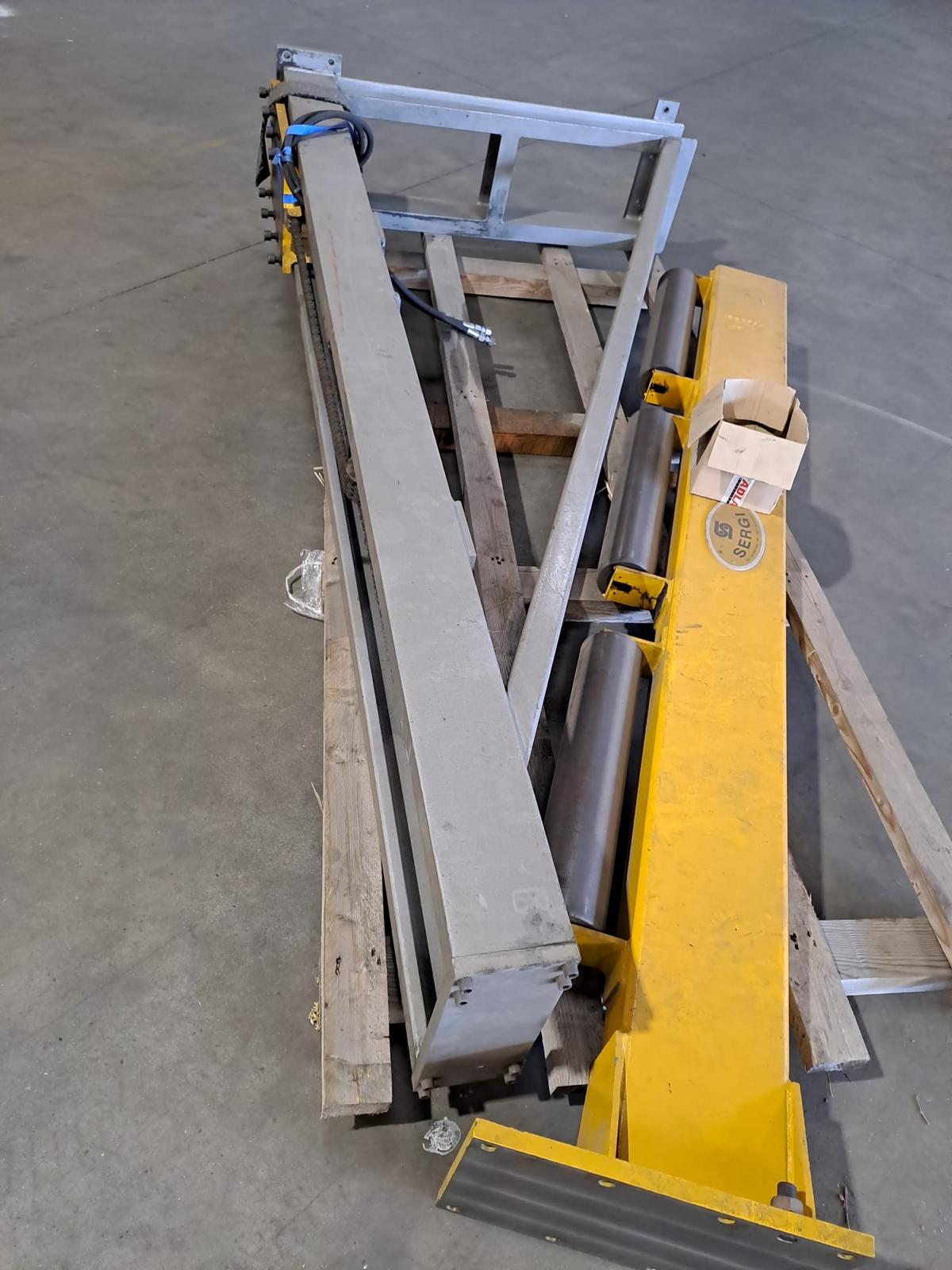

- No. 1 hydraulic central plate support

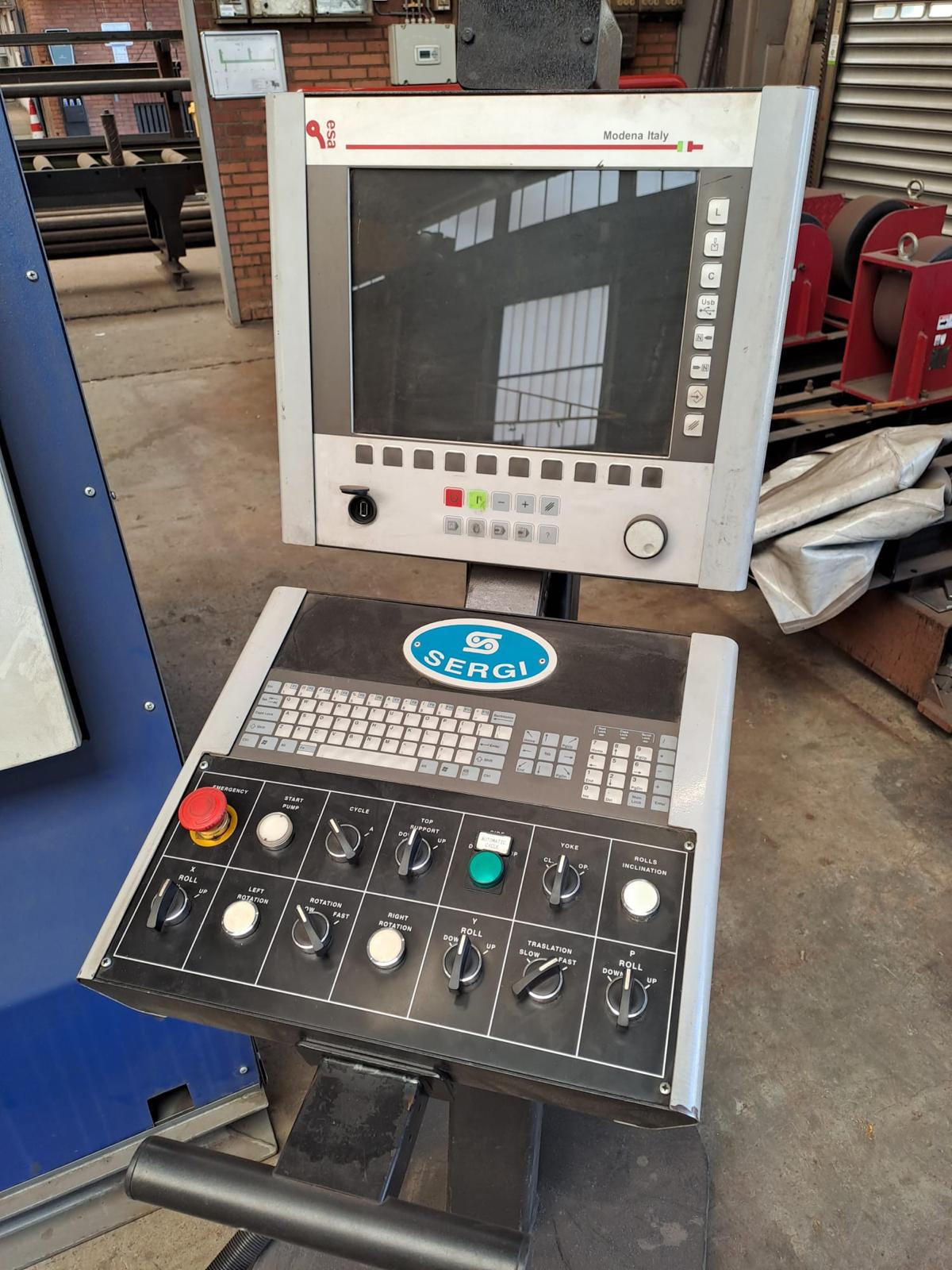

- Mobile control console
USED MACHINE
IMAGES:
