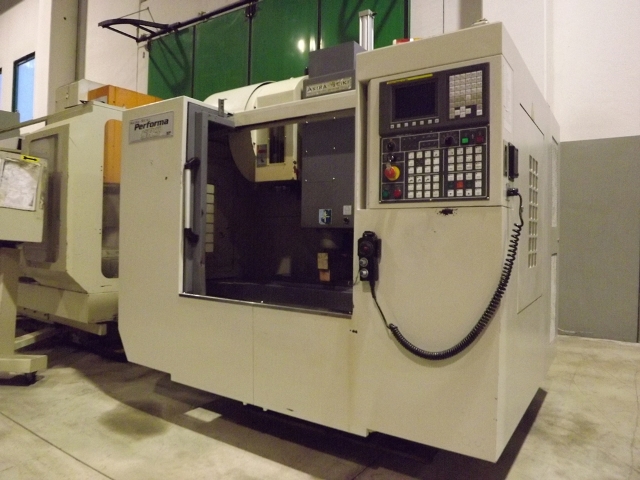

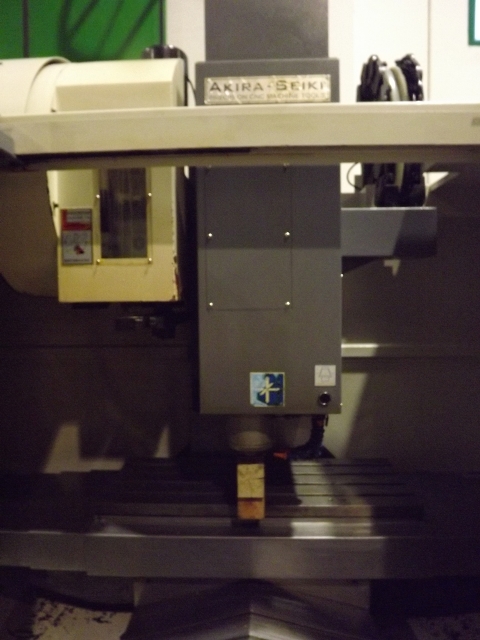

CENTER AKIRA SEIKI MOD. SR3XP
Single pallet
machine center - vertical - Used Machines
AKIRA SEIKI
06649
06649

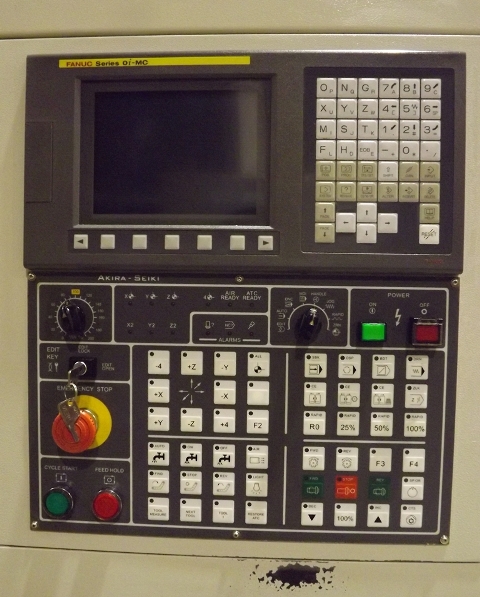

CNC FANUC Oi-MC
STROKE
Axis X mm 762
Axis Y mm 410
Axis Z mm 460
WORKING AREA
Table size mm 910x380
Max loading Kg 1100
ATC
Tool magazine 20 positions
RAPID FEED
Axis X m/min 36
Axis Y m/min 36
Axis Z m/min 30
SPINDLE
Spindle speed rpm 11.000
Spindle motor power kW 11
Spindle taper CAT-40
EQUIPPED WITH:
High pressure through the spindle 20 bar
Rigid tapping
Rempte handwhee
Chip conveyor
USED MACHINE
YEAR 2008
FILL OUT OUR FORM FOR MORE INFORMATION
