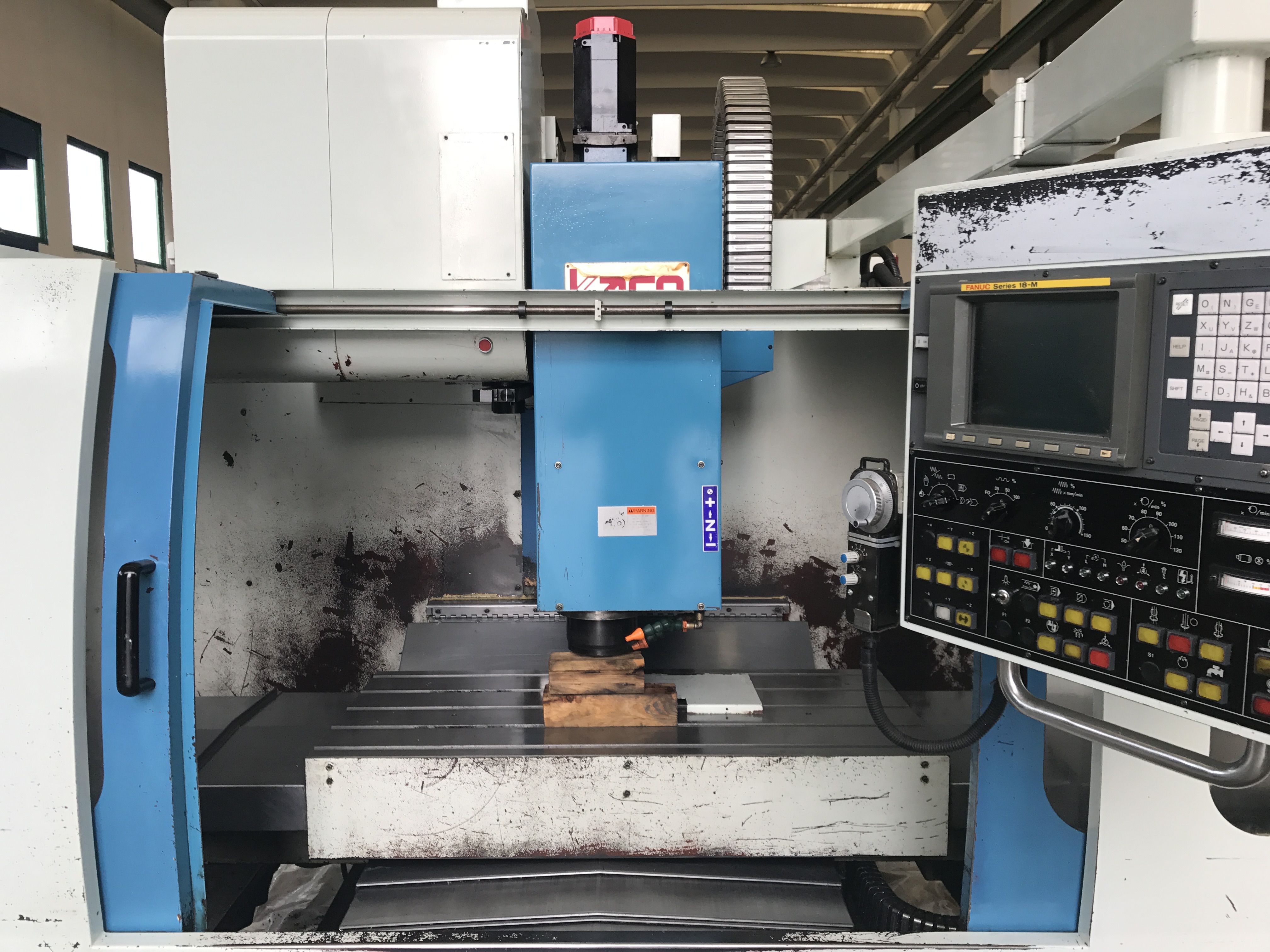

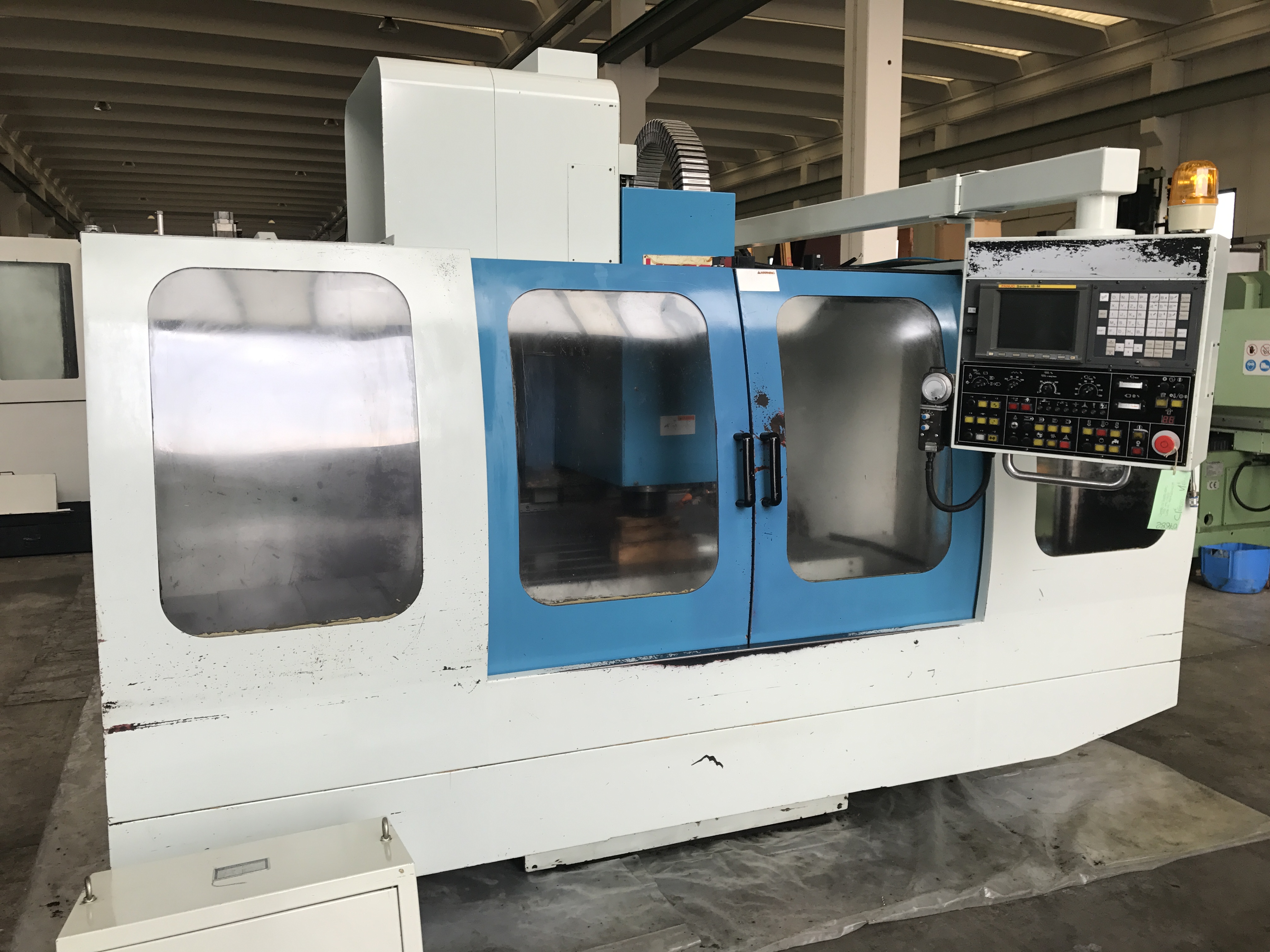

CENTER KAFO VMC-1100
Single pallet
machine center - vertical - Used Machines
KAFO
07682
07682

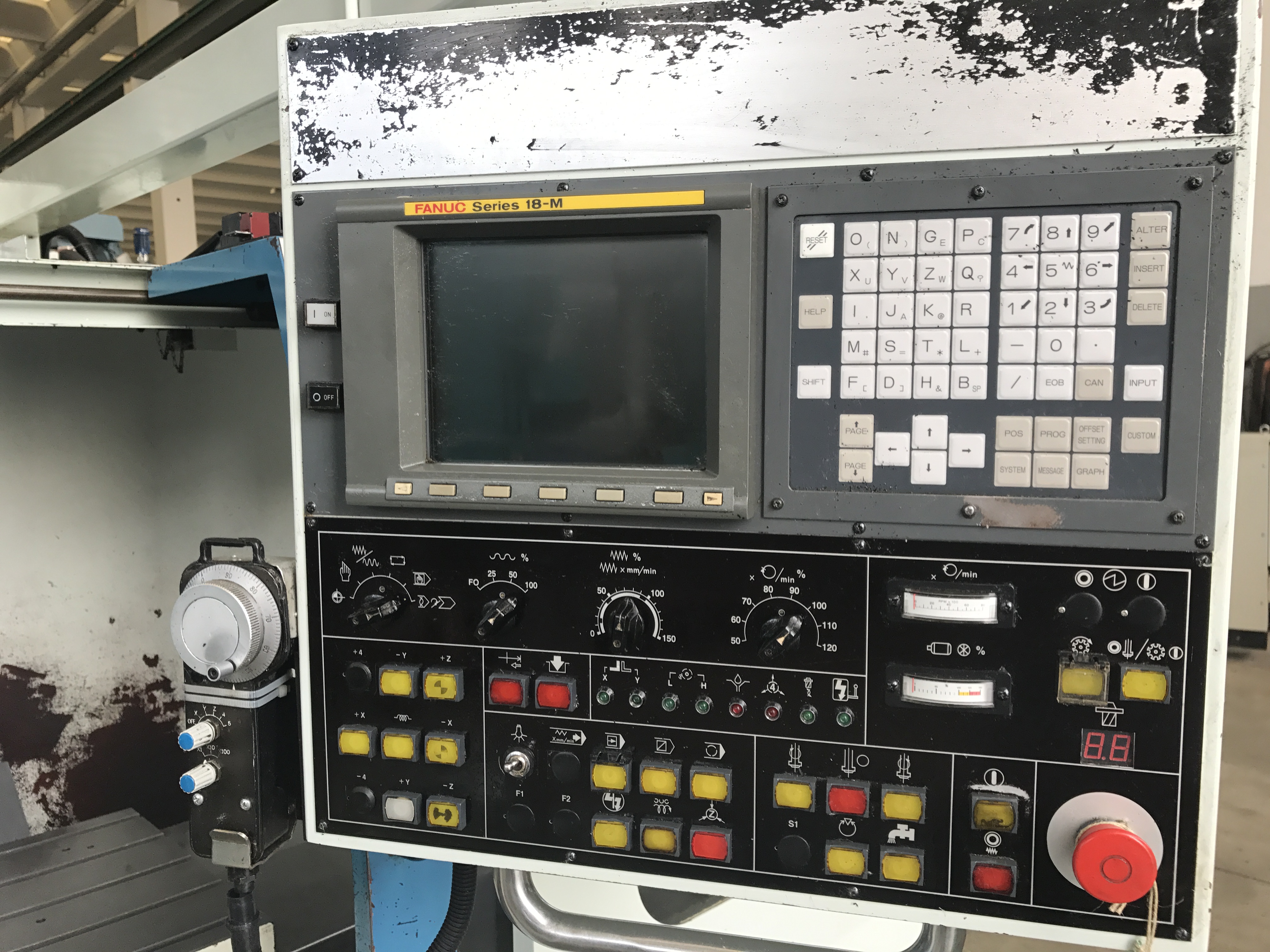

CNC FANUC 18-M
TABLE:
Dimensions mm 1300x600
T-slots (nxwidthxpitch) mm 5x18x125
Load Kg 1000
STROKE:
Axis X (longitudinal) mm 1100
Axis Y (cross) mm 600
Axis Z (vertical) mm 635
SPINDLE:
Spindle taper BT 40
Spindle speed rpm 50-8000
Distance between spindle node-table plane mm 100-735
Distanza spindle center-column mm 620

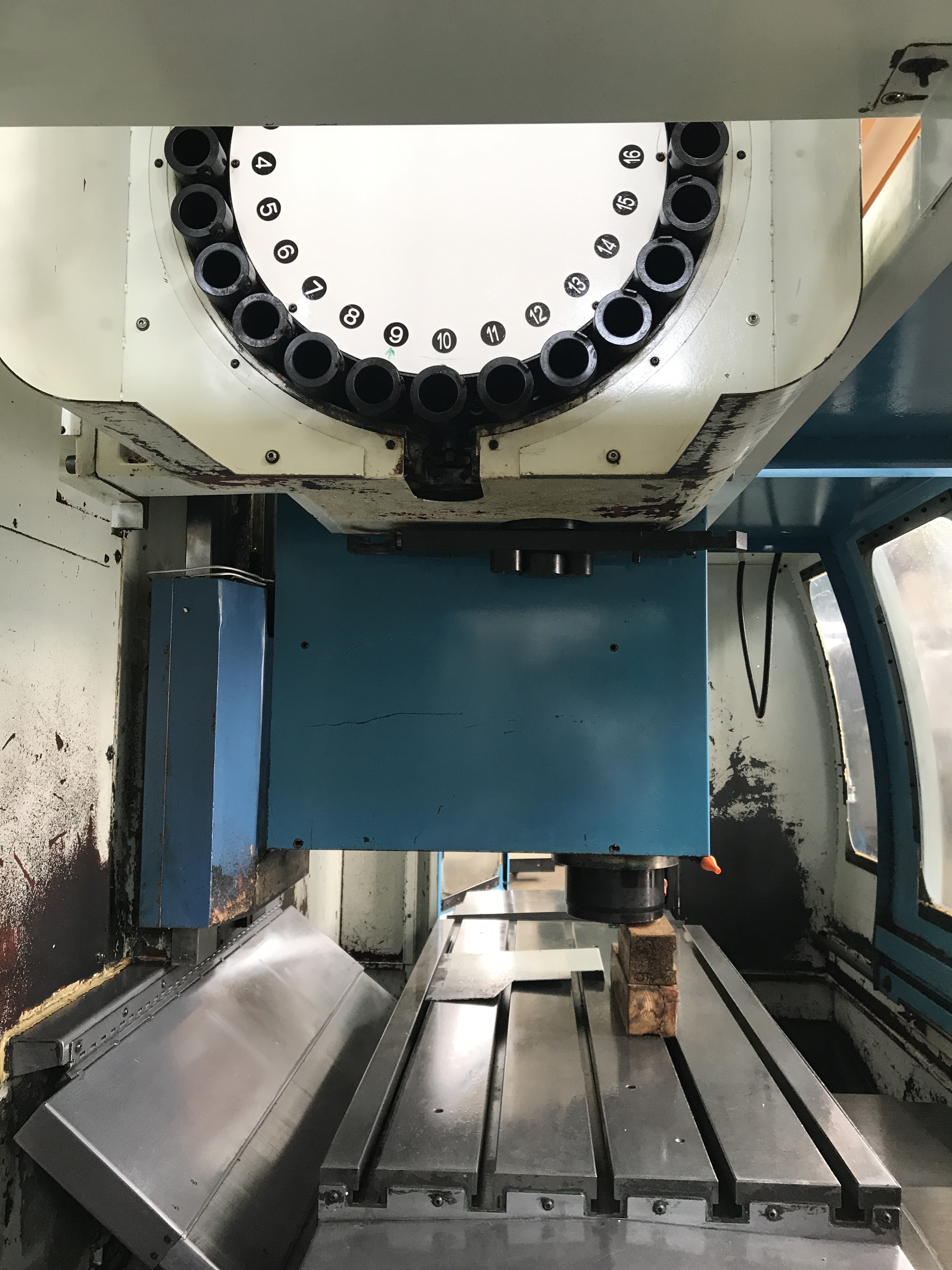

TOOL MAGAZINE:
N.24 tools
Taper cone BT 40
Max tool diameter mm 75
Max tool lenght mm 300
Max tool weight Kg 6
MOTOR POWER:
Spindle motor power (continuous/30 min.) kW 11/15
WEIGHT AND OVERALL DIMENSIONS:
Machine weight Kg 7000
Floor space mm 3150x2340
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
