CNC MILLING MECOF 5 AXIS
With rotary table
milling cnc - Used Machines
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
MECOF
10157
10157

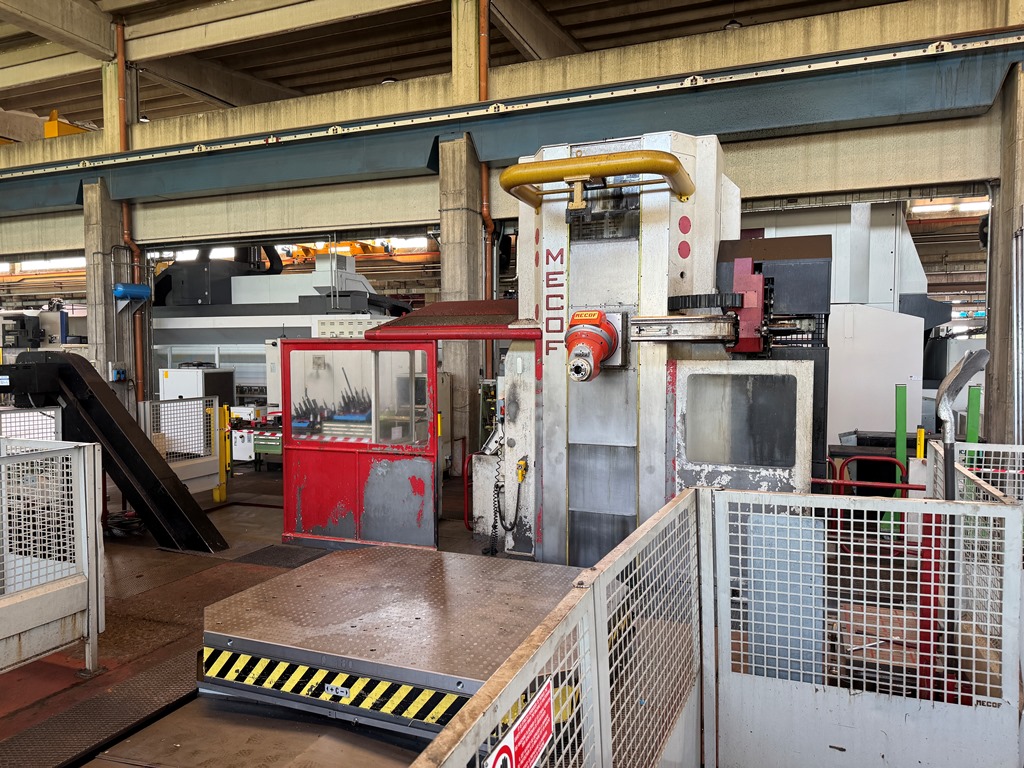

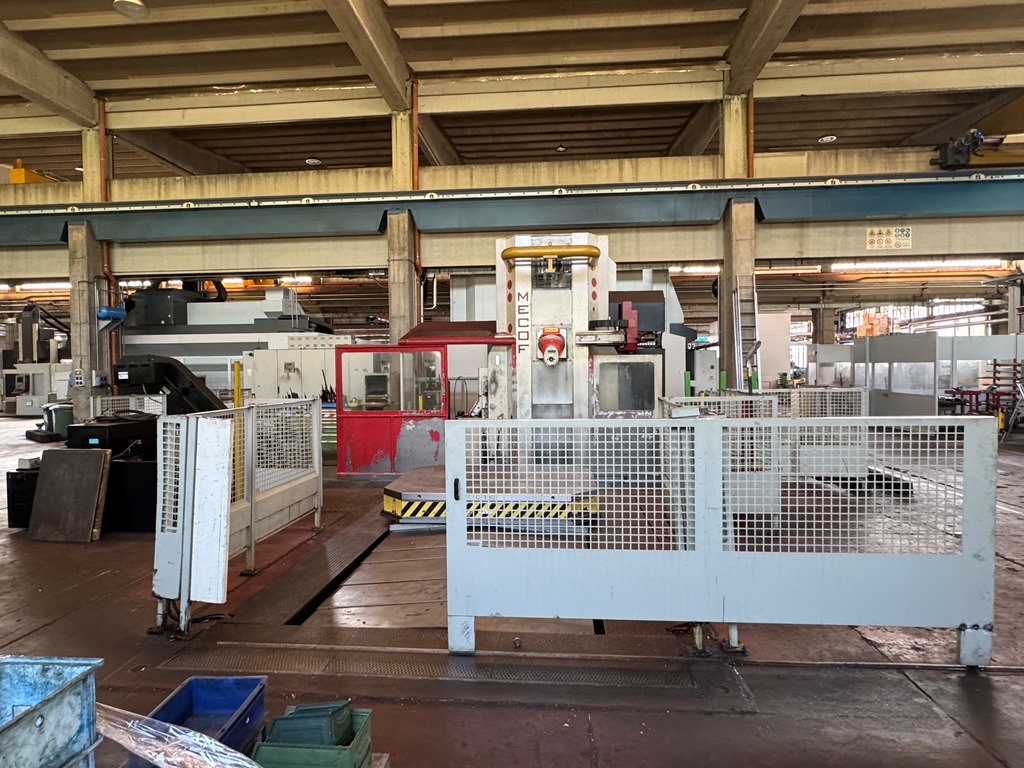

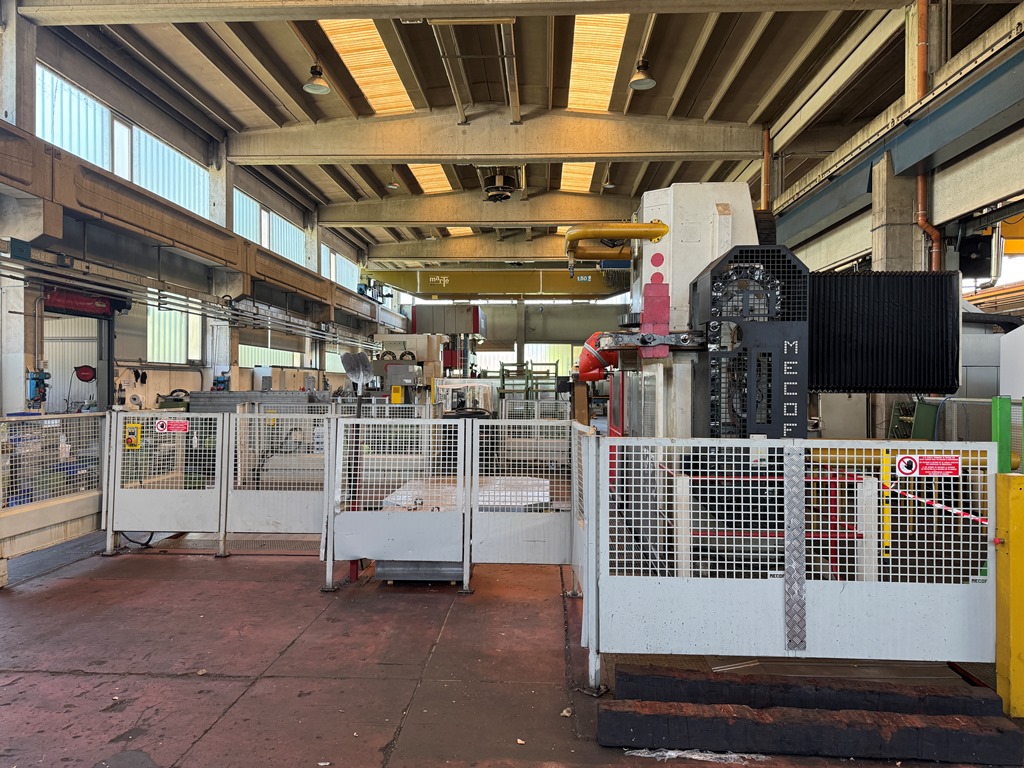

5-AXIS MILLING MACHINE MECOF mod. AGILE M3-C

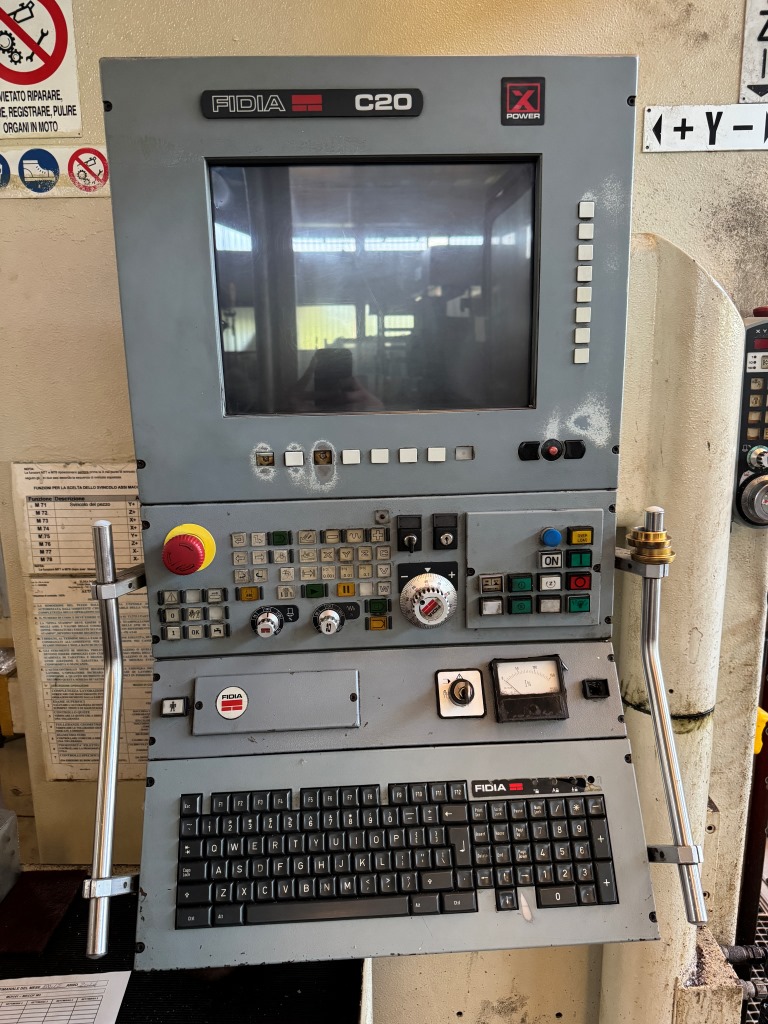

Numerical control FIDIA C20/XPOWER
Longitudinal travel (X axis) 4,000 mm
Transversal travel (Z axis) 1,250 mm
Vertical travel (Y axis) 2,000 mm

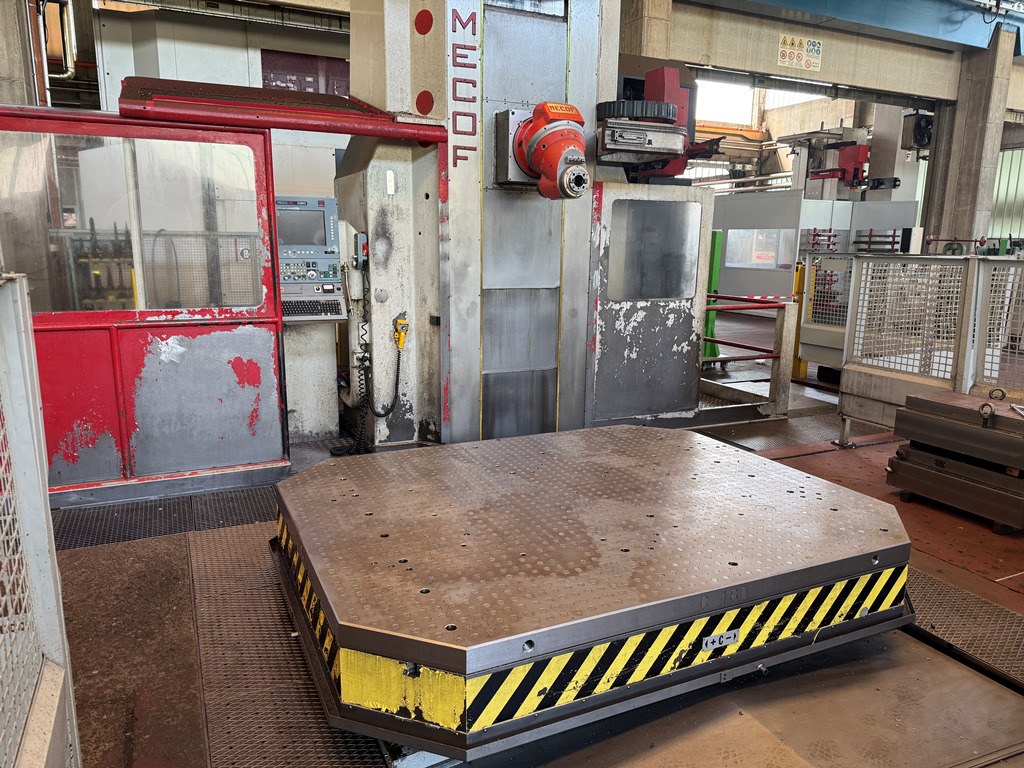

Worktable size 2000 x 2500 mm
Translation travel 2,000 mm
Rapid feed 0÷20,000 mm/min
Platform resolution 0.001°
Axis A ±180°
Translation speed 0÷6,000 mm/min
Rotation speed 0÷1,200 rpm
Rotary axis accuracy ±0.002 degrees
Hydraulic clamps
Maximum uniformly distributed load 28,000 kg
Spindle motor power 30 kW
Tool holder ISO 50 DIN 69871-A
Max speed 6,000 rpm

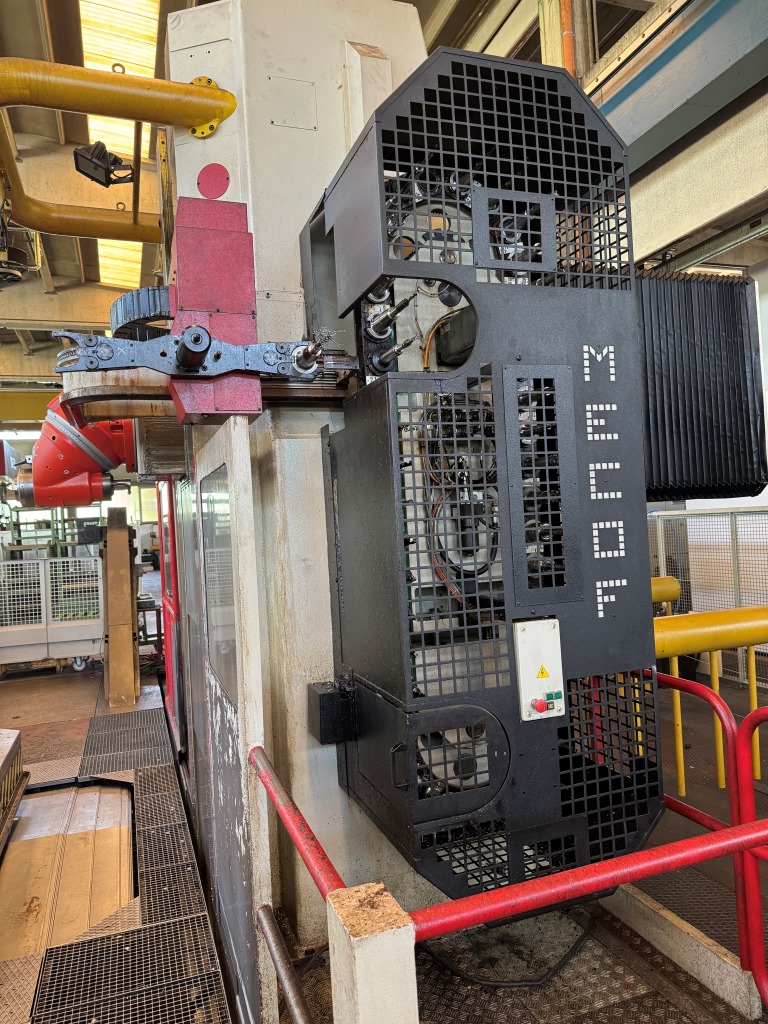

Automatic tool changer 41 positions
Equipped with:
- High pressure pump 12 bar
- Tool dimension measuring device
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
