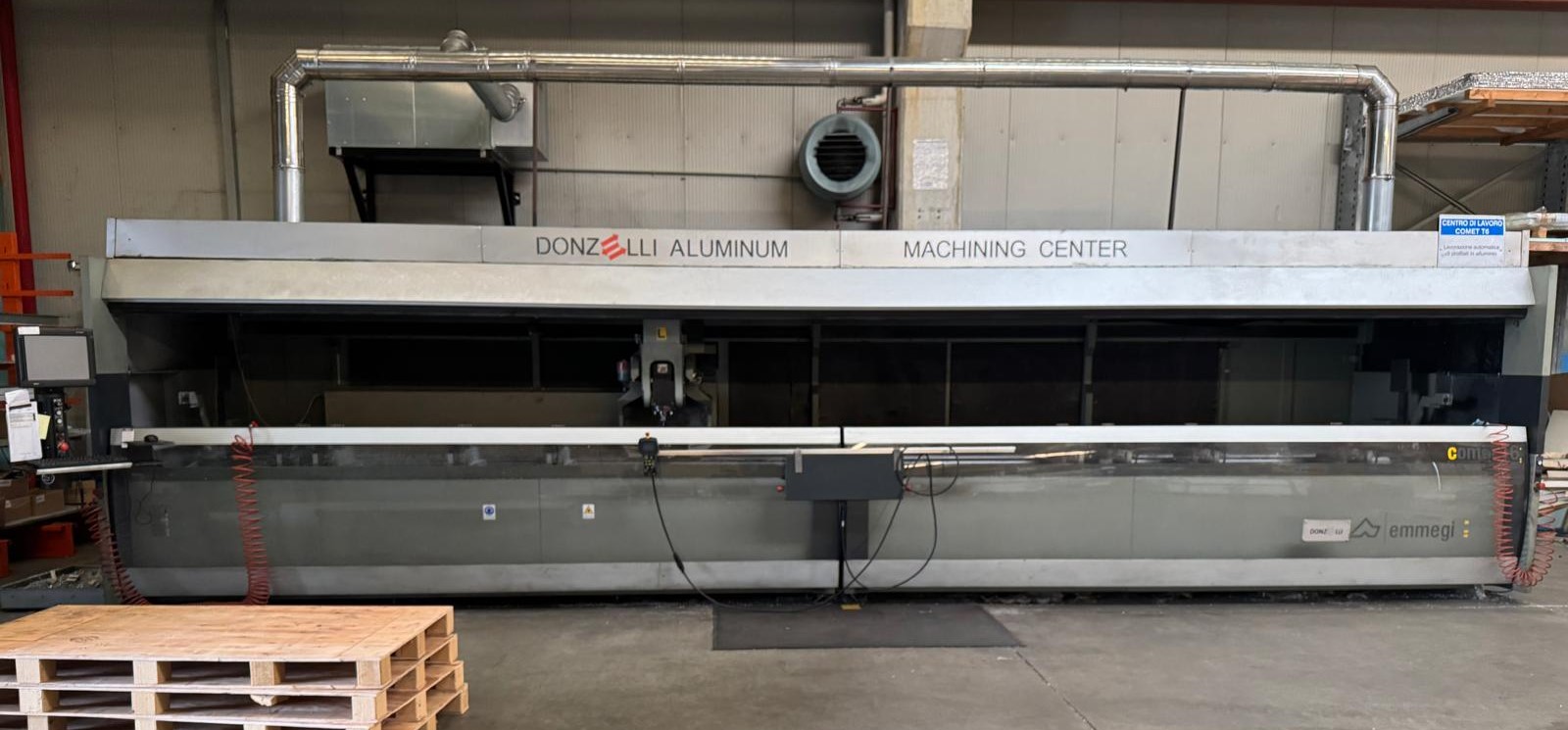

MACHINING CENTER EMMEGI MG COMET T6
Single pallet
machine center - vertical - Used Machines
.jpeg)
.jpeg)
.jpeg)
EMMEGI
10110
10110
4 AXES
Numerical control Emmegi Filo
X-axis mm 7.700 (longitudinal)
Y-axis mm 470 (transversal)
Z-axis mm 420 (vertical)
A-axis 0 - 180 degrees (spindle rotation)
Electrospindle 8 kW (S1)
Taper HSK 63F
Max speed rpm 24.000
Automatic tool magazine on carriage 8 positions
Max blade diameter mm 180
Complete with:
- Aspiration system
- Automatic clamp positioner
- Pendulum mode

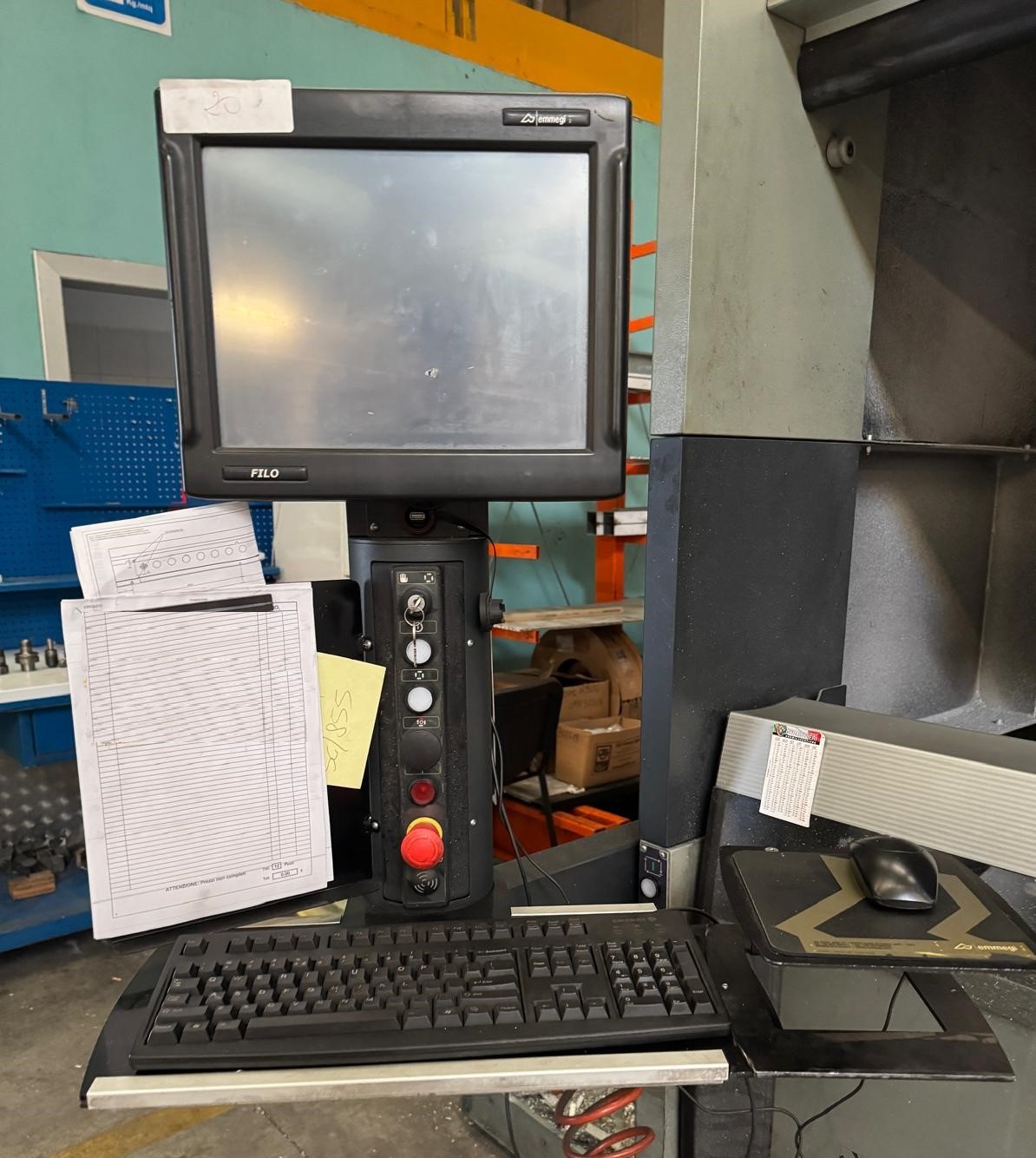

- Numerical control Emmegi Filo 15" touchscreen
USED MACHINE
YEAR 2013
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
