LATHE DENVER 480x5000
Diameter over 800 mm
09737

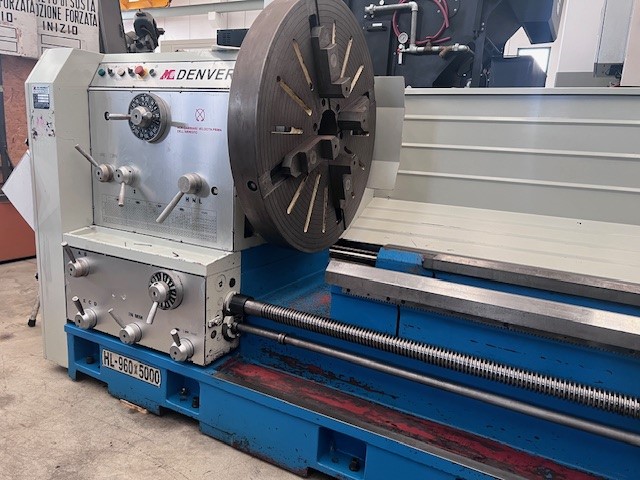

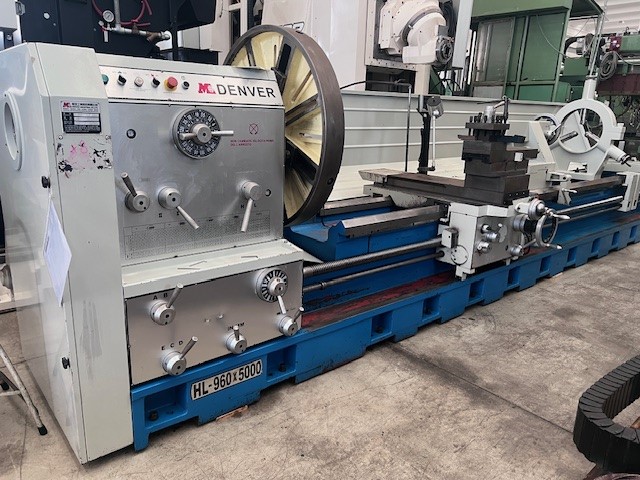

MOD. HL 960x5000
CAPACITY':
Swing diameter over the bed 960 mm
Swing diameter over cross slide 650 mm
Swing diameter over gap 1390 mm
Distance between centers 5000 mm
Height from floor to spindle center 1165 mm
Width bed 610 mm
Width gap 400 mm
Bed length 6950 mm
SPINDLE:
Bar passaging mm 155
Spindle nose A2-15
N.2 range of speed, n. 16 spindle speed
Spindle speed rpm 4:420
Motor power HP 20 (kW 15)

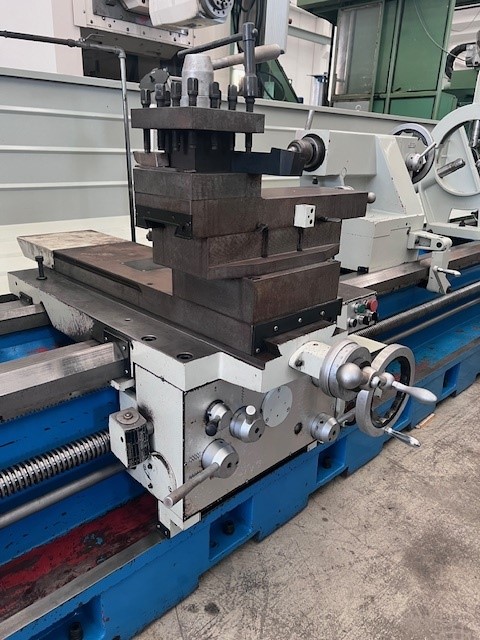

CARRIAGE:
Carriage width 800 mm
Carriage stroke 530 mm
Cross slide stroke 370 mm

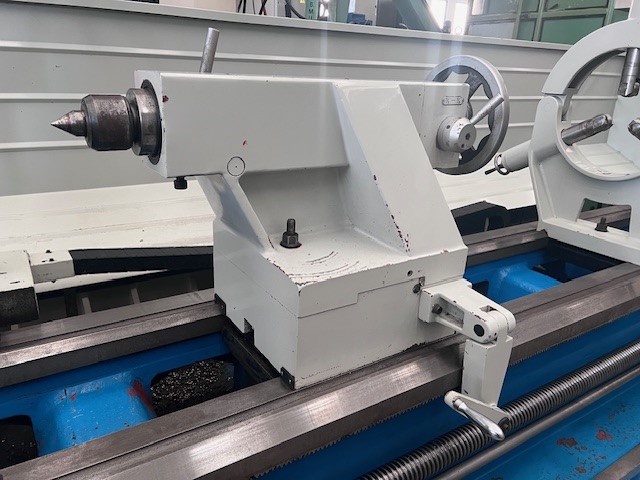

TAILSTOCK:
Quill diameter 125 mm
Quill stroke 300 mm
Quill taper MT 6
MACHINE WEIGHT:
Approx. net weight 11000 kg
Approx. overall dimensions (LxWxH) mm 7150x2050x1460
EQUIPPED WITH:

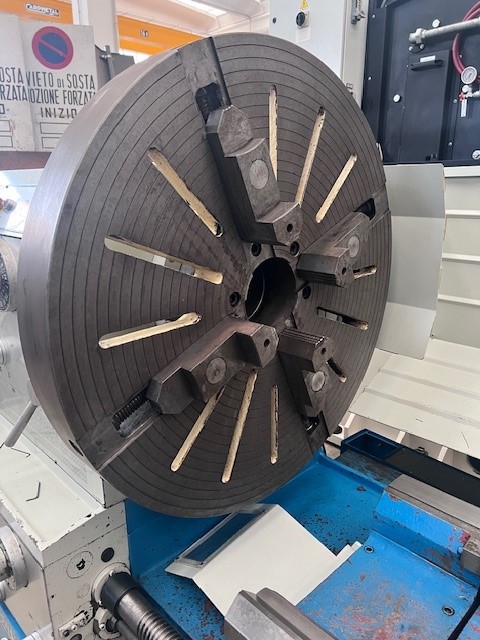

-Plateau 4 indipendent jaws 1000 mm

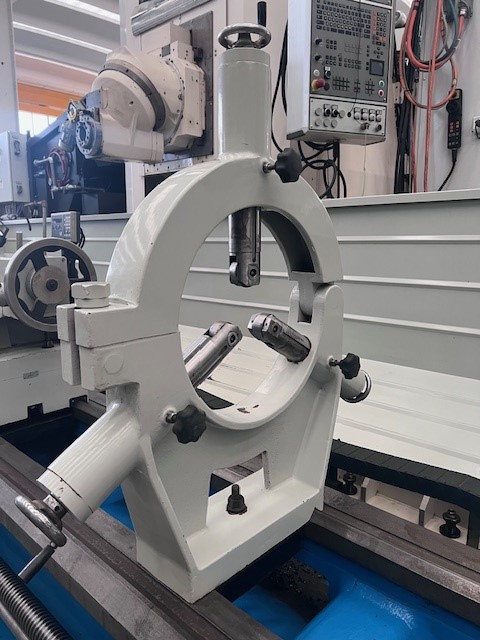

-Steady rest 400 mm

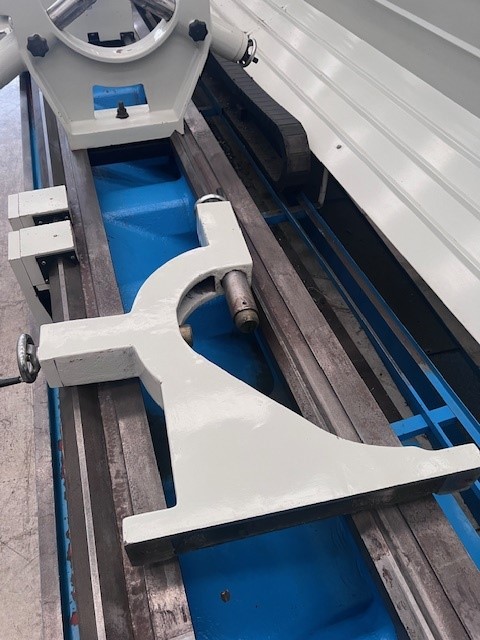

-Following rest 240 mm

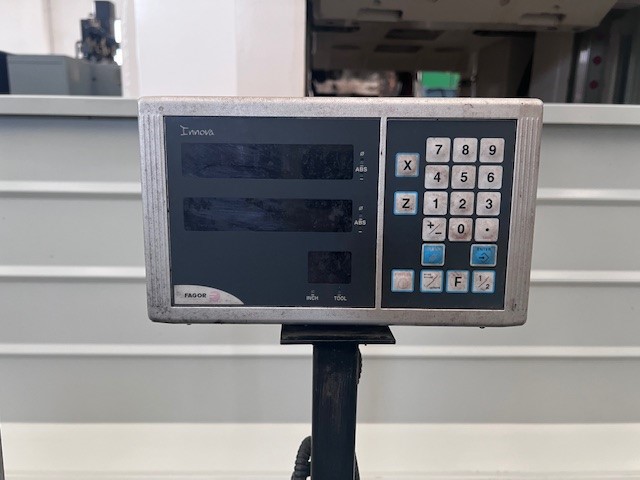

-Digital read out 2 axis
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
