CENTER MIKRON VCE800 PRO
Single pallet
machine center - vertical - Used Machines
MIKRON
09658
09658

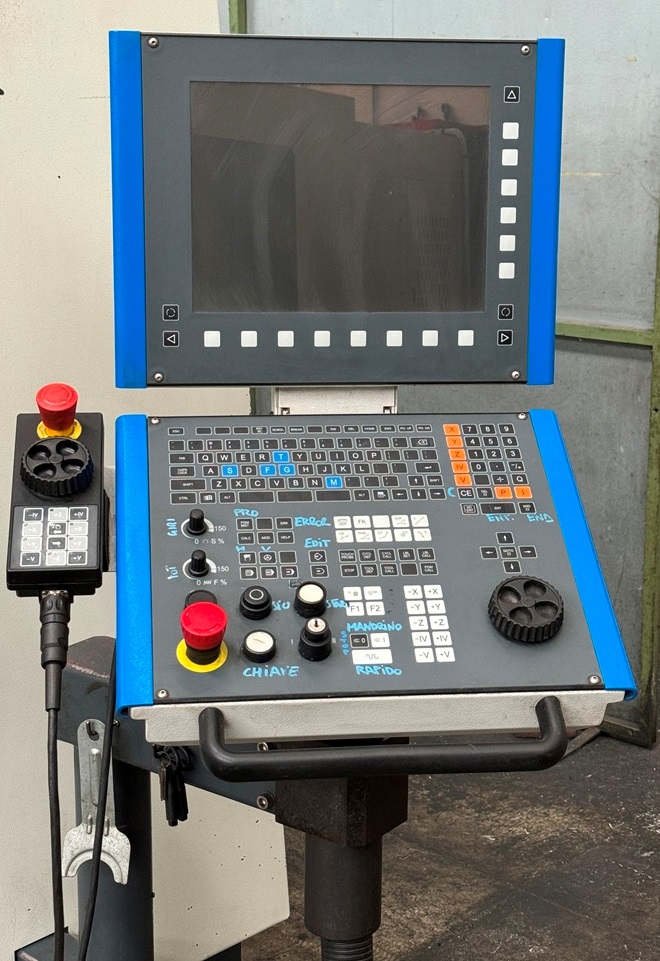

Heidenhain iTNC 530 CNC
TRAVEL:
X axis 800 mm
Y axis 500 mm
Z axis 540 mm
TABLE:
Table size: 910 x 500 mm
Max. Workpiece weight 500 kg
Linear X Y Z axis rapid feeds: 40 m/min
SPINDLE:
Spindle speed 0-10,000 rpm
Motor power 18.5 Kw
Spindle taper SK40
TOOL CHANGE:
24-place automatic
Max tool width mm 50
Max tool length mm 250
Max tool weight 8 kg
Overall dimensions:
2240 x 2720 x 3160 mm
Weight: 5,000 kg
EQUIPPED WITH:
-Remote handwheel
-Chip conveyor
-Two-color lamp
USED MACHINE
YEAR 2005
FILL OUT OUR FORM FOR MORE INFORMATION
