CENTER MAXIMART MOD. VMC850
Single pallet
machine center - vertical - Used Machines
MAXIMART
07122
07122

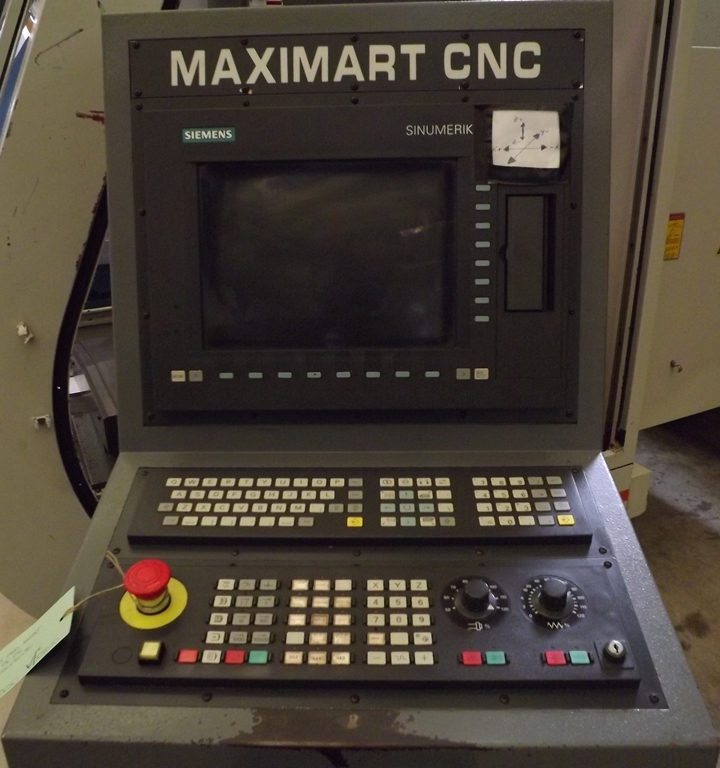

CNC SIEMENS SINUMERIK
-Table size mm 1000x450
-T-slot mm 18x3
-Axix X travel mm 850
-Axis Y travel mm 500
-Axis Z travel mm 500
-Distance between spindle center to column mm 500
-Distance between spindle nose to table mm 150-650
-Distance between table to floor mm 790
-Spindle taper BT40
-Spindle diameter mm 65
-Spindle speed rpm 60-6000
-Spindle motor power (cont/30min) kW 5/6.2
-Tool storage capacity 20 positions
-Max adjacent tool diameter mm 80x16
-Max tool lenght mm 250
-Max tool weight Kg 7/pezzo
-Floor space mm 4200x3290
-Gross weight Kg 5500
USED MACHINE
IMAGES:
