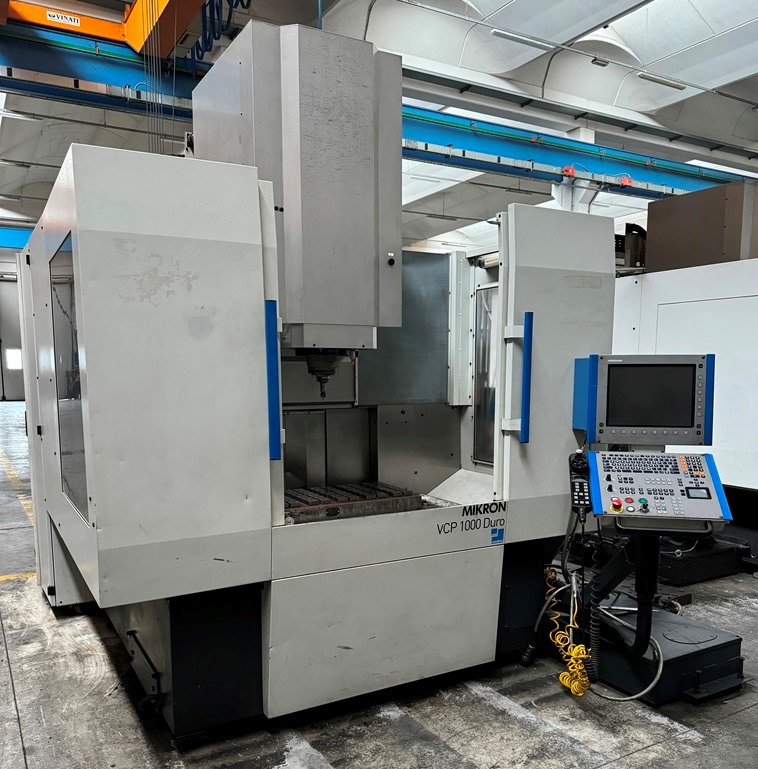

CENTER MIKRON VCP 1000 DURO
Single pallet
machine center - vertical - Used Machines
MIKRON
09641
09641

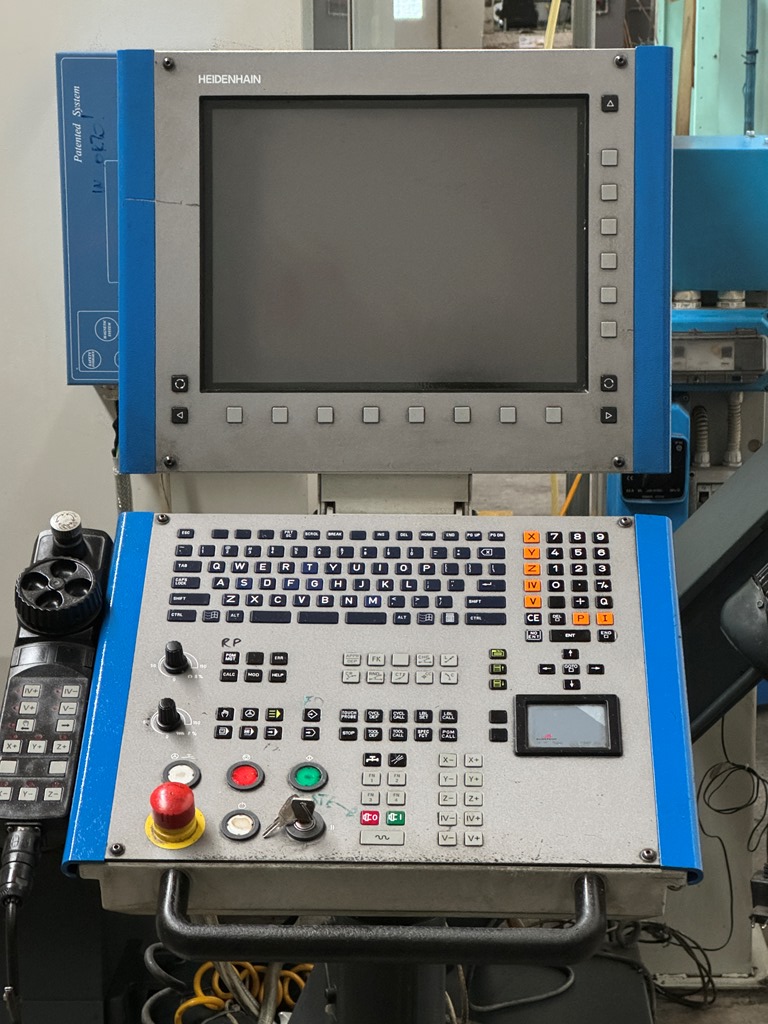

Heidenhain iTNC 530 CNC
TRAVEL:
X axis 1000 mm
Y axis 650 mm
Z axis 500 mm
TABLE:
Table size: 1300 x 600 mm
Max. Piece weight 1.600 kg

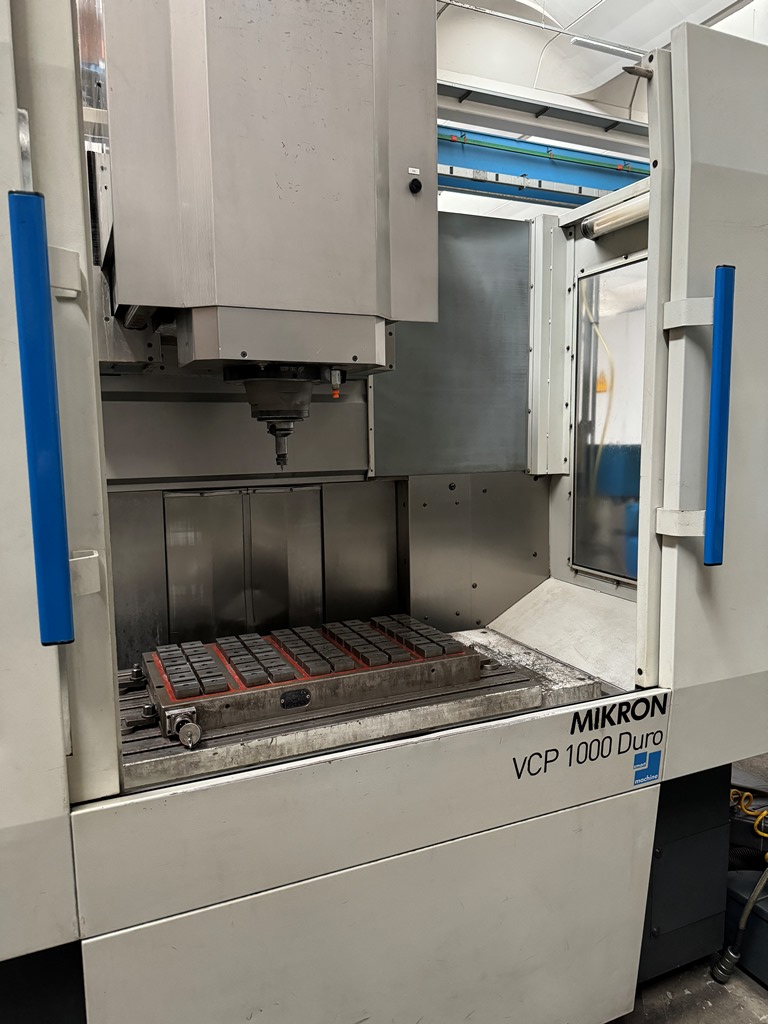

SPINDLE:
Spindle speed 20,000 rpm
Motor power 15 Kw
Spindle taper SK40
TOOL CHANGE:
Automatic 30-place
Max tool width mm 90
Max tool length mm 300
Max tool weight 8 kg
Overall dimensions (approx.) 3200x3300x3150 mm
Weight 9,420 kg
EQUIPPED WITH:
- Chip conveyor
- Remoted handwheel
USED MACHINE
YEAR 2007
FILL OUT OUR FORM FOR MORE INFORMATION
